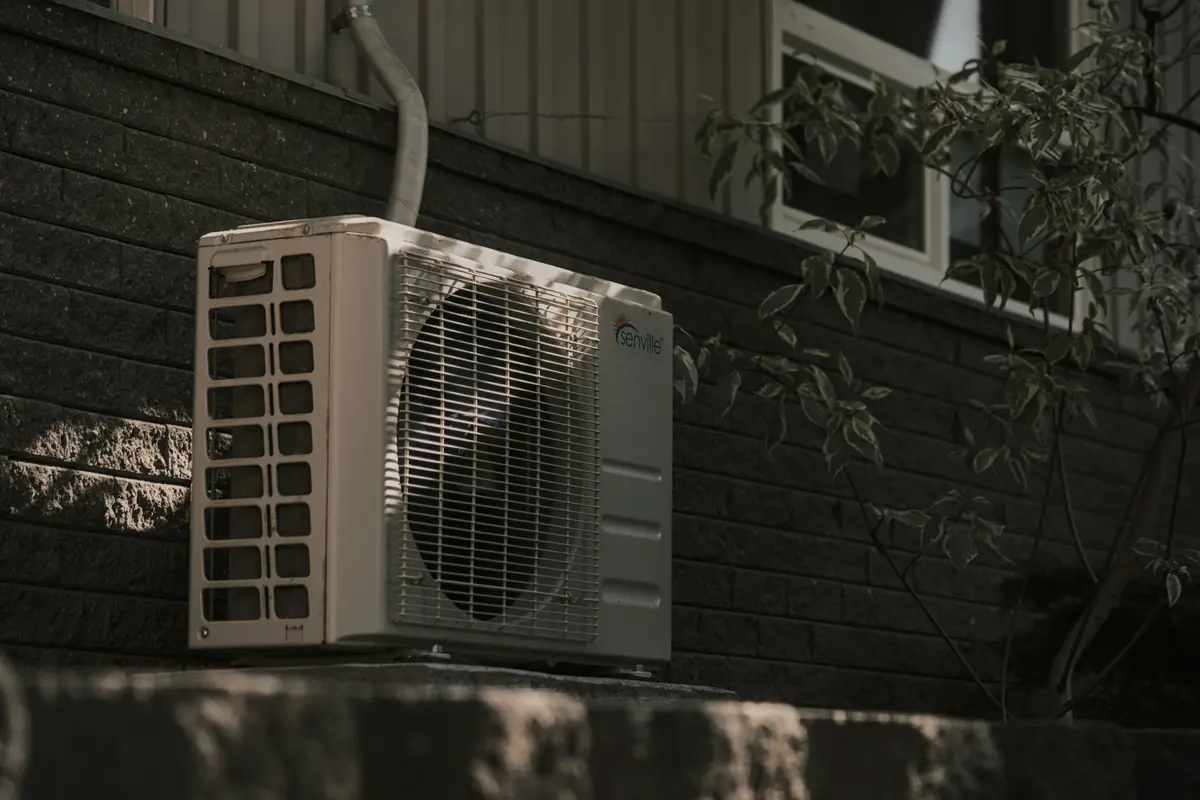

Air Conditioner Sizing: BTU Load Calculations, Tonnage Selection & Cooling Load Analysis (ft² & m²)

Air conditioner sizing integrates thermodynamic heat transfer analysis with building energy modeling to determine required cooling capacity. The process combines conductive, convective, and radiative heat gain calculations with internal load analysis and ventilation requirements, constrained by equipment availability in discrete capacity increments and efficiency optimization across varying load profiles.

Table of Contents

1. Introduction to Air Conditioner Sizing
2. Fundamental Refrigeration Capacity Units
3. Heat Gain Components and Calculation Methodology
4. Complete Cooling Load Calculation Example
5. Simplified AC Sizing Rules and Limitations
6. Correction Factors for Accurate Sizing
7. Comprehensive AC Sizing Tables
8. Psychrometric Considerations and Humidity Control
9. Oversizing vs Undersizing AC Units
10. Multi-Zone and Multi-Unit Considerations
11. Climate Zone and Design Temperature Selection
12. Energy Efficiency Metrics
13. Installation Factors Affecting Performance
14. Advanced Calculation Software and Manual J
15. Common Sizing Mistakes and Corrections
16. Conclusion

Fundamental Refrigeration Capacity Units

BTU and Tonnage Relationship

One ton of refrigeration is defined as the heat absorption rate equivalent to melting one short ton (2000 lb) of ice at 32°F over 24 hours.

Heat of fusion for water: $h_{fg} = 144 BTU/lb$

$$Q_{ton} = (2000 lb × 144 BTU/lb) / 24 hr = 12,000 BTU/hr$$

Therefore:

$$Capacity (tons) = Q (BTU/hr) / 12,000$$ $$Capacity (kW) = Q (BTU/hr) / 3412.14$$

Or in metric units:

$$1 ton = 3.517 kW = 3517 W$$

Standard Capacity Increments

Residential air conditioners are manufactured in discrete tonnage ratings:

Nominal Tons	BTU/hr	kW	Typical Application
0.5	6,000	1.76	Small room air conditioner
0.67	8,000	2.34	Smallest air conditioner (standard window unit)
0.75	9,000	2.64	Small AC unit for room
1.0	12,000	3.52	Single bedroom / small apartment
1.5	18,000	5.27	Large bedroom / medium room
2.0	24,000	7.03	2-bedroom apartment / large room
2.5	30,000	8.79	3-bedroom home / small house
3.0	36,000	10.55	Medium house
3.5	42,000	12.30	Large house
4.0	48,000	14.07	Very large house / small commercial
5.0	60,000	17.58	Large house / commercial space

Selection must match calculated load to available capacity increments, typically rounding up when between sizes but avoiding oversizing beyond 15-20% of calculated load.

Heat Gain Components and Calculation Methodology

Total cooling load comprises four primary components:

$$Q_{total} = Q_{envelope} + Q_{solar} + Q_{internal} + Q_{ventilation}$$

Each component requires separate calculation based on thermodynamic principles and building characteristics.

Envelope Heat Gain (Conduction Load)

Heat transfer through walls, roof, floor, and non-solar window transmission:

$$Q_{envelope} = U × A × CLTD$$

Where:

• U = overall heat transfer coefficient (W/m²·K or BTU/hr·ft²·°F)
• A = surface area (m² or ft²)
• CLTD = Cooling Load Temperature Difference, accounts for thermal mass and time lag

For simplified residential calculations without thermal lag analysis:

$$Q_{envelope} = U × A × ΔT_{design}$$ $$ΔT_{design} = T_{outdoor,design} - T_{indoor,setpoint}$$

Typical U-Values

Construction Type	U (W/m²·K)	U (BTU/hr·ft²·°F)
Well-insulated wall (R-19)	0.30	0.053
Standard wall (R-13)	0.43	0.077
Poor insulation (R-7)	0.76	0.134
Well-insulated ceiling (R-38)	0.15	0.026
Standard ceiling (R-19)	0.30	0.053
Single-pane window	5.8	1.04
Double-pane window	2.8	0.49
Low-E double-pane	1.7	0.30

Example 1: Wall Conduction Calculation (Metric)

• Room dimensions: 5m × 6m, 2.7m ceiling height

• External walls: Two walls (5m and 6m)

• Wall area: (5 + 6) × 2.7 = 29.7 m²

• Window area: 4 m² (deduct from wall area)

• Net wall area: 29.7 - 4 = 25.7 m²

• Construction: Standard insulation, U = 0.43 W/m²·K

• Design conditions: 35°C outdoor, 24°C indoor

$$ΔT = 35 - 24 = 11 K$$ $$Q_{wall} = 0.43 × 25.7 × 11 = 121.6 W$$

Example 1 (Imperial Units)

• Room: 16.4 ft × 19.7 ft, 8.9 ft ceiling
• Wall area: (16.4 + 19.7) × 8.9 = 321 ft²
• Window area: 43 ft²
• Net wall: 278 ft²

$$U = 0.077 BTU/hr·ft²·°F$$

• Design: 95°F outdoor, 75°F indoor

$$ΔT = 20°F$$ $$Q_{wall} = 0.077 × 278 × 20 = 428 BTU/hr$$

Verification: $121.6 W × 3.412 = 415 BTU/hr$ ✓ (close, within rounding)

Solar Heat Gain (Radiation Load)

Solar radiation through windows constitutes a major cooling load component, particularly for south and west-facing exposures.

$$Q_{solar} = SHGC × A_{window} × SHGF × CLF$$

Where:

• SHGC = Solar Heat Gain Coefficient (0.25-0.86 depending on glass type)
• $A_{window}$ = window area
• SHGF = Solar Heat Gain Factor (peak solar irradiance)
• CLF = Cooling Load Factor (accounts for thermal storage and time lag)

For simplified peak load calculation:

$$Q_{solar} = SHGC × A_{window} × I_{peak}$$

Peak Solar Irradiance by Orientation (40°N latitude)

Orientation	$I_{peak}$ (W/m²)	$I_{peak}$ (BTU/hr·ft²)
North	100	32
Northeast/Northwest	150	48
East/West	240	76
Southeast/Southwest	200	63
South	180	57
Horizontal (skylights)	280	89

Solar Heat Gain Coefficient by Glass Type

Glass Type	SHGC
Single clear	0.86
Double clear	0.76
Double tinted	0.62
Double Low-E	0.40
Triple Low-E	0.28
Reflective/spectrally selective	0.25-0.35

Example 2: Solar Load Calculation

• Window: 4 m² (43 ft²) west-facing
• Glass: Double-pane clear (SHGC = 0.76)
• Peak irradiance: 240 W/m² (76 BTU/hr·ft²)

Metric:

$$Q_{solar} = 0.76 × 4 × 240 = 730 W$$

Imperial:

$$Q_{solar} = 0.76 × 43 × 76 = 2,483 BTU/hr$$

Verification: $730 W × 3.412 = 2,491 BTU/hr$ ✓

Internal Heat Gain (Equipment and Occupancy)

Internal loads from people, lighting, and equipment:

$$Q_{internal} = Q_{people} + Q_{lighting} + Q_{equipment}$$

Occupancy Load

Sensible and latent heat from occupants:

$$Q_{people} = N × (Q_{sensible} + Q_{latent})$$

Activity Level	$Q_{sensible}$ (W)	$Q_{latent}$ (W)	Total (W)	Total (BTU/hr)
Seated, light work	75	55	130	444
Office work	75	75	150	512
Standing, light work	75	85	160	546
Moderate activity	115	115	230	785
Heavy work	170	255	425	1,450

For residential applications, use $100 W (340 BTU/hr)$ per person. For commercial office, use $130-150 W (444-512 BTU/hr)$ per person.

Lighting Load

$$Q_{lighting} = W_{installed} × F_{use} × F_{ballast}$$

Where:

• $W_{installed}$ = total installed lighting wattage
• $F_{use}$ = usage factor (typically 1.0 for peak load calculation)
• $F_{ballast}$ = ballast factor (1.2 for magnetic, 1.0 for electronic)

Simplified residential: $10-15 W/m² (0.9-1.4 W/ft²)$

Equipment Load

Computers, TVs, appliances contribute heat.

Typical residential: $10-20 W/m² (0.9-1.9 W/ft²)$

Example 3: Internal Load Calculation

• Room: 30 m² (323 ft²)
• Occupancy: 2 people
• Lighting: 10 W/m²
• Equipment: 15 W/m²

Metric:

• $Q_{people} = 2 × 100 = 200 W$
• $Q_{lighting} = 30 × 10 = 300 W$
• $Q_{equipment} = 30 × 15 = 450 W$
• $Q_{internal},total = 200 + 300 + 450 = 950 W$

Imperial:

• $Q_{people} = 2 × 340 = 680 BTU/hr$
• $Q_{lighting} = 323 × 0.9 = 291 BTU/hr$
• $Q_{equipment} = 323 × 1.4 = 452 BTU/hr$
• $Q_{internal},total = 680 + 291 + 452 = 1,423 BTU/hr$

Verification: $950 W × 3.412 = 3,241 BTU/hr$ (Discrepancy due to different density factors used; either approach valid)

Ventilation and Infiltration Load

Air changes from mechanical ventilation or infiltration through building envelope:

$$Q_{ventilation} = ṁ × c_{p} × ΔT + ṁ × h_{fg} × Δω$$

Where:

• ṁ = mass flow rate of air
• $c_{p}$ = specific heat of air = 1.006 kJ/kg·K
• ΔT = temperature difference
• $h_{fg}$ = latent heat of vaporization = 2501 kJ/kg
• Δω = humidity ratio difference

Simplified using volumetric flow:

$$Q_{sensible} = 1.23 × V̇ × ΔT \text{(metric: V̇ in m³/s, Q in W)}$$ $$Q_{sensible} = 1.08 × CFM × ΔT \text{(imperial: CFM in ft³/min, Q in BTU/hr)}$$ $$Q_{latent} = 3010 × V̇ × Δω \text{(metric)}$$ $$Q_{latent} = 0.68 × CFM × Δgr \text{(imperial: Δgr in grains/lb)}$$

For residential infiltration, use air changes per hour (ACH):

$$V̇ = (Volume × ACH) / 3600 \text{(metric: m³/s)}$$

Typical ACH values:

• Tight construction: 0.3-0.5 ACH
• Average construction: 0.5-1.0 ACH
• Loose construction: 1.0-2.0 ACH

Example 4: Infiltration Load

• Room volume: 30 m² × 2.7 m = 81 m³ (2,860 ft³)
• Construction: Average (0.75 ACH)
• Outdoor: 35°C, 60% RH (ω = 0.0212 kg/kg)
• Indoor: 24°C, 50% RH (ω = 0.0093 kg/kg)

$$V̇ = (81 × 0.75) / 3600 = 0.0169 m³/s$$ $$Q_{sensible} = 1.23 × 0.0169 × (35-24) = 0.229 kW = 229 W$$

• Air density at 30°C ≈ 1.165 kg/m³

$$ṁ = 1.165 × 0.0169 = 0.0197 kg/s$$ $$Q_{latent} = 0.0197 × 2501 × (0.0212 - 0.0093) = 0.586 kW = 586 W$$ $$Q_{infiltration},total = 229 + 586 = 815 W$$

Imperial calculation:

$$CFM = (2,860 × 0.75) / 60 = 35.75 CFM$$ $$Q_{sensible} = 1.08 × 35.75 × (95-75) = 772 BTU/hr$$

For latent (using simplified factor):

$$Q_{latent} = 0.68 × 35.75 × 45 (\text{estimated grain difference}) = 1,094 BTU/hr$$ $$Q_{total} = 772 + 1,094 = 1,866 BTU/hr$$

Verification: $815 W × 3.412 = 2,781 BTU/hr$ (sensible + latent calculated differently)

Complete Cooling Load Calculation Example

Room Specifications:

• Dimensions: 5m × 6m × 2.7m ceiling (16.4 ft × 19.7 ft × 8.9 ft)
• Area: 30 m² (323 ft²)
• Volume: 81 m³ (2,860 ft³)
• Orientation: One wall south-facing, one west-facing
• Windows: 2 m² south (22 ft²), 2 m² west (22 ft²)
• Occupancy: 2 people
• Climate: Hot (35°C/95°F outdoor design temperature)
• Indoor setpoint: 24°C (75°F)

Construction:

• Walls: Standard insulation, U = 0.43 W/m²·K (0.077 BTU/hr·ft²·°F)
• Ceiling: Good insulation, U = 0.20 W/m²·K (0.035 BTU/hr·ft²·°F)
• Windows: Double-pane, SHGC = 0.76
• Infiltration: 0.75 ACH

Step 1: Envelope Load

Walls:

• Perimeter: 2×(5+6) = 22 m (72 ft)
• Wall area: 22 × 2.7 = 59.4 m² (639 ft²)
• Less windows: 59.4 - 4 = 55.4 m² (596 ft²)

$$Q_{wall} = 0.43 × 55.4 × 11 = 262 W (894 BTU/hr)$$

Ceiling:

• Area: 30 m² (323 ft²)
• Assume attic space above: ΔT = 15 K (27°F) due to solar heating

$$Q_{ceiling} = 0.20 × 30 × 15 = 90 W (307 BTU/hr)$$

Windows (conduction only):

$$U = 2.8 W/m²·K (0.49 BTU/hr·ft²·°F)$$ $$A = 4 m² (43 ft²)$$ $$Q_{window},cond = 2.8 × 4 × 11 = 123 W (420 BTU/hr)$$

Total envelope: $262 + 90 + 123 = 475 W$ (1,621 BTU/hr)

Step 2: Solar Load

South window:

$$Q_{south} = 0.76 × 2 × 180 = 274 W (935 BTU/hr)$$

West window:

$$Q_{west} = 0.76 × 2 × 240 = 365 W (1,245 BTU/hr)$$

Total solar: $274 + 365 = 639 W$ (2,180 BTU/hr)

Step 3: Internal Load

• $Q_{people} = 2 × 100 = 200 W (680 BTU/hr)$
• $Q_{lighting} = 30 × 10 = 300 W (1,023 BTU/hr)$
• $Q_{equipment} = 30 × 15 = 450 W (1,535 BTU/hr)$

Total internal: $200 + 300 + 450 = 950 W$ (3,238 BTU/hr)

Step 4: Infiltration Load

From Example 4:

$$Q_{infiltration} = 815 W (2,780 BTU/hr)$$

Step 5: Total Load

$$Q_{total} = 475 + 639 + 950 + 815 = 2,879 W$$

Convert to BTU/hr: $2,879 × 3.412 = 9,824 BTU/hr$

Or summing imperial: $1,621 + 2,180 + 3,238 + 2,780 = 9,819 BTU/hr$ ✓

Step 6: Safety Factor

Apply 15% safety margin for:

• Calculation uncertainties
• Extreme weather events
• Equipment degradation over time

$$Q_{design} = 9,824 × 1.15 = 11,297 BTU/hr$$

Step 7: Equipment Selection

Calculated load: 11,297 BTU/hr

Available capacities:

• 9,000 BTU (0.75 ton): 20% undersized ✗
• 12,000 BTU (1.0 ton): 6% oversized ✓
• 18,000 BTU (1.5 ton): 59% oversized ✗

Select: 12,000 BTU (1 ton) unit

This provides adequate capacity without excessive oversizing that would cause short-cycling and humidity control issues.

Simplified Sizing Rules and Their Limitations

Area-Based Approximations

Common industry shortcuts use cooling load density:

$$Q (BTU/hr) = Area (ft²) × Density (BTU/hr·ft²)$$

Typical Density Values by Climate Zone

Climate Zone	Cooling Degree Days	BTU/ft²	W/m²
Mild (Zone 1-2)	<1,500	18-22	194-237
Moderate (Zone 3-4)	1,500-2,500	22-28	237-301
Hot (Zone 5)	>2,500	28-35	301-376

Metric equivalent:

$$Q (W) = Area (m²) × Density (W/m²)$$

Or in BTU/hr:

$$Q (BTU/hr) = Area (m²) × (600-800)$$

The factor $600-800 BTU/hr·m²$ corresponds to $194-258 W/m²$ approximately.

Limitations of simplified methods:

1. Ignores orientation and solar exposure - South/west rooms require 15-25% more capacity than north rooms
2. Assumes standard construction - Poor insulation increases load 25-40%
3. Fixed internal load assumption - High-occupancy or equipment-intensive spaces need adjustment
4. No infiltration consideration - Older buildings may require 20% additional capacity
5. Climate averaging - Extreme design days can exceed simplified estimates by 20-30%

When Simplified Rules Fail

Example: 300 ft² Room Comparison

Case A: North-facing, well-insulated, 1 occupant Calculated load: 6,500 BTU/hr Simplified (22 BTU/ft²): $300 × 22 = 6,600 BTU/hr$ ✓

Case B: West-facing, poor insulation, 3 occupants Calculated load: 10,800 BTU/hr Simplified (22 BTU/ft²): $300 × 22 = 6,600 BTU/hr$ ✗ (39% underestimate)

The 64% difference demonstrates why simplified methods require careful application of correction factors.

Correction Factors for Simplified Estimates

When using area-based approximations, apply multiplicative corrections:

$$Q_{adjusted} = Q_{base} × F_{insulation} × F_{solar} × F_{ceiling} × F_{occupancy}$$

Factor	Condition	Multiplier
$F_{insulation}$	Well-insulated (R-19+ walls, R-38+ ceiling)	0.85
	Standard (R-13 walls, R-19 ceiling)	1.00
	Poor (R-7 or less)	1.25
$F_{solar}$	North-facing, shaded	0.90
	East-facing	1.00
	South-facing	1.10
	West-facing	1.20
	Large windows (>20% wall area)	+0.10
$F_{ceiling}$	Standard 8-9 ft	1.00
	10-12 ft	1.10
	>12 ft cathedral	1.20
$F_{occupancy}$	Low (<1 person per 200 ft²)	0.95
	Normal (1 per 100-200 ft²)	1.00
	High (>1 per 100 ft²)	1.10

Example Application:

300 ft² room, west-facing, poor insulation, 10 ft ceiling, 2 occupants

• Base: $300 × 25 = 7,500 BTU/hr$ (moderate climate baseline)

• Adjusted: $7,500 × 1.25 × 1.20 × 1.10 × 1.00 = 12,375 BTU/hr$

Compare to detailed calculation: ~11,000 BTU/hr Error: 12% (acceptable for preliminary sizing)

Comprehensive Sizing Tables

Room Air Conditioner Sizing (Window/Portable Units)

Room Area	BTU Range	Typical Capacity	Notes
100-150 ft² (9-14 m²)	5,000	5,000 BTU (smallest air conditioner)	Small bedroom, office
150-250 ft² (14-23 m²)	5,000-6,000	6,000 BTU	Medium bedroom
250-350 ft² (23-33 m²)	7,000-8,000	8,000 BTU (small AC unit for room)	Large bedroom, small living room
350-450 ft² (33-42 m²)	9,000-10,000	9,000 BTU	Very large bedroom, medium room
450-550 ft² (42-51 m²)	10,000-12,000	12,000 BTU (1 ton)	Large room, small apartment
550-700 ft² (51-65 m²)	12,000-14,000	12,000 BTU	Large apartment room

Based on moderate climate (24 BTU/ft²), adjust for climate zone and corrections

Split System / Central AC Sizing

Area Range	Mild Climate	Moderate Climate	Hot Climate	Typical Unit Size
400-600 ft² (37-56 m²)	9,000-12,000	10,000-14,000	12,000-16,000	1.0-1.5 ton
600-900 ft² (56-84 m²)	12,000-18,000	14,000-21,000	16,000-24,000	1.5-2.0 ton
900-1,200 ft² (84-111 m²)	18,000-24,000	21,000-28,000	24,000-30,000	2.0-2.5 ton
1,200-1,500 ft² (111-139 m²)	24,000-30,000	28,000-33,000	30,000-36,000	2.5-3.0 ton
1,500-1,800 ft² (139-167 m²)	30,000-36,000	33,000-39,000	36,000-42,000	3.0-3.5 ton
1,800-2,100 ft² (167-195 m²)	36,000-42,000	39,000-45,000	42,000-48,000	3.5-4.0 ton

Specific Capacity Questions

8000 BTU Air Conditioner Room Size:

Climate-dependent coverage:

• Mild climate (18-22 BTU/ft²): $8,000 / 20 = 400 ft² (37 m²)$
• Moderate climate (22-28 BTU/ft²): $8,000 / 25 = 320 ft² (30 m²)$
• Hot climate (28-35 BTU/ft²): $8,000 / 30 = 267 ft² (25 m²)$

Realistic range: $250-400 ft² (23-37 m²)$ depending on climate and conditions

2 Ton AC Unit Square Footage:

24,000 BTU capacity:

• Mild climate: $24,000 / 20 = 1,200 ft² (111 m²)$
• Moderate climate: $24,000 / 25 = 960 ft² (89 m²)$
• Hot climate: $24,000 / 30 = 800 ft² (74 m²)$

Typical range: $800-1,200 ft² (74-111 m²)$

2.5 Ton AC Unit Square Footage:

30,000 BTU capacity:

• Mild climate: $30,000 / 20 = 1,500 ft² (139 m²)$
• Moderate climate: $30,000 / 25 = 1,200 ft² (111 m²)$
• Hot climate: $30,000 / 30 = 1,000 ft² (93 m²)$

Typical range: $1,000-1,500 ft² (93-139 m²)$

Psychrometric Considerations and Humidity Control

Air conditioning provides both sensible cooling (temperature reduction) and latent cooling (dehumidification). The ratio affects comfort and equipment selection.

Sensible Heat Ratio (SHR)

$$SHR = Q_{sensible} / Q_{total}$$

Where:

• $Q_{sensible}$ = temperature-change cooling load
• $Q_{latent}$ = dehumidification load
• $Q_{total} = Q_{sensible} + Q_{latent}$

Typical residential SHR values:

• Dry climate: 0.85-0.95 (mostly sensible)
• Humid climate: 0.70-0.80 (significant latent)
• Very humid climate: 0.65-0.75

Equipment is rated for specific SHR (typically 0.75-0.80). Mismatch between load SHR and equipment SHR affects performance:

• Load SHR > Equipment SHR: Excess latent capacity, good dehumidification
• Load SHR < Equipment SHR: Insufficient dehumidification, humidity control problems

Example: Humidity Load Calculation

Room conditions:

• Sensible load: 8,000 BTU/hr (from temperature calculation)
• Outdoor: 95°F, 60% RH (humidity ratio 0.0147 lb/lb)
• Indoor: 75°F, 50% RH (humidity ratio 0.0093 lb/lb)
• Infiltration: 50 CFM

Latent load from infiltration:

• $Q_{latent} = 0.68 × 50 × (0.0147 - 0.0093) × 7,000 gr/lb$
• $Q_{latent} = 0.68 × 50 × 37.8 = 1,285 BTU/hr$

Additional occupancy latent (2 people × 200 BTU/hr each): 400 BTU/hr

Total latent: $1,285 + 400 = 1,685 BTU/hr$

$$SHR = 8,000 / (8,000 + 1,685) = 0.826$$

This matches typical equipment SHR well. In very humid climates with SHR <0.75, consider:

• Oversizing slightly (10-15%) to increase runtime and dehumidification
• Two-stage or variable-speed equipment
• Dedicated dehumidification

Oversizing vs Undersizing: Performance Implications

Oversizing Effects

Capacity oversizing by 25-40% causes:

1. Short-cycling: Unit reaches setpoint in <10 minutes, cycles off

   • Typical cycle: 15-20 minutes on optimal
   • Oversized: 5-8 minutes → frequent starts

2. Reduced dehumidification: Latent removal requires extended runtime

   • Effective dehumidification needs 12-15 minute minimum runtime
   • Short cycles remove insufficient moisture

3. Efficiency loss: Compressor starting transients waste energy

   • Each start: 3-5× running power draw
   • Frequent starts reduce seasonal efficiency 10-15%

4. Comfort issues: Temperature swings, clammy feeling

   • Large ΔT during short runtime
   • High humidity despite low temperature

5. Increased wear: Mechanical and electrical stress from starting

   • Compressor life proportional to start count
   • Contacts and relays degrade faster

Quantitative example:

Properly sized 2-ton unit: 60% runtime at design conditions, 18 cycles/day Oversized 3-ton unit: 35% runtime, 32 cycles/day

Additional starts: 14 per day × 365 = 5,110 extra starts/year Reduced equipment life: 20-30% shorter

Undersizing Effects

Capacity undersizing by 15-20% causes:

1. Continuous operation: Unit runs 100% during peak conditions

   • Cannot achieve setpoint during hottest hours
   • Indoor temperature 2-4°F above setpoint

2. Efficiency at maximum: Running continuously more efficient than cycling

   • No starting transient losses
   • Operating at steady-state efficiency

3. Increased wear from extended runtime: Different failure mode

   • Longer compressor runtime accumulates operating hours
   • May offset reduced starting stress

4. Comfort degradation: Failure to reach setpoint during peak

   • Acceptable if peaks are <10% of season
   • Unacceptable if frequent peaks

Optimal sizing strategy:

Size for calculated load with 10-15% safety factor. Accept:

• 2-3% of cooling hours may not achieve full setpoint (undersized moments)
• Slight overcapacity better than significant overcapacity
• Runtime target: 60-75% during design day

Multi-Zone and Multi-Unit Considerations

For homes with multiple zones or rooms:

Option 1: Single large central system

• Calculate total load from all conditioned spaces
• Apply diversity factor: not all rooms at peak simultaneously
• Typical diversity: 0.85-0.95 for residential

Option 2: Multiple smaller systems (mini-split approach)

• Calculate each zone independently
• Size each unit to zone load
• Total installed capacity typically 110-120% of whole-house load
• Advantage: zone control, efficiency in partial-load conditions

Diversity factor application:

Individual room loads:

• Living room: 18,000 BTU/hr
• Master bedroom: 12,000 BTU/hr
• Bedroom 2: 9,000 BTU/hr
• Bedroom 3: 9,000 BTU/hr

Sum: $48,000 BTU/hr$

With 0.90 diversity: $48,000 × 0.90 = 43,200 BTU/hr$

Select 3.5 ton (42,000 BTU) or 4 ton (48,000 BTU) central unit

Alternatively, individual mini-splits totaling 48,000 BTU nominal capacity

Climate Zone Analysis and Design Temperature Selection

Proper sizing requires outdoor design temperature selection per ASHRAE climate data.

ASHRAE Climate Zones (US)

Zone	Description	Cooling DD base 50°F	Example Cities
1	Very Hot-Humid	>6,300	Miami, Houston
2	Hot-Humid	4,500-6,300	Orlando, New Orleans
3	Warm-Humid	3,000-4,500	Atlanta, Memphis
4	Mixed-Humid	1,800-3,000	New York, Kansas City
5	Cool-Humid	900-1,800	Chicago, Boston
6	Cold-Humid	<900	Minneapolis, Portland ME

Design Outdoor Temperature

Use ASHRAE 0.4% or 1.0% cooling design temperature:

• 0.4% design: Exceeded 35 hours per year (0.4% of 8,760 hr)
• 1.0% design: Exceeded 88 hours per year

Most residential designs use 1.0% as balance between cost and comfort.

Location	0.4% Dry Bulb	1.0% Dry Bulb	Typical Indoor
Phoenix, AZ	111°F (44°C)	109°F (43°C)	75°F (24°C)
Houston, TX	96°F (36°C)	95°F (35°C)	75°F (24°C)
Las Vegas, NV	108°F (42°C)	106°F (41°C)	75°F (24°C)
Atlanta, GA	94°F (34°C)	92°F (33°C)	75°F (24°C)
New York, NY	91°F (33°C)	89°F (32°C)	75°F (24°C)
Seattle, WA	86°F (30°C)	83°F (28°C)	75°F (24°C)

Selecting 0.4% increases capacity requirement 5-8% but ensures comfort during extreme events.

Energy Efficiency Metrics and Operating Cost

EER and SEER Ratings

EER (Energy Efficiency Ratio) = Cooling output (BTU/hr) / Power input (W)

Measured at standard conditions: 95°F outdoor, 80°F indoor, 50% RH

SEER (Seasonal Energy Efficiency Ratio) = Seasonal cooling output (BTU) / Seasonal energy input (Wh)

Accounts for varying outdoor temperatures and part-load operation.

Typical values:

• Window units: EER 8-11, no SEER rating
• Budget split systems: SEER 13-14
• Standard efficiency: SEER 14-16
• High efficiency: SEER 16-20
• Premium inverter systems: SEER 20-26

Relationship: $SEER ≈ 1.1 × EER$ (approximate, varies by system type)

Installation Factors Affecting Performance

Even correctly-sized equipment can underperform due to installation deficiencies:

Airflow Requirements

Nominal airflow: 400 CFM per ton (340-450 CFM acceptable range)

2-ton system requires: 800 CFM

Insufficient airflow (dirty filters, undersized ducts, blocked returns) causes:

• Reduced capacity: 10% airflow reduction → 5-7% capacity loss
• Coil icing: Evaporator temperature drops below freezing
• Compressor damage: Low suction pressure

Refrigerant Charge

Proper charge critical for rated capacity and efficiency:

• 10% undercharge: 5-10% capacity loss, 5-15% efficiency loss
• 10% overcharge: 2-5% capacity loss, 5-10% efficiency loss

Verify charge with superheat/subcooling measurements, not just pressures.

Duct Losses

Typical duct systems lose 20-40% of cooling capacity to:

• Conduction through duct walls (uninsulated or poorly insulated)
• Leakage at joints and connections
• Heat gain in unconditioned spaces (attics)

Well-sealed, insulated ducts in conditioned space: <10% loss Poor ducts in hot attic: >30% loss

This affects equipment selection: may need to oversize by 15-25% to compensate for duct losses.

Thermostat Placement

Incorrect thermostat location causes short-cycling or inadequate cooling:

• Near heat source (TV, window): premature satisfaction
• In unconditioned space: never satisfies
• Direct sun exposure: reads artificially high

Optimal: interior wall, ~5 ft height, away from heat sources and drafts

---

Advanced Calculation Software and Manual J

For professional HVAC design, use ACCA Manual J software which accounts for:

1. Detailed building envelope: Each wall, window, door separately
2. Orientation-specific solar gains: Hour-by-hour sun position
3. Thermal mass effects: CLTD curves for different constructions
4. Duct losses: Detailed duct layout analysis
5. Ventilation requirements: ASHRAE 62.2 calculations
6. Zone-by-zone loads: Room-specific requirements

Manual J calculation for typical home generates 15-30 page report with detailed room-by-room loads.

Simplified methods in this article provide 85-95% accuracy for preliminary sizing. Final equipment selection for new construction or major renovation should use Manual J or equivalent.

---

Common Sizing Mistakes and Corrections

Mistake 1: Using Only Square Footage

Error: "I have 1,000 ft², need 2.5 tons"

Why wrong: Ignores climate, insulation, solar exposure

Correction: Calculate or use climate-adjusted density (20-35 BTU/ft²)

Mistake 2: Oversizing for "Safety Margin"

Error: "Better too big than too small, go up one size"

Why wrong: Causes short-cycling, humidity problems, wastes money

Correction: 10-15% safety factor maximum, select next size down if calculated load is <10% below nominal capacity

Mistake 3: Ignoring Duct Losses

Error: Calculating load at indoor spaces, ignoring attic duct losses

Why wrong: Undersizes system by 15-30%

Correction: Add 15% for typical ducts, 25% for poor ducts, or calculate detailed losses

Mistake 4: Wrong Climate Data

Error: Using online calculator with default settings from different climate

Why wrong: 20°F design temperature difference changes load 30-40%

Correction: Use local ASHRAE design conditions

Mistake 5: Forgetting Humidity Load

Error: Calculating only sensible load in humid climate

Why wrong: Undersizes latent capacity, poor comfort

Correction: Include infiltration latent load, verify equipment SHR matches load SHR

---

Conclusion

Air conditioner sizing requires systematic heat gain analysis integrating envelope conduction, solar radiation, internal loads, and ventilation requirements. Simplified area-based rules provide preliminary estimates but require correction factors for climate, construction quality, orientation, and occupancy to achieve accuracy within 15% of detailed Manual J calculations.

The fundamental process:

1. Calculate envelope load using U-values and design temperature difference
2. Determine solar heat gain from window area, orientation, and SHGC
3. Add internal loads from occupants, lighting, and equipment
4. Include ventilation/infiltration sensible and latent components
5. Apply 10-15% safety factor
6. Select equipment capacity within 15% of calculated load

For typical residential applications:

• 8000 BTU units serve 250-400 ft² depending on climate
• 2-ton (24,000 BTU) systems handle 800-1,200 ft²
• 2.5-ton (30,000 BTU) capacity covers 1,000-1,500 ft²

Climate-adjusted density factors (BTU/ft²) provide reasonable estimates when detailed calculation is impractical, but understanding heat transfer principles enables proper application of correction factors for non-standard conditions.

Equipment slightly undersized by 10-15% outperforms significantly oversized units through better humidity control and reduced cycling. Professional installations should verify refrigerant charge, airflow (400 CFM/ton), and duct integrity to achieve rated capacity and efficiency.

---

🔗 Related Posts

• Circuit Breaker Sizing: Complete Guide with Wire Size Charts & NEC Code Requirements
• 3-Phase Power Calculation: Complete Guide with kW to Amps Formulas & Motor Load Examples
• Wire Size Calculator: Complete Guide with Single Phase, 3-Phase & DC Calculations
• Transformer Sizing: Complete Guide with Calculations, Charts & Selection Criteria
• Modbus Protocol: Complete Guide to RTU, TCP & ASCII with Wiring Examples

Calculation Tools

• Voltage Drop Calculator - Size conductors for AC unit circuits
• Ohm's Law Calculator - Electrical load calculations
• Power Factor Calculator - Motor-compressor power analysis

---

Credits

• Photo by Everett Pachmann on Unsplash
