Transformer Sizing: Complete Guide with Calculations, Charts & Selection Criteria

Selecting the right transformer size is one of the most critical decisions in electrical system design. An undersized transformer leads to overheating, voltage drops, and premature failure, while an oversized transformer wastes money on unnecessary capacity and reduces operating efficiency. Whether you're designing a residential step-down transformer, sizing an industrial three-phase transformer, or selecting a distribution transformer for a commercial facility, understanding proper transformer sizing principles ensures reliable operation, cost-effectiveness, and compliance with electrical codes.

Getting transformer sizing wrong can result in equipment damage, power quality issues, and expensive emergency replacements. This comprehensive guide provides the calculations, charts, and practical knowledge you need to size transformers correctly for any application, from small control transformers to large distribution transformers serving entire facilities.

Table of Contents

1. Understanding Transformer Sizing Fundamentals
2. Transformer Rating and Capacity Calculations
3. Load Analysis and Calculation Methods
4. Transformer Sizing Charts and Tables
5. Step-by-Step Sizing Examples
6. Selection Criteria Beyond kVA Rating
7. Common Sizing Mistakes and Solutions

Understanding Transformer Sizing Fundamentals

What is Transformer Sizing?

Transformer sizing is the process of determining the appropriate kVA (kilovolt-ampere) rating for a transformer based on connected load requirements, operating conditions, and future expansion needs. The transformer must provide adequate capacity to handle all connected loads while maintaining proper voltage regulation and operating within safe temperature limits.

Why Proper Sizing Matters

Critical Impacts of Transformer Sizing:

Aspect	Undersized Transformer	Properly Sized Transformer	Oversized Transformer
Operating Temperature	Excessive heat, reduced life	Normal operating range	Slightly cooler operation
Voltage Regulation	Poor, excessive voltage drop	Excellent stability	Very good regulation
Efficiency	Reduced under overload	Optimal at rated load	Reduced at light loads
Initial Cost	Lower purchase price	Balanced cost	Higher purchase price
Operating Cost	Higher losses when overloaded	Optimal efficiency	Higher no-load losses
Reliability	Frequent failures	High reliability	Very high reliability
Lifespan	Significantly reduced	Normal 20-30 years	Extended lifespan

kVA vs. kW: Understanding the Difference

This is one of the most common points of confusion in transformer sizing. Let's clarify:

kW (Kilowatt) - Real Power:

• Actual power doing useful work
• Powers motors, lighting, heating
• Measured by wattmeter
• What you pay for on electric bills

kVA (Kilovolt-Ampere) - Apparent Power:

• Total power including reactive component
• What transformers must handle
• Includes both real and reactive power
• Transformer capacity rating

Relationship:

$$\text{kVA} = \frac{\text{kW}}{\text{Power Factor}}$$

Example: A 100kW load with 0.8 power factor requires:

$$\text{kVA} = \frac{100\text{kW}}{0.8} = 125\text{kVA}$$

Transformer Rating and Capacity Calculations

Basic Sizing Formula

The fundamental transformer sizing equation:

$$\text{Transformer kVA} = \frac{\text{Total Load (kW)}}{\text{Power Factor}} \times \text{Safety Factor}$$

Where:

• Total Load = Sum of all connected loads in kW
• Power Factor = Typically 0.8 to 0.9 for most facilities
• Safety Factor = 1.20 to 1.25 (20-25% margin)

Single-Phase Transformer Sizing

For single-phase transformers, the sizing calculation is straightforward:

Current Calculation:

$$I = \frac{\text{kVA} \times 1000}{V}$$

kVA Calculation from Load:

$$\text{kVA} = \frac{V \times I}{1000}$$

Example - Residential Transformer:

• Load: 15kW (single-phase)
• Voltage: 240V
• Power Factor: 0.9
• Safety Factor: 1.25

Calculation:

$$\text{Required kVA} = \frac{15\text{kW}}{0.9} \times 1.25 = 20.83\text{kVA}$$

Selection: Choose next standard size = 25 kVA transformer

Three-Phase Transformer Sizing

Three-phase transformers require different calculations based on configuration:

Three-Phase kVA Formula:

$$\text{kVA} = \frac{\sqrt{3} \times V_L \times I}{1000}$$

Where:

• $V_L$ = Line voltage (phase-to-phase)
• $I$ = Line current in amperes

Line Current Calculation:

$$I = \frac{\text{kVA} \times 1000}{\sqrt{3} \times V_L}$$

Example - Industrial Three-Phase Load:

• Load: 100kW (three-phase)
• Voltage: 480V
• Power Factor: 0.85
• Safety Factor: 1.20

Calculation:

$$\text{Required kVA} = \frac{100\text{kW}}{0.85} \times 1.20 = 141.2\text{kVA}$$

Selection: Choose next standard size = 150 kVA transformer

Current Verification:

$$I = \frac{150 \times 1000}{\sqrt{3} \times 480} = 180.4\text{ amperes}$$

Load Analysis and Calculation Methods

Connected Load vs. Demand Load

Understanding the difference between connected load and demand load is crucial for accurate transformer sizing:

Connected Load:

• Total nameplate rating of all equipment
• Maximum possible load if everything runs simultaneously
• Always higher than actual operating load

Demand Load:

• Actual expected load during peak usage
• Accounts for diversity factor (not everything runs at once)
• More realistic for transformer sizing

Demand Factor:

$$\text{Demand Factor} = \frac{\text{Maximum Demand}}{\text{Connected Load}}$$

Typical demand factors by application:

Application Type	Demand Factor	Example
Residential	0.4 - 0.7	Not all appliances run simultaneously
Office Building	0.6 - 0.8	Computers, lighting, HVAC
Industrial Plant	0.7 - 0.9	High utilization of equipment
Data Center	0.9 - 1.0	Nearly continuous operation
Shopping Mall	0.5 - 0.7	Variable tenant usage
Hospital	0.8 - 0.9	Critical loads, high reliability

Load Categories and Sizing Considerations

1. Resistive Loads (Unity Power Factor)

Characteristics:

• Power Factor: 1.0
• Examples: Incandescent lighting, electric heating
• kVA = kW (no reactive power)

Sizing: Use actual kW rating directly

2. Inductive Loads (Lagging Power Factor)

Characteristics:

• Power Factor: 0.7 - 0.9
• Examples: Motors, transformers, fluorescent lighting
• Require reactive power (kVAR)

Sizing: Account for starting surge and power factor

Motor Starting Considerations:

• Locked Rotor Current: 5-7× full load current
• Starting Duration: 2-10 seconds
• Impact on Sizing: Add 50-100% capacity for large motors

3. Non-Linear Loads (Distorted Power Factor)

Characteristics:

• Generate harmonics
• Examples: Variable frequency drives, computers, LED drivers
• Can cause additional heating in transformers

Sizing: Add 10-20% derating for harmonic content

Special Load Considerations

Motor Loads

When sizing for motor loads, account for high starting currents:

Single Large Motor:

$$\text{kVA}_{\text{motor}} = \text{Motor HP} \times 0.746 \times 1.5 \div \text{PF}$$

Multiple Motors:

$$\text{kVA}_{\text{total}} = (\text{Largest Motor} \times 1.5) + \sum(\text{Other Motors at FLA})$$

Example - Motor Load Calculation:

• Motor 1: 50 HP (largest)
• Motor 2: 30 HP
• Motor 3: 20 HP
• Power Factor: 0.85

Calculation:

$$\text{kVA} = \frac{(50 \times 0.746 \times 1.5) + (30 \times 0.746) + (20 \times 0.746)}{0.85}$$ $$\text{kVA} = \frac{55.95 + 22.38 + 14.92}{0.85} = 109.7\text{kVA}$$

Selection: Choose 112.5 kVA transformer

Welding Equipment

Welding loads have unique characteristics:

Duty Cycle Consideration:

$$\text{Effective kVA} = \text{Rated kVA} \times \sqrt{\text{Duty Cycle}}$$

Example:

• Welder Rating: 50 kVA
• Duty Cycle: 60%

$$\text{Effective kVA} = 50 \times \sqrt{0.60} = 38.7\text{kVA}$$

Transformer Sizing Charts and Tables

Standard Transformer Sizes

Single-Phase Transformer Ratings

kVA Rating	Primary Current at 480V	Secondary Current at 240V	Secondary Current at 120V	Typical Applications
3	6.3A	12.5A	25A	Control circuits, small loads
5	10.4A	20.8A	41.7A	Machine tools, small equipment
10	20.8A	41.7A	83.3A	Lighting panels, receptacles
15	31.3A	62.5A	125A	Small commercial buildings
25	52.1A	104A	208A	Residential services
37.5	78.1A	156A	313A	Large homes, small commercial
50	104A	208A	417A	Commercial buildings
75	156A	313A	625A	Large commercial facilities
100	208A	417A	833A	Industrial applications
167	348A	696A	1392A	Large industrial loads

Three-Phase Transformer Ratings

kVA Rating	Primary Current at 480V	Secondary Current at 208V	Secondary Current at 480V	Typical Applications
15	18A	42A	18A	Small equipment, controls
30	36A	83A	36A	Machine shops, offices
45	54A	125A	54A	Small manufacturing
75	90A	208A	90A	Commercial HVAC systems
112.5	135A	312A	135A	Mid-size industrial plants
150	180A	416A	180A	Large commercial buildings
225	271A	625A	271A	Industrial facilities
300	361A	833A	361A	Large manufacturing plants
500	601A	1387A	601A	Heavy industrial loads
750	902A	2081A	902A	Large industrial facilities
1000	1203A	2775A	1203A	Major distribution
1500	1804A	4163A	1804A	Large industrial complexes
2000	2406A	5551A	2406A	Major facilities

Quick Sizing Reference Chart

Load Type Multipliers for Transformer Sizing

Load Type	Power Factor	Starting Factor	Sizing Multiplier	Example Load
Resistive	1.0	1.0	1.0×	Electric heating, incandescent lights
Inductive	0.8-0.9	1.5-2.0	1.25-1.5×	Fluorescent lights, small motors
Motor (Small)	0.85	3-5×	1.5×	Motors under 10 HP
Motor (Large)	0.85	5-7×	2.0×	Motors over 10 HP
Welding	0.5-0.7	Varies	Use duty cycle	Arc welders, resistance welders
Electronic	0.9-0.95	1.2×	1.15-1.25×	Computers, LED lighting
VFD/SMPS	0.95+	1.2×	1.2×	Variable frequency drives

Step-by-Step Sizing Examples

Example 1: Residential Single-Phase Transformer

Scenario: Size a transformer for a residential home with the following loads:

Connected Loads:

• Lighting: 5 kW
• Receptacles: 8 kW
• Electric range: 12 kW
• Air conditioning: 4 kW (3 tons)
• Water heater: 4.5 kW
• Dryer: 5 kW

Step 1: Calculate Connected Load Total connected load = 5 + 8 + 12 + 4 + 4.5 + 5 = 38.5 kW

Step 2: Apply Demand Factor For residential loads, use 0.6 demand factor: Demand load = 38.5 × 0.6 = 23.1 kW

Step 3: Account for Power Factor Assume 0.9 power factor:

$$\text{kVA required} = \frac{23.1}{0.9} = 25.7\text{kVA}$$

Step 4: Add Safety Margin Apply 1.25 safety factor: Total kVA = 25.7 × 1.25 = 32.1 kVA

Step 5: Select Standard Size Next standard size up: 37.5 kVA transformer

Verification: Current at 240V secondary:

$$I = \frac{37500}{240} = 156\text{ amperes}$$

This matches the service entrance requirement for a typical residential installation.

Example 2: Commercial Three-Phase Transformer

Scenario: Size a transformer for a commercial building with:

Lighting Loads:

• Fluorescent/LED: 30 kW (0.95 PF)

HVAC System:

• Chillers: 75 HP total (0.85 PF)
• Air handlers: 15 HP (0.85 PF)

Receptacle Loads:

• Office equipment: 40 kW (0.9 PF)

Elevator:

• 20 HP motor (0.85 PF, 5× starting current)

Step 1: Convert Motor HP to kW

• Chillers: 75 HP × 0.746 = 56 kW
• Air handlers: 15 HP × 0.746 = 11.2 kW
• Elevator: 20 HP × 0.746 = 14.9 kW

Step 2: Calculate Individual Load kVA

Lighting:

$$\text{kVA} = \frac{30}{0.95} = 31.6\text{kVA}$$

HVAC (running):

$$\text{kVA} = \frac{56 + 11.2}{0.85} = 79.1\text{kVA}$$

Receptacles:

$$\text{kVA} = \frac{40}{0.9} = 44.4\text{kVA}$$

Elevator (starting - largest motor):

$$\text{kVA} = \frac{14.9 \times 1.5}{0.85} = 26.3\text{kVA}$$

Step 3: Apply Demand Factors

• Lighting: 31.6 kVA × 1.0 = 31.6 kVA
• HVAC: 79.1 kVA × 1.0 = 79.1 kVA (continuous)
• Receptacles: 44.4 kVA × 0.75 = 33.3 kVA
• Elevator: 26.3 kVA (starting consideration)

Step 4: Calculate Total Demand Total = 31.6 + 79.1 + 33.3 + 26.3 = 170.3 kVA

Step 5: Add Safety Margin Total with 20% margin = 170.3 × 1.20 = 204.4 kVA

Step 6: Select Standard Size Next standard size: 225 kVA three-phase transformer

Verification at 480V:

$$I = \frac{225000}{\sqrt{3} \times 480} = 271\text{ amperes}$$

Example 3: Industrial Facility with Multiple Large Motors

Scenario: Manufacturing facility with significant motor loads

Motor Loads:

• Main compressor: 100 HP (largest)
• Hydraulic pump: 50 HP
• Conveyor system: 30 HP
• Various small motors: 40 HP total

Additional Loads:

• Lighting: 25 kW
• Welding equipment: 50 kVA at 60% duty cycle
• Office area: 20 kW

Step 1: Calculate Motor kVA (PF = 0.85)

Largest motor with starting consideration:

$$\text{kVA}_{\text{main}} = \frac{100 \times 0.746 \times 1.5}{0.85} = 131.6\text{kVA}$$

Other motors at full load:

$$\text{kVA}_{\text{others}} = \frac{(50 + 30 + 40) \times 0.746}{0.85} = 105.6\text{kVA}$$

Step 2: Calculate Welding Load Effective welding load:

$$\text{kVA}_{\text{weld}} = 50 \times \sqrt{0.6} = 38.7\text{kVA}$$

Step 3: Calculate Other Loads (PF = 0.9)

$$\text{kVA}_{\text{other}} = \frac{25 + 20}{0.9} = 50\text{kVA}$$

Step 4: Total Demand Total = 131.6 + 105.6 + 38.7 + 50 = 325.9 kVA

Step 5: Safety Margin (15% for industrial) Total with margin = 325.9 × 1.15 = 374.8 kVA

Step 6: Select Standard Size Choose 500 kVA three-phase transformer

This provides adequate margin for:

• Motor starting transients
• Future expansion
• Harmonic loads from VFDs
• Power quality considerations

Selection Criteria Beyond kVA Rating

Impedance and Voltage Regulation

Transformer Impedance (Z%):

• Typical range: 2-6%
• Higher impedance = better short-circuit current limitation
• Lower impedance = better voltage regulation

Voltage Regulation Calculation:

$$\text{VR}\% = \frac{V_{\text{no-load}} - V_{\text{full-load}}}{V_{\text{full-load}}} \times 100$$

Selection Guidelines:

Application	Recommended Impedance	Reason
Normal Loads	3-5%	Balanced performance
Motor-Heavy Loads	5-6%	Limits starting current impact
Long Feeders	2-3%	Minimizes voltage drop
Parallel Operation	Match within ±7.5%	Proper load sharing

Temperature Rise and Cooling

Temperature Classes:

• 55°C Rise: Standard for most applications
• 65°C Rise: Higher capacity in same physical size
• 80°C Rise: Maximum for special applications

Cooling Methods:

• AA (ONAN): Oil immersed, natural air cooling
• FA (ONAF): Forced air cooling - increases capacity 25-33%
• FOA: Forced oil with forced air - highest capacity

Impact on Sizing: A 112.5kVA transformer with forced air cooling can effectively provide 150kVA capacity.

Efficiency and Operating Costs

Efficiency Calculation:

$$\eta = \frac{P_{\text{out}}}{P_{\text{out}} + P_{\text{losses}}} \times 100\%$$

Loss Components:

1. No-load losses (core losses): Present whenever transformer is energized
2. Load losses (copper losses): Vary with load squared

Annual Energy Loss Cost:

$$\text{Annual Cost} = (P_{\text{no-load}} \times 8760) + (P_{\text{load}} \times \text{operating hours}) \times \text{\$/kWh}$$

Example - Operating Cost Comparison:

75kVA transformer, operates 4000 hours/year at 75% average load, electricity at $0.12/kWh:

Standard Efficiency (98.0%):

• No-load loss: 350W
• Full-load loss: 1200W
• Annual energy cost: (0.35 × 8760) + (1.2 × 0.75² × 4000) × 0.12 = $734

High Efficiency (98.5%):

• No-load loss: 250W
• Full-load loss: 900W
• Annual energy cost: (0.25 × 8760) + (0.9 × 0.75² × 4000) × 0.12 = $566

Annual savings: $168/year Payback period: Typically 3-5 years for premium efficiency

Environmental and Installation Factors

Ambient Temperature

• Standard rating: 40°C ambient
• High temperature locations: Derate 1-2% per °C above 40°C
• Cold climates: May require special oil specifications

Altitude

• Standard rating: Up to 1000m elevation
• High altitude: Derate 0.5% per 100m above 1000m
• Example: At 2000m elevation, apply 5% derating

Sound Level Requirements

Sound level increases with transformer size:

kVA Rating	Typical Sound Level (dBA)	Application Consideration
< 50 kVA	45-50	Suitable for office environments
75-150 kVA	50-55	Acceptable for most commercial
225-500 kVA	55-60	May require sound enclosure
> 500 kVA	60-65	Outdoor or isolated locations

Common Sizing Mistakes and Solutions

Mistake 1: Ignoring Power Factor

Problem: Sizing based on kW load without considering power factor

Example Error:

• Load: 100 kW
• Incorrect: Select 100 kVA transformer
• Power Factor: 0.75
• Actual requirement: 100 ÷ 0.75 = 133 kVA

Solution: Always convert kW to kVA using actual or estimated power factor. If unknown, assume 0.8 PF for safety.

Impact: Undersized transformer will overheat, trip on overload, and have reduced lifespan.

Mistake 2: Not Accounting for Future Growth

Problem: Sizing exactly to current load with no expansion margin

Example:

• Current load: 200 kVA
• Selected: 200 kVA transformer (no margin)
• Two years later: Need to add 50 kVA equipment
• Result: Must replace entire transformer

Solution: Include 20-25% growth margin in sizing calculations.

Better Selection:

• Current load: 200 kVA
• With 25% margin: 200 × 1.25 = 250 kVA
• Standard size: 300 kVA transformer
• Allows 100 kVA future expansion

Mistake 3: Neglecting Motor Starting Currents

Problem: Sizing only for motor full-load running current

Impact on Small Transformers: A 10 HP motor drawing 14 FLA will pull 70-100 amperes during starting. On a small transformer, this can cause:

• Severe voltage dip (10-30%)
• Nuisance tripping of other equipment
• Motor starting failure
• Transformer overheating

Solution: Use motor starting multiplier:

• Small motors (< 10 HP): 1.5× FLA
• Medium motors (10-50 HP): 2.0× FLA
• Large motors (> 50 HP): Consider soft-start or VFD

Corrected Calculation Example:

• Motor: 50 HP at 480V, 3-phase
• FLA: 65 amperes
• Running kVA: 65 × 480 × √3 ÷ 1000 = 54 kVA
• With starting: 54 × 2.0 = 108 kVA contribution
• Other loads: 75 kVA
• Total sizing: 108 + 75 = 183 kVA
• Select: 225 kVA transformer

Mistake 4: Using Connected Load Instead of Demand Load

Problem: Adding all nameplate ratings without diversity factor

Example - Office Building:

• 100 computers at 300W each = 30 kW
• Assuming all run at full power simultaneously
• Connected load approach: 30 kW ÷ 0.9 PF = 33.3 kVA

Reality:

• Average computer utilization: 40-60%
• Diversity factor: 0.5
• Actual demand: 30 × 0.5 ÷ 0.9 = 16.7 kVA

Solution: Apply appropriate demand factors from NEC Article 220 or engineering standards.

Mistake 5: Overlooking Harmonic Loads

Problem: Not derating for non-linear loads that generate harmonics

Sources of Harmonics:

• Variable frequency drives (VFDs)
• Switched-mode power supplies
• LED lighting with electronic ballasts
• Computer equipment
• UPS systems

Effect: Harmonics cause additional heating in transformer windings and core. Current harmonics can make a transformer effectively smaller than its rating.

Solution: Apply k-factor derating for harmonic loads:

Harmonic Content	K-Factor	Derating Required
Linear loads only	K-1	No derating
Light non-linear (< 15%)	K-4	5% derating
Moderate non-linear (15-30%)	K-9	10% derating
Heavy non-linear (30-50%)	K-13	15% derating
Severe non-linear (> 50%)	K-20	20% derating

Example:

• Calculated requirement: 150 kVA
• 40% of load is VFDs and computers (K-13)
• Derate: 150 × 1.15 = 172.5 kVA
• Select: 225 kVA or use K-rated transformer

Mistake 6: Incorrect Voltage Selection

Problem: Mismatching primary or secondary voltages

Common Voltage Errors:

• Ordering 208V secondary for 240V equipment
• Not accounting for voltage drop in long feeders
• Wrong tap selection for utility voltage variations

Solution Checklist:

• ✓ Verify actual utility voltage (may be 472V, not exactly 480V)
• ✓ Calculate voltage drop for distance to transformer
• ✓ Select appropriate tap settings (±2.5%, ±5%)
• ✓ Confirm equipment voltage ratings and tolerance

Mistake 7: Undersizing Neutral Conductor

Problem: Assuming balanced three-phase loads, undersizing neutral

Risk Factors:

• Single-phase loads on three-phase system
• Harmonic currents (especially 3rd harmonic)
• Electronic equipment causing neutral current

For Non-Linear Loads: Neutral current can be 1.5-1.73× phase current due to harmonics

Solution:

• Size neutral conductor same as phase conductors
• Consider oversized neutral for heavy harmonic loads
• Use K-rated transformers with 200% neutral rating

Advanced Sizing Considerations

Parallel Transformer Operation

When operating transformers in parallel, special considerations apply:

Requirements for Parallel Operation:

1. Same voltage ratio (identical primary and secondary voltages)
2. Same impedance (within ±7.5% of each other)
3. Same phase displacement (both delta-wye, or both wye-wye)
4. Similar kVA ratings (within 1:2 ratio preferred)

Load Sharing Calculation:

For two transformers in parallel:

$$\frac{\text{Load}_1}{\text{Load}_2} = \frac{Z_2}{Z_1} \times \frac{\text{kVA}_1}{\text{kVA}_2}$$

Example:

• Transformer 1: 500 kVA, 5.5% impedance
• Transformer 2: 750 kVA, 5.75% impedance
• Total load: 1000 kVA

Load sharing:

$$\text{Load}_1 = 1000 \times \frac{500}{500+750} \times \frac{5.75}{5.5} = 419 \text{ kVA}$$ $$\text{Load}_2 = 1000 - 419 = 581 \text{ kVA}$$

Power Factor Correction Impact

Power factor correction can significantly reduce required transformer capacity:

Example:

• Load: 200 kW
• Initial PF: 0.70
• Required kVA: 200 ÷ 0.70 = 286 kVA

After Power Factor Correction to 0.95:

• Required kVA: 200 ÷ 0.95 = 211 kVA
• Savings: 75 kVA capacity (26% reduction)

Economic Analysis:

• Original transformer: 300 kVA at $15,000
• With PF correction: 225 kVA at $12,000 + capacitors at $2,000
• Net savings: $1,000 plus reduced operating costs

Voltage Regulation Requirements

Acceptable Voltage Regulation:

• Lighting circuits: ±5% maximum
• Motor circuits: +10% / -10%
• Electronic equipment: ±10% typically
• Sensitive equipment: ±5% or better

Improving Voltage Regulation:

1. Larger transformer: Lower percentage impedance
2. Closer placement: Reduce feeder length
3. Tap adjustments: ±2.5% or ±5% taps
4. Voltage regulators: For critical applications

Regulation Calculation Example:

Transformer: 150 kVA, 3.5% impedance, serving 120 kVA load

Voltage drop at full load:

$$\text{VD} = \text{Load} \times Z\% = \frac{120}{150} \times 3.5\% = 2.8\%$$

This is acceptable for most applications.

Transformer Selection Best Practices

Pre-Selection Checklist

Before finalizing transformer selection, verify:

Load Requirements:

• Total connected load calculated (kW)
• Demand factors applied correctly
• Power factor determined or estimated
• Motor starting requirements included
• Future expansion margin added (20-25%)
• Harmonic content evaluated

Electrical Specifications:

• Primary voltage matches utility supply
• Secondary voltage matches equipment requirements
• Phase configuration correct (single or three-phase)
• Frequency matches (50Hz or 60Hz)
• Impedance suitable for application
• Short circuit current within equipment ratings

Environmental Conditions:

• Ambient temperature within ratings
• Altitude considered (if above 1000m)
• Indoor or outdoor installation
• Sound level requirements met
• Seismic requirements (if applicable)

Standards and Codes:

• NEC/local code compliance
• Efficiency standards met (DOE 2016)
• UL listing or equivalent certification
• Utility company requirements satisfied

Sizing Documentation

Professional Documentation Should Include:

1. Load Summary Table:

   • List all loads with ratings
   • Applied demand factors
   • Calculated kVA per load category

2. Calculations:

   • Step-by-step sizing calculations
   • Safety factors applied
   • Derating factors used

3. Selection Justification:

   • Why specific size chosen
   • Margin for future growth
   • Alternative options considered

4. Specifications:

   • Complete transformer nameplate data
   • Tap settings required
   • Accessories needed (cooling, protection)

Transformer Sizing for Specific Applications

Data Center Transformers

Special Requirements:

• High reliability (N+1 or 2N redundancy)
• Low harmonic distortion tolerance
• High efficiency for operating cost reduction
• Often oversized 30-50% for redundancy

Typical Sizing:

• IT load: 500 kW
• PF after correction: 0.95
• Base requirement: 526 kVA
• With redundancy: 800-1000 kVA installed capacity

Solar and Renewable Energy Systems

Step-Up Transformers for Solar:

• Inverter output: 480V or 600V
• Utility connection: 12.47kV or higher
• Sizing based on inverter AC output rating

Example:

• Solar inverter: 1000 kW at 480V
• Required kVA: 1000 kVA (unity PF from inverter)
• Standard selection: 1000 kVA transformer
• Voltage ratio: 480V:12470V

Electric Vehicle Charging Stations

EV Charging Load Calculations:

Level 2 Charging (240V, 30-80A):

• Per station: 7-19 kW
• Multiple stations: apply 0.7-0.8 demand factor

DC Fast Charging (50-350 kW):

• Per station: 50-350 kW
• Size transformer for simultaneous operation

Example - 10 Level 2 Chargers:

• Per charger: 11.5 kW (48A at 240V)
• Connected load: 115 kW
• Demand factor: 0.75
• Demand load: 86.25 kW
• Required kVA at 0.95 PF: 91 kVA
• Select: 112.5 kVA transformer

Energy Efficiency and Cost Analysis

Total Cost of Ownership

Initial Purchase Cost (Approximate)

• Standard efficiency: $50–80 per kVA
• High efficiency: $70–100 per kVA
• Premium efficiency: $90–120 per kVA

Actual costs vary depending on transformer type, voltage level, materials, and manufacturer.

---

Example Analysis — 500 kVA Transformer (20-Year Life Cycle)

Specification	Standard	High Efficiency	Premium
Initial Cost	$35,000	$45,000	$55,000
Efficiency	98.0 %	98.5 %	98.8 %
Annual Energy Loss	8,760 kWh	6,570 kWh	5,256 kWh
Annual Energy Cost (at $0.12 / kWh)	$1,051	$788	$631
20-Year Energy Cost	$21,020	$15,760	$12,620
Total 20-Year Cost	$56,020	$60,760	$67,620

---

Note:
This example assumes a $0.12 / kWh energy rate and moderate loading.
In higher-usage scenarios or regions with higher energy costs,
high- and premium-efficiency transformers can become more cost-effective over their lifetime despite higher initial purchase prices.

When to Choose Higher Efficiency

High efficiency transformers justified when:

• Operating near full load continuously (> 6000 hrs/year)

• High electricity costs (> $0.15/kWh)

• Environmental goals prioritize carbon reduction

• Long service life expected (> 25 years)

• Utility rebates available for premium efficiency

• Download the Voltage Drop & Wire Size Excel Tool

Conclusion: Mastering Transformer Sizing

Proper transformer sizing requires balancing multiple factors: electrical load requirements, power quality considerations, future expansion needs, operating efficiency, and total cost of ownership. By following the systematic approach outlined in this guide—calculating loads accurately, applying appropriate safety factors, considering special load characteristics, and accounting for environmental conditions—you can select transformers that provide reliable, efficient, and cost-effective power distribution for decades of service.

Key Takeaways:

1. Always convert kW to kVA using actual power factor—transformers handle apparent power, not just real power
2. Include 20-25% safety margin for future growth and unexpected loads
3. Account for motor starting currents using 1.5-2.0× multipliers for large motors
4. Apply demand factors rather than simply adding connected loads
5. Consider harmonics and use K-rated transformers or derating for non-linear loads
6. Select next standard size up after calculations—never round down
7. Evaluate total cost of ownership not just initial purchase price
8. Document your sizing calculations for future reference and code compliance

Whether you're sizing a small 25 kVA single-phase transformer for a residential application or a large 2000 kVA three-phase transformer for an industrial facility, these principles ensure safe, reliable, and economical operation. Remember that undersizing a transformer leads to overheating, reduced lifespan, and potential failures, while extreme oversizing wastes capital and reduces efficiency at light loads.

For complex installations, large facilities, or critical applications, consult with a professional electrical engineer to verify your transformer sizing calculations and ensure compliance with all applicable codes and standards.

Ready to optimize your power distribution system? Explore our related guides on wire sizing, power factor correction, and voltage drop calculations to complete your electrical system design knowledge.

---

🔗 Related Posts

• Three Phase Generators: How They Work and Their Applications
• Wire Size Calculator: Complete Guide with Single Phase, 3-Phase & DC Calculations
• Complete Guide to Voltage Drop: Calculations, Tables & Calculators
• Power Factor Correction: Complete Guide with Calculators, Cost Analysis & Real Savings
• Understanding Induction Motors: Working Principle, Calculations, and Applications
• Circuit Breaker Sizing: Complete Guide with Wire Size Charts & NEC Code Requirements

Helpful Calculators

• Voltage Drop Calculator
• Ohm's Law Calculator
• Power Factor Calculator
• Capacitor and Inductor Reactance Calculator

---

Credits

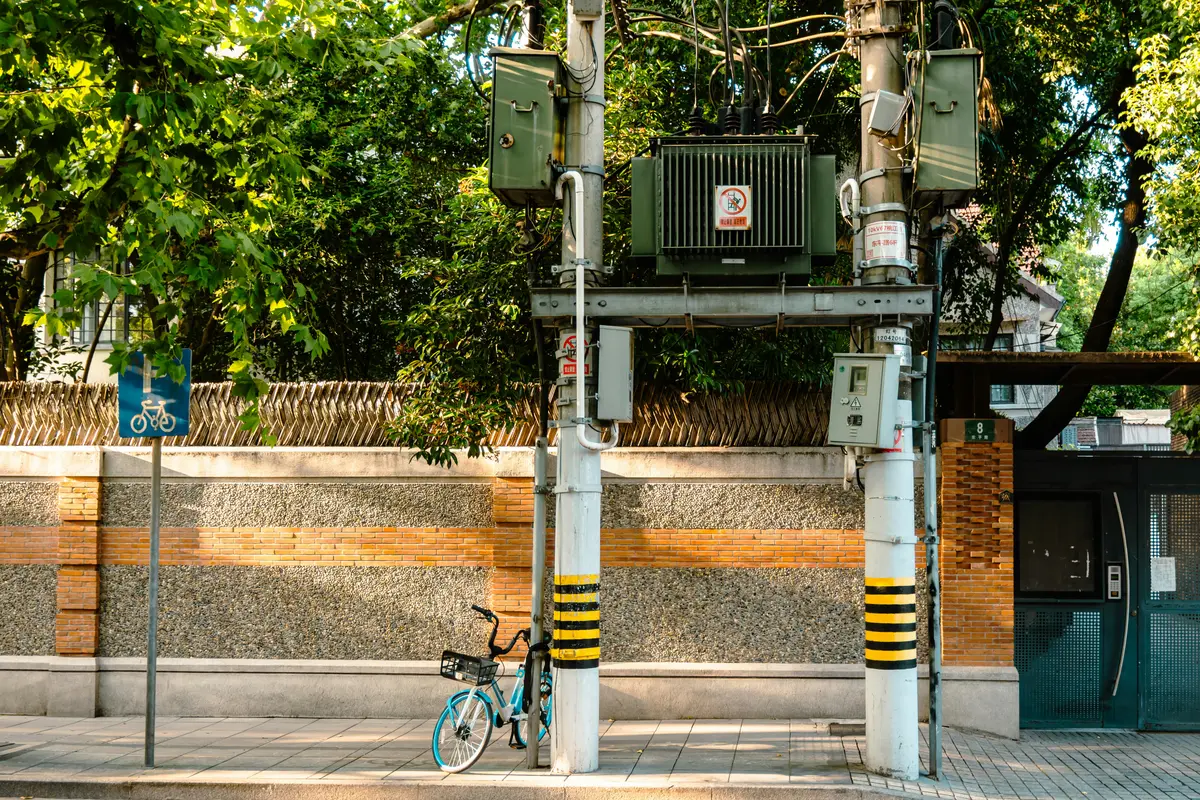

• Photo by Tom Ru on Unsplash

---
