When installing 30-amp circuits for electric dryers, water heaters, or small air conditioning units, proper PVC conduit sizing for 10 AWG wire is critical for code compliance and safe operation. Understanding conduit fill requirements ensures your electrical installation meets National Electrical Code (NEC) standards while preventing wire damage and overheating issues.

This focused guide provides complete PVC conduit fill charts specifically for 10 AWG wire, including both Schedule 40 and Schedule 80 conduit, with practical examples for common residential and commercial applications.

## Understanding 10 AWG Wire Specifications

### 10 AWG Wire Characteristics

**Physical Properties:**
- **Diameter**: 0.1019 inches (2.588 mm)
- **Cross-sectional area (THHN)**: 0.00815 square inches
- **Cross-sectional area (THWN-2)**: 0.00815 square inches

**Electrical Ratings (Copper):**
- **75°C rating**: 30 amperes
- **90°C rating**: 35 amperes
- **Typical applications**: 30A circuits

**Common Uses:**
- Electric clothes dryers (30A, 240V)
- Electric water heaters (30A, 240V)
- Small central air conditioners
- RV electrical connections
- Sub-panel feeders (short runs)

## PVC Conduit Fill Chart for 10 AWG Wire

### Schedule 40 PVC Conduit Capacity

Based on NEC Chapter 9, Table 4 (40% fill for 3+ conductors):

| **Conduit Size** | **Max 10 AWG THHN Conductors** | **Max 10 AWG THWN-2 Conductors** | **40% Fill Area (sq in)** |
|------------------|-------------------------------|----------------------------------|---------------------------|
| **1/2 inch** | 6 | 6 | 0.114 |
| **3/4 inch** | 10 | 10 | 0.203 |
| **1 inch** | 16 | 16 | 0.333 |
| **1-1/4 inch** | 29 | 29 | 0.581 |
| **1-1/2 inch** | 40 | 40 | 0.794 |
| **2 inch** | 65 | 65 | 1.316 |

### Schedule 80 PVC Conduit Capacity

Schedule 80 has thicker walls, reducing interior capacity:

| **Conduit Size** | **Max 10 AWG THHN Conductors** | **Max 10 AWG THWN-2 Conductors** | **40% Fill Area (sq in)** |
|------------------|-------------------------------|----------------------------------|---------------------------|
| **1/2 inch** | 4 | 4 | 0.087 |
| **3/4 inch** | 8 | 8 | 0.164 |
| **1 inch** | 13 | 13 | 0.275 |
| **1-1/4 inch** | 24 | 24 | 0.495 |
| **1-1/2 inch** | 33 | 33 | 0.677 |
| **2 inch** | 56 | 56 | 1.127 |

<Notice type="info">
💡 Key Insight: Schedule 80 PVC is typically used only where physical protection is required (exposed locations, direct burial without additional protection). For most residential installations, Schedule 40 is sufficient and provides greater wire capacity.
</Notice>

## Common 10 AWG Circuit Configurations

### Residential Applications

#### Electric Dryer Circuit (10/3 with Ground)
- **Conductors needed**: 4 (2 hots, 1 neutral, 1 ground)
- **Minimum conduit**: 3/4 inch Schedule 40 PVC
- **Circuit rating**: 30 amperes at 240V
- **NEC reference**: 210.23(C)

#### Electric Water Heater Circuit (10/2 with Ground)
- **Conductors needed**: 3 (2 hots, 1 ground)
- **Minimum conduit**: 1/2 inch Schedule 40 PVC
- **Circuit rating**: 30 amperes at 240V
- **Note**: No neutral required for straight 240V heating elements

#### Window AC Unit Circuit (10/2 with Ground)
- **Conductors needed**: 3 (1 hot, 1 neutral, 1 ground)
- **Minimum conduit**: 1/2 inch Schedule 40 PVC
- **Circuit rating**: 30 amperes at 120V or 240V

## Step-by-Step Conduit Sizing Example

### Example: Home Electric Dryer Installation

**Circuit Requirements:**
- 30A, 240V electric dryer
- Using 10 AWG THHN copper wire
- Run: 40 feet from panel to laundry room
- Configuration: 10/3 with ground (4 conductors)

**Step 1: Identify Wire Count**
Total conductors = 4 (2 hots + 1 neutral + 1 ground)

**Step 2: Determine 10 AWG Area**
Each 10 AWG THHN = 0.00815 sq in
Total area = 4 × 0.00815 = 0.0326 sq in

**Step 3: Calculate Required Conduit Size**
Need conduit with 40% fill ≥ 0.0326 sq in

From chart:
- 1/2 inch PVC (0.114 sq in) ✓ Adequate
- Can accommodate up to 6 conductors

**Step 4: Apply Derating (if applicable)**
With 4 conductors, ampacity adjustment = 80%
30A × 0.80 = 24A (still adequate for 30A breaker protection)

**Selection: 3/4 inch Schedule 40 PVC** (provides margin for easier pulling)

<Notice type="warning">
⚠️ Wire Pulling Tip: While 1/2 inch conduit is technically sufficient for 4 conductors of 10 AWG, using 3/4 inch conduit makes wire pulling significantly easier and reduces damage risk during installation. The minimal cost difference is worthwhile.
</Notice>

## NEC Requirements for 10 AWG Conduit Fill

### Key Code References

**NEC Chapter 9, Table 4:**
- Establishes maximum fill percentages
- 53% for one conductor
- 31% for two conductors
- 40% for three or more conductors

**NEC 300.17:**
- Requires conduit fill calculations
- Prohibits damaged conductor insulation
- Mandates smooth wire pulling

**NEC 310.15(C)(1):**
- Ampacity adjustment for bundled conductors
- Temperature correction factors
- Applies when more than 3 current-carrying conductors

### Ampacity Derating Factors

When multiple conductors share a conduit:

| **Number of Current-Carrying Conductors** | **Adjustment Factor** |
|------------------------------------------|---------------------|
| **4-6** | 80% |
| **7-9** | 70% |
| **10-20** | 50% |
| **21-30** | 45% |

**Example Calculation:**
- Base ampacity (10 AWG copper, 75°C): 30A
- With 6 conductors: 30A × 0.80 = 24A
- With 9 conductors: 30A × 0.70 = 21A

## Quick Reference Guide

### Most Common Installations

| **Application** | **Wire Configuration** | **Conductor Count** | **Minimum PVC Size** |
|-----------------|------------------------|---------------------|---------------------|
| **Electric Dryer** | 10/3 w/ ground | 4 | 3/4 inch |
| **Water Heater** | 10/2 w/ ground | 3 | 1/2 inch |
| **30A Sub-panel Feed** | 10/3 w/ ground | 4 | 3/4 inch |
| **AC Disconnect** | 10/2 w/ ground | 3 | 1/2 inch |
| **Multiple Circuits** | (2) 10/2 w/ ground | 6 | 3/4 inch |

### Best Practices for Installation

1. **Size up when uncertain** - Larger conduit simplifies wire pulling
2. **Consider future needs** - Extra capacity allows circuit additions
3. **Use pulling lubricant** - Reduces friction and insulation damage
4. **Avoid sharp bends** - Maintain minimum bend radius requirements
5. **Verify local amendments** - Some jurisdictions have stricter requirements

## Conclusion

Proper PVC conduit sizing for 10 AWG wire ensures NEC compliance, safe installation, and easy maintenance. For typical residential 30-amp circuits using 10/3 or 10/2 cable configurations, 3/4 inch Schedule 40 PVC conduit provides adequate capacity with comfortable pulling clearance.

Remember these key points:
- **3/4 inch conduit** accommodates most 10 AWG residential applications
- **Apply 40% fill rule** for three or more conductors
- **Consider ampacity derating** when bundling multiple circuits
- **Schedule 40 vs 80** affects conductor capacity significantly
- **Always verify** with current NEC and local code requirements

For comprehensive conduit fill information including other wire sizes and detailed calculations, see our [Complete Conduit Fill Chart and Calculator Guide](/posts/conduit-fill-chart-and-calculator-complete-nec-guide).

---

## 🔗 Related Posts

- [Conduit Fill Chart & Calculator: Complete NEC Guide with Wire Capacity Tables](/posts/conduit-fill-chart-and-calculator-complete-nec-guide)
- [Wire Size Calculator: Complete Guide with Single Phase, 3-Phase & DC Calculations](/posts/wire-size-calculator-complete-guide)
- [Circuit Breaker Sizing: Complete Guide with Wire Size Charts & NEC Code Requirements](/posts/circuit-breaker-sizing-complete-guide)
- [Wire Size for 50 Amp Breaker: Complete Guide with Charts, NEC Requirements & Installation Tips](/posts/wire-size-for-50-amp-breaker-complete-guide)

### Helpful Calculators

- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)
- [Ohm's Law Calculator](/calculators/ohms-law-calculator)
- [Power Factor Calculator](/calculators/power-factor-correction-calculator)
- [Capacitor and Inductor Reactance Calculator](/calculators/capacitor-inductor-reactance-calculator)

---

#### **Credits**

- Photo by [Aleksi Partanen](https://unsplash.com/fr/@aleksi_p?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText) on [Unsplash](https://unsplash.com/fr/photos/les-tuyaux-sont-installes-sur-un-plafond-nervure-et-sarcelle-JSpIXU4pnro?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText)

---

Master PVC conduit sizing for 10 AWG wire with our complete NEC-compliant fill charts. Includes conductor capacity tables for Schedule 40/80, derating factors, and step-by-step sizing examples for 30A circuits.

PVC Conduit Fill Calculator for 10 AWG Wire | NEC 40% Rule

PVC Conduit Fill Chart for 10 AWG Wire: Complete NEC Guide with Capacity Tables

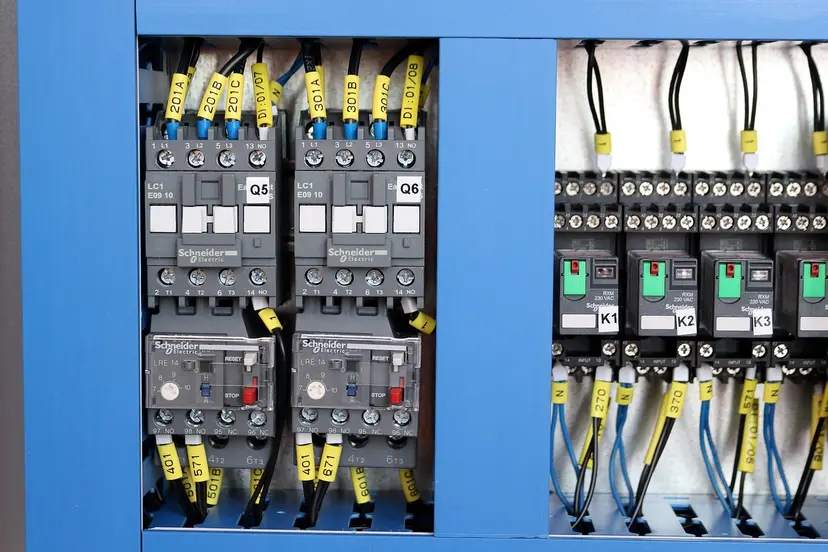

Master star delta motor starters with our complete guide including wiring diagrams, timer calculations, contactor selection, and troubleshooting tips. Learn how to reduce starting current by 33% and protect your 3-phase motors.

Star Delta Starter Guide: Wiring, Timer Settings & Motor Control

Star Delta Starter: Complete Wiring Guide with Timer Calculations & Troubleshooting

Choosing the correct solar charge controller size is crucial for system efficiency, battery protection, and maximizing your solar investment. An undersized controller limits power delivery and may overheat, while an oversized controller wastes money without providing benefits. Whether you're installing a 200W, 300W, 400W, or 1200W solar panel system, understanding how to size your charge controller ensures optimal performance and longevity.

This guide provides step-by-step calculations, sizing charts, and practical examples to help you select the perfect charge controller for your solar system, with special focus on MPPT (Maximum Power Point Tracking) controllers that deliver 20-30% more power than PWM alternatives.

## Understanding Solar Charge Controllers

### What is a Solar Charge Controller?

A solar charge controller regulates the voltage and current from solar panels to safely charge batteries. It prevents overcharging (which damages batteries), ensures efficient power transfer, and protects against reverse current flow at night.

### MPPT vs PWM Controllers

| **Feature** | **MPPT Controller** | **PWM Controller** |
|-------------|--------------------|--------------------|
| **Efficiency** | 94-98% | 75-80% |
| **Power Gain** | 20-30% more power | Standard power |
| **Best For** | Systems >200W | Systems &lt;200W |
| **Voltage Conversion** | Yes (steps down voltage) | No (direct connection) |
| **Price** | Higher ($100-500+) | Lower ($20-100) |
| **Cold Weather Benefit** | Significant | Minimal |

**When to Choose MPPT:**
- Solar array voltage significantly higher than battery voltage
- Systems over 200W
- Cold climates (panels produce higher voltage)
- Need maximum efficiency

**When to Choose PWM:**
- Small systems under 200W
- Panel voltage matches battery voltage closely
- Budget-constrained projects
- Simple installations

## Basic Charge Controller Sizing Formula

The fundamental formula for sizing solar charge controllers:

$$
\text{Controller Amps} = \frac{\text{Solar Panel Watts}}{\text{Battery Voltage}} \times \text{Safety Factor}
$$

Where:
- **Solar Panel Watts** = Total connected solar panel wattage
- **Battery Voltage** = System voltage (12V, 24V, or 48V)
- **Safety Factor** = 1.25 (125%) recommended minimum

### Step-by-Step Calculation Process

**Step 1: Determine Total Solar Panel Wattage**

Add all connected solar panels:
- Single 300W panel = 300W total
- Three 200W panels = 600W total
- Four 300W panels = 1200W total

**Step 2: Identify Battery Bank Voltage**

Common system voltages:
- **12V systems**: Small RVs, boats, cabins (&lt;1000W)
- **24V systems**: Medium systems (1000-3000W)
- **48V systems**: Large off-grid homes (>3000W)

**Step 3: Calculate Required Amperage**

$$
\text{Required Amps} = \frac{\text{Total Watts}}{\text{Battery Voltage}}
$$

**Step 4: Apply Safety Margin**

$$
\text{Final Size} = \text{Required Amps} \times 1.25
$$

**Step 5: Select Standard Controller Size**

Choose the next standard size up:
- Common sizes: 10A, 20A, 30A, 40A, 50A, 60A, 80A, 100A

## Charge Controller Sizing Chart

### Quick Reference: Controller Size by Solar Panel Wattage

| **Solar Panel Size** | **12V System** | **24V System** | **48V System** | **Recommended MPPT Size** |
|---------------------|----------------|----------------|----------------|--------------------------|
| **100W** | 10A | 6A | 3A | 10-15A |
| **200W** | 20A | 10A | 5A | 20-30A |
| **300W** | 30A | 15A | 8A | 30-40A |
| **400W** | 40A | 20A | 10A | 40-50A |
| **600W** | 60A | 30A | 15A | 60-80A |
| **800W** | 80A | 40A | 20A | 80-100A |
| **1000W** | 100A | 50A | 25A | 100A |
| **1200W** | 120A | 60A | 30A | 100-150A |

<Notice type="info">
💡 Pro Tip: Always round up to the next standard controller size. The extra capacity provides safety margin and allows for future system expansion.
</Notice>

## Detailed Sizing Examples

### Example 1: 300W Solar Panel System

**Given:**
- Solar panel: 300W
- Battery bank: 12V
- Controller type: MPPT

**Calculation:**

**Step 1 - Base Amperage:**
$$
\text{Amps} = \frac{300W}{12V} = 25A
$$

**Step 2 - Safety Margin:**
$$
\text{Required} = 25A \times 1.25 = 31.25A
$$

**Step 3 - Controller Selection:**
Next standard size = **40A MPPT controller**

**Verification:**
- 40A controller can handle: 40A × 12V = 480W
- Safety margin: 480W - 300W = 180W (60% headroom) ✓

### Example 2: 400W Solar Panel System

**Given:**
- Solar panels: 400W total
- Battery bank: 12V
- Controller type: MPPT

**Calculation:**

**Step 1 - Base Amperage:**
$$
\text{Amps} = \frac{400W}{12V} = 33.3A
$$

**Step 2 - Safety Margin:**
$$
\text{Required} = 33.3A \times 1.25 = 41.6A
$$

**Step 3 - Controller Selection:**
Next standard size = **50A MPPT controller**

**Alternative for 24V System:**
$$
\text{Amps} = \frac{400W}{24V} = 16.7A \times 1.25 = 20.8A
$$
Selection = **30A MPPT controller** (more cost-effective)

### Example 3: 1200W Solar Panel Array

**Given:**
- Solar panels: Four 300W panels = 1200W
- Battery bank: 24V (recommended for this size)
- Controller type: MPPT

**Calculation:**

**Step 1 - Base Amperage:**
$$
\text{Amps} = \frac{1200W}{24V} = 50A
$$

**Step 2 - Safety Margin:**
$$
\text{Required} = 50A \times 1.25 = 62.5A
$$

**Step 3 - Controller Selection:**
Recommended = **80A MPPT controller**

**For 12V System (not recommended):**
- Required: 100A × 1.25 = 125A
- Would need expensive 150A controller
- **Better solution**: Use 24V or 48V system

### Example 4: 200W Solar Panel

**Given:**
- Solar panel: 200W
- Battery bank: 12V
- Budget installation

**Calculation:**

**Step 1 - Base Amperage:**
$$
\text{Amps} = \frac{200W}{12V} = 16.7A
$$

**Step 2 - Safety Margin:**
$$
\text{Required} = 16.7A \times 1.25 = 20.8A
$$

**Step 3 - Controller Selection:**

**Option A - PWM (Budget):**
- 30A PWM controller (~$30-50)
- Adequate for simple systems
- 75-80% efficiency

**Option B - MPPT (Performance):**
- 30A MPPT controller (~$100-150)
- 20-30% more power harvest
- Better for cold climates

## Advanced Sizing Considerations

### Temperature Effects on Solar Output

Solar panels lose efficiency in high temperatures but produce higher voltage in cold weather:

**Temperature Derating Factors:**

| **Climate** | **Temperature Range** | **Panel Output Factor** | **Voltage Increase** |
|-------------|----------------------|------------------------|---------------------|
| **Hot Desert** | 100-120°F (38-49°C) | 0.85-0.90 | Minimal |
| **Temperate** | 60-90°F (16-32°C) | 0.95-1.00 | 5-10% |
| **Cold** | 0-40°F (-18-4°C) | 1.00-1.10 | 15-25% |
| **Arctic** | -20-0°F (-29--18°C) | 1.10-1.15 | 25-35% |

**Impact on Sizing:**
- Hot climates: Panels produce less power, but standard 25% margin sufficient
- Cold climates: Higher voltage requires controller with adequate voltage rating

<Notice type="warning">
⚠️ Important: Verify your charge controller's maximum input voltage against cold temperature panel voltage. In extreme cold, panel voltage can exceed controller limits and cause damage.
</Notice>

### Multiple Panel Configurations

When connecting multiple solar panels, configuration affects controller sizing:

#### Series Connection
- **Voltage**: Adds up (2 × 18V panels = 36V)
- **Current**: Stays same
- **Advantage**: Reduces wire losses, enables MPPT efficiency
- **Controller sizing**: Based on total wattage

#### Parallel Connection
- **Voltage**: Stays same
- **Current**: Adds up (2 × 5A panels = 10A)
- **Advantage**: Simpler wiring, shade tolerance
- **Controller sizing**: Must handle combined current

#### Series-Parallel Combination
For large arrays (1200W+):
- Combines benefits of both
- Optimizes voltage for MPPT
- Reduces current for safer wiring

**Example - 1200W Array (Four 300W Panels):**

**Configuration Option 1 - All Parallel (12V):**
- Voltage: ~18V (panel Vmp)
- Current: ~67A combined
- Requires: 100A controller minimum

**Configuration Option 2 - Series-Parallel (24V):**
- Two strings of two panels each
- Voltage: ~36V (matches 24V system)
- Current: ~33.5A per string = 67A total
- Requires: 80A controller
- **More efficient MPPT operation**

### Wire Sizing Impact

Proper wire sizing between panels and controller affects system efficiency:

**Voltage Drop Limits:**
- Maximum 3% recommended for solar circuits
- Lower voltage drop = higher efficiency
- Larger controllers may need heavier wire

**Wire Size Quick Reference:**

| **Current** | **Distance** | **12V Wire Size** | **24V Wire Size** |
|-------------|--------------|-------------------|-------------------|
| **20A** | 10 feet | 10 AWG | 12 AWG |
| **20A** | 20 feet | 8 AWG | 10 AWG |
| **40A** | 10 feet | 6 AWG | 8 AWG |
| **40A** | 20 feet | 4 AWG | 6 AWG |
| **60A** | 10 feet | 4 AWG | 6 AWG |
| **60A** | 20 feet | 2 AWG | 4 AWG |

## Choosing the Right MPPT Controller

### Key Selection Criteria

**1. Maximum Input Voltage**
- Must exceed panel Voc in cold weather
- Add 25% safety margin
- Common ratings: 100V, 150V, 250V

**2. Maximum Output Current**
- Should exceed calculated amperage + 25%
- Determines battery charging capacity

**3. System Voltage Compatibility**
- Auto-detection: 12V/24V or 12V/24V/48V
- Fixed voltage: Specific to one voltage

**4. Efficiency Rating**
- Look for >95% peak efficiency
- Matters more for larger systems

**5. Battery Type Compatibility**
- Lead-acid (Flooded, AGM, Gel)
- Lithium (LiFePO4, Li-ion)
- Programmable charging profiles

### Top MPPT Controller Recommendations

| **Size Range** | **Best Budget** | **Best Mid-Range** | **Best Premium** |
|----------------|-----------------|-------------------|------------------|
| **10-30A** | Renogy Rover 20A | Victron SmartSolar 30A | Morningstar TriStar 30A |
| **40-60A** | EPever MPPT 40A | Victron SmartSolar 50A | Outback FlexMax 60A |
| **80-100A** | EPever 100A | Victron SmartSolar 100/50 | Midnite Classic 150 |

## Common Sizing Mistakes to Avoid

### Mistake 1: Using Only Panel Wattage Without Safety Margin

**Wrong Calculation:**
- 300W panel ÷ 12V = 25A
- Choose 25A controller

**Correct Calculation:**
- 300W panel ÷ 12V = 25A × 1.25 = 31.25A
- Choose 40A controller

**Why it matters:** Controllers running at maximum capacity overheat and fail prematurely.

### Mistake 2: Ignoring System Voltage Options

**Poor Choice:**
- 1200W system on 12V
- Requires expensive 150A controller
- Heavy, expensive wire

**Better Choice:**
- 1200W system on 24V or 48V
- Requires 60-80A controller (24V) or 30-40A (48V)
- Lighter wire, lower costs

### Mistake 3: Not Accounting for Future Expansion

**Short-sighted:**
- Buy controller sized exactly for current panels
- Need complete replacement when expanding

**Future-proof:**
- Buy controller one size larger
- Allows 20-30% expansion without replacement

### Mistake 4: Choosing PWM for Large Systems

**Inefficient:**
- 400W panels with PWM controller
- Losing 20-30% potential power
- Wasting ~80-120W continuously

**Smart Choice:**
- 400W panels with MPPT controller
- Captures full power potential
- Extra ~80-120W daily

## Installation Best Practices

### Proper Controller Placement

**Location Requirements:**
- Well-ventilated area
- Protected from weather
- Away from battery gases
- Temperature range: -4°F to 140°F (-20°C to 60°C)
- Near battery bank (short wiring)

### Wiring Connection Order

**Correct Sequence:**
1. **First**: Connect controller to battery
2. **Second**: Connect solar panels to controller
3. **Third**: Connect loads (if applicable)

**Why this order?** Controller needs battery voltage reference before solar input.

### Safety Considerations

**Required Protection:**
- **Fuse/breaker between panels and controller**: Size at 125% of controller max input current
- **Fuse/breaker between controller and battery**: Size at 125% of controller max output current
- **Proper grounding**: Both equipment and system grounding

## Victron MPPT Calculator Method

Victron Energy provides an excellent online MPPT calculator. Here's how to use it effectively:

**Input Requirements:**
1. Solar panel specifications (Voc, Vmp, Isc, Pmax)
2. Number of panels
3. Battery voltage
4. Temperature range

**Calculator Outputs:**
- Recommended controller model
- Maximum number of panels in series
- Optimal series/parallel configuration
- Wire sizing recommendations

**Pro Tip:** Even if not buying Victron, use their calculator for sizing validation.

## Real-World Application Scenarios

### Scenario 1: RV Solar System

**Requirements:**
- Weekend/vacation use
- 400W solar panels
- 12V battery bank (200Ah)
- Limited roof space

**Solution:**
- 400W ÷ 12V = 33.3A × 1.25 = 41.6A
- **Recommended**: 50A MPPT controller
- **Model suggestion**: Victron SmartSolar 50/100 or Renogy Rover 40A

### Scenario 2: Off-Grid Cabin

**Requirements:**
- Daily use
- 1200W solar array
- 24V battery bank (400Ah)
- Year-round operation

**Solution:**
- 1200W ÷ 24V = 50A × 1.25 = 62.5A
- **Recommended**: 80A MPPT controller
- **Model suggestion**: Victron SmartSolar 100/50 or Midnite Classic 150

### Scenario 3: Backup Power System

**Requirements:**
- Grid-tie backup
- 600W solar panels
- 48V battery bank
- Minimal maintenance

**Solution:**
- 600W ÷ 48V = 12.5A × 1.25 = 15.6A
- **Recommended**: 20A or 30A MPPT controller
- **Model suggestion**: Victron SmartSolar 30A or Morningstar TriStar

- [Download the Voltage Drop & Wire Size Excel Tool](/voltage-drop-and-wire-size-excel-tool)

## Conclusion: Getting Your Solar Controller Size Right

Proper charge controller sizing directly impacts your solar system's efficiency, battery lifespan, and overall performance. By following the fundamental formula—dividing total solar watts by battery voltage and adding 25% safety margin—you ensure reliable operation and protection for your investment.

**Key Takeaways:**
- **Always add 25% safety margin** to calculated amperage
- **Choose MPPT for systems over 200W** for 20-30% efficiency gain
- **Consider higher system voltages** (24V or 48V) for panels over 600W
- **Select next standard size up** when between sizes
- **Verify voltage ratings** for cold climate installations
- **Plan for future expansion** by choosing slightly larger controllers

Whether you're sizing a controller for a 200W portable solar panel or a 1200W off-grid array, these principles ensure safe, efficient operation for years to come.

---

## 🔗 Related Posts

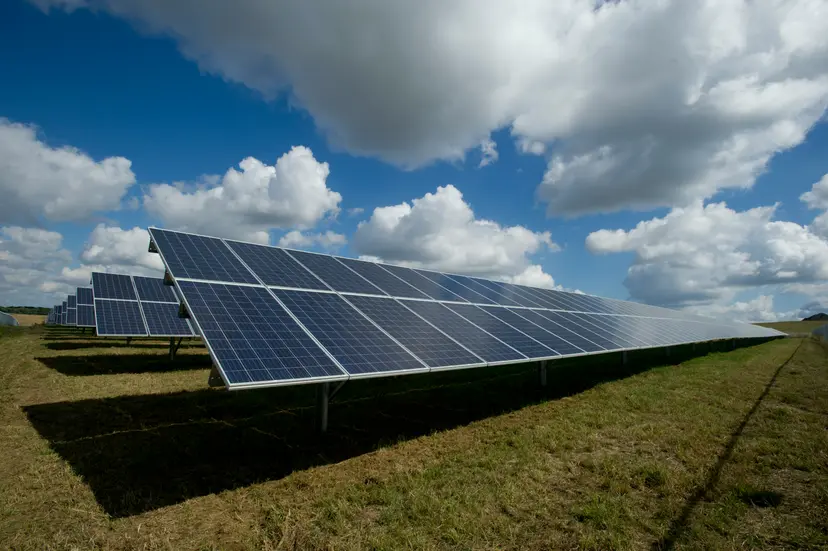

- [Solar Panel Wire Sizing: Complete Guide with Calculator, Charts & NEC Requirements](/posts/solar-panel-wire-sizing-guide-with-calculator)
- [How Solar Panels Work: A Comprehensive Guide](/posts/how-solar-panels-work)
- [Wire Size Calculator: Complete Guide with Single Phase, 3-Phase & DC Calculations](/posts/wire-size-calculator-complete-guide)
- [Complete Guide to Voltage Drop: Calculations, Tables & Calculators](/posts/voltage-drop-calculation-complete-guide)
- [Circuit Breaker Sizing: Complete Guide with Wire Size Charts & NEC Code Requirements](/posts/circuit-breaker-sizing-complete-guide)

### Helpful Calculators

- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)
- [Ohm's Law Calculator](/calculators/ohms-law-calculator)
- [Power Factor Calculator](/calculators/power-factor-correction-calculator)
- [Capacitor and Inductor Reactance Calculator](/calculators/capacitor-inductor-reactance-calculator)

---

#### **Credits**

- Photo by [Evgeniy Alyoshin](https://unsplash.com/fr/@oqtave?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText) on [Unsplash](https://unsplash.com/fr/photos/un-casque-blanc-pose-sur-un-panneau-solaire-2ASQyjafflo?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText)

---

Master solar charge controller sizing with our calculator guide. Learn how to size MPPT controllers for 200W, 300W, 400W, and 1200W solar panels with step-by-step calculations, charts, and safety margins.

Solar Charge Controller Calculator: Size MPPT for 200W-1200W Panels

Solar Charge Controller Sizing: Complete Calculator Guide with MPPT Selection

Master motor overload relay sizing with comprehensive charts for 3 HP, 5 HP, and 10 HP motors. Complete guide to 3-phase motor starters with overload protection, selection criteria, and NEC requirements.

Motor Overload Sizing Chart | 3-Phase Starter Protection Guide

Motor Overload Protection: Complete Sizing Guide with Charts & Selection Criteria

Selecting the correct cable size for electric motors is critical for safe operation, optimal performance, and compliance with electrical codes. Whether you're installing a 5 HP motor for a workshop compressor or a 10 HP motor for industrial equipment, proper wire sizing ensures your motor receives adequate power while protecting against overheating and electrical hazards.

This practical guide provides the essential information you need to select the right cable size for 5 HP and 10 HP motors, including quick reference charts, voltage considerations, and step-by-step sizing calculations.

## Quick Reference: Motor Cable Sizing Charts

### 5 HP Motor Cable Size Chart

| **Motor Type** | **Voltage** | **Full Load Amps (FLA)** | **Minimum Wire Size (Copper)** | **Recommended Breaker Size** |
|----------------|-------------|-------------------------|-------------------------------|----------------------------|
| **Single-Phase** | 115V | 56A | 6 AWG | 70A |
| **Single-Phase** | 230V | 28A | 10 AWG | 40A |
| **Three-Phase** | 230V | 15.2A | 14 AWG | 20A |
| **Three-Phase** | 460V | 7.6A | 14 AWG | 15A |

### 10 HP Motor Cable Size Chart

| **Motor Type** | **Voltage** | **Full Load Amps (FLA)** | **Minimum Wire Size (Copper)** | **Recommended Breaker Size** |
|----------------|-------------|-------------------------|-------------------------------|----------------------------|
| **Single-Phase** | 115V | 100A | 2 AWG | 125A |
| **Single-Phase** | 230V | 50A | 6 AWG | 70A |
| **Three-Phase** | 230V | 28A | 10 AWG | 40A |
| **Three-Phase** | 460V | 14A | 14 AWG | 20A |

<Notice type="info">
💡 Important Note: Always verify the actual full load amperage (FLA) from your specific motor's nameplate. These values are typical but can vary by manufacturer and motor design.
</Notice>

## Understanding Motor Cable Sizing Basics

### Why Proper Motor Cable Sizing Matters

Undersized motor cables create serious problems:
- **Voltage drop**: Reduces motor torque and efficiency
- **Overheating**: Damages wire insulation over time
- **Motor damage**: Insufficient voltage causes overheating and premature failure
- **Fire hazard**: Overloaded conductors can ignite
- **Code violations**: Results in failed inspections

### Key Factors in Motor Cable Selection

**1. Motor Full Load Amperage (FLA)**
The continuous current the motor draws during normal operation, found on the motor nameplate.

**2. NEC 125% Rule**
According to NEC Article 430.22, motor circuit conductors must have ampacity at least 125% of motor FLA:

$$
\text{Required Ampacity} = \text{Motor FLA} \times 1.25
$$

**3. Voltage Level**
Higher voltage significantly reduces current requirements:
- 460V three-phase: Lowest current, smallest wire
- 230V three-phase: Moderate current
- 230V single-phase: High current, larger wire needed
- 115V single-phase: Highest current, largest wire required

**4. Wire Run Length**
Longer distances require larger wire to minimize voltage drop:
- Under 100 feet: Use minimum code-required size
- 100-200 feet: Upsize one wire gauge
- Over 200 feet: Calculate voltage drop and upsize accordingly

<InlineEmailCTA/>

## Step-by-Step Cable Sizing Process

### Step 1: Determine Motor Specifications

Locate the motor nameplate and record:
- **Horsepower rating** (HP)
- **Voltage** (115V, 230V, 460V)
- **Phase** (single or three-phase)
- **Full Load Amperage** (FLA)
- **Service Factor** (typically 1.0 or 1.15)

### Step 2: Calculate Minimum Wire Ampacity

Apply the NEC 125% rule:

**Example - 5 HP Three-Phase Motor at 230V:**
- Motor FLA: 15.2A (from nameplate)
- Required ampacity: 15.2A × 1.25 = 19A
- Minimum wire size: 14 AWG copper (20A rating)

**Example - 10 HP Single-Phase Motor at 230V:**
- Motor FLA: 50A (from nameplate)
- Required ampacity: 50A × 1.25 = 62.5A
- Minimum wire size: 6 AWG copper (65A rating)

### Step 3: Check Voltage Drop

For runs over 100 feet, calculate voltage drop:

$$
\text{VD\%} = \frac{2 \times K \times I \times L}{CM \times V} \times 100
$$

Where:
- K = 12.9 (copper) or 21.2 (aluminum)
- I = Current in amperes
- L = One-way length in feet
- CM = Circular mils of conductor
- V = Voltage

**Acceptable voltage drop limits:**
- **Feeder circuits**: 2% maximum
- **Branch circuits**: 3% maximum
- **Combined**: 5% maximum total

### Step 4: Select Final Wire Size

Choose wire size that satisfies both:
1. Minimum ampacity requirement (125% of FLA)
2. Voltage drop requirement (≤3% for branch circuits)

If voltage drop is excessive, upsize the wire even if ampacity is adequate.

## Detailed Sizing Examples

### Example 1: 5 HP Three-Phase Motor at 460V

**Motor Specifications:**
- Power: 5 HP
- Voltage: 460V three-phase
- FLA: 7.6A (from nameplate)
- Distance: 150 feet

**Step 1 - Calculate Minimum Ampacity:**
$$
\text{Required Ampacity} = 7.6A \times 1.25 = 9.5A
$$

**Step 2 - Initial Wire Selection:**
14 AWG copper (15A rating) meets ampacity requirement

**Step 3 - Check Voltage Drop:**
For 14 AWG (4,110 CM):
$$
\text{VD\%} = \frac{2 \times 12.9 \times 7.6 \times 150}{4110 \times 460} \times 100 = 1.55\%
$$

**Result:** 14 AWG copper is adequate (voltage drop under 3%)

**Final Selection:**
- **Cable size**: 14 AWG copper, 3-conductor with ground
- **Conduit**: ¾" EMT or PVC
- **Breaker size**: 15A

### Example 2: 10 HP Single-Phase Motor at 230V

**Motor Specifications:**
- Power: 10 HP
- Voltage: 230V single-phase
- FLA: 50A (from nameplate)
- Distance: 75 feet

**Step 1 - Calculate Minimum Ampacity:**
$$
\text{Required Ampacity} = 50A \times 1.25 = 62.5A
$$

**Step 2 - Initial Wire Selection:**
6 AWG copper (65A rating) meets ampacity requirement

**Step 3 - Check Voltage Drop:**
For 6 AWG (26,240 CM):
$$
\text{VD\%} = \frac{2 \times 12.9 \times 50 \times 75}{26240 \times 230} \times 100 = 1.61\%
$$

**Result:** 6 AWG copper is adequate (voltage drop under 3%)

**Final Selection:**
- **Cable size**: 6 AWG copper, 2-conductor with ground
- **Conduit**: 1¼" EMT or PVC
- **Breaker size**: 70A

## Voltage Considerations for Motor Applications

### Single-Phase vs. Three-Phase Impact

The difference in current draw between single-phase and three-phase motors is significant:

**10 HP Motor Comparison:**

| **Configuration** | **Current Draw** | **Wire Size Needed** | **Cost Impact** |
|-------------------|------------------|---------------------|----------------|
| Single-Phase 230V | 50A | 6 AWG | High |
| Three-Phase 230V | 28A | 10 AWG | Medium |
| Three-Phase 460V | 14A | 14 AWG | Low |

**Key Takeaway:** Three-phase motors at higher voltage require significantly smaller (and less expensive) wire.

### Benefits of Higher Voltage Operation

Operating motors at higher voltage provides:
- **Smaller wire sizes**: Reduces material costs
- **Lower current**: Reduces losses and heat
- **Better efficiency**: Less voltage drop
- **Lower installation cost**: Smaller conduit and components

## Special Considerations for Motor Circuits

### Motor Starting Currents

Motors draw 5-7 times FLA during startup, affecting:
- **Breaker selection**: Must handle inrush without nuisance tripping
- **Wire sizing**: Based on FLA, not starting current
- **Voltage drop**: May be significant during starts on long runs

### Soft Starters and VFDs

When using soft starters or variable frequency drives:
- Size wire to drive output rating, not motor FLA
- Follow manufacturer specifications
- Consider harmonic effects on wire heating
- May require oversized neutral for single-phase VFDs

### Temperature and Ambient Conditions

**High Temperature Locations:**
Apply temperature correction factors:

| **Ambient Temperature** | **Correction Factor** |
|------------------------|---------------------|
| 86-95°F (30-35°C) | 0.91 |
| 96-104°F (36-40°C) | 0.82 |
| 105-113°F (41-45°C) | 0.71 |

**Example:** 10 AWG rated 30A at 90°C ambient requires derating:
$$
\text{Adjusted Ampacity} = 30A \times 0.91 = 27.3A
$$

## Installation Best Practices

### Cable Type Selection

**THHN/THWN-2** (Most Common):
- Temperature rating: 90°C
- Suitable for dry and wet locations
- Cost-effective
- Available in all sizes

**XHHW-2**:
- Temperature rating: 90°C
- Excellent moisture resistance
- Direct burial rated
- Premium option

**MC Cable (Metal-Clad)**:
- Pre-assembled with ground
- Faster installation
- Higher cost
- Good for exposed runs

### Conduit Sizing

Proper conduit size prevents damage and aids heat dissipation:

**For Three 14 AWG Conductors + Ground:**
- Minimum: ½" EMT or PVC
- Recommended: ¾" for easier pulling

**For Three 6 AWG Conductors + Ground:**
- Minimum: 1" EMT or PVC
- Recommended: 1¼" for easier pulling

### Protection Requirements

**Overload Protection:**
- Required by NEC Article 430.32
- Typically built into motor starter
- Set at 115-125% of motor FLA

**Branch Circuit Protection:**
- Inverse time circuit breaker: 250% of FLA
- Instantaneous trip breaker: 800% of FLA
- Must protect conductors and motor

## Common Cable Sizing Mistakes to Avoid

### Mistake 1: Using Motor Nameplate HP Instead of FLA

**Wrong Approach:**
"It's a 10 HP motor, so I'll use wire for 10 amps."

**Correct Approach:**
Always use the actual FLA from nameplate (50A for 10 HP single-phase at 230V).

### Mistake 2: Ignoring Voltage Drop on Long Runs

**Problem:**
150-foot run with minimum code-size wire causes 8% voltage drop.

**Result:**
- Motor runs hot
- Reduced torque
- Premature failure

**Solution:**
Calculate voltage drop and upsize wire as needed.

### Mistake 3: Not Applying the 125% Rule

**Wrong:**
50A motor with 50A-rated wire

**Correct:**
50A motor requires wire rated for 50A × 1.25 = 62.5A minimum

### Mistake 4: Confusing Starting Current with FLA

**Remember:**
- Wire is sized for continuous operation (FLA × 125%)
- Starting current affects breaker selection only
- Motor protection handles overload conditions

## Quick Decision Guide

### When to Choose Each Wire Size

**14 AWG Copper:**
- 5 HP three-phase at any voltage
- 10 HP three-phase at 460V
- Short runs only
- Maximum 15A continuous load

**10 AWG Copper:**
- 5 HP single-phase at 230V
- 10 HP three-phase at 230V
- Runs up to 150 feet
- Maximum 30A continuous load

**6 AWG Copper:**
- 10 HP single-phase at 230V
- Large three-phase motors
- Long distance runs
- Maximum 65A continuous load

## Cost Considerations

### Wire Cost Comparison (per 100 feet)

| **Wire Size** | **Copper Cost** | **Aluminum Cost** | **Relative Savings** |
|---------------|----------------|------------------|---------------------|
| **14 AWG** | $30-40 | $20-25 | Aluminum 35% less |
| **10 AWG** | $60-80 | $35-45 | Aluminum 40% less |
| **6 AWG** | $150-200 | $80-100 | Aluminum 45% less |

*Approximate retail cost ranges. Actual prices vary by supplier, metal market, and location.*

**Aluminum Considerations:**
- Must upsize two wire gauges vs. copper
- Requires special terminations (anti-oxidant compound)
- Not recommended below 6 AWG for safety
- Cost-effective for large motors and long runs

- [Download the Voltage Drop & Wire Size Excel Tool](/voltage-drop-and-wire-size-excel-tool)

## Conclusion

Proper cable sizing for 5 HP and 10 HP motors ensures safe, efficient operation and compliance with electrical codes. The key points to remember:

1. **Always verify motor FLA** from the nameplate, don't assume standard values
2. **Apply the 125% rule** for conductor ampacity per NEC requirements
3. **Calculate voltage drop** for runs over 100 feet and upsize as needed
4. **Consider voltage level** - higher voltage allows smaller, more economical wire
5. **Choose three-phase when possible** to reduce current and wire size requirements

For 5 HP motors, 14 AWG copper typically suffices for three-phase applications, while 10 AWG is needed for single-phase. For 10 HP motors, sizes range from 14 AWG (three-phase 460V) to 6 AWG (single-phase 230V).

When in doubt, consult with a licensed electrician to verify your calculations and ensure compliance with local electrical codes. Proper motor cable sizing is not just about meeting minimum requirements—it's about ensuring reliable, safe operation for years to come.

---

## 🔗 Related Posts

- [Understanding Induction Motors: Working Principle, Calculations, and Applications](/posts/induction-motor-why-we-need-them)
- [Circuit Breaker Sizing: Complete Guide with Wire Size Charts & NEC Code Requirements](/posts/circuit-breaker-sizing-complete-guide)
- [Wire Size Calculator: Complete Guide with Single Phase, 3-Phase & DC Calculations](/posts/wire-size-calculator-complete-guide)
- [Voltage Drop Calculation: Ultimate Guide with NEC Tables & Free Calculator](/posts/voltage-drop-calculation-complete-guide)
- [Variable Frequency Drive (VFD): The Complete Guide to Working Principles, Types, and Applications](/posts/variable-frequency-drive-vfd-complete-guide)

### Helpful Calculators

- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)
- [Ohm's Law Calculator](/calculators/ohms-law-calculator)
- [AC DC Current Calculator](/calculators/ac-dc-current-calculator)

---

#### **Credits**

- Photo by [Mika Baumeister](https://unsplash.com/fr/@kommumikation?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText) on [Unsplash](https://unsplash.com/fr/photos/moteur-a-courant-alternatif-gris-2MLhOfRL_hI?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText)

---

Complete guide to selecting proper cable size for 5 HP and 10 HP motors. Includes wire sizing charts, voltage considerations, NEC requirements, and step-by-step calculations for single-phase and three-phase motors.

5 HP & 10 HP Motor Cable Size Chart | Wire Sizing Calculator

Motor Cable Size for 5 HP & 10 HP: Complete Selection Guide with Charts

Proper solar panel wire sizing is critical for system safety, efficiency, and compliance with electrical codes. Using undersized wire in your solar installation can result in dangerous overheating, significant energy losses from voltage drop, and costly equipment failures. Whether you're installing a small off-grid system or a large grid-tied array, understanding solar cable sizing calculations ensures your system operates safely and delivers maximum power output.

This comprehensive guide provides everything you need to correctly size solar wires: calculation formulas, wire size charts for common configurations, voltage drop tables, and NEC code requirements specific to photovoltaic systems.

## Table of Contents

1. [Understanding Solar Wire Sizing Basics](#understanding-solar-wire-sizing-basics)
2. [Factors Affecting Solar Cable Size](#factors-affecting-solar-cable-size)
3. [Solar Wire Size Calculation Formula](#solar-wire-size-calculation-formula)
4. [Solar Wire Size Charts](#solar-wire-size-charts)
5. [Step-by-Step Sizing Process](#step-by-step-sizing-process)
6. [NEC Requirements for Solar Installations](#nec-requirements-for-solar-installations)
7. [Common Sizing Mistakes](#common-sizing-mistakes)

## Understanding Solar Wire Sizing Basics

### Why Solar Wire Sizing Matters

Proper solar cable sizing directly impacts three critical areas:

**Safety**: Undersized wire overheats, potentially causing insulation failure and fires. Solar systems operate in harsh outdoor environments where proper wire ratings are essential.

**Efficiency**: Excessive [voltage drop](/posts/voltage-drop-calculation-complete-guide) in undersized wire reduces power delivery. A 5% voltage drop means 5% less solar energy reaching your batteries or inverter - wasted sunlight and lost savings.

**Code Compliance**: National Electrical Code (NEC) Article 690 sets specific requirements for photovoltaic wire sizing. Non-compliant installations can fail inspections and void insurance.

### DC vs. AC Solar Cables

Solar systems use two distinct cable types:

| **Cable Type** | **Application** | **Wire Type** | **Key Requirements** |
|---------------|----------------|---------------|---------------------|
| **DC Cables** | Panels to charge controller/inverter | PV wire, USE-2, RHW-2 | UV-resistant, outdoor-rated, 90°C minimum |
| **AC Cables** | Inverter to grid/loads | THWN, THWN-2 | Standard electrical wire, indoor/outdoor rated |

<Notice type="warning">
⚠️ Critical: Never use standard THWN wire for DC solar circuits. It lacks UV resistance and proper outdoor ratings required by NEC 690.31. Use only solar-rated PV wire or USE-2 cable for panel connections.
</Notice>

### Solar Wire Types

**PV Wire (Photovoltaic Wire)**:
- Rated for 90°C (194°F) or 105°C (221°F)
- UV-resistant insulation (typically XLPE)
- Wet/dry rated for outdoor use
- Most common for solar arrays

**USE-2 (Underground Service Entrance Cable)**:
- Rated for 90°C
- Direct burial capable
- Excellent UV resistance
- Alternative to PV wire

## Factors Affecting Solar Cable Size

### 1. System Current

Calculate maximum current your wire must carry:

$$
I_{\text{max}} = \frac{\text{Panel Watts}}{\text{System Voltage}} \times 1.25
$$

The 1.25 safety factor accounts for NEC 690.8(B)(1) requirement to size conductors for 125% of short-circuit current.

**Example**:
- 4 × 300W panels = 1200W
- 24V system voltage
- $I_{\text{max}} = \frac{1200W}{24V} \times 1.25 = 62.5A$

### 2. Wire Run Distance

Longer distances require larger wire to maintain acceptable voltage drop. Solar systems typically use 2-3% maximum voltage drop for DC circuits.

<InlineEmailCTA/>

### 3. Ambient Temperature

High rooftop temperatures reduce wire ampacity. NEC 310.15(B)(3)(c) requires temperature correction:

| **Ambient Temperature** | **Correction Factor (90°C wire)** |
|------------------------|-----------------------------------|
| 86-104°F (30-40°C) | 0.91 |
| 105-113°F (41-45°C) | 0.82 |
| 114-122°F (46-50°C) | 0.71 |

**Adjusted ampacity** = Base ampacity × Temperature factor

### 4. Conduit Fill

When multiple conductors run in conduit, apply NEC 310.15(B)(3)(a) derating:

| **Conductors in Conduit** | **Derating Factor** |
|---------------------------|-------------------|
| 1-3 | 1.0 (no derating) |
| 4-6 | 0.8 |
| 7-9 | 0.7 |

## Solar Wire Size Calculation Formula

### Voltage Drop Method

The most practical method for solar installations:

$$
\text{Wire CM} = \frac{2 \times K \times I \times L}{\text{VD}}
$$

Where:
- **CM** = Circular mils (wire cross-section)
- **K** = Resistance constant (12.9 for copper)
- **I** = Current in amperes
- **L** = One-way distance in feet
- **VD** = Acceptable voltage drop in volts

### Voltage Drop Percentage

Calculate acceptable voltage drop in volts:

$$
\text{VD (volts)} = \text{System Voltage} \times \text{VD\%}
$$

**Recommended voltage drop limits**:
- DC circuits (panels to controller): **3% maximum**
- AC circuits (inverter to grid): **3% maximum**
- Combined DC + AC: **5% maximum total**

### Complete Sizing Example

**System Specifications**:
- 6 × 400W panels = 2400W
- 48V DC system
- 80-foot wire run (panels to charge controller)
- Ambient temperature: 95°F

**Step 1: Calculate Current**
$$
I = \frac{2400W}{48V} \times 1.25 = 62.5A
$$

**Step 2: Calculate Acceptable Voltage Drop**
$$
\text{VD} = 48V \times 0.03 = 1.44 \text{ volts}
$$

**Step 3: Calculate Required Wire Size**
$$
\text{CM} = \frac{2 \times 12.9 \times 62.5 \times 80}{1.44} = 89,583 \text{ CM}
$$

**Step 4: Select Wire Size**
- 4 AWG copper = 41,740 CM (too small)
- 3 AWG copper = 52,620 CM (too small)
- 2 AWG copper = 66,360 CM (too small)
- **1 AWG copper = 83,690 CM** (closest acceptable)
- 1/0 AWG copper = 105,600 CM (safer choice)

**Step 5: Apply Temperature Derating**
At 95°F (35°C), use 0.91 correction factor:
- 1 AWG ampacity: 130A × 0.91 = **118A** ✓ (exceeds 62.5A)

**Final Selection**: **1 AWG copper PV wire**

## Solar Wire Size Charts

### Quick Reference: 12V Systems

| **Wire Size** | **Max Distance (ft)** | **Max Current** | **Typical Application** |
|--------------|----------------------|-----------------|------------------------|
| **10 AWG** | 15 | 30A | Small panels, short runs |
| **8 AWG** | 25 | 40A | Single panel to controller |
| **6 AWG** | 35 | 55A | Multiple panels, medium runs |
| **4 AWG** | 55 | 70A | Large arrays, longer runs |
| **2 AWG** | 90 | 95A | Heavy loads, extended runs |

*Based on 3% voltage drop at 12V DC*

### Quick Reference: 24V Systems

| **Wire Size** | **Max Distance (ft)** | **Max Current** | **Typical Application** |
|--------------|----------------------|-----------------|------------------------|
| **10 AWG** | 30 | 30A | 2-3 panels, moderate runs |
| **8 AWG** | 50 | 40A | 4-5 panels, standard arrays |
| **6 AWG** | 70 | 55A | Medium to large arrays |
| **4 AWG** | 110 | 70A | Large arrays, long runs |
| **2 AWG** | 180 | 95A | Very large systems |

*Based on 3% voltage drop at 24V DC*

### Quick Reference: 48V Systems

| **Wire Size** | **Max Distance (ft)** | **Max Current** | **Typical Application** |
|--------------|----------------------|-----------------|------------------------|
| **10 AWG** | 60 | 30A | Standard residential arrays |
| **8 AWG** | 100 | 40A | Medium commercial arrays |
| **6 AWG** | 140 | 55A | Large residential/commercial |
| **4 AWG** | 220 | 70A | Large commercial arrays |
| **2 AWG** | 360 | 95A | Very large installations |

*Based on 3% voltage drop at 48V DC*

## Step-by-Step Sizing Process

### Step 1: Gather System Information

Document these specifications:
- Total panel wattage
- System voltage (12V, 24V, 48V, etc.)
- Wire run distance (one-way, in feet)
- Ambient temperature where wire runs
- Installation method (in conduit, free air, etc.)

### Step 2: Calculate System Current

Use the 1.25 NEC safety factor:
$$
I = \frac{\text{Total Watts}}{\text{System Voltage}} \times 1.25
$$

### Step 3: Determine Voltage Drop Limit

Choose appropriate limit:
- Standard: 3% for DC circuits
- Critical systems: 2% for minimal losses
- Budget constrained: Up to 5% (not recommended)

### Step 4: Calculate Wire Size

Use the voltage drop formula or reference charts above based on your system voltage and current.

### Step 5: Apply Derating Factors

Adjust for:
- **Temperature**: Use NEC Table 310.15(B)(3)(c)
- **Conduit fill**: Use NEC Table 310.15(B)(3)(a)
- **Multiple circuits**: Additional derating may apply

### Step 6: Verify and Select

Confirm selected wire size meets:
- Ampacity requirements after derating
- Voltage drop limits
- NEC Article 690 requirements
- Available wire types and costs

## NEC Requirements for Solar Installations

### Article 690: Solar Photovoltaic Systems

**690.8 - Circuit Sizing and Current**:
- Size conductors for 125% of maximum circuit current
- Account for continuous loads (operate 3+ hours)

**690.31 - Wiring Methods**:
- DC circuits must use approved wiring methods
- Exposed wiring requires UV-resistant cable (PV wire, USE-2)
- Minimum 90°C temperature rating required

**690.45 - Size and Ampacity**:
- DC circuits: 125% of maximum current rating
- Account for temperature correction factors
- Include safety margin for environmental conditions

### Wire Temperature Ratings

Solar installations require high-temperature wire ratings:

| **Wire Rating** | **Application** | **Color Code** |
|----------------|----------------|----------------|
| **90°C (194°F)** | Standard solar installations | Varies by manufacturer |
| **105°C (221°F)** | High-temperature environments | Varies by manufacturer |

<Notice type="info">
💡 Pro Tip: Always use 90°C rated wire minimum for solar installations. Higher ratings (105°C) provide additional safety margin in hot climates where rooftop temperatures can exceed 150°F.
</Notice>

## Common Sizing Mistakes

### Mistake 1: Using Voltage Drop Tables for Wrong Voltage

**Problem**: Applying 120V AC voltage drop tables to 24V DC solar systems.

**Impact**: Severe undersizing leading to 10-15% voltage drop and power loss.

**Solution**: Always use solar-specific calculations or charts for your system voltage.

### Mistake 2: Ignoring Temperature Effects

**Problem**: Not applying temperature correction for hot rooftop installations.

**Impact**: Wire operates above rated capacity, risking insulation failure.

**Solution**: Use NEC temperature correction factors for ambient conditions.

### Mistake 3: Measuring Round-Trip Distance

**Problem**: Using total wire length (to and from) instead of one-way distance in calculations.

**Impact**: Selecting wire one size too small (voltage drop formula already accounts for both conductors).

**Solution**: Always use one-way distance in calculations - the formula factor of "2" accounts for the return path.

### Mistake 4: Using Non-Solar-Rated Wire

**Problem**: Installing standard THWN wire for DC solar circuits.

**Impact**: Rapid UV degradation, insulation failure, code violations, failed inspections.

**Solution**: Use only PV wire, USE-2, or other solar-rated cable types for exposed DC circuits.

### Mistake 5: Skipping Safety Factors

**Problem**: Sizing wire for nameplate current without NEC 125% multiplier.

**Impact**: Wire operates at or above rated capacity, overheating risk.

**Solution**: Always apply 1.25 safety factor to calculated current.

## Practical Application Examples

### Example 1: Small Off-Grid Cabin

**System**:
- 4 × 300W panels (1200W total)
- 24V battery bank
- 40-foot wire run

**Calculation**:
$$
I = \frac{1200W}{24V} \times 1.25 = 62.5A
$$

**Chart Reference**: At 24V for 40ft run carrying 62.5A, requires between 6 AWG (55A at 70ft) and 4 AWG (70A at 110ft).

**Selection**: **4 AWG PV wire** (provides safety margin)

### Example 2: Grid-Tied Residential

**System**:
- 20 × 400W panels (8000W total)
- 48V string inverter
- 100-foot wire run
- Southern exposure, hot climate

**Calculation**:
$$
I = \frac{8000W}{48V} \times 1.25 = 208A
$$

Temperature correction (110°F): 0.71 factor

**Chart Reference**: 48V, 100ft run at 208A far exceeds standard charts.

**Required**: **4/0 AWG or larger**, consider multiple parallel runs of smaller wire with proper overcurrent protection.

## Wire Selection Best Practices

### Choosing Wire Type

1. **Exposed DC Circuits**: PV wire or USE-2 only
2. **In Conduit**: PV wire, USE-2, or RHW-2
3. **AC Circuits**: Standard THWN-2 acceptable
4. **Wet Locations**: Ensure "W" rating (wet-rated)

### Installation Tips

- **Label all conductors**: Positive, negative, and grounding
- **Use proper connectors**: MC4 for PV wire connections
- **Protect from physical damage**: Use conduit where required
- **Maintain proper bend radius**: Typically 8× wire diameter minimum
- **Secure properly**: Support every 4.5 feet per NEC 690.31(E)

## Conclusion

Proper solar panel wire sizing is essential for safe, efficient, and code-compliant photovoltaic installations. By understanding the key factors - system current, voltage, distance, and environmental conditions - and applying the correct calculation methods, you can select wire sizes that protect your investment and maximize energy harvest.

**Key Takeaways**:
- Always use the 125% NEC safety factor for solar circuits
- Limit voltage drop to 3% for DC circuits
- Use only solar-rated wire (PV wire, USE-2) for exposed DC circuits
- Apply temperature correction factors for hot environments
- When in doubt, size up - the modest additional wire cost is insurance against problems

For more detailed electrical calculations and system design guidance, explore our related resources on [voltage drop calculations](/posts/voltage-drop-calculation-complete-guide) and [wire sizing for other applications](/posts/wire-size-calculator-complete-guide).

---

## 🔗 Related Posts

- [How Solar Panels Work: A Comprehensive Guide](/posts/how-solar-panels-work)
- [Wire Size Calculator: Complete Guide with Single Phase, 3-Phase & DC Calculations](/posts/wire-size-calculator-complete-guide)
- [Complete Guide to Voltage Drop: Calculations, Tables & Calculators](/posts/voltage-drop-calculation-complete-guide)
- [Circuit Breaker Sizing: Complete Guide with Wire Size Charts & NEC Code Requirements](/posts/circuit-breaker-sizing-complete-guide)

### Helpful Calculators

- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)
- [Ohm's Law Calculator](/calculators/ohms-law-calculator)
- [Power Factor Calculator](/calculators/power-factor-correction-calculator)
- [Capacitor and Inductor Reactance Calculator](/calculators/capacitor-inductor-reactance-calculator)

---

#### **Credits**

- Photo by [American Public Power Association](https://unsplash.com/fr/@publicpowerorg?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText) on [Unsplash](https://unsplash.com/fr/photos/panneaux-solaires-sur-terrain-vierge-513dBrMJ_5w?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText)

---

Master solar panel wire sizing with our complete guide including wire size calculators, ampacity charts, voltage drop calculations, and NEC requirements for safe solar installations.

Solar Wire Size Calculator: Complete Guide with Charts & NEC Code

Solar Panel Wire Sizing: Complete Guide with Calculator, Charts & NEC Requirements

Understanding how to calculate 3-phase power is essential for electrical engineers, technicians, and anyone working with industrial electrical systems. Whether you're sizing circuit breakers, selecting motor starters, or designing power distribution systems, accurate 3-phase power calculations ensure safe and efficient operation. This guide provides the formulas, examples, and practical tips you need to confidently calculate 3-phase power, convert between kW and amps, and determine motor current requirements.

## Understanding 3-Phase Power Fundamentals

### Why 3-Phase Power?

Three-phase power systems offer significant advantages over single-phase:

- **Higher power capacity** with smaller conductors
- **More efficient** power transmission
- **Smoother power delivery** to motors and equipment
- **Better voltage regulation** under varying loads
- **Lower conductor costs** for the same power level

### Key 3-Phase Power Relationships

| **Parameter** | **Symbol** | **Unit** | **Description** |
|---------------|-----------|----------|-----------------|
| **Real Power** | P | kW (kilowatts) | Actual work performed |
| **Apparent Power** | S | kVA (kilovolt-amperes) | Total power including reactive |
| **Reactive Power** | Q | kVAR (kilovolt-amperes reactive) | Non-working power |
| **Power Factor** | PF | --- (decimal or %) | Ratio of real to apparent power |
| **Line Voltage** | $V_L$ | Volts | Phase-to-phase voltage |
| **Line Current** | $I_L$ | Amperes | Current in each conductor |

## Essential 3-Phase Power Formulas

### Basic Power Calculation

The fundamental formula to calculate 3-phase power:

$$
P = \sqrt{3} \times V_L \times I_L \times PF
$$

Where:
- $P$ = Power in watts (divide by 1000 for kW)
- $√3$ = 1.732 (constant for balanced 3-phase)
- $V_L$ = Line-to-line voltage
- $I_L$ = Line current
- $PF$ = Power factor (typically 0.8 to 0.95)

**Example:**
- Voltage: 480V
- Current: 100A
- Power Factor: 0.85

$$
P = 1.732 \times 480 \times 100 \times 0.85 = 70,646 \text{ watts} = 70.6 \text{ kW}
$$

### Apparent Power (kVA) Calculation

When power factor is unknown or you need total capacity:

$$
S = \sqrt{3} \times V_L \times I_L \div 1000
$$

**Example:**
$$
S = 1.732 \times 480 \times 100 \div 1000 = 83.1 \text{ kVA}
$$

### Power Factor Relationship

$$
PF = \frac{kW}{kVA}
$$

From the example above:
$$
PF = \frac{70.6}{83.1} = 0.85 \text{ or } 85\%
$$

## Converting kW to Amps (3-Phase)

### Standard Conversion Formula

To convert kilowatts to amperes in a 3-phase system:

$$
I = \frac{kW \times 1000}{\sqrt{3} \times V_L \times PF}
$$

### Step-by-Step Example

**Given:**
- Power: 50 kW
- Voltage: 480V (3-phase)
- Power Factor: 0.90

**Step 1:** Apply the formula
$$
I = \frac{50 \times 1000}{1.732 \times 480 \times 0.90}
$$

**Step 2:** Calculate denominator
$$
1.732 \times 480 \times 0.90 = 748.2
$$

**Step 3:** Complete calculation
$$
I = \frac{50,000}{748.2} = 66.8 \text{ amperes}
$$

<InlineEmailCTA/>

### Quick Reference: kW to Amps Conversion Table

Common 480V 3-phase conversions (at 0.85 PF):

| **Power (kW)** | **Current (Amps)** | **Typical Application** |
|----------------|-------------------|-------------------------|
| **10 kW** | 14.1 A | Small machinery |
| **20 kW** | 28.2 A | Compressors, pumps |
| **30 kW** | 42.3 A | Industrial equipment |
| **50 kW** | 70.5 A | Large motors |
| **75 kW** | 105.7 A | Heavy machinery |
| **100 kW** | 141.0 A | Industrial systems |

## 3-Phase Motor Current Calculation

### Motor Full Load Current Formula

For 3-phase motors, the full load amperage (FLA) calculation includes efficiency:

$$
I = \frac{HP \times 746}{\sqrt{3} \times V_L \times \eta \times PF}
$$

Where:
- **HP** = Motor horsepower
- **746** = Conversion factor (watts per HP)
- **η** = Motor efficiency (decimal)
- **PF** = Motor power factor

### Complete Motor Calculation Example

**Motor Specifications:**
- Rating: 75 HP
- Voltage: 460V
- Efficiency: 93% (0.93)
- Power Factor: 0.88

**Step 1: Calculate motor input power**
$$
P_{input} = \frac{75 \times 746}{0.93} = 60,161 \text{ watts} = 60.2 \text{ kW}
$$

**Step 2: Calculate current**
$$
I = \frac{75 \times 746}{1.732 \times 460 \times 0.93 \times 0.88}
$$

$$
I = \frac{55,950}{647.9} = 86.4 \text{ amperes}
$$

### Motor Sizing Quick Reference

Standard motor currents at 460V:

| **Motor HP** | **Typical FLA** | **Breaker Size** | **Wire Size (Cu)** |
|--------------|-----------------|------------------|--------------------|
| **10 HP** | 14 A | 20-25 A | 12 AWG |
| **25 HP** | 34 A | 50 A | 8 AWG |
| **50 HP** | 65 A | 100 A | 4 AWG |
| **75 HP** | 96 A | 150 A | 2 AWG |
| **100 HP** | 124 A | 200 A | 1/0 AWG |

## Practical Calculation Examples

### Example 1: Industrial Compressor System

**Scenario:** Size the electrical supply for a 40 HP air compressor

**Given:**
- Motor: 40 HP, 480V, 3-phase
- Efficiency: 91%
- Power Factor: 0.86

**Solution:**

Calculate current:
$$
I = \frac{40 \times 746}{1.732 \times 480 \times 0.91 \times 0.86}
$$

$$
I = \frac{29,840}{619.2} = 48.2 \text{ amperes}
$$

**Electrical Requirements:**
- Full Load Current: 48.2A
- Circuit Breaker: 70A (per NEC 430.52)
- Wire Size: 6 AWG copper minimum
- Overload Protection: 53-60A range

### Example 2: HVAC System Load Analysis

**Scenario:** Calculate total current for HVAC equipment

**Equipment:**
- Chiller: 60 kW
- Air handlers: 15 kW
- Pumps: 10 kW
- Total: 85 kW

**System Parameters:**
- Voltage: 480V, 3-phase
- Combined Power Factor: 0.88

**Calculate total current:**
$$
I = \frac{85 \times 1000}{1.732 \times 480 \times 0.88}
$$

$$
I = \frac{85,000}{731.6} = 116.2 \text{ amperes}
$$

**Installation Requirements:**
- Main disconnect: 200A
- Feeder wire: 1 AWG copper
- Conduit: 2-inch minimum

## Common Calculation Mistakes to Avoid

### Mistake 1: Using Phase Voltage Instead of Line Voltage

**Wrong:**
$$
I = \frac{kW \times 1000}{\sqrt{3} \times 277V \times PF}
$$

**Correct:**
$$
I = \frac{kW \times 1000}{\sqrt{3} \times 480V \times PF}
$$

Always use line-to-line voltage (480V, not 277V phase voltage).

### Mistake 2: Forgetting the √3 Factor

**Wrong:**
$$
P = V \times I \times PF
$$

**Correct:**
$$
P = \sqrt{3} \times V \times I \times PF
$$

The 1.732 factor is essential for 3-phase calculations.

### Mistake 3: Ignoring Power Factor

**Wrong:** Assuming PF = 1.0
$$
I = \frac{50,000}{1.732 \times 480} = 60.1A
$$

**Correct:** Using actual PF = 0.85
$$
I = \frac{50,000}{1.732 \times 480 \times 0.85} = 70.7A
$$

This 17.6% difference affects wire sizing and breaker selection.

### Mistake 4: Confusing kW and kVA

Remember:
- **Equipment ratings** often in kVA (transformers, generators)
- **Load calculations** typically in kW
- **Conversion:** kW = kVA × Power Factor

## Voltage-Specific Calculation Shortcuts

### 480V Systems (Most Common Industrial)

**Quick formulas at 480V:**

Current from kW:
$$
I \approx \frac{kW \times 1.2}{PF} \text{ (assumes 480V)}
$$

kW from current:
$$
kW \approx \frac{I \times PF}{1.2} \text{ (assumes 480V)}
$$

### 208V Systems (Commercial)

**Quick formulas at 208V:**

Current from kW:
$$
I \approx \frac{kW \times 2.77}{PF} \text{ (assumes 208V)}
$$

## Power Quality Considerations

### Impact of Poor Power Factor

Low power factor increases current requirements:

| **Load (kW)** | **PF = 0.95** | **PF = 0.85** | **PF = 0.75** | **Current Increase** |
|---------------|---------------|---------------|---------------|---------------------|
| **50 kW** | 61 A | 68 A | 77 A | +26% (0.95 to 0.75) |
| **100 kW** | 121 A | 136 A | 154 A | +27% |

**Benefits of Power Factor Correction:**
- Reduced current requirements
- Smaller conductor sizes
- Lower energy costs
- Improved voltage regulation

### Harmonic Effects

Non-linear loads (VFDs, computers) can increase current by 10-20% due to harmonics. Consider derating:

$$
I_{actual} = I_{calculated} \times 1.15 \text{ (for VFD loads)}
$$

- [Download the Voltage Drop & Wire Size Excel Tool](/voltage-drop-and-wire-size-excel-tool)

## Conclusion: Mastering 3-Phase Calculations

Accurate 3-phase power calculations are fundamental to electrical system design and operation. By understanding the key formulas for calculating power, converting between kW and amps, and determining motor currents, you can properly size electrical equipment, ensure code compliance, and maintain system reliability.

**Key Takeaways:**

1. **Always use the √3 factor** (1.732) in balanced 3-phase calculations
2. **Use line-to-line voltage**, not phase voltage
3. **Include power factor** in all real-world calculations
4. **Account for efficiency** when calculating motor currents
5. **Verify calculations** with nameplate data when available
6. **Apply safety margins** per NEC requirements (125% for continuous loads)

For complex installations or critical applications, consult with a licensed electrical engineer to verify calculations and ensure all applicable codes and standards are met. Remember that proper calculations are the foundation of safe, efficient electrical system design.

Ready to apply these calculations? Check out our related guides on [transformer sizing](/posts/transformer-sizing-complete-guide-with-calculations), [circuit breaker selection](/posts/circuit-breaker-sizing-complete-guide), and [motor control](/posts/induction-motor-why-we-need-them) for comprehensive electrical system design.

---

## 🔗 Related Posts

- [Understanding Induction Motors: Working Principle, Calculations, and Applications](/posts/induction-motor-why-we-need-them)
- [3 Phase Generators: How They Work and Their Applications](/posts/three-phase-generator-and-applications)
- [Transformer Sizing: Complete Guide with Calculations, Charts & Selection Criteria](/posts/transformer-sizing-complete-guide-with-calculations)
- [Wire Size Calculator: Complete Guide with Single Phase, 3-Phase & DC Calculations](/posts/wire-size-calculator-complete-guide)
- [Power Factor Correction: Complete Guide with Calculators, Cost Analysis & Real Savings](/posts/power-factor-correction-benefits-and-calculations)
- [Circuit Breaker Sizing: Complete Guide with Wire Size Charts & NEC Code Requirements](/posts/circuit-breaker-sizing-complete-guide)

### Helpful Calculators
- [Ohm's Law Calculator](/calculators/ohms-law-calculator)
- [Power Factor Calculator](/calculators/power-factor-correction-calculator)
- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)
- [Capacitor and Inductor Reactance Calculator](/calculators/capacitor-inductor-reactance-calculator)

---

#### **Credits**

- Photo by [Jonathan Hanna](https://unsplash.com/fr/@funnelhead?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText) on [Unsplash](https://unsplash.com/fr/photos/photo-en-contre-plongee-dun-poteau-de-transmission-08ai5EDtn9k?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText)

---

Learn how to calculate 3-phase power with step-by-step formulas for kW to amps conversion, motor load calculations, and real-world examples. Includes quick reference tables and common calculation mistakes to avoid.

Calculate 3 Phase Power: kW to Amps Conversion & Motor Current Calculator

3-Phase Power Calculation: Complete Guide with kW to Amps Formulas & Motor Load Examples

Proper conduit fill is critical for electrical safety, code compliance, and system performance. Overfilling conduits causes excessive heat buildup, difficult wire pulling, and potential insulation damage, while oversizing wastes money and installation space. Understanding NEC conduit fill requirements ensures your electrical installations are safe, compliant, and efficient.

Whether you're installing residential branch circuits, commercial power distribution, or industrial control wiring, mastering conduit fill calculations is essential for every electrical professional. This guide provides the charts, calculations, and practical examples you need to size conduits correctly every time.

## Table of Contents

1. [Understanding Conduit Fill Requirements](#understanding-conduit-fill-requirements)
2. [NEC Conduit Fill Tables and Charts](#nec-conduit-fill-tables-and-charts)
3. [Step-by-Step Conduit Fill Calculations](#step-by-step-conduit-fill-calculations)
4. [Quick Reference Wire Fill Charts](#quick-reference-wire-fill-charts)
5. [Common Conduit Sizing Applications](#common-conduit-sizing-applications)
6. [Best Practices and Code Compliance](#best-practices-and-code-compliance)

## Understanding Conduit Fill Requirements

### Why Conduit Fill Matters

Proper conduit fill prevents three critical problems:

**Heat Buildup**: Overcrowded conductors trap heat, accelerating insulation degradation and increasing fire risk. Heat dissipation requires adequate air space around conductors.

**Installation Difficulty**: Overfilled conduits make wire pulling extremely difficult, often damaging insulation during installation. This leads to costly rework and potential safety hazards.

**Code Violations**: NEC Chapter 9 mandates maximum fill percentages. Violations can result in failed inspections, project delays, and liability issues.

### NEC Chapter 9 Fill Percentages

The National Electrical Code establishes maximum conduit fill based on conductor count:

| **Number of Conductors** | **Maximum Fill Percentage** | **Typical Applications** |
|-------------------------|---------------------------|------------------------|
| **1 conductor** | 53% | Large service entrances, feeders |
| **2 conductors** | 31% | Split-phase circuits, some 3-wire circuits |
| **3 or more conductors** | 40% | Most branch circuits, control wiring |

<img
 src="/images/post/conduit-fill-percentage-diagram.jpg"
 alt="Conduit fill percentage diagram showing 1, 2, and 3 or more conductors inside electrical conduit"
 width="650"
 height="auto"
 loading="lazy"
/>

*Diagram illustrating conduit fill percentages for 1, 2, and 3+ conductors based on NEC guidelines.*

<Notice type="info">
💡 Key Insight: The 40% fill rule for three or more conductors is most commonly used in electrical installations. This provides adequate space for heat dissipation and wire pulling while maximizing conduit utilization.
</Notice>

### Conductor Area Calculation

Every conductor has a specific cross-sectional area including insulation. NEC Chapter 9 Table 5 lists these areas for common conductor types:

**Calculation Formula**:
$$\text{Total Area} = \sum (\text{Area of each conductor})$$

**40% Fill Rule**:
$$\text{Total Conductor Area} \leq 0.40 \times \text{Conduit Interior Area}$$

## NEC Conduit Fill Tables and Charts

### Standard Conduit Sizes

Electrical conduit comes in standard trade sizes measured in inches:

**Common Trade Sizes**: ½", ¾", 1", 1¼", 1½", 2", 2½", 3", 3½", 4", 5", 6"

<InlineEmailCTA/>

### Maximum Wire Fill Chart - THHN/THWN Conductors

The following chart shows maximum number of THHN/THWN conductors (most common insulation type) at 40% fill:

| **Wire Size (AWG)** | **½" Conduit** | **¾" Conduit** | **1" Conduit** | **1¼" Conduit** | **1½" Conduit** | **2" Conduit** |
|-------------------|--------------|--------------|-------------|---------------|---------------|--------------|
| **14 AWG** | 9 | 16 | 26 | 43 | 58 | 96 |
| **12 AWG** | 7 | 12 | 20 | 33 | 44 | 73 |
| **10 AWG** | 5 | 9 | 15 | 25 | 34 | 56 |
| **8 AWG** | 3 | 5 | 8 | 14 | 19 | 31 |
| **6 AWG** | 1 | 4 | 6 | 10 | 14 | 23 |
| **4 AWG** | 1 | 2 | 4 | 7 | 10 | 16 |
| **3 AWG** | 1 | 1 | 3 | 6 | 8 | 14 |
| **2 AWG** | 1 | 1 | 3 | 5 | 7 | 12 |
| **1 AWG** | 0 | 1 | 1 | 4 | 5 | 9 |
| **1/0 AWG** | 0 | 1 | 1 | 3 | 4 | 7 |
| **2/0 AWG** | 0 | 1 | 1 | 2 | 3 | 6 |
| **3/0 AWG** | 0 | 0 | 1 | 1 | 3 | 5 |
| **4/0 AWG** | 0 | 0 | 1 | 1 | 2 | 4 |

### EMT Conduit Internal Areas

Electrical Metallic Tubing (EMT) internal areas for fill calculations:

| **Trade Size** | **Internal Diameter (inches)** | **40% Fill Area (sq. in)** | **Total Area (100%)** |
|---------------|------------------------------|--------------------------|---------------------|
| **½"** | 0.622 | 0.122 | 0.304 |
| **¾"** | 0.824 | 0.213 | 0.533 |
| **1"** | 1.049 | 0.346 | 0.864 |
| **1¼"** | 1.380 | 0.598 | 1.496 |
| **1½"** | 1.610 | 0.814 | 2.036 |
| **2"** | 2.067 | 1.342 | 3.356 |
| **2½"** | 2.731 | 2.343 | 5.858 |
| **3"** | 3.356 | 3.538 | 8.846 |
| **3½"** | 3.834 | 4.618 | 11.545 |
| **4"** | 4.334 | 5.901 | 14.753 |

<img
 src="/images/post/electrical-conduit-installation.jpg"
 alt="Electrical conduit installation with THHN wires routed through EMT metallic conduits"
 width="600"
 height="auto"
 loading="lazy"
/>

*Example of electrical conduit installation showing THHN wires routed through EMT metallic conduits.*

[Photo by Sen News](https://sen.news)

## Step-by-Step Conduit Fill Calculations

### Example 1: Basic Single-Size Conductor Calculation

**Scenario**: Size conduit for eight 12 AWG THHN conductors

**Step 1: Find Conductor Area**
From NEC Table 5, 12 AWG THHN = 0.0133 sq. in. per conductor

**Step 2: Calculate Total Area**
$$
\text{Total Area} = 8 \times 0.0133 = 0.1064 \text{ sq. in.}
$$

**Step 3: Determine Required 40% Fill Area**
Required conduit area = 0.1064 sq. in.

**Step 4: Select Conduit Size**
From EMT table, ¾" conduit provides 0.213 sq. in. at 40% fill
$$
0.1064 < 0.213 \quad ✓
$$

**Answer**: ¾" EMT conduit is adequate

### Example 2: Mixed Wire Size Calculation

**Scenario**: Size conduit for the following conductors:
- 4 conductors: 12 AWG THHN
- 3 conductors: 10 AWG THHN
- 1 conductor: 8 AWG THHN ground

**Step 1: Find Individual Areas (NEC Table 5)**
- 12 AWG THHN: 0.0133 sq. in.
- 10 AWG THHN: 0.0211 sq. in.
- 8 AWG THHN: 0.0366 sq. in.

**Step 2: Calculate Total Area**
$$
\text{Total} = (4 \times 0.0133) + (3 \times 0.0211) + (1 \times 0.0366)
$$
$$
= 0.0532 + 0.0633 + 0.0366 = 0.1531 \text{ sq. in.}
$$

**Step 3: Select Conduit**
From EMT table, ¾" provides 0.213 sq. in. at 40% fill
$$
0.1531 < 0.213 \quad ✓
$$

**Answer**: ¾" EMT conduit (with 28% margin for future additions)

### Example 3: Three-Phase Motor Circuit

**Scenario**: 480V three-phase motor circuit requiring:
- 3 phase conductors: 6 AWG THHN
- 1 ground conductor: 10 AWG THHN

**Step 1: Find Areas**
- 6 AWG THHN: 0.0507 sq. in.
- 10 AWG THHN: 0.0211 sq. in.

**Step 2: Calculate Total**
$$
\text{Total} = (3 \times 0.0507) + (1 \times 0.0211)
$$
$$
= 0.1521 + 0.0211 = 0.1732 \text{ sq. in.}
$$

**Step 3: Select Conduit**
¾" EMT provides 0.213 sq. in. at 40% fill
$$
0.1732 < 0.213 \quad ✓
$$

**Answer**: ¾" EMT conduit

## Quick Reference Wire Fill Charts

### Maximum Conductors for Common Applications

#### 120V Branch Circuits (14 AWG + Ground)

| **Conduit Size** | **2-Wire + Ground** | **3-Wire + Ground** | **4-Wire + Ground** |
|-----------------|-------------------|-------------------|-------------------|
| **½"** | 3 circuits | 2 circuits | 1 circuit |
| **¾"** | 5 circuits | 4 circuits | 3 circuits |
| **1"** | 8 circuits | 6 circuits | 5 circuits |

#### 240V Circuits (12 AWG + Ground)

| **Conduit Size** | **Single 240V Circuit** | **Two 240V Circuits** | **Three 240V Circuits** |
|-----------------|----------------------|---------------------|----------------------|
| **½"** | ✓ (3 wires) | ✗ | ✗ |
| **¾"** | ✓ (3 wires) | ✓ (6 wires) | ✗ |
| **1"** | ✓ (3 wires) | ✓ (6 wires) | ✓ (9 wires) |

### Derating Considerations

When more than three current-carrying conductors share a conduit, ampacity derating applies per NEC 310.15(C)(1):

| **Current-Carrying Conductors** | **Ampacity Adjustment Factor** |
|-------------------------------|------------------------------|
| 4-6 | 80% |
| 7-9 | 70% |
| 10-20 | 50% |
| 21-30 | 45% |
| 31-40 | 40% |
| 41+ | 35% |

<Notice type="warning">
⚠️ Important: Neutral conductors carrying unbalanced current and equipment grounding conductors count as current-carrying conductors for derating purposes. Always verify local code interpretations.
</Notice>

## Common Conduit Sizing Applications

### Residential Wiring

**Typical ½" EMT Applications**:
- Single 15A or 20A branch circuit
- Three 14 AWG conductors (2 hot + neutral or 1 hot + neutral + ground)
- Maximum distance: Consider [voltage drop](/posts/voltage-drop-calculation-complete-guide) for long runs

**Typical ¾" EMT Applications**:
- Multiple branch circuits to panel
- Service entrance for small loads
- Feeder circuits up to 60A

### Commercial Applications

**Lighting Circuits**:
For commercial buildings with multiple lighting circuits:
- 1" conduit: Up to 8 circuits (14 AWG)
- 1¼" conduit: Up to 13 circuits (14 AWG)
- Consider smart lighting control wiring

**Power Distribution**:
Office space power distribution typically uses:
- 1" to 1½" conduit for branch circuit homerun
- 2" to 3" conduit for sub-panel feeders
- Larger conduits for main distribution

### Industrial Installations

**Motor Circuits**:
Size based on [motor full-load ampacity](/posts/induction-motor-why-we-need-them):
- Include oversized ground wire per NEC 250.122
- Consider [VFD installations](/posts/variable-frequency-drive-vfd-complete-guide) requiring additional conductors
- Account for control wiring in separate conduits

**Control Wiring**:
PLC and instrumentation wiring:
- Typically 18-16 AWG
- May require separation from power circuits
- Consider [shielded cable](/posts/grounding-earthing-difference-complete-guide) requirements

## Best Practices and Code Compliance

### Installation Best Practices

**1. Wire Pulling Limits**
- Maximum pull length without junction: 100 feet
- Use pull boxes for longer runs or multiple bends
- Limit total bends to 360° between boxes

**2. Conduit Selection**
- **EMT**: Indoor dry locations, easiest to work with
- **Rigid PVC**: Outdoor underground, corrosion resistance
- **Rigid Metal**: High-abuse areas, mechanical protection
- **Flexible**: Short connections to equipment

**3. Future Expansion**
Consider oversizing conduit by one size for:
- Potential circuit additions
- Equipment upgrades
- Easier wire pulling
- **Rule of thumb**: Design for 60-70% fill rather than maximum 40%

### Common Mistakes to Avoid

**1. Forgetting Ground Conductors**
Always include equipment grounding conductors in fill calculations. This is a frequent oversight that causes code violations.

**2. Mixing Conductor Types**
Use consistent insulation types (all THHN or all THWN-2). Mixing types complicates calculations and may violate temperature ratings.

**3. Ignoring Ambient Temperature**
High-temperature locations require:
- Temperature rating adjustments
- Possible larger conduit for heat dissipation
- Special insulation types

**4. Undersizing for Long Runs**
Account for:
- Voltage drop on long runs
- Difficulty pulling wire through small conduit
- Future troubleshooting and maintenance

### Inspection and Compliance

**Before Installation**:
- Verify local amendments to NEC
- Obtain required permits
- Submit drawings for approval
- Confirm conduit type specifications

**During Installation**:
- Mark conduit contents at panels and boxes
- Document as-built conditions
- Use proper conduit supports per NEC Table 344.30(B)(2)
- Maintain minimum bending radius

**After Installation**:
- Test for shorts and grounds
- Verify proper grounding continuity
- Label circuits clearly
- Document in panel schedules

## Conduit Fill Calculator Guide

### Manual Calculation Steps

- **Step 1**: List all conductors including grounds
- **Step 2**: Find each conductor area from NEC Table 5
- **Step 3**: Sum total conductor area
- **Step 4**: Select conduit with 40% fill area ≥ total conductor area
- **Step 5**: Verify with NEC Annex C tables

### Online Calculator Use

When using online conduit fill calculators:
1. Select conduit type (EMT, PVC, Rigid)
2. Enter conductor count by size
3. Specify insulation type (THHN/THWN most common)
4. Review recommended size and fill percentage
5. Always verify critical calculations manually

### Quick Sizing Rules of Thumb

**For THHN/THWN Copper**:
- **½" conduit**: Up to 9 conductors of 14 AWG
- **¾" conduit**: Up to 12 conductors of 12 AWG
- **1" conduit**: Up to 15 conductors of 10 AWG
- **Add one size**: If near maximum or long pull

## Advanced Considerations

### Special Conductor Types

- **Compact Conductors**: Smaller cross-section, allow more per conduit
- **High-Temperature Conductors**: THHN vs THWN-2 ratings
- **Armored Cable**: Cannot mix with individual conductors in conduit
- **Control Cable**: Different fill rules for instrumentation

### Underground Installations

PVC conduit for direct burial requires:
- Minimum burial depth per NEC 300.5
- Proper bedding and backfill
- Warning tape placement
- Larger size for thermal considerations

### Parallel Conductors

For large loads requiring parallel conductors:
- Equal lengths for current sharing
- Same conduit size for each set
- Separate grounding per NEC 250.122
- Phase identification marking

- [Download the Voltage Drop & Wire Size Excel Tool](/voltage-drop-and-wire-size-excel-tool)

## Conclusion: Ensuring Safe and Compliant Conduit Installation

Proper conduit fill is fundamental to electrical safety, code compliance, and installation efficiency. By following NEC guidelines, using accurate calculations, and applying the charts and formulas in this guide, you can size conduits correctly for any application while maintaining code compliance and installation quality.

**Key Takeaways**:
- Always use the 40% fill rule for three or more conductors
- Include all conductors (power and ground) in calculations
- Select next size up when near maximum fill
- Consider future expansion in your design
- Verify calculations with NEC tables and local codes

Whether sizing conduit for simple residential circuits or complex industrial installations, the principles remain consistent. Proper planning, accurate calculations, and adherence to NEC requirements ensure safe, reliable, and code-compliant electrical systems.

For related electrical calculations and design guidance, explore our comprehensive resources on [wire sizing](/posts/wire-size-calculator-complete-guide), [circuit breaker selection](/posts/circuit-breaker-sizing-complete-guide), and [electrical safety practices](/posts/grounding-earthing-difference-complete-guide).

---

## 🔗 Related Posts

- [Wire Size Calculator: Complete Guide with Single Phase, 3-Phase & DC Calculations](/posts/wire-size-calculator-complete-guide)
- [Circuit Breaker Sizing: Complete Guide with Wire Size Charts & NEC Code Requirements](/posts/circuit-breaker-sizing-complete-guide)
- [Complete Guide to Voltage Drop: Calculations, Tables & Calculators](/posts/voltage-drop-calculation-complete-guide)
- [Difference Between Grounding and Earthing: Complete Guide](/posts/grounding-earthing-difference-complete-guide)
- [Understanding Induction Motors: Working Principle, Calculations, and Applications](/posts/induction-motor-why-we-need-them)
- [MCB vs MCCB: Complete Comparison Guide with Selection Criteria, Ratings & Applications](/posts/mcb-vs-mccb-selection-criteria-complete-guide)
- [Wire Size for 50 Amp Breaker: Complete Guide with Charts, NEC Requirements & Installation Tips](/posts/wire-size-for-50-amp-breaker-complete-guide)
- [PVC Conduit Fill Chart for 10 AWG Wire: Complete NEC Guide with Capacity Tables](/posts/pvc-conduit-fill-for-10awg-wire)

### Helpful Calculators

- [Ohm's Law Calculator](/calculators/ohms-law-calculator)
- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)
- [Power Factor Calculator](/calculators/power-factor-correction-calculator)
- [Capacitor and Inductor Reactance Calculator](/calculators/capacitor-inductor-reactance-calculator)

---

#### **Credits**
- Photo by [Drew Beamer](https://unsplash.com/fr/@dbeamer_jpg?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText) on [Unsplash](https://unsplash.com/fr/photos/ventilateur-de-plafond-blanc-allume-dans-la-chambre-sj-LzquLf7M?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText)

---

Master conduit fill calculations with our complete NEC guide including fill charts, wire capacity tables, and step-by-step examples. Learn proper conduit sizing for electrical installations.

Conduit Fill Chart & NEC Calculator | Wire Capacity Tables

Conduit Fill Chart & Calculator: Complete NEC Guide with Wire Capacity Tables

Learn the correct wire size for 50 amp breakers with detailed charts for copper and aluminum conductors. Includes NEC requirements, voltage drop calculations, and step-by-step installation guidance for 120V and 240V circuits.

50 Amp Breaker Wire Size: Copper & Aluminum Charts | NEC Code Guide

Wire Size for 50 Amp Breaker: Complete Guide with Charts, NEC Requirements & Installation Tips

Master the difference between MCB and MCCB circuit breakers with our complete comparison guide. Includes selection criteria, ratings, applications, and when to use each type of protection device.

MCB vs MCCB: Key Differences, Selection Tips & Applications

MCB vs MCCB: Complete Comparison Guide with Selection Criteria, Ratings & Applications

Master load flow analysis in power systems with our complete guide covering Newton-Raphson, Gauss-Seidel methods, bus classification, and practical calculations. Includes software tools and real-world examples.

Load Flow Analysis: Step-by-Step Power System Calculation Guide

Load Flow Analysis: Complete Guide to Power Flow Calculations with Newton-Raphson & Gauss-Seidel Methods

Master high pass filters with our complete guide covering RC high pass filter circuits, frequency response, cutoff frequency calculations, and practical applications. Includes design examples and comparison with low pass filters.

RC High Pass Filter: Circuit, Design & Frequency Response

High Pass Filter: Complete Guide with RC Circuits, Frequency Response & Calculations

Master short circuit current calculations with step-by-step fault analysis, X/R ratio determination, asymmetrical current formulas, and circuit breaker rating selection. Complete guide with IEC 60909 and ANSI standards.

Short Circuit & Fault Current Calculation for X/R Ratio & ANSI Duty

Short Circuit Current Calculation: Complete Guide with X/R Ratio, Fault Analysis & Equipment Rating

The per unit system is one of the most powerful calculation methods in power system analysis, transforming complex multi-voltage networks into simplified normalized calculations. Whether you're analyzing fault currents, calculating [transformer impedances](/posts/transformer-sizing-complete-guide-with-calculations), or designing [three-phase power systems](/posts/three-phase-generator-and-applications), mastering the per unit system is essential for accurate and efficient power system engineering.

This normalization technique eliminates the confusion of working with multiple voltage levels simultaneously and makes equipment comparisons straightforward. Instead of juggling 480V, 13.8kV, and 138kV in the same calculation, everything becomes dimensionless quantities near 1.0, dramatically simplifying analysis while maintaining accuracy.

## Understanding the Per Unit System Fundamentals

### What is the Per Unit System?

The per unit (pu) system expresses power system quantities as decimal fractions of defined base values rather than in their actual units. Any electrical quantity can be expressed in per unit by dividing its actual value by an appropriate base value:

$$
\text{Per Unit Value} = \frac{\text{Actual Value}}{\text{Base Value}}
$$

**Key Concept**: All per unit values are dimensionless (no units), making calculations cleaner and errors easier to spot.

### Why Power Engineers Use Per Unit System

**Advantages of Per Unit Analysis:**

| **Benefit** | **Practical Impact** |
|-------------|---------------------|
| **Simplifies multi-voltage calculations** | Analyze entire power grid as single system |
| **Eliminates unit conversions** | No confusion between kV and V, MW and kW |
| **Equipment comparison** | Compare generators and transformers directly |
| **Error detection** | Values far from 1.0 indicate problems |
| **Computer simulation** | Reduces numerical errors in iterative calculations |
| **Standard representation** | Universal language for power system engineers |

### When to Use Per Unit System

**Ideal Applications:**
- Fault current calculations
- [Power flow analysis](/posts/voltage-drop-calculation-complete-guide)
- Transformer impedance studies
- Generator and motor modeling
- Protection coordination
- System stability analysis

**Less Useful For:**
- Simple single-voltage circuits
- [Wire sizing calculations](/posts/wire-size-calculator-complete-guide)
- Basic load calculations
- Consumer electrical installations

## Base Value Selection and Calculation

### The Four Base Quantities

In power systems, we work with four fundamental quantities. **Choose any two as base values**, and the other two are derived:

$$
\begin{align}
S_{\text{base}} &= \text{Base Power (VA, kVA, or MVA)} \\
V_{\text{base}} &= \text{Base Voltage (V, kV)} \\
I_{\text{base}} &= \text{Base Current (A)} \\
Z_{\text{base}} &= \text{Base Impedance (Î)}
\end{align}
$$

### Base Value Relationships

Once you select $S_{base}$ and $V_{base}$, calculate the others:

#### Single-Phase Systems:
$$
I_{\text{base}} = \frac{S_{\text{base}}}{V_{\text{base}}}
$$

$$
Z_{\text{base}} = \frac{V_{\text{base}}^2}{S_{\text{base}}} = \frac{V_{\text{base}}}{I_{\text{base}}}
$$

#### Three-Phase Systems:
$$
I_{\text{base}} = \frac{S_{\text{base}}}{\sqrt{3} \times V_{\text{base(L-L)}}}
$$

$$
Z_{\text{base}} = \frac{V_{\text{base(L-L)}}^2}{S_{\text{base}}}
$$

<Notice type="info">
💡 Pro Tip: Always use line-to-line voltage ($V_{L-L}$) for three-phase base voltage, not phase voltage. This maintains consistency with three-phase power equations.
</Notice>

### Selecting Appropriate Base Values

**Standard Practice:**
- **Base Power ($S_{base}$)**: Choose a round number like 10 MVA, 100 MVA, or equipment rating
- **Base Voltage ($V_{base}$)**: Use nominal system voltage at each level (13.8 kV, 138 kV, etc.)

**Example Selection:**
For a 100 MVA, 13.8 kV system:
- $S_{base}$ = 100 MVA
- $V_{base}$ = 13.8 kV

## Step-by-Step Per Unit Calculations

### Example 1: Three-Phase Generator Analysis

**Given System:**
- Generator: 50 MVA, 13.8 kV, Xd" = 15%
- Operating at: 52 MVA, 14.2 kV
- Find: Per unit power and voltage on generator's base

#### Step 1: Identify Equipment Base Values
Generator nameplate ratings become its base values:
- $S_{base}$(gen) = 50 MVA
- $V_{base}$(gen) = 13.8 kV

#### Step 2: Calculate Per Unit Values on Generator Base
$$
S_{\text{pu}} = \frac{52 \text{ MVA}}{50 \text{ MVA}} = 1.04 \text{ pu}
$$

$$
V_{\text{pu}} = \frac{14.2 \text{ kV}}{13.8 \text{ kV}} = 1.029 \text{ pu}
$$

**Interpretation**: Generator operates at 104% of rated power and 102.9% of rated voltage - both within acceptable limits (typically ±10%).

<InlineEmailCTA/>

### Example 2: Transformer Impedance Conversion

**Problem**: A transformer has 8% impedance on its own 25 MVA base. Convert to system base of 100 MVA.

**Given:**
- $Z_{transformer}$ = 0.08 pu on 25 MVA base
- $V$ same on both bases (voltage doesn't change across transformer)
- Find: Impedance on 100 MVA system base

#### Base Change Formula:
$$
Z_{\text{pu,new}} = Z_{\text{pu,old}} \times \frac{S_{\text{base,new}}}{S_{\text{base,old}}} \times \left(\frac{V_{\text{base,old}}}{V_{\text{base,new}}}\right)^2
$$

Since voltage bases are the same:
$$
Z_{\text{pu,new}} = 0.08 \times \frac{100 \text{ MVA}}{25 \text{ MVA}} \times (1)^2 = 0.32 \text{ pu}
$$

**Result**: On the 100 MVA system base, transformer impedance is 0.32 pu (32%).

<Notice type="warning">
⚠️ Important: Transformer percent impedance is always given on the transformer's own MVA rating. You must convert it to system base before using it in system-wide calculations.
</Notice>

### Example 3: Complete System Analysis

**System Description:**
- Generator: 100 MVA, 13.8 kV, X = 0.15 pu
- Step-up Transformer: 100 MVA, 13.8/138 kV, X = 0.10 pu
- Transmission Line: X = 50 Ω at 138 kV
- System Base: 100 MVA, 13.8 kV at generator side

#### Step 1: Convert Line Impedance to Per Unit
First, calculate base impedance at 138 kV level:

$$
Z_{\text{base}} = \frac{V_{\text{base}}^2}{S_{\text{base}}} = \frac{(138 \text{ kV})^2}{100 \text{ MVA}} = \frac{19044}{100} = 190.44 \text{ Î}
$$

Then convert actual impedance:
$$
X_{\text{line,pu}} = \frac{50 \text{ Î}}{190.44 \text{ Î}} = 0.2625 \text{ pu}
$$

#### Step 2: Calculate Total System Impedance
All components now on same base (100 MVA):
$$
X_{\text{total}} = X_{\text{gen}} + X_{\text{trans}} + X_{\text{line}} = 0.15 + 0.10 + 0.2625 = 0.5125 \text{ pu}
$$

#### Step 3: Calculate Short Circuit Current
If fault occurs at remote end (assuming 1.0 pu voltage source):
$$
I_{\text{fault,pu}} = \frac{V_{\text{pu}}}{X_{\text{total}}} = \frac{1.0}{0.5125} = 1.951 \text{ pu}
$$

Convert to actual current at fault location (138 kV):
$$
I_{\text{base}} = \frac{100 \text{ MVA}}{\sqrt{3} \times 138 \text{ kV}} = 418.4 \text{ A}
$$

$$
I_{\text{fault}} = 1.951 \times 418.4 = 816.3 \text{ A}
$$

## Advanced Per Unit Concepts

### Changing Between Voltage Levels

When analyzing systems with transformers, base voltage changes proportionally with transformer turns ratio:

$$
\frac{V_{\text{base,secondary}}}{V_{\text{base,primary}}} = \frac{N_{\text{secondary}}}{N_{\text{primary}}}
$$

**Example:**
- Primary base: 13.8 kV
- Transformer ratio: 13.8/138 kV (1:10)
- Secondary base: 138 kV

**Critical Rule**: Base power ($S_{base}$) remains constant throughout the system, only base voltage changes at transformers.

### Per Unit Impedance Diagrams

Creating per unit impedance diagrams simplifies complex networks:

**Step-by-Step Process:**
1. Select system-wide base values ($S_{base}, V_{base}$ at one point)
2. Calculate base voltages at all voltage levels using transformer ratios
3. Convert all impedances to per unit on system base
4. Draw single-line diagram with per unit impedances
5. Perform analysis using simple series/parallel combinations

### Power Flow in Per Unit

Active and reactive power in per unit:
$$
P_{\text{pu}} = \frac{P_{\text{actual}}}{S_{\text{base}}}
$$

$$
Q_{\text{pu}} = \frac{Q_{\text{actual}}}{S_{\text{base}}}
$$

**Power Balance Check:**
In a lossless system:
$$
\sum P_{\text{generated,pu}} = \sum P_{\text{load,pu}}
$$

## Practical Applications in Power Systems

### Fault Current Analysis

Per unit system excels in short circuit calculations:

**Three-Phase Fault Current:**
$$
I_{\text{fault,pu}} = \frac{V_{\text{prefault,pu}}}{Z_{\text{total,pu}}}
$$

**Typical Impedance Values:**
- Generators: 0.10 - 0.30 pu (subtransient)
- Transformers: 0.05 - 0.15 pu
- Transmission lines: 0.01 - 0.50 pu (length dependent)
- Motors: 0.15 - 0.25 pu

### Generator Synchronization

When connecting generators in parallel, per unit system helps verify:
- Voltage magnitude matching (both near 1.0 pu)
- [Frequency matching](/posts/three-phase-generator-and-applications)
- Phase angle alignment
- Impedance compatibility

### Protection Relay Settings

[Protective relays](/posts/circuit-breaker-sizing-complete-guide) often use per unit settings:
- **Overcurrent relays**: Trip at 1.2-1.5 pu continuous
- **Overvoltage relays**: Trip at 1.10-1.20 pu
- **Undervoltage relays**: Trip at 0.80-0.90 pu
- **Frequency relays**: Trip at 0.98-1.02 pu

## Common Mistakes and How to Avoid Them

### Mistake 1: Mixing Base Values
**Problem**: Using different base values for connected equipment
**Solution**: Convert everything to common system base before calculations

### Mistake 2: Incorrect Voltage Base
**Problem**: Using phase voltage instead of line-to-line voltage for three-phase
**Solution**: Always use $V_{L-L}$ for three-phase base voltage

### Mistake 3: Forgetting Base Changes at Transformers
**Problem**: Using same base voltage on both sides of transformer
**Solution**: Apply transformer turns ratio to change base voltage

### Mistake 4: Wrong Transformer Impedance Base
**Problem**: Using transformer impedance without converting to system base
**Solution**: Always convert using base change formula

### Mistake 5: Mixing Per Unit and Actual Values
**Problem**: Adding per unit impedance to ohmic impedance
**Solution**: Convert all to same system (either all pu or all actual)

## Per Unit System Quick Reference

### Essential Formulas

**Base Values (Three-Phase):**
$$
\begin{align}
Z_{\text{base}} &= \frac{V_{\text{base}}^2}{S_{\text{base}}} \\
I_{\text{base}} &= \frac{S_{\text{base}}}{\sqrt{3} \times V_{\text{base}}}
\end{align}
$$

**Per Unit Conversion:**
$$
\text{Per Unit} = \frac{\text{Actual Value}}{\text{Base Value}}
$$

**Base Change:**
$$
Z_{\text{pu,new}} = Z_{\text{pu,old}} \times \frac{S_{\text{base,new}}}{S_{\text{base,old}}} \times \left(\frac{V_{\text{base,old}}}{V_{\text{base,new}}}\right)^2
$$

### Typical Per Unit Ranges

| **Quantity** | **Normal Range** | **Action Required** |
|--------------|------------------|-------------------|
| **Voltage** | 0.95 - 1.05 pu | Outside range: voltage regulation needed |
| **Current** | 0.5 - 1.0 pu | Above 1.0: overload condition |
| **Generator Impedance** | 0.1 - 0.3 pu | - |
| **Transformer Impedance** | 0.05 - 0.15 pu | - |
| **Fault Current** | 3 - 20 pu | Determines [breaker ratings](/posts/circuit-breaker-sizing-complete-guide) |

- [Download the Voltage Drop & Wire Size Excel Tool](/voltage-drop-and-wire-size-excel-tool)

## Conclusion: Mastering Per Unit Analysis

The per unit system transforms complex power system calculations into manageable analysis by normalizing all quantities to dimensionless values near 1.0. Whether you're calculating fault currents, analyzing [voltage drops](/posts/voltage-drop-calculation-complete-guide), or designing protection schemes, this method provides clarity and accuracy across multi-voltage networks.

**Key Takeaways:**
- Choose consistent base values (typically $S_{base}$ and $V_{base}$)
- Convert all equipment impedances to common system base
- Base voltage changes at transformers, base power stays constant
- All calculations in per unit, convert back to actual values for final results
- Per unit values near 1.0 indicate normal operation

Mastering per unit calculations is essential for power system engineers working with [transformers](/posts/transformer-sizing-complete-guide-with-calculations), generators, and transmission networks. Practice with progressively complex systems to build confidence and proficiency.

Ready to apply per unit analysis to real systems? Start with single-generator configurations, then progress to multi-transformer networks and finally complete power systems with multiple voltage levels.

---

## 🔗 Related Posts

- [Transformer Sizing: Complete Guide with Calculations](/posts/transformer-sizing-complete-guide-with-calculations)
- [Three Phase Generators: How They Work and Applications](/posts/three-phase-generator-and-applications)
- [Complete Guide to Voltage Drop Calculations](/posts/voltage-drop-calculation-complete-guide)
- [Circuit Breaker Sizing: Complete Guide](/posts/circuit-breaker-sizing-complete-guide)
- [Understanding Electric Current](/posts/electric-current-a-comprehensive-guide)

### Helpful Calculators

- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)
- [Ohm's Law Calculator](/calculators/ohms-law-calculator)
- [Power Factor Calculator](/calculators/power-factor-correction-calculator)
- [Capacitor and Inductor Reactance Calculator](/calculators/capacitor-inductor-reactance-calculator)

---

#### **Credits**
- Photo by [David Vives](https://unsplash.com/fr/@davidvives?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText) on [Unsplash](https://unsplash.com/fr/photos/un-parc-eolien-avec-des-eoliennes-en-arriere-plan-YyvJdK7qEpo?utm_source=unsplash&utm_medium=referral&utm_content=creditCopyText)

---

Master per unit calculations in power systems with step-by-step examples, base value selection, and transformer impedance conversions. Complete guide for electrical engineers with practical applications.

Per Unit System Calculator: Step-by-Step Power System Calculations

Per Unit System in Power Systems: Complete Calculation Guide with Examples

Master power distribution panels with our complete guide covering electrical distribution boards, 3 phase consumer units, panel sizing from 100A to 600 amp main distribution panels, and NEC requirements.

Electrical Distribution Panel Guide: Types, Sizing & 600 Amp Tips

Power Distribution Panel: Complete Guide to Electrical Distribution Boards & Consumer Units

Pulse Width Modulation (PWM) has revolutionized DC motor speed control, offering an efficient and precise method for regulating motor performance without the energy waste and heat generation of traditional variable resistance methods. Whether you're building robotics projects, automating industrial equipment, or designing battery-powered devices, understanding PWM motor control is essential for modern electrical engineering applications.

In this comprehensive guide, we'll explore how pulse width modulation works, why it's superior to other speed control methods, and how to implement it in practical circuits using microcontrollers and dedicated motor driver ICs.

## What is PWM Motor Control?

Pulse Width Modulation is a technique that controls the average voltage supplied to a DC motor by rapidly switching the power supply on and off. Instead of reducing voltage continuously (which wastes energy), PWM delivers full voltage in short pulses, with the pulse width determining the effective power delivered to the motor.

### The PWM Signal Components

A PWM signal has three key characteristics:

**1. Duty Cycle**: The percentage of time the signal is HIGH (on) during one complete cycle
- 0% duty cycle = motor off
- 50% duty cycle = motor runs at half speed
- 100% duty cycle = motor runs at full speed

**2. Frequency**: How many on/off cycles occur per second, measured in Hertz (Hz)
- Typical range: 1kHz to 20kHz for DC motors
- Higher frequencies provide smoother operation

**3. Amplitude**: The voltage level when the signal is HIGH
- Usually matches the motor's rated voltage (5V, 12V, 24V, etc.)

## How PWM Controls DC Motor Speed

When a PWM signal is applied to a DC motor, the motor's mechanical inertia and inductance act as a natural filter, smoothing out the rapid on/off switching. The motor responds to the average voltage rather than the instantaneous switching.

### Average Voltage Calculation

The average voltage delivered to the motor is calculated as:

$$
V_{avg} = V_{supply} \times \frac{T_{on}}{T_{period}} = V_{supply} \times Duty\ Cycle
$$

**Example**: With a 12V supply and 60% duty cycle:
$$
V_{avg} = 12V \times 0.60 = 7.2V
$$

The motor operates as if it's receiving a constant 7.2V supply, running at approximately 60% of its maximum speed.

## PWM vs. Traditional Speed Control Methods

| **Method** | **Efficiency** | **Heat Generation** | **Torque at Low Speed** | **Cost** |
|------------|----------------|---------------------|------------------------|----------|
| **PWM** | 90-95% | Minimal | Excellent | Moderate |
| **Series Resistor** | 50-60% | Very High | Poor | Low |
| **Variable Voltage** | 60-75% | High | Good | High |
| **Rheostat** | 40-50% | Extreme | Very Poor | Low |

PWM clearly dominates in efficiency and performance, making it the preferred choice for modern motor control applications.

## Basic PWM Motor Control Circuit

### Simple MOSFET-Based PWM Circuit

The simplest PWM motor control uses an N-channel MOSFET as a switch:

<img src="/images/post/pwm-mosfet-motor-circuit.jpg" alt="Basic PWM Motor Control Circuit with MOSFET" width="600" height="auto" loading="lazy" />

**Circuit Components**:
- **N-Channel MOSFET** (e.g., IRLZ44N): Acts as the electronic switch
- **Flyback Diode** (e.g., 1N4007): Protects against voltage spikes from motor inductance
- **Gate Resistor** (100Ω - 1kΩ): Limits gate current and controls switching speed
- **PWM Signal Source**: Microcontroller, 555 timer, or dedicated PWM generator

### How It Works

1. When PWM signal is HIGH, the MOSFET conducts, allowing current to flow through the motor
2. When PWM signal is LOW, the MOSFET blocks current flow
3. The flyback diode provides a path for inductive current when the MOSFET switches off
4. Motor speed adjusts based on the duty cycle of the PWM signal

<Notice type="warning">
Always include a flyback diode across inductive loads like motors. Without it, voltage spikes can destroy your MOSFET and damage your control circuit.
</Notice>

## Arduino PWM Motor Control Implementation

Arduino boards provide built-in PWM functionality on specific pins, making motor control straightforward.

### Basic Arduino Motor Control Code

<Code type="c++">
{`const int motorPin = 9;

void setup() {
 pinMode(motorPin, OUTPUT);
}

void loop() {
 // Set motor speed (0–255, where 255 = 100% duty cycle)
 int motorSpeed = 128; // 50% speed
 analogWrite(motorPin, motorSpeed);

 delay(2000);

 // Increase to 75% speed
 motorSpeed = 191;
 analogWrite(motorPin, motorSpeed);

 delay(2000);
}`}
</Code>

### Arduino with Motor Driver IC (L298N)

For higher current motors, use a dedicated motor driver IC:

<Code type="c++">
{`// L298N Motor Driver Connections
const int enablePin = 9; // PWM pin for speed control
const int in1 = 7; // Direction control
const int in2 = 8; // Direction control

void setup() {
 pinMode(enablePin, OUTPUT);
 pinMode(in1, OUTPUT);
 pinMode(in2, OUTPUT);
}

void setMotorSpeed(int speed, bool direction) {
 // Set direction
 digitalWrite(in1, direction ? HIGH : LOW);
 digitalWrite(in2, direction ? LOW : HIGH);

 // Set speed (0-255)
 analogWrite(enablePin, abs(speed));
}

void loop() {
 setMotorSpeed(200, true); // Forward at ~78% speed
 delay(3000);

 setMotorSpeed(150, false); // Reverse at ~59% speed
 delay(3000);
}`}
</Code>

## Selecting the Right PWM Frequency

The PWM frequency significantly impacts motor performance and system efficiency.

### Frequency Ranges and Applications

**Low Frequency (100Hz - 1kHz)**:
- **Advantages**: Simple to generate, works with most drivers
- **Disadvantages**: Audible motor whine, visible LED flicker if used for lighting
- **Best for**: Large industrial motors, low-cost applications

**Medium Frequency (1kHz - 10kHz)**:
- **Advantages**: Good balance of performance and efficiency, minimal audible noise
- **Disadvantages**: Requires faster switching components
- **Best for**: General-purpose robotics, hobby projects, small to medium motors

**High Frequency (10kHz - 40kHz)**:
- **Advantages**: Silent operation, smooth speed control, minimal electromagnetic interference
- **Disadvantages**: Increased switching losses, requires high-quality MOSFETs
- **Best for**: Precision applications, noise-sensitive environments, small motors

<Notice type="info">
Most Arduino boards generate PWM at approximately 490Hz (pins 3, 9, 10, 11) or 980Hz (pins 5, 6). This frequency can be adjusted by modifying timer registers if higher frequencies are needed.
</Notice>

## Advanced PWM Motor Control Techniques

### Soft Start Implementation

Gradually increasing PWM duty cycle prevents excessive inrush current and mechanical stress:

<Code type="c++">
{`const int motorPin = 9;

void setup() {
 // Define pins etc.
 pinMode(motorPin, OUTPUT);
}

void loop() {
 // Example: soft start to 200 PWM over 2 seconds
 softStart(200, 2000);
 delay(3000); // Wait before next cycle
}

void softStart(int targetSpeed, int rampTime) {
 int steps = 50;
 int delayTime = rampTime / steps;

 for (int i = 0; i <= steps; i++) {
 int currentSpeed = (targetSpeed * i) / steps;
 analogWrite(motorPin, currentSpeed);
 delay(delayTime);
 }
}`}
</Code>

### Closed-Loop Speed Control

For precise speed regulation, combine PWM with feedback from encoders or tachometers to create a PID control loop that automatically adjusts duty cycle based on actual motor speed versus desired setpoint.

## Common PWM Motor Control Applications

### Robotics and Automation
- **Mobile robots**: Differential drive control with independent motor speeds
- **Robotic arms**: Precise joint positioning and movement
- **Conveyor systems**: Variable speed material handling

### HVAC and Fans
- **Variable speed fans**: Energy-efficient cooling systems
- **Pump control**: Flow rate regulation in heating and cooling systems
- **Blower motors**: Adjustable air circulation

### Battery-Powered Devices
- **Electric vehicles**: Efficient speed control maximizes battery life
- **Power tools**: Adjustable drill speeds and torque
- **Drones**: Precise motor speed for stable flight control

## Troubleshooting PWM Motor Control Issues

### Motor Runs Erratically
- Check PWM frequency (too low causes jerky operation)
- Verify duty cycle calculations
- Ensure adequate power supply current capacity

### Motor Doesn't Respond
- Confirm MOSFET/driver is receiving PWM signal
- Check gate threshold voltage compatibility
- Verify flyback diode polarity and motor connections

### Excessive Heat in Driver Circuit
- Reduce PWM frequency to minimize switching losses
- Use MOSFET with lower on-resistance (RDS(on))
- Add heatsink to power components
- Check for short circuits or overloaded motor

## Conclusion: Mastering PWM for Efficient Motor Control

PWM motor control combines simplicity, efficiency, and precise speed regulation, making it the industry standard for DC motor applications. By understanding pulse width modulation principles and implementing proper circuit protection, you can create reliable motor control systems for projects ranging from simple hobby electronics to complex industrial automation.

The key to successful PWM implementation lies in selecting appropriate frequencies, using quality switching components, and always protecting circuits with flyback diodes. Whether you're using Arduino microcontrollers or dedicated motor driver ICs, PWM provides the flexibility and performance needed for modern motor control challenges.

Ready to implement advanced motor control in your projects? Explore our related guides on [variable frequency drives](/posts/variable-frequency-drive-vfd-complete-guide) and [industrial automation](/posts/plc-programming-basics-complete-beginner-guide) to expand your motor control expertise.

---

## 🔗 Related Posts

- [Variable Frequency Drive (VFD): The Complete Guide](/posts/variable-frequency-drive-vfd-complete-guide)
- [Understanding Induction Motors: Working Principle and Applications](/posts/induction-motor-why-we-need-them)
- [Motor Voltage Drop Effects: Why Your Motors Fail](/posts/motor-voltage-drop-effects)
- [A Comprehensive Guide to IoT Devices](/posts/guide-to-iot-devices)

### Helpful Calculators

- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)
- [Ohm's Law Calculator](/calculators/ohms-law-calculator)
- [Power Factor Calculator](/calculators/power-factor-correction-calculator)
- [Capacitor and Inductor Reactance Calculator](/calculators/capacitor-inductor-reactance-calculator)

---
#### **Credits**

- Photo by [Thorium](https://unsplash.com/fr/@232_038t?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/un-appareil-photo-pose-sur-une-table-en-bois-BxM0OH5TXgo?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

Master PWM motor control techniques for precise DC motor speed regulation. Learn pulse width modulation principles, circuits, Arduino implementation, and practical applications with examples.

PWM DC Motor Speed Control Explained with Circuit Examples

PWM Motor Control: Complete Guide to DC Motor Speed Control with Pulse Width Modulation

Master I2C and SPI communication protocols with detailed comparisons, timing diagrams, code examples, and practical applications. Complete guide for embedded systems engineers and electronics designers.

I2C vs SPI Protocols: Complete Guide for Engineers with Code Examples

I2C vs SPI: Complete Comparison Guide with Protocol Analysis & Real-World Applications

Have you ever wondered why your smartphone charger gets warm when charging, or why some electrical devices need thicker wires than others? The answer lies in a fundamental electrical property called **resistance** - a concept that governs how electrical current flows through every circuit, from the simplest flashlight to complex industrial systems.

Understanding electrical resistance is essential for anyone working with electronics, designing circuits, or simply wanting to grasp how electricity behaves in the real world. This guide will teach you not just what resistance is, but how to calculate it, measure it, and apply it to solve practical electrical problems.

Whether you're an engineering student, electronics hobbyist, or professional electrician, mastering resistance calculations will help you design better circuits, troubleshoot problems effectively, and understand why electrical systems behave the way they do.

## What is Electrical Resistance?

Electrical resistance is the opposition that a material presents to the flow of electric current. Think of it like friction in mechanical systems - just as friction opposes motion, resistance opposes the flow of electrons through a conductor.

When electrons move through any material, they collide with atoms, impurities, and crystal boundaries. These collisions convert some of the electrical energy into heat energy, which is why resistors get warm and why power lines lose energy over long distances.

<img src="/images/post/resistor-and-led-dc-circuit.png" alt="Resistor and LED DC circuit" width="400" height="auto" loading="lazy" />

### The Mathematical Foundation: Ohm's Law

The relationship between voltage, current, and resistance is described by **Ohm's Law**:

$$
V = I \times R
$$

Where:
- **V** = Voltage (volts)
- **I** = Current (amperes)
- **R** = Resistance (ohms, Ω)

This can be rearranged to solve for any variable:
- **Current**: $I = \frac{V}{R}$
- **Resistance**: $R = \frac{V}{I}$

### Power Dissipation in Resistive Elements

When current flows through resistance, electrical energy is converted to heat. The power dissipated is calculated using:

$P = I^2 \times R = \frac{V^2}{R} = V \times I$

**Key insight**: Power increases with the square of current, making current the most critical factor in heating calculations.

## Factors That Determine Resistance

### 1. Material Properties (Resistivity)

Different materials have inherently different abilities to conduct electricity, quantified by their **resistivity** (ρ):

| Material | Resistivity (Ω·m) | Application |
|----------|-------------------|-------------|
| **Silver** | 1.59 × 10⁻⁸ | Premium contacts |
| **Copper** | 1.68 × 10⁻⁸ | Standard wiring |
| **Aluminum** | 2.82 × 10⁻⁸ | Power transmission |
| **Iron** | 9.71 × 10⁻⁸ | Magnetic applications |
| **Nichrome** | 1.10 × 10⁻⁶ | Heating elements |
| **Carbon** | 3.50 × 10⁻⁵ | Resistors |

### 2. Physical Dimensions

The resistance of any conductor depends on its geometry according to:

$$
R = \rho \times \frac{L}{A}
$$

Where:
- **ρ** = Material resistivity
- **L** = Length of conductor
- **A** = Cross-sectional area

**Practical implications**:
- **Longer conductors**: Higher resistance
- **Thicker conductors**: Lower resistance
- **Material choice**: Dramatically affects resistance

### 3. Temperature Effects

Most materials' resistance changes with temperature. For metals, the relationship is approximately linear:

$$
R_T = R_{20} \times [1 + α \times (T - 20°C)]
$$

Where:
- **$R_T$** = Resistance at temperature T
- **$R_{20}$** = Resistance at 20°C
- **α** = Temperature coefficient (0.004/°C for copper)

## Step-by-Step Resistance Calculations

### Example 1: Basic Circuit Analysis

**Given**: 12V battery connected to a 4Ω resistor

**Step 1 - Calculate Current (Ohm's Law):**
$I = \frac{V}{R} = \frac{12V}{4Ω} = 3A$

**Step 2 - Calculate Power Dissipation:**
$$
P = I^2 \times R = 3^2 \times 4 = 36W
$$

**Step 3 - Verify Using Alternative Power Formula:**
$P = \frac{V^2}{R} = \frac{12^2}{4} = \frac{144}{4} = 36W$ ✓

### Example 2: Wire Resistance Calculation

**Scenario**: Calculate the resistance of 100 feet of 12 AWG copper wire

**Given Data**:
- Length: 100 feet = 30.48 meters
- 12 AWG diameter: 2.05 mm, Area: 3.31 mm²
- Copper resistivity: 1.68 × 10⁻⁸ Ω·m

**Step 1 - Convert Units:**
Area = 3.31 mm² = 3.31 × 10⁻⁶ m²

**Step 2 - Apply Resistance Formula:**
$R = \rho \times \frac{L}{A} = 1.68 \times 10^{-8} \times \frac{30.48}{3.31 \times 10^{-6}}$

$$
R = 1.68 \times 10^{-8} \times 9.21 \times 10^{6} = 0.155Ω
$$

**Result**: 100 feet of 12 AWG copper wire has 0.155Ω resistance

### Example 3: Series Resistance Circuit

**Given**: Three resistors in series: 10Ω, 15Ω, and 5Ω connected to 24V source

**Step 1 - Calculate Total Resistance:**
$R_\text{total} = R_1 + R_2 + R_3 = 10 + 15 + 5 = 30Ω$

**Step 2 - Calculate Circuit Current:**
$I = \frac{V}{R_\text{total}} = \frac{24V}{30Ω} = 0.8A$

**Step 3 - Calculate Individual Voltage Drops:**
- $V_1 = I \times R_1 = 0.8 \times 10 = 8V$
- $V_2 = I \times R_2 = 0.8 \times 15 = 12V$
- $V_3 = I \times R_3 = 0.8 \times 5 = 4V$

**Step 4 - Verify Kirchhoff's Voltage Law:**
$V_1 + V_2 + V_3 = 8 + 12 + 4 = 24V$ ✓

### Example 4: Parallel Resistance Circuit

**Given**: Three resistors in parallel: 6Ω, 12Ω, and 4Ω connected to 12V source

**Step 1 - Calculate Total Resistance:**
$\frac{1}{R_\text{total}} = \frac{1}{6} + \frac{1}{12} + \frac{1}{4}$

$\frac{1}{R_\text{total}} = \frac{2 + 1 + 3}{12} = \frac{6}{12} = 0.5$

$R_\text{total} = \frac{1}{0.5} = 2Ω$

**Step 2 - Calculate Total Current:**
$I_\text{total} = \frac{V}{R_\text{total}} = \frac{12V}{2Ω} = 6A$

**Step 3 - Calculate Individual Branch Currents:**
- $I_1 = \frac{V}{R_1} = \frac{12}{6} = 2A$
- $I_2 = \frac{V}{R_2} = \frac{12}{12} = 1A$
- $I_3 = \frac{V}{R_3} = \frac{12}{4} = 3A$

**Step 4 - Verify Kirchhoff's Current Law:**
$I_1 + I_2 + I_3 = 2 + 1 + 3 = 6A$ ✓

## Temperature Effects on Resistance

### Temperature Coefficient Calculations

**Example**: Copper wire resistance at different temperatures

**Given**: 100m of copper wire with 1Ω resistance at 20°C

**At 75°C (operating temperature):**
$$
R_{75} = R_{20} \times [1 + 0.004 \times (75 - 20)]
$$
$$
R_{75} = 1 \times [1 + 0.004 \times 55] = 1 \times 1.22 = 1.22Ω
$$

**Impact**: 22% increase in resistance due to temperature rise

### Practical Temperature Considerations

**Why temperature matters**:
- **Motor windings**: Resistance increases as motors heat up during operation
- **Power transmission**: Line losses increase in hot weather
- **Electronic components**: Performance changes with temperature
- **Heating elements**: Designed to operate at high temperatures safely

## Real-World Applications of Resistance Calculations

### 1. Heating Element Design

**Electric water heater element calculation**:

**Requirements**: 4500W heating element for 240V supply

**Step 1 - Calculate Required Resistance:**
$$
R = \frac{V^2}{P} = \frac{240^2}{4500} = \frac{57,600}{4500} = 12.8Ω
$$

**Step 2 - Calculate Operating Current:**
$I = \frac{P}{V} = \frac{4500}{240} = 18.75A$

**Step 3 - Verify Power Calculation:**
$P = I^2 \times R = 18.75^2 \times 12.8 = 4500W$ ✓

### 2. LED Current Limiting Resistor

**Problem**: Calculate resistor value for LED circuit

**Given**:
- Supply voltage: 12V
- LED forward voltage: 2.1V
- Desired LED current: 20mA

**Step 1 - Calculate Voltage Drop Across Resistor:**
$V_R = V_{supply} - V_{LED} = 12 - 2.1 = 9.9V$

**Step 2 - Calculate Required Resistance:**
$R = \frac{V_R}{I} = \frac{9.9V}{0.02A} = 495Ω$

**Step 3 - Select Standard Resistor Value:**
Use 470Ω (closest standard value)

**Step 4 - Calculate Actual Current:**
$I = \frac{9.9V}{470Ω} = 21.1mA$ (acceptable)

### 3. Voltage Drop Analysis

**Scenario**: 200-foot cable run for 120V, 15A load

**Given**: 12 AWG copper wire (1.6Ω/1000ft resistance)

**Step 1 - Calculate Cable Resistance:**
Round trip distance: 200 × 2 = 400 feet
$R_{cable} = 1.6 \times \frac{400}{1000} = 0.64Ω$

**Step 2 - Calculate Voltage Drop:**
$V_{drop} = I \times R = 15A \times 0.64Ω = 9.6V$

**Step 3 - Calculate Load Voltage:**
$V_{load} = 120V - 9.6V = 110.4V$

**Step 4 - Calculate Percentage Drop:**
$\%Drop = \frac{9.6V}{120V} \times 100\% = 8\%$

**Conclusion**: 8% voltage drop exceeds acceptable limits (typically 3-5%), requiring larger wire size.

## Advanced Resistance Concepts

### AC Impedance vs DC Resistance

At higher frequencies, conductors exhibit **impedance** rather than simple resistance:

$$
Z = R + jX
$$

Where:
- **Z** = Impedance (ohms)
- **R** = Resistance (real component)
- **X** = Reactance (imaginary component)
- **j** = Imaginary unit

**Skin Effect**: At high frequencies, current concentrates near the conductor surface, effectively reducing the cross-sectional area and increasing resistance.

### Superconductivity

Some materials exhibit zero electrical resistance below a critical temperature:

- **Type I superconductors**: Elements like mercury, lead
- **Type II superconductors**: Compounds like YBCO ceramics
- **Applications**: MRI magnets, power transmission research
- **Limitation**: Require cryogenic cooling systems

## Measuring Resistance in Practice

### Using a Digital Multimeter

**Procedure for resistance measurement**:
1. **Power off** the circuit completely
2. **Isolate** the component from the circuit
3. **Select ohms range** on multimeter
4. **Connect probes** across the component
5. **Read resistance** value directly

### Common Measurement Errors

**Error sources**:
- **Parallel paths**: Other circuit components affecting reading
- **Contact resistance**: Poor probe connections
- **Temperature effects**: Component heating during measurement
- **Range selection**: Using inappropriate measurement range

### Troubleshooting with Resistance Measurements

**Typical resistance values**:
- **Good wire connections**: &lt;0.1Ω
- **Heating elements**: 10-50Ω when cold
- **Motor windings**: 1-20Ω typically
- **Open circuits**: Infinite resistance (OL display)
- **Short circuits**: Near zero resistance

## Conclusion: Mastering Electrical Resistance

Understanding electrical resistance and its calculations is fundamental to working with any electrical or electronic system. From designing simple LED circuits to analyzing complex power distribution systems, resistance determines how current flows, how much power is consumed, and how components behave under different conditions.

**Key principles to remember**:
- **Ohm's Law** governs the relationship between voltage, current, and resistance
- **Power dissipation** increases with the square of current (P = I²R)
- **Temperature significantly affects** resistance in most materials
- **Series circuits add resistances**, parallel circuits reduce total resistance
- **Material properties** and physical dimensions determine resistance values

Whether you're calculating voltage drops in wire runs, selecting current-limiting resistors, or designing heating elements, these fundamental concepts and calculation methods will serve as your foundation for electrical analysis and design.

Ready to apply these concepts? Start by practicing with simple circuits and gradually work up to more complex applications. The mathematical relationships are straightforward, but the practical applications are virtually limitless.

For advanced circuit analysis techniques, explore our guides on [Kirchhoff's Laws](/posts/guide-to-kirchhoffs-law-applications-examples) and [AC circuit analysis](/posts/ac-capacitors-types-functionality-and-applications).

---

## 🔗 Related Posts
- [Kirchhoff's Laws: Complete Guide with Circuit Analysis Examples](/posts/guide-to-kirchhoffs-law-applications-examples)
- [Understanding Electric Current: A Comprehensive Guide](/posts/electric-current-a-comprehensive-guide)
- [Complete Guide to Voltage Drop: Calculations, Tables & Calculators](/posts/voltage-drop-calculation-complete-guide)
- [AC Capacitors: Types, Functionality, and Applications](/posts/ac-capacitors-types-functionality-and-applications)

### Helpful Calculators
- [Ohm's Law Calculator](/calculators/ohms-law-calculator)
- [Resistor Color Code Calculator](/calculators/resistor-color-code-calculator)
- [Series Parallel Resistance Calculator](/calculators/series-parallel-resistance-calculator)
- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)

---

#### **Credits**
- Photo by [Angeles Pérez](https://unsplash.com/fr/@angieprz21?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/cloture-en-metal-bleu-et-blanc-TuwIa3XZfKQ?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

Master electrical resistance with step-by-step calculations, Ohm's Law applications, and practical examples. Learn how resistance affects current flow, power dissipation, and circuit design.

Electrical Resistance: Step-by-Step Calculations, Formulas & Applications

Understanding Electrical Resistance: Complete Guide with Calculations and Real-World Examples

Understanding the **difference between contactors and relays** is crucial for electrical engineers, technicians, and anyone working with industrial control systems. While both devices serve as electromagnetic switches in electrical circuits, they have distinct characteristics, applications, and design features that make them suitable for different purposes.

This comprehensive guide will clarify when to use contactors versus relays, their key differences, and practical applications to help you make informed decisions in your electrical projects and system designs.

## What is a Contactor? Understanding High-Power Switching

A **contactor** is a heavy-duty electromagnetic switch designed specifically for switching high-power electrical loads, particularly in motor control applications. Contactors are built to handle significant electrical currents and voltages while providing reliable operation under demanding industrial conditions.

<img src="/images/post/3-phase-contactor-schneider-electric-tesys-k-miniature-contactors.jpg" alt="3-Phase Contactor TeSys K Miniature Contactors Schneider electric" width="300" height="auto" loading="lazy" />

[Photo by Schneider electric](https://www.se.com/us/en/product-range/666-tesys-k-miniature-contactors/?parent-subcategory-id=1510#products)

TeSys K miniature contactors and overload relays are available in 3 contactor ratings for the USA market for inductive motor applications up to 12 full-load amps and resistive loads up to 20 amps.


### Key Characteristics of Contactors

**Physical Construction:**
- Larger and more robust than relays
- Heavy-duty contacts capable of handling high currents
- Strong electromagnetic coil system
- Designed for frequent operation (millions of cycles)
- Often includes arc suppression features

**Electrical Specifications:**
- Current ratings: Typically 10A to 1000A+
- Voltage ratings: Up to 690V AC for power circuits
- Coil voltages: 24V, 110V, 230V, 400V (AC/DC)
- Contact configurations: Usually 3-pole or 4-pole for three-phase systems

**Operational Features:**
- Built for continuous duty applications
- High mechanical and electrical endurance
- Capable of breaking high inductive loads
- Often includes auxiliary contacts for control circuits

### Primary Applications of Contactors

Contactors excel in applications requiring high-power switching:

1. **Three-Phase Motor Control**
 - Starting and stopping industrial motors
 - Reversing motor rotation
 - Star-delta motor starting systems

2. **Lighting Control Systems**
 - High-power lighting circuits
 - Street lighting control
 - Stadium and arena lighting

3. **Heating Element Control**
 - Industrial heating systems
 - Electric furnaces
 - HVAC system control

4. **Power Distribution**
 - Load switching in distribution panels
 - Generator transfer switching
 - Power factor correction systems

## What is a Relay? Understanding Control Circuit Switching

A **relay** is a smaller electromagnetic switch designed primarily for control circuits and low-power switching applications. Relays provide electrical isolation between control and switched circuits while enabling remote control of electrical devices.

<img src="/images/post/electromechanical-relay-schneider-electric-harmony.jpg" alt="Harmony Electromechanical Relay Schneider electric" width="300" height="auto" loading="lazy" />

[Photo by Schneider electric](https://www.se.com/us/en/product/RXM2AB2F7/miniature-plug-in-relay-harmony-electromechanical-relays-12a-2co-with-led-lockable-test-but-to-n-120v-ac/?parentSubCategoryId=2810)

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 120 V AC 50/60 Hz.

### Key Characteristics of Relays

**Physical Construction:**
- Compact and lightweight design
- Precision-engineered contacts for reliable switching
- Sensitive electromagnetic coil system
- Available in various mounting configurations
- Often transparent housing for visual inspection

**Electrical Specifications:**
- Current ratings: Typically 1A to 30A
- Voltage ratings: Various, depending on application
- Coil voltages: 5V, 12V, 24V, 110V, 230V (AC/DC)
- Contact configurations: SPST, SPDT, DPDT, multiple pole arrangements

**Operational Features:**
- Fast switching response
- Low coil power consumption
- High sensitivity to control signals
- Excellent electrical isolation
- Available in latching and non-latching types

### Primary Applications of Relays

Relays are ideal for control and switching applications:

1. **Control Circuit Logic**
 - Interlocking systems
 - Sequence control
 - Safety circuits
 - Status indication

2. **Signal Switching**
 - Communication systems
 - Audio/video switching
 - Instrumentation circuits
 - Data acquisition systems

3. **Automotive Applications**
 - Horn circuits
 - Lighting control
 - Fuel pump control
 - Air conditioning systems

4. **Home Automation**
 - Smart home systems
 - Security systems
 - HVAC control
 - Appliance control

## Comprehensive Comparison: Contactor vs Relay

### Power Handling Capacity

| **Aspect** | **Contactor** | **Relay** |
|------------|---------------|-----------|
| **Current Rating** | 10A - 1000A+ | 1A - 30A (typical) |
| **Voltage Rating** | Up to 690V AC | Varies by application |
| **Power Application** | High-power loads | Low-power control |
| **Load Type** | Motors, heating, lighting | Control circuits, signals |

### Physical and Design Differences

**Size and Weight:**
- **Contactors**: Large, heavy-duty construction (often 4-12 inches)
- **Relays**: Compact design (typically 1-3 inches)

**Contact System:**
- **Contactors**: Heavy silver alloy contacts, multiple poles
- **Relays**: Precision contacts, various configurations

**Mounting:**
- **Contactors**: DIN rail, panel mounting, dedicated enclosures
- **Relays**: PCB, socket, DIN rail mounting

### Operational Characteristics

**Switching Speed:**
- **Contactors**: Slower operation (50-100ms typical)
- **Relays**: Faster switching (5-20ms typical)

**Coil Power Consumption:**
- **Contactors**: Higher consumption (5-20VA)
- **Relays**: Lower consumption (0.5-5VA)

**Operating Life:**
- **Contactors**: Millions of mechanical operations
- **Relays**: Hundreds of thousands to millions of operations

### Cost Considerations

**Initial Cost:**
- **Contactors**: Higher cost (\$50-\$500+)
- **Relays**: Lower cost (\$5-\$100)

**Installation Cost:**
- **Contactors**: Require larger enclosures and wiring
- **Relays**: Minimal space requirements

**Maintenance:**
- **Contactors**: Periodic inspection and contact replacement
- **Relays**: Generally replace entire unit when failed

## Practical Wiring Examples and Applications

### Example 1: Motor Control System

In a typical three-phase motor control system:

**Contactor Application:**

<img src="/images/post/contactor-application-in-motor-circuit.jpeg" alt="Contactor application in Motor circuit" width="600" height="auto" loading="lazy" />

**Relay Applications in the Same System:**
- **Control relay**: Handles start/stop logic
- **Auxiliary relay**: Provides status feedback
- **Safety relay**: Implements emergency stop function
- **Timer relay**: Controls operational sequences

### Example 2: Industrial Lighting Control

**High-Power Circuit (Contactor):**

<img src="/images/post/contactor-application-in-high-intensity-lighting-circuit.jpg" alt="Contactor application in High-intensity lighting circuit" width="600" height="auto" loading="lazy" />

Note: Protection circuit breakers are not shown in the power and control circuits. They must be added in an actual implementation.

**Control Circuit (Relay):**

<img src="/images/post/relay-coil-application-controlling-single-phase-ac-motor-circuit.jpg" alt="Relay application controlling single phase AC Motor circuit" width="600" height="auto" loading="lazy" />

Note: This circuit diagram is provided only to illustrate relay applications in control circuits. It is not intended for real-world implementation.

### Example 3: HVAC System Integration

**Contactor Usage:**
- Compressor motor switching (high current)
- Fan motor control (medium current)
- Heating element control (high current)

**Relay Usage:**
- Thermostat control logic
- Defrost cycle control
- Safety interlocks
- Status indication

## Selection Criteria: When to Use Each Device

### Choose a Contactor When:

1. **High Current Requirements**
 - Load current exceeds 10A
 - Three-phase motor applications
 - High-power lighting or heating

2. **Frequent Switching**
 - Applications requiring millions of operations
 - Continuous duty cycles
 - Industrial automation systems

3. **Harsh Environmental Conditions**
 - High temperature applications
 - Dusty or corrosive environments
 - Outdoor installations

4. **Safety and Code Requirements**
 - Motor control centers
 - Industrial machinery
 - Code-mandated disconnect requirements

### Choose a Relay When:

1. **Control Circuit Applications**
 - Logic control functions
 - Signal switching
 - Interface between control systems

2. **Low Power Requirements**
 - Load current under 10A
 - Control voltage switching
 - Instrumentation circuits

3. **Space Constraints**
 - Control panels with limited space
 - PCB-mounted applications
 - Distributed control systems

4. **Cost-Sensitive Applications**
 - Budget constraints
 - High-volume applications
 - Simple on/off control

## Advanced Applications and Integration

### PLC Integration

**Contactor Integration:**
- Output modules control contactor coils
- Status feedback through auxiliary contacts
- Integration with motor protection systems

**Relay Integration:**
- Input/output signal conditioning
- Interface with sensors and actuators
- Logic expansion for complex control

### Smart Systems and IoT

**Modern Contactors:**
- Smart contactors with integrated communication
- Condition monitoring capabilities
- Predictive maintenance features

**Intelligent Relays:**
- Programmable relay functions
- Communication protocols (Modbus, Ethernet)
- Data logging capabilities

### Safety Systems Integration

**Safety Contactors:**
- Force-guided contacts for safety applications
- Redundant contact systems
- Integration with safety PLCs

**Safety Relays:**
- Safety-rated relay modules
- Emergency stop circuit integration
- Light curtain and guard door interfaces

## Troubleshooting Common Issues

### Contactor Problems and Solutions

**Contact Welding:**
- **Cause**: Excessive inrush current or improper sizing
- **Solution**: Use appropriate arc suppression, check load calculations

**Coil Burnout:**
- **Cause**: Overvoltage, undervoltage, or continuous duty exceeding rating
- **Solution**: Verify supply voltage, check coil specifications

**Mechanical Wear:**
- **Cause**: Excessive operating frequency or misalignment
- **Solution**: Regular maintenance, proper installation

### Relay Problems and Solutions

**Contact Oxidation:**
- **Cause**: Low current switching or contamination
- **Solution**: Use appropriate contact materials, sealed relays

**Coil Failure:**
- **Cause**: Voltage spikes, moisture, or thermal stress
- **Solution**: Use suppression circuits, proper environmental protection

**False Switching:**
- **Cause**: Electrical noise or magnetic interference
- **Solution**: Proper shielding, filter circuits

## Maintenance and Lifecycle Management

### Contactor Maintenance

**Regular Inspection:**
- Visual inspection of contacts and arc chambers
- Tightening of terminal connections
- Cleaning of dust and debris

**Preventive Maintenance:**
- Contact replacement schedule
- Coil resistance testing
- Mechanical operation verification

**Performance Monitoring:**
- Current monitoring systems
- Temperature monitoring
- Vibration analysis

### Relay Maintenance

**Routine Checks:**
- Contact resistance measurement
- Coil current verification
- Switching time measurement

**Replacement Strategies:**
- Scheduled replacement based on cycles
- Condition-based replacement
- System reliability requirements

## Economic Considerations and ROI

### Total Cost of Ownership

**Contactor Economics:**
- Higher initial cost but longer service life
- Lower cost per operation for high-frequency applications
- Reduced maintenance costs for appropriate applications

**Relay Economics:**
- Lower initial cost for control applications
- Higher replacement frequency in some applications
- Excellent value for low-power switching

### Energy Efficiency

**Power Consumption Comparison:**
- Contactor coils: Typically 10-50W during operation
- Relay coils: Typically 1-10W during operation

**System Efficiency:**
- Proper device selection improves overall system efficiency
- Reduced energy waste through appropriate sizing
- Improved power factor in motor control applications

## Practical Sizing Calculations and Examples

### Example 1: Motor Starter Sizing with Overload Protection

Let's calculate the proper contactor and overload relay sizing for a 15 HP, 460V, three-phase induction motor.

#### Step 1: Determine Motor Full Load Current (FLC)

From NEC Table 430.250, the FLC for a 15 HP, 460V motor is **21 amperes**.

#### Step 2: Contactor Sizing Calculation

**Formula**: Contactor Rating ≥ 1.25 × Motor FLC (for continuous duty)

$$
\text{Minimum Contactor Rating} = 1.25 \times 21A = 26.25A
$$

**Selection**: Choose a **30A contactor** (next standard size up)

**AC-3 Rating Verification**: For motor switching applications, verify the AC-3 rating at operating voltage:
- Selected contactor: 32A AC-3 rating at 480V ✓

#### Step 3: Overload Relay (OL) Sizing

- **Service Factor ≥ 1.15**: OL setting = 1.25 × FLC
- **Service Factor < 1.15**: OL setting = 1.15 × FLC

Assuming SF = 1.15:
$$
\text{OL Setting Range} = 1.15 \times 21A \text{ to } 1.25 \times 21A
$$
$$
\text{OL Setting Range} = 24.15A \text{ to } 26.25A
$$

**Selection**: Choose thermal overload relay with **adjustment range 20-32A**, set at **25A**.

#### Step 4: Short Circuit Protection

Using inverse time circuit breaker:
$$
\text{MCCB Rating} = 2.5 \times 21A = 52.5A
$$

**Selection**: Choose **60A circuit breaker** (next standard size).

#### Complete Motor Starter Specification:
- **Contactor**: 30A, 3-pole, 480V coil
- **Overload Relay**: 20-32A adjustable, set at 25A
- **Circuit Breaker**: 60A, 3-pole
- **Control Transformer**: 480V/120V, 100VA

### Example 2: Lighting Contactor Sizing with Time Delay

Calculate sizing for a commercial lighting system with 40 fluorescent fixtures, each drawing 2.5A at 277V.

#### Step 1: Calculate Total Load Current

$$
\text{Total Current} = 40 \times 2.5A = 100A
$$

#### Step 2: Contactor Sizing for Lighting Loads

For tungsten and fluorescent lighting, apply **125% factor**:
$$
\text{Minimum Contactor Rating} = 1.25 \times 100A = 125A
$$

**Inrush Current Consideration**: Fluorescent ballasts have 3-5× inrush:
$$
\text{Inrush Current} = 5 \times 100A = 500A
$$

**Selection**: Choose **125A contactor** with AC-1 rating of 150A for resistive loads.

#### Step 3: Time Delay Relay Configuration

To prevent simultaneous switching of all fixtures:

**Time Delay Calculation**:
- Bank 1 (20 fixtures): Immediate start
- Bank 2 (20 fixtures): 2-second delay

**Relay Configuration**:
- Main contactor: 125A
- Time delay relay: 0.1-10 second adjustable
- Auxiliary contactor: 60A for delayed bank

#### Complete Lighting Control Specification:
- **Main Contactor**: 125A, 2-pole, 120V coil
- **Auxiliary Contactor**: 60A, 2-pole, 120V coil
- **Time Delay Relay**: ON-delay, 0.1-10s adjustable
- **Control Circuit**: 120V with photocell and time clock

### Overload Protection Coordination Example

#### Motor: 25 HP, 480V, 3-phase, FLC = 32A

**Step 1: Overload Relay Sizing**
$$
\text{OL Trip Range} = 1.15 \times 32A \text{ to } 1.25 \times 32A
$$
$$
\text{OL Trip Range} = 36.8A \text{ to } 40A
$$

**Step 2: Short Circuit Protection Coordination**

Using fuses for better coordination:
$$
\text{Fuse Size} = 1.75 \times 32A = 56A
$$

**Selection**: 60A Class CC fuses

**Step 3: Coordination Verification**

Time-current coordination ensures:
- Overload relay trips at 125% × 32A = 40A in 20 seconds
- Fuse allows motor starting (6 × FLC for 10 seconds)
- Fuse clears fault currents above 500A in 0.1 seconds

**Protection Cascade**:
1. **Normal Overload**: OL relay operates (20 seconds at 40A)
2. **High Overload**: Fuse operates (2 seconds at 200A)
3. **Short Circuit**: Fuse operates (0.01 seconds at 5000A)

- [Download the Voltage Drop & Wire Size Excel Tool](/voltage-drop-and-wire-size-excel-tool)

## Conclusion: Making the Right Choice

Understanding the **difference between contactors and relays** is essential for designing efficient, reliable electrical systems. The key is matching the device characteristics to your application requirements:

- **Use contactors** for high-power switching applications where robust construction and high current handling are essential
- **Use relays** for control circuits, signal switching, and applications where sensitivity, speed, and space efficiency are important

Both devices play crucial roles in modern electrical systems, often working together in integrated control solutions. Contactors handle the heavy lifting of power switching, while relays provide the intelligent control logic that makes systems safe, efficient, and automated.

The evolution toward smart, connected devices means that both contactors and relays are becoming more sophisticated, but their fundamental roles in electrical systems remain unchanged. By understanding their differences and applications, you can design better systems that are more reliable, efficient, and cost-effective.

Whether you're working on [motor control systems](/posts/induction-motor-why-we-need-them), [industrial automation](/posts/plc-programming-basics-complete-beginner-guide), or building automation projects, the proper selection and application of contactors and relays will ensure your systems operate reliably for years to come.

---

## 🔗 Related Posts

- [Variable Frequency Drive (VFD): Complete Guide](/posts/variable-frequency-drive-vfd-complete-guide)
- [Understanding Induction Motors: Working Principle and Applications](/posts/induction-motor-why-we-need-them)
- [Motor Voltage Drop Effects: Why Motors Fail](/posts/motor-voltage-drop-effects)
- [Power Factor Correction: Save Energy and Cut Costs](/posts/power-factor-correction-benefits-and-calculations)

#### **Helpful Calculators**
- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)
- [Power Factor Calculator](/calculators/power-factor-correction-calculator)
- [Resistance codes Calculator](/calculators/resistor-color-code-calculator)

 ---

#### **Credits**
- Photo by [ThisisEngineering RAEng](https://unsplash.com/fr/@mostafa_mahmoudi24?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/un-tas-de-fils-sont-branches-dans-un-boitier-de-commutation-47jO5Y8nsYo?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

Learn the key differences between contactors and relays, their applications, selection criteria, and when to use each. Complete guide with wiring examples, specifications, and practical applications for electrical engineers.

Contactor vs Relay: Key Differences & Choosing the Right One

Difference Between Contactor and Relay: Complete Guide with Applications & Selection Criteria

Master PLC programming from scratch with our complete beginner's guide. Learn ladder logic, I/O modules, programming languages, and real-world examples. Includes downloadable cheat sheet and step-by-step tutorials.

PLC Programming for Beginners: Step-by-Step Guide & Ladder Examples

PLC Programming Basics: Complete Beginner's Guide (Step-by-Step with Examples)

Circuit breaker sizing is one of the most critical aspects of electrical system design and installation. Proper breaker sizing protects your electrical circuits from dangerous overcurrents while ensuring your electrical loads receive adequate power to function correctly. Whether you're installing a new 30 amp breaker for an electric dryer or sizing a 40 amp breaker for an electric range, understanding the relationship between circuit breakers, wire sizes, and load requirements is essential for safe electrical work.

Getting circuit breaker sizing wrong can lead to nuisance tripping, electrical fires, or equipment damage. This comprehensive guide will teach you how to properly size circuit breakers, select appropriate wire sizes, and comply with National Electrical Code (NEC) requirements for residential and commercial installations.

## Table of Contents

1. [Understanding Circuit Breaker Fundamentals](#understanding-circuit-breaker-fundamentals)
2. [Circuit Breaker Sizing Calculations](#circuit-breaker-sizing-calculations)
3. [Wire Size Requirements for Common Breaker Sizes](#wire-size-requirements-for-common-breaker-sizes)
4. [NEC Code Requirements and Safety Standards](#nec-code-requirements-and-safety-standards)
5. [Step-by-Step Breaker Sizing Process](#step-by-step-breaker-sizing-process)
6. [Common Circuit Breaker Applications](#common-circuit-breaker-applications)
7. [Troubleshooting and Safety Considerations](#troubleshooting-and-safety-considerations)

## Understanding Circuit Breaker Fundamentals

### What is a Circuit Breaker?

A circuit breaker is an automatically operated electrical switch designed to protect electrical circuits from damage caused by excess current from an overload or short circuit. Unlike fuses that must be replaced after they operate, circuit breakers can be reset to resume normal operation.

### Key Circuit Breaker Functions

**Primary Protection Functions:**
- **Overcurrent Protection**: Prevents excessive current flow that could damage wires and equipment
- **Short Circuit Protection**: Quickly interrupts dangerous fault currents
- **Arc Fault Protection**: Modern AFCI breakers detect dangerous electrical arcs
- **Ground Fault Protection**: GFCI breakers protect against ground faults in wet locations

### Circuit Breaker Rating vs. Wire Ampacity

Understanding the relationship between breaker ratings and wire ampacity is crucial:

| **Concept** | **Definition** | **Purpose** |
|-------------|----------------|-------------|
| **Breaker Rating** | Maximum current the breaker allows before tripping | Protects the circuit from overcurrent |
| **Wire Ampacity** | Maximum current a wire can safely carry continuously | Prevents wire overheating and fires |
| **Load Current** | Actual current drawn by connected equipment | Determines minimum circuit capacity needed |

**Critical Rule**: The circuit breaker rating must never exceed the wire's ampacity rating.

## Circuit Breaker Sizing Calculations

### Basic Sizing Formula

The fundamental formula for circuit breaker sizing:

$$\text{Breaker Size} \geq \text{Load Current} \times \text{Safety Factor}$$

Where:
- **Load Current** = Total current drawn by all connected loads
- **Safety Factor** = Typically 1.25 (125%) for continuous loads

### Continuous vs. Non-Continuous Loads

**Continuous Loads** (operate for 3 hours or more):
- Air conditioning units
- Lighting circuits in commercial buildings
- Electric heaters
- **Sizing**: Load current × 1.25

**Non-Continuous Loads** (operate less than 3 hours):
- Most residential appliances
- Temporary equipment
- **Sizing**: Load current × 1.0

### Load Calculation Example

Let's calculate the proper breaker size for a kitchen circuit:

**Given Loads:**
- Microwave: 12 amps
- Toaster: 8 amps
- Coffee maker: 6 amps
- Total load: 26 amps (non-continuous)

**Calculation:**
Required breaker capacity = 26 amps × 1.0 = 26 amps

**Standard Breaker Selection:**
Next standard size up = **30 amp breaker**

### Derating Factors

Several factors can reduce wire ampacity, affecting breaker sizing:

#### Temperature Derating
High ambient temperatures reduce wire current-carrying capacity:

| **Ambient Temperature** | **Copper Wire Derating Factor** |
|-------------------------|--------------------------------|
| 86°F - 95°F (30°C - 35°C) | 0.91 |
| 96°F - 104°F (36°C - 40°C) | 0.82 |
| 105°F - 113°F (41°C - 45°C) | 0.71 |
| 114°F - 122°F (46°C - 50°C) | 0.58 |

#### Conduit Fill Derating
More than three current-carrying conductors in a raceway require derating:

| **Number of Conductors** | **Derating Factor** |
|-------------------------|-------------------|
| 4-6 conductors | 0.80 |
| 7-9 conductors | 0.70 |
| 10-20 conductors | 0.50 |
| 21-30 conductors | 0.45 |

## Wire Size Requirements for Common Breaker Sizes

<InlineEmailCTA/>

### Standard Wire Size Chart for Circuit Breakers

The following chart shows proper wire sizes for common circuit breaker ratings:

| **Breaker Size** | **Copper Wire (AWG)** | **Aluminum Wire (AWG)** | **Common Applications** |
|------------------|----------------------|------------------------|------------------------|
| **15 Amp** | 14 AWG | 12 AWG | General lighting, outlets |
| **20 Amp** | 12 AWG | 10 AWG | Kitchen outlets, bathroom outlets |
| **25 Amp** | 10 AWG | 8 AWG | Small air conditioners |
| **30 Amp** | 10 AWG | 8 AWG | Electric dryers, RV outlets |
| **40 Amp** | 8 AWG | 6 AWG | Electric ranges, large air conditioners |
| **50 Amp** | 6 AWG | 4 AWG | Electric ranges, hot tubs |
| **60 Amp** | 6 AWG | 4 AWG | Large appliances, sub-panels |
| **70 Amp** | 4 AWG | 2 AWG | Sub-panels, large motors |
| **80 Amp** | 4 AWG | 2 AWG | Sub-panels, commercial equipment |
| **100 Amp** | 3 AWG | 1 AWG | Main panels, large sub-panels |

### 30 Amp Breaker Wire Size Requirements

For a **30 amp breaker**, the wire sizing requirements are:

**Copper Conductors:**
- **Wire Size**: 10 AWG minimum
- **Ampacity**: 30 amps at 90°C rating
- **Insulation**: THWN-2, XHHW-2, or equivalent

**Aluminum Conductors:**
- **Wire Size**: 8 AWG minimum
- **Ampacity**: 30 amps at 90°C rating
- **Insulation**: THWN-2, XHHW-2, or equivalent

**Important Considerations for 30 Amp Circuits:**
- Commonly used for electric dryers (requires 10-3 cable with ground)
- RV electrical pedestals (30 amp service)
- Small air conditioning units
- Electric water heaters

### Wire Size for 40 Amp Breaker

For a **40 amp breaker**, proper wire sizing is critical:

**Copper Conductors:**
- **Wire Size**: 8 AWG minimum
- **Ampacity**: 40 amps at 90°C rating
- **Never use**: 10 AWG or smaller wire

**Aluminum Conductors:**
- **Wire Size**: 6 AWG minimum
- **Ampacity**: 40 amps at 90°C rating
- **Never use**: 8 AWG or smaller wire

**Common 40 Amp Applications:**
- Electric ranges and cooktops
- Large electric water heaters
- EV charging stations (Level 2)
- Central air conditioning units

<Notice type="warning">
⚠️ Safety Warning: Using undersized wire for any breaker size creates a serious fire hazard. The wire will overheat before the breaker trips, potentially causing electrical fires. Always verify wire ampacity ratings and apply appropriate derating factors.
</Notice>

## NEC Code Requirements and Safety Standards

### NEC Article 240: Overcurrent Protection

The National Electrical Code provides specific requirements for circuit breaker sizing and installation:

#### Section 240.4: Protection of Conductors
- Conductors shall be protected against overcurrent
- The protection device rating shall not exceed conductor ampacity
- Standard overcurrent device ratings are specified in 240.6

#### Section 240.6: Standard Ampere Ratings
Standard circuit breaker ratings available:
**15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100, 110, 125, 150, 175, 200** amperes

### Special NEC Requirements

#### Kitchen Small Appliance Circuits (210.11(C)(1))
- Minimum two 20-amp circuits required
- Must serve countertop outlets
- Cannot serve other loads

#### Bathroom Circuits (210.11(C)(3))
- Minimum one 20-amp circuit required
- Can serve multiple bathrooms if only bathroom loads

#### GFCI Protection Requirements (210.8)
GFCI protection required for:
- Bathrooms (all outlets)
- Kitchen countertop outlets
- Outdoor outlets
- Basement and garage outlets
- Crawl spaces and unfinished basements

## Step-by-Step Breaker Sizing Process

### Step 1: Calculate Total Load Current

**For Individual Appliances:**
Check the appliance nameplate for:
- **Rated current** (in amperes)
- **Power rating** (in watts or VA)
- **Voltage rating** (120V, 240V, etc.)

If only power is given, calculate current:
$$I = \frac{P}{V}$$

**Example**: 4800W electric range at 240V
$$I = \frac{4800W}{240V} = 20 \text{ amperes}$$

### Step 2: Apply Continuous Load Factor

**For Continuous Loads:**
Multiply load current by 1.25 (125%)

**For Non-Continuous Loads:**
Use actual load current

**Example**: 20-amp continuous load
Required capacity = 20A × 1.25 = 25A

### Step 3: Apply Derating Factors

Consider environmental conditions:
- **Temperature**: Apply temperature derating if ambient exceeds 86°F
- **Conduit fill**: Apply derating for more than 3 current-carrying conductors
- **Voltage drop**: Consider for long wire runs

### Step 4: Select Wire Size

Choose wire size based on:
1. Required ampacity after derating
2. Voltage and insulation requirements
3. Conductor material (copper vs. aluminum)
4. Installation method

### Step 5: Select Breaker Size

Choose the appropriate standard breaker size that:
1. Protects the selected wire size
2. Provides adequate capacity for the load
3. Meets NEC requirements

### Complete Sizing Example

**Scenario**: 240V electric water heater, 4500W, continuous operation

**Step 1 - Calculate Load Current:**
$$I = \frac{4500W}{240V} = 18.75 \text{ amperes}$$

**Step 2 - Apply Continuous Load Factor:**
Required capacity = 18.75A × 1.25 = 23.44A

**Step 3 - Apply Derating (if applicable):**
Assuming standard conditions: 23.44A

**Step 4 - Select Wire Size:**
- Need wire rated for minimum 23.44A
- Choose 12 AWG copper (25A rating) or 10 AWG aluminum (25A rating)

**Step 5 - Select Breaker:**
- Next standard size: **25 amp breaker**
- Verify: 25A breaker ≤ 25A wire rating ✓

## Common Circuit Breaker Applications

### Residential Applications

#### 15 Amp Circuits
- **Wire Size**: 14 AWG copper
- **Applications**:
 - General lighting circuits
 - Standard bedroom/living room outlets
 - Small appliances under 12 amps

#### 20 Amp Circuits
- **Wire Size**: 12 AWG copper
- **Applications**:
 - Kitchen countertop outlets
 - Bathroom outlets
 - Laundry room outlets
 - Some lighting circuits

#### 30 Amp Circuits
- **Wire Size**: 10 AWG copper
- **Applications**:
 - Electric clothes dryers
 - RV electrical connections
 - Small electric water heaters
 - Window air conditioners (larger units)

#### 40 Amp Circuits
- **Wire Size**: 8 AWG copper
- **Applications**:
 - Electric ranges and cooktops
 - Large electric water heaters
 - Central air conditioning units
 - EV charging stations

#### 50 Amp Circuits
- **Wire Size**: 6 AWG copper
- **Applications**:
 - Large electric ranges
 - Hot tubs and spas
 - Welding outlets
 - Sub-panel feeders

### Commercial Applications

#### 60-100 Amp Circuits
Common for:
- Large commercial appliances
- Sub-panel feeders
- Industrial equipment
- Large motor loads

#### Load Diversity and Demand Factors
Commercial installations use demand factors from NEC Article 220:
- **Lighting loads**: Apply demand factors for large areas
- **Motor loads**: Use largest motor * 125% + sum of others
- **HVAC loads**: Consider load diversity and cycling

## Advanced Breaker Sizing Considerations

### Motor Load Calculations

Motors require special consideration due to high starting currents:

#### Single Motor Circuits
- **Branch circuit protection**: 115-300% of motor FLA (depending on motor type)
- **Conductor sizing**: 125% of motor FLA minimum
- **Overload protection**: Separate motor starter required

#### Multiple Motor Circuits
Calculate as:
$\text{Circuit Capacity} = (\text{Largest Motor FLA} \times 1.25) + \sum \text{Other Motor FLAs}$

### Arc Fault Circuit Interrupter (AFCI) Requirements

AFCI breakers required for:
- Bedrooms (since 1999)
- Most residential circuits (since 2014)
- Dormitory rooms
- Living areas

### Ground Fault Circuit Interrupter (GFCI) Breakers

GFCI protection required for:
- Bathroom outlets
- Kitchen countertops
- Outdoor outlets
- Basement and garage outlets
- Pool and spa equipment

## Troubleshooting and Safety Considerations

### Common Breaker Sizing Mistakes

#### 1. Oversized Breakers
**Problem**: Using 40A breaker on 12 AWG wire (20A rating)
**Risk**: Wire overheats before breaker trips
**Solution**: Match breaker to wire ampacity

#### 2. Undersized Breakers
**Problem**: 15A breaker for 20A continuous load
**Risk**: Nuisance tripping, equipment damage
**Solution**: Apply 125% factor for continuous loads

#### 3. Ignoring Derating Factors
**Problem**: Using standard ampacities in high-temperature locations
**Risk**: Wire overheating, insulation failure
**Solution**: Apply temperature and conduit fill derating

#### 4. Voltage Drop Issues
**Problem**: Long wire runs with inadequate wire size
**Risk**: Poor equipment performance, overheating
**Solution**: Increase wire size or use higher voltage

### Safety Best Practices

#### Installation Safety
1. **Turn off power** at main breaker before work
2. **Test circuits** with multimeter to verify power off
3. **Use proper PPE** including safety glasses and insulated tools
4. **Follow local codes** and obtain permits when required

#### Maintenance and Inspection
- **Monthly**: Test GFCI and AFCI breakers using test buttons
- **Annually**: Infrared scan of electrical panels for hot spots
- **Professional inspection**: Every 3-5 years for residential systems

### When to Call a Professional

Contact a licensed electrician for:
- Main panel upgrades
- Complex load calculations
- Commercial installations
- Permit applications
- Code compliance questions

## Circuit Breaker Sizing Calculator Reference

### Quick Reference Formulas

**Basic Load Calculation:**
$$\text{Current (A)} = \frac{\text{Power (W)}}{\text{Voltage (V)}}$$

**Continuous Load Sizing:**
$$\text{Breaker Size} = \text{Load Current} \times 1.25$$

**Wire Ampacity with Derating:**
$$\text{Adjusted Ampacity} = \text{Base Ampacity} \times \text{Derating Factor}$$

**Voltage Drop Calculation:**
$$\text{VD} = 2 \times K \times I \times L \times \frac{1}{\text{CM}}$$

Where:
- K = 12.9 (copper) or 21.2 (aluminum)
- I = Current in amperes
- L = Length in feet
- CM = Circular mils of conductor

- [Download the Voltage Drop & Wire Size Excel Tool](/voltage-drop-and-wire-size-excel-tool)

## Conclusion: Ensuring Safe and Compliant Circuit Protection

Proper circuit breaker sizing is fundamental to electrical safety and system reliability. By following the principles outlined in this guide - calculating loads accurately, applying appropriate safety factors, selecting correct wire sizes, and complying with NEC requirements - you can ensure your electrical installations provide reliable protection while meeting all safety standards.

Remember these key points:
- **Never exceed wire ampacity** with your breaker selection
- **Apply the 125% rule** for continuous loads
- **Consider all derating factors** that affect wire ampacity
- **Use standard breaker sizes** as specified in NEC 240.6
- **Match applications correctly** (30 amp breaker wire size for dryers, wire size for 40 amp breaker for ranges)

Whether you're sizing a simple 15-amp lighting circuit or a complex 200-amp service entrance, the fundamental principles remain the same. When in doubt, consult with a qualified electrical professional and always prioritize safety over convenience.

For more advanced electrical calculations and design guidance, explore our comprehensive resources on [power system analysis](/posts/power-factor-correction-benefits-and-calculations) and [electrical safety practices](/posts/grounding-earthing-difference-complete-guide).

---

## 🔗 Related Posts

- [Complete Guide to Voltage Drop: Calculations, Tables & Calculators](/posts/voltage-drop-calculation-complete-guide)
- [Wire Size Calculator: Complete Guide with Single Phase, 3-Phase & DC Calculations](/posts/wire-size-calculator-complete-guide)
- [Understanding Electric Current: A Comprehensive Guide](/posts/electric-current-a-comprehensive-guide)
- [Difference Between Grounding and Earthing: Complete Guide](/posts/grounding-earthing-difference-complete-guide)

### Helpful Calculators
- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)
- [Ohm's Law Calculator](/calculators/ohms-law-calculator)

---

#### **Credits**
- Photo by [Troy Bridges](https://unsplash.com/fr/@esptroy?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/boitier-dinterrupteur-dalimentation-gris-maXnRLszYY0?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

Master circuit breaker sizing with our complete guide including wire size charts, NEC code requirements, and calculations for 15A to 200A breakers. Includes safety tips and common sizing mistakes to avoid.

Breaker Sizing Calculator: Wire Size & NEC Requirements (15–200A)

Circuit Breaker Sizing: Complete Guide with Wire Size Charts & NEC Code Requirements

Master transformer sizing with our complete guide including kVA calculations, sizing charts, load analysis, and step-by-step examples for single-phase and three-phase transformers. Learn proper selection criteria and avoid costly sizing mistakes.

Transformer Sizing & kVA Calculator | Load Calculation Guide

Transformer Sizing: Complete Guide with Calculations, Charts & Selection Criteria


Electric stoves have become crucial to modern kitchens due to their efficiency, convenience, and sleek designs. Whether you are a home cook or a professional chef, understanding how electric stoves work and what makes them unique is essential for making the best choice for your cooking needs.

This comprehensive guide, which delves into the types of electric stoves, their benefits, key features, and tips for selecting the right model, ensures you're well-informed and confident in your decision.

---

## What Is an Electric Stove?

An electric stove is a kitchen appliance powered by electricity and designed for cooking food. Unlike gas stoves with an open flame, electric stoves rely on heating elements to generate heat. These elements are controlled by knobs or touch panels, allowing precise temperature adjustments for various cooking methods.

### How Does an Electric Stove Work?

Electric stoves convert electrical energy into heat through [resistance](/posts/electrical-resistance-and-how-to-calculate-it) in their heating elements. The primary components include:

1. **Heating Elements**: Coils or smooth surfaces that heat up when electricity flows through them.
2. **Control Panel**: Regulates the temperature and cooking settings.
3. **Oven Component**: Many electric stoves have an integrated baking and roasting oven.

---

## Types of Electric Stoves

Electric stoves are available in different types, each with its own set of features and advantages. Understanding these types can help you make a better decision.

### 1. **Coil Electric Stoves**

- **Description**: Feature exposed coil burners on the stovetop.
- **Pros**: Affordable and durable.
- **Cons**: Difficult to clean and less aesthetically pleasing.
- **Example**: The GE 30-inch Coil Electric Stove is a popular choice for budget-conscious buyers.
- **Where to Buy**: [GE Appliances](https://www.geappliances.com/) or [Home Depot](https://www.homedepot.com/).

---

### 2. **Smooth-Top Electric Stoves**

- **Description**: Have a smooth glass or ceramic surface with heating elements underneath.
- **Pros**: Sleek appearance, easy to clean, and compatible with most cookware.
- **Cons**: Can be prone to scratches and requires flat-bottom cookware.
- **Example**: Samsung's Smooth-Top Electric Range is highly rated for its design and performance.
- **Where to Buy**: [Samsung Official Website](https://www.samsung.com/) or [Best Buy](https://www.bestbuy.com/).

---

### 3. **Induction Stoves**

- **Description**: Heat cookware directly rather than the stovetop surface using electromagnetic technology.
- **Pros**: Extremely energy-efficient, fast heating, and safe (the surface remains cool to the touch).
- **Cons**: Expensive and requires induction-compatible cookware.
- **Example**: The Bosch Induction Cooktop is a premium option for modern kitchens.
- **Where to Buy**: [Bosch Home](https://www.bosch-home.com/) or [Wayfair](https://www.wayfair.com/).

---

### 4. **Dual-Fuel Stoves**

- **Description**: Combine an electric oven with a gas-powered cooktop.
- **Pros**: Offers gas and electric cooking benefits.
- **Cons**: Requires both gas and electric connections.
- **Example**: The Frigidaire Professional Dual-Fuel Range is a top choice for versatility.
- **Where to Buy**: [Frigidaire](https://www.frigidaire.com/) or [Lowe's](https://www.lowes.com/).

---

## Benefits of Electric Stoves

Electric stoves offer numerous advantages, making them a popular choice for households worldwide:

1. **Energy Efficiency**: Modern electric stoves, especially induction models, consume less energy than gas stoves.
2. **Easy Cleaning**: Smooth-top and induction stoves are easy to clean after cooking.
3. **Safety**: No open flames reduce the risk of accidental fires.
4. **Consistent Heat**: Provides even heat distribution for better cooking results.
5. **Aesthetic Appeal**: Sleek designs enhance the look of your kitchen.

---

## How to Choose the Right Electric Stove

When shopping for an electric stove, consider the below factors to ensure you make the best choice:

### 1. **Cooking Needs**

Assess your cooking habits and preferences. An induction stove might be ideal if you cook frequently and need precise control. For occasional use, a coil or smooth-top model could suffice.

---

### 2. **Size and Fit**

Measure your kitchen space to find a stove that fits perfectly. Most electric stoves come in standard sizes, but custom dimensions are available for specific layouts.

---

### 3. **Features**

Look for features that enhance functionality and efficiency, such as:

- **Convection Oven**: For faster, even baking.
- **Self-Cleaning Function**: Simplifies oven maintenance.
- **Smart Connectivity**: Enables remote control via apps.

---

### 4. **Energy Efficiency**

Check for Energy Star ratings or efficiency certifications to save on energy bills.

---

### 5. **Budget**

Set a budget and explore options within your price range. Remember to factor in long-term costs, such as maintenance and energy consumption.

---

## Example: Comparing Coil and Induction Stoves

| Feature              | Coil Stove             | Induction Stove          |
|----------------------|------------------------|--------------------------|
| **Heating Speed** | Moderate              | Very Fast                |
| **Energy Efficiency**| Moderate              | High                     |
| **Cookware** | Any                   | Induction-Compatible Only|
| **Cleaning** | Difficult             | Easy                     |
| **Price** | Affordable            | Expensive                |

---

## Maintenance Tips for Electric Stoves

To ensure your electric stove lasts for years, follow these maintenance tips:

1. **Regular Cleaning**: Wipe the surface after every use to prevent residue buildup.
2. **Inspect Heating Elements**: Check for wear and replace damaged parts promptly.
3. **Avoid Abrasive Cleaners**: Use non-scratch sponges and cleaners designed for electric stoves.
4. **Use Compatible Cookware**: Ensure your cookware matches the stove type to prevent damage.

---

## FAQs About Electric Stoves

### 1. Are electric stoves more energy-efficient than gas stoves?
Yes, especially induction stoves transfer energy directly to the cookware, reducing energy waste.

### 2. Can iron pans be used on a smooth-top stove?
Yes, but lift the pan instead of dragging it to avoid scratching the surface.

### 3. What should I do if my stove stops heating?
Check the power connection, inspect the heating elements, and consult the manufacturer if the issue persists.

---

## Conclusion

Electric stoves are a versatile and efficient addition to any kitchen. By understanding the types available, their benefits, and what to look for, you can confidently choose the best model for your home. Whether you prefer the affordability of a coil stove or the advanced technology of an induction stove, there's an option to suit every cooking style and budget.

For further reading, explore these resources:

- [The Spruce: Pros and Cons of Induction Cooking](https://www.thespruce.com/pros-and-cons-of-induction-cooking-4079615)
- [Energy.gov: Choosing Energy-Efficient Appliances](https://www.energy.gov/)

Switch to an electric stove today and experience the difference it brings to your cooking experience!

---

#### **Credits**
- Photo by [Dane Deaner](https://unsplash.com/fr/@danedeaner?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/bidon-bleu-wkC8EX8y9Mc?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)


Discover electric stoves, their advantages and types, practical tips for choosing the best model for your kitchen, and expert insights.

How to Choose the Best Electric Stove – Pros, Features & Buying Advice

Electric Stoves: Benefits and Tips for Choosing a Good One

Master power factor correction with step-by-step calculators, equipment costs, and real ROI analysis. Reduce electricity bills 10-30% and eliminate utility penalties with our comprehensive implementation guide.

Power Factor Correction: Calculator, Cost Analysis & Equipment Guide

Power Factor Correction: Complete Guide with Calculators, Cost Analysis & Real Savings

Proper wire sizing is critical for electrical safety, code compliance, and system efficiency. This comprehensive wire size calculator guide provides the formulas, tables, and step-by-step calculations needed to determine the correct wire size for any electrical application, from residential circuits to industrial 3-phase systems.

Whether you're an electrician sizing conductors for a panel upgrade, an engineer designing a motor circuit, or a DIYer planning a workshop electrical installation, accurate wire sizing ensures safe operation and prevents costly failures.

## Understanding Wire Size Calculation Fundamentals

### Key Factors in Wire Sizing

Wire size selection must satisfy three primary requirements:

1. **Ampacity** - Wire must safely carry the required current
2. **Voltage Drop** - Must maintain acceptable voltage levels
3. **Short Circuit Protection** - Wire must handle fault currents

### Wire Size Calculation Formula

**Basic Wire Sizing Process:**


1. Calculate Load Current: I = P ÷ (V × PF)
2. Apply Safety Factor: I_safe = I × 1.25
3. Apply Derating Factors: I_derated = I_safe ÷ (Temp × Bundle × Other)
4. Select Wire Size: AWG ≥ Required Ampacity
5. Check Voltage Drop: VD% = (VD ÷ V_nominal) × 100


## Single Phase Wire Size Calculator

### Single Phase Current Calculation

For single phase AC circuits:

**Current Formula:**
$I = \frac{P}{V \times PF}$

Where:
- I = Current (Amperes)
- P = Power (Watts)
- V = Voltage (Volts)
- PF = Power Factor (0.8-1.0)

### Example 1: Single Phase Motor Circuit

**Given:**
- 5 HP single phase motor
- 240V supply voltage
- Power factor = 0.8
- Motor efficiency = 85%
- Run length = 150 feet

**Step 1: Calculate Load Current**


Motor Power = 5 HP × 746 W/HP = 3,730W
Actual Power = 3,730W ÷ 0.85 = 4,388W
Current = 4,388W ÷ (240V × 0.8) = 22.9A


**Step 2: Apply NEC Safety Factor**


$I_{required}$ = 22.9A × 1.25 = 28.6A


**Step 3: Select Wire Size (Ampacity)**
From NEC Table 310.15(B)(16):
- 10 AWG copper = 30A (acceptable)
- Check: 30A > 28.6A ✓

**Step 4: Check Voltage Drop**


VD = (2 × I × R × L) ÷ 1000
$R_{10AWG}$ = 1.018 ohms per 1000 ft
VD = (2 × 22.9 × 1.018 × 150) ÷ 1000 = 6.99V
VD% = (6.99V ÷ 240V) × 100 = 2.91%


**Result: 10 AWG copper wire** (meets both ampacity and 3% voltage drop requirement)

### Single Phase Wire Size Chart

| **Load (Amps)** | **Circuit Breaker** | **Copper AWG** | **Aluminum AWG** | **Typical Application** |
|------------------|---------------------|----------------|-------------------|-------------------------|
| 15 | 20A | 12 AWG | 10 AWG | Lighting, receptacles |
| 20 | 25A | 12 AWG | 10 AWG | Kitchen, bathroom |
| 30 | 40A | 10 AWG | 8 AWG | Electric dryer |
| 40 | 50A | 8 AWG | 6 AWG | Electric range |
| 50 | 60A | 6 AWG | 4 AWG | Sub-panel feeder |

## 3-Phase Wire Size Calculator

<InlineEmailCTA/>

### 3-Phase Current Calculation

For balanced 3-phase systems:

**Line Current Formula:**
$I_L = \frac{P}{{\sqrt{3} \times V_L \times PF}}$

Where:
- $I_L$ = Line Current (Amperes)
- P = Total 3-phase power (Watts)
- $V_L$ = Line-to-line voltage (Volts)
- √3 = 1.732 (square root of 3)

### Example 2: 3-Phase Motor Circuit

**Given:**
- 50 HP, 3-phase motor
- 480V, 3-phase supply
- Power factor = 0.85
- Motor efficiency = 92%
- Run length = 200 feet

**Step 1: Calculate Line Current**


Motor Power = 50 HP × 746 W/HP = 37,300W
Actual Power = 37,300W ÷ 0.92 = 40,543W
Line Current = 40,543W ÷ (1.732 × 480V × 0.85) = 57.3A


**Step 2: Apply Safety Factor**


$I_{required}$ = 57.3A × 1.25 = 71.6A


**Step 3: Select Wire Size**
From ampacity tables:
- 4 AWG copper = 85A (acceptable)
- Check: 85A > 71.6A ✓

**Step 4: Check 3-Phase Voltage Drop**


VD = (√3 × I × Z × L) ÷ 1000
$Z_{4AWG}$ = 0.256 ohms per 1000 ft
VD = (1.732 × 57.3 × 0.256 × 200) ÷ 1000 = 5.07V
VD% = (5.07V ÷ 480V) × 100 = 1.06%


**Result: 4 AWG copper wire** (excellent voltage drop performance)

### 3-Phase Wire Sizing Chart

| **Motor HP** | **Current @ 480V** | **Wire Size (Cu)** | **Wire Size (Al)** | **Conduit Size** |
|--------------|---------------------|---------------------|---------------------|------------------|
| 5 HP | 7.6A | 12 AWG | 10 AWG | ¾" |
| 10 HP | 14A | 12 AWG | 10 AWG | ¾" |
| 25 HP | 34A | 8 AWG | 6 AWG | 1¼" |
| 50 HP | 65A | 4 AWG | 2 AWG | 1½" |
| 100 HP | 124A | 1/0 AWG | 3/0 AWG | 2" |

## DC Wire Size Calculator

### DC Current and Wire Sizing

DC systems require special consideration due to continuous current flow and different voltage drop characteristics.

**DC Current Formula:**
$I = \frac{P}{V}$

**DC Voltage Drop Formula:**
$V_{drop} = \frac{2 \times I \times R \times L}{1000}$

### Example 3: Solar Panel DC Circuit

**Given:**
- 5kW solar array
- 48V DC system
- Cable run = 100 feet
- Target voltage drop = 2%

**Step 1: Calculate DC Current**


Current = 5,000W ÷ 48V = 104.2A


**Step 2: Determine Acceptable Voltage Drop**


Max VD = 48V × 0.02 = 0.96V


**Step 3: Calculate Required Wire Resistance**


$R_{max}$ = (VD × 1000) ÷ (2 × I × L)
$R_{max}$ = (0.96 × 1000) ÷ (2 × 104.2 × 100) = 0.046 ohms/1000ft


**Step 4: Select Wire Size**
Wire resistance values:
- 4/0 AWG: 0.0486 ohms/1000ft (too high)
- 250 MCM: 0.0412 ohms/1000ft ✓

**Result: 250 MCM copper conductor required**

### DC Wire Size Chart (12V Systems)

| **Current (Amps)** | **Wire Run Distance** | **10 ft** | **25 ft** | **50 ft** | **100 ft** |
|---------------------|------------------------|-----------|-----------|-----------|------------|
| **10A** | Wire Size | 14 AWG | 12 AWG | 10 AWG | 8 AWG |
| **20A** | Wire Size | 12 AWG | 10 AWG | 8 AWG | 4 AWG |
| **30A** | Wire Size | 10 AWG | 8 AWG | 6 AWG | 2 AWG |
| **50A** | Wire Size | 8 AWG | 6 AWG | 4 AWG | 1/0 AWG |

## Advanced Wire Sizing Calculations

### Derating Factors Application

**Temperature Derating:**
- 78-86°F: Factor = 1.0
- 87-95°F: Factor = 0.82
- 96-104°F: Factor = 0.71

**Bundling Derating:**
- 4-6 conductors: Factor = 0.8
- 7-9 conductors: Factor = 0.7
- 10-20 conductors: Factor = 0.5

### Example 4: Complex Derating Calculation

**Given:**
- 30A continuous load
- Ambient temperature: 95°F
- 6 conductors in conduit
- Copper conductors

**Step 1: Apply Derating Factors**


Required Ampacity = 30A × 1.25 (continuous) = 37.5A
Temperature Factor = 0.82
Bundling Factor = 0.8
Total Derating = 0.82 × 0.8 = 0.656


**Step 2: Calculate Wire Size**


Wire Ampacity Needed = 37.5A ÷ 0.656 = 57.2A
Select: 6 AWG copper (65A rating) ✓


## Voltage Drop Calculations and Tables

### Voltage Drop Limits

**NEC Recommendations:**
- Branch circuits: 3% maximum
- Feeders: 5% maximum
- Total (branch + feeder): 5% maximum

### Comprehensive Voltage Drop Table

| **AWG Size** | **Resistance (Ω/1000ft)** | **Current Capacity** | **VD per Amp per 100ft** |
|--------------|---------------------------|----------------------|---------------------------|
| 14 AWG | 2.525 | 15A | 0.505V |
| 12 AWG | 1.588 | 20A | 0.318V |
| 10 AWG | 1.018 | 30A | 0.204V |
| 8 AWG | 0.6404 | 50A | 0.128V |
| 6 AWG | 0.4030 | 65A | 0.081V |
| 4 AWG | 0.2557 | 85A | 0.051V |
| 2 AWG | 0.1608 | 115A | 0.032V |
| 1/0 AWG | 0.1021 | 150A | 0.020V |

## Practical Wire Sizing Applications

### Residential Panel Feeder Sizing

**Example: 200A Service Panel**
- Main breaker: 200A
- Feeder length: 75 feet
- Service voltage: 240V single-phase

**Calculation:**


Load current = 200A
Wire selection: 4/0 AWG copper (230A capacity)
Voltage drop check:
VD = (2 × 200 × 0.1021 × 75) ÷ 1000 = 3.06V
VD% = (3.06V ÷ 240V) × 100 = 1.28% ✓


### Industrial Motor Circuit Design

**Example: 100 HP Motor @ 460V**
- Full load current: 124A
- Starting current: 744A (6× FLC)
- Run distance: 300 feet

**Wire Sizing:**


Continuous rating = 124A × 1.25 = 155A
Selected: 2/0 AWG copper (175A)
Voltage drop = (1.732 × 124 × 0.1292 × 300) ÷ 1000 = 8.32V
VD% = (8.32V ÷ 460V) × 100 = 1.81% ✓


## Wire Size Calculator Tools and Resources

### Essential Calculation Tools

Use these professional calculators for accurate wire sizing:

- [Voltage Drop Calculator](/calculators/voltage-drop-calculator) - Calculate voltage drop for any circuit configuration
- [Ohm's Law Calculator](/calculators/ohms-law-calculator) - Determine current, voltage, power relationships

### Wire Ampacity Reference Tables

Reference the latest NEC ampacity tables:
- Table 310.15(B)(16) - Copper and aluminum conductors
- Table 310.15(B)(17) - Flexible cords and cables
- Article 240 - Overcurrent protection requirements

## Common Wire Sizing Mistakes and Solutions

### Critical Errors to Avoid

**1. Ignoring Continuous Load Factor**
- Error: Using 20A breaker for 20A continuous load
- Solution: Apply 125% factor (25A breaker minimum)

**2. Inadequate Voltage Drop Analysis**
- Error: Selecting wire by ampacity only
- Solution: Calculate voltage drop for long runs

**3. Incorrect 3-Phase Calculations**
- Error: Using single-phase formulas
- Solution: Include √3 factor in all 3-phase calculations

**4. Derating Factor Omission**
- Error: Ignoring temperature/bundling effects
- Solution: Apply all applicable derating factors

### Wire Sizing Verification Checklist

✅ Load current calculated correctly
✅ Safety factors applied (125% continuous)
✅ Derating factors considered
✅ Wire ampacity exceeds derated load
✅ Voltage drop within acceptable limits
✅ Short circuit ratings adequate
✅ Code compliance verified

## Advanced Wire Sizing Topics

### Parallel Conductor Calculations

For high-current applications requiring parallel conductors:

**Example: 500A Feeder**


Single conductor limit: 310A (250 MCM)
Parallel conductors needed: 500A ÷ 310A = 2 conductors minimum
Selected: (2) 250 MCM per phase
Total capacity: 2 × 310A = 620A > 500A ✓


### Harmonic Considerations

In systems with nonlinear loads:
- Increase neutral conductor size for harmonic currents
- Consider K-rated transformers
- Apply additional derating for harmonic heating

### High-Temperature Applications

For elevated temperature environments:
- Use high-temperature wire insulation (THWN-2, XHHW)
- Apply aggressive temperature derating
- Consider aluminum conductors for weight reduction

## Wire Size Calculator Summary and Best Practices

### Quick Reference Wire Sizing Steps

1. **Calculate Load Current**: Use appropriate formula (single/3-phase/DC)
2. **Apply Safety Factors**: 125% for continuous loads
3. **Consider Derating**: Temperature, bundling, altitude factors
4. **Select Wire Size**: Meet derated ampacity requirements
5. **Verify Voltage Drop**: Stay within NEC recommendations
6. **Check Code Compliance**: Follow all applicable standards

### Professional Wire Sizing Guidelines

- Always use the latest NEC code edition
- Document all calculations for inspection approval
- Consider future load growth in sizing decisions
- Specify appropriate wire insulation for the environment
- Include equipment grounding conductor sizing

### Cost Optimization Strategies

- Balance initial wire cost vs. long-term energy savings
- Consider aluminum for large feeders (cost savings)
- Evaluate conduit size impacts of wire upsizing
- Factor in installation labor costs

- [Download the Voltage Drop & Wire Size Excel Tool](/voltage-drop-and-wire-size-excel-tool)

Accurate wire sizing ensures electrical safety, system reliability, and code compliance across all electrical installations. Whether designing residential circuits, commercial feeders, or industrial motor controls, following these calculation methods and best practices guarantees proper conductor selection for any application.

For additional electrical calculation resources and tools, explore our comprehensive guides on [Kirchhoff's Laws](/posts/guide-to-kirchhoffs-law-applications-examples) for circuit analysis and [electrical resistance calculations](/posts/electrical-resistance-and-how-to-calculate-it) for advanced circuit design applications.

---
## 🔗 Related Posts

- [Electric Current: A Comprehensive Guide](/posts/electric-current-a-comprehensive-guide)
- [Kirchhoff's Laws: Complete Guide with Circuit Analysis Examples](/posts/guide-to-kirchhoffs-law-applications-examples)
- [Electrical Resistance and How to Calculate It](/posts/electrical-resistance-and-how-to-calculate-it)

### Helpful Calculators

- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)
- [Ohm's Law Calculator](/calculators/ohms-law-calculator)
- [Power Factor Calculator](/calculators/power-factor-correction-calculator)
- [Capacitor and Inductor Reactance Calculator](/calculators/capacitor-inductor-reactance-calculator)

 ---

#### **Credits**

- Photo by [Nina Mercado](https://unsplash.com/fr/@nina_mercado?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/fil-bleu-et-vert-sur-etagere-en-bois-marron-ygl027z_Iw0?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

---

Master electrical wire sizing with our comprehensive guide. Includes wire size calculations for single phase, 3-phase, and DC circuits with ampacity tables, voltage drop formulas, and real-world examples.

Wire Size Calculator: Step-by-Step Guide with Examples & Formulas

Wire Size Calculator: Complete Guide with Single Phase, 3-Phase & DC Calculations

The confusion between grounding, earthing, and neutral causes more electrical mistakes than almost any other concept in electrical work. Even experienced electricians sometimes use these terms interchangeably, but understanding their distinct differences is crucial for safe installations, proper code compliance, and preventing costly electrical failures.

Whether you're installing new electrical services, troubleshooting ground fault issues, or ensuring NEC compliance in your electrical projects, mastering these fundamental concepts will elevate your electrical knowledge and improve installation safety.

## Understanding Grounding vs Earthing vs Neutral: Core Definitions

The difference between grounding and earthing lies in their specific purposes and connection methods, while neutral serves an entirely different function in electrical systems.

### What is Earthing? (Safety-First Protection)

**Earthing** refers to the direct physical connection of electrical equipment or systems to the actual earth through conductive materials like ground rods, plates, or grids.

**Primary Functions:**
- **Fault current path**: Provides low-impedance path for fault currents
- **Lightning protection**: Safely dissipates lightning strikes and surges
- **Static discharge**: Prevents static electricity accumulation
- **Voltage stabilization**: Maintains earth as zero potential reference

**Physical Implementation:**
- Ground rods driven into earth
- Grounding grids buried in soil
- Metal water pipe connections
- Concrete-encased electrodes (Ufer grounds)

<img src="/images/post/earthing-system-diagram.png" alt="Earthing system with ground rods and electrode connections" width="600" height="auto" loading="lazy" />

### What is Grounding? (System Reference Point)

**Grounding** establishes a reference point (typically zero volts) for electrical systems and includes both safety and functional aspects.

**Key Functions:**
- **Reference potential**: Provides stable voltage reference for systems
- **Equipment protection**: Connects non-current-carrying metal parts
- **System grounding**: Connects neutral points of transformers and generators
- **Noise reduction**: Provides return path for electrical interference

**Types of Grounding:**
1. **System Grounding**: Connects the neutral point to ground
2. **Equipment Grounding**: Connects equipment frames and enclosures
3. **Static Grounding**: Prevents static electricity buildup
4. **Signal Grounding**: Provides reference for electronic circuits

### What is Neutral? (Current Return Path)

The **neutral conductor** carries return current during normal circuit operation and completes the electrical circuit.

**Essential Characteristics:**
- **Current carrying**: Designed to carry unbalanced current
- **Voltage level**: Normally at or near ground potential
- **Color coding**: White or gray insulation (NEC requirements)
- **Connection point**: Bonded to ground only at service entrance

<Notice type="info">
Key Distinction: Neutral carries current during normal operation, while grounding conductors should only carry current during fault conditions.
</Notice>

## NEC Code Requirements and Standards

### Article 250: Grounding and Bonding

The National Electrical Code (NEC) Article 250 governs all grounding and bonding requirements in electrical installations.

#### Grounding Electrode System Requirements (NEC 250.50)

**Mandatory Electrodes** (when present):
1. **Metal water pipe** (NEC 250.52(A)(1))
2. **Structural metal frame** (NEC 250.52(A)(2))
3. **Concrete-encased electrode** (NEC 250.52(A)(3))
4. **Ground ring** (NEC 250.52(A)(4))

**Supplemental Electrodes** (when required):
- **Ground rods** (NEC 250.52(A)(5))
- **Ground plates** (NEC 250.52(A)(7))

#### Ground Rod Installation Requirements

| **Specification** | **NEC Requirement** | **Notes** |
|-------------------|---------------------|-----------|
| **Minimum Length** | 8 feet | NEC 250.52(A)(5) |
| **Minimum Diameter** | 5/8 inch | For steel rods |
| **Material** | Copper, galvanized steel | Copper-clad acceptable |
| **Burial Depth** | 8 feet minimum | Top must be flush or below grade |
| **Spacing** | 6 feet minimum | Between multiple rods |
| **Resistance** | 25 ohms maximum | If exceeded, install second rod |

#### Grounding Electrode Conductor Sizing (NEC Table 250.66)

Based on largest service entrance conductor:

| **Service Conductor Size** | **Copper GEC** | **Aluminum GEC** |
|----------------------------|----------------|------------------|
| **2 AWG or smaller** | 8 AWG | 6 AWG |
| **1 AWG or 1/0 AWG** | 6 AWG | 4 AWG |
| **2/0 or 3/0 AWG** | 4 AWG | 2 AWG |
| **Over 3/0 thru 350 kcmil** | 2 AWG | 1/0 AWG |
| **Over 350 thru 600 kcmil** | 1/0 AWG | 3/0 AWG |

### Equipment Grounding Conductor Sizing (NEC Table 250.122)

Equipment grounding conductors must be sized according to the overcurrent protective device:

| **Circuit Breaker Rating** | **Copper EGC** | **Aluminum EGC** |
|----------------------------|----------------|------------------|
| **15A** | 14 AWG | 12 AWG |
| **20A** | 12 AWG | 10 AWG |
| **30A** | 10 AWG | 8 AWG |
| **40A** | 10 AWG | 8 AWG |
| **60A** | 10 AWG | 8 AWG |
| **100A** | 8 AWG | 6 AWG |
| **200A** | 6 AWG | 4 AWG |

## Step-by-Step Installation Examples

### Example 1: Residential Service Grounding System

Let's design a complete grounding system for a 200A residential service installation.

#### Given Parameters:
- **Service**: 200A, 240V, single-phase
- **Service conductors**: 3/0 AWG copper
- **Available electrodes**: Metal water pipe, concrete foundation
- **Soil conditions**: Average conductivity

#### Step 1: Determine Grounding Electrode Requirements

**Available Electrodes to Bond:**
- Metal underground water pipe (>10 feet)
- Concrete-encased electrode (Ufer ground)
- Supplemental ground rod (required if only metal water pipe)

#### Step 2: Size Grounding Electrode Conductor

From NEC Table 250.66 with 3/0 AWG service conductors:
- **Required GEC**: #4 AWG copper minimum
- **Connection**: Exothermic weld or listed clamp

#### Step 3: Calculate Ground Rod Requirements

**Single Rod Test:**
- Install 8-foot ground rod
- Measure resistance using fall-of-potential method
- If resistance ≤ 25 ohms: Installation complete
- If resistance > 25 ohms: Install second rod 6+ feet away

**Estimated Resistance Calculation:**
For 8-foot rod in average soil (100 Ω⋅m resistivity):

$$
R = \frac{\rho}{2\pi L} \ln\left(\frac{4L}{a}\right)
$$

Where:
- ρ = soil resistivity (100 Ω⋅m)
- L = rod length (8 feet = 2.44m)
- a = rod radius (0.0079m for 5/8" rod)

$$
R = \frac{100}{2\pi(2.44)} \ln\left(\frac{4(2.44)}{0.0079}\right) = 6.5 \ln(1234) = 47 \text{ ohms}
$$

**Result**: Resistance exceeds 25Ω, so second rod required.

#### Step 4: Design Final Grounding System

**Complete Installation:**
1. **Ufer ground**: #4 AWG in concrete foundation
2. **Water pipe bond**: #4 AWG to metal water pipe
3. **Two ground rods**: 8-foot rods, 6+ feet apart
4. **Rod conductors**: #6 AWG to each rod (NEC 250.53(E))
5. **Main bonding jumper**: Size per NEC 250.28

### Example 2: Industrial Equipment Grounding

#### Scenario: 480V Motor Installation

**Equipment Details:**
- **Motor**: 50 HP, 480V, 3-phase
- **Feeder**: 100A circuit breaker
- **Conduit**: Rigid metal conduit
- **Distance**: 150 feet from panel

#### Step 1: Determine Equipment Grounding Requirements

**Equipment Grounding Conductor (EGC):**
From NEC Table 250.122 for 100A overcurrent device:
- **Required EGC**: 8 AWG copper minimum

#### Step 2: Calculate Voltage Drop in EGC

For fault current calculations, EGC resistance must be considered:

**EGC Resistance:**
- **Conductor**: 8 AWG copper
- **Resistance**: 0.628 Ω/1000ft at 75°C
- **Length**: 150 feet one-way
- **Total resistance**: 0.628 × 150/1000 = 0.094 Ω

#### Step 3: Verify Fault Current Path

**Available Fault Current at Panel**: 10,000A (given)
**Impedance of fault path**: 0.094 Ω (EGC) + 0.05 Ω (connections) = 0.144 Ω

**Fault Current through EGC:**
$$
I_{fault} = \frac{480V}{0.144\Omega \times \sqrt{3}} = 1,927A
$$

**Breaker Operating Time**: 100A breaker trips in &lt;0.1 seconds for 1,927A fault current.

**Result**: EGC properly sized for fault protection. ✓

## Advanced Grounding Applications

### Data Center and IT Equipment Grounding

Modern data centers require specialized grounding approaches:

#### Signal Reference Grid (SRG)
- **Purpose**: Provides equipotential plane for sensitive equipment
- **Construction**: Copper mesh grid under raised floor
- **Connection**: Bonded to main grounding electrode system
- **Resistance**: &lt;1 ohm between any two points

#### Isolated Ground Systems
For sensitive electronic equipment:
- **Dedicated EGC**: Runs with circuit conductors
- **Isolated Ground Receptacles**: Orange in color
- **Connection**: Back to main panel only
- **Purpose**: Reduces electrical noise

### Lightning Protection Integration

Grounding systems must coordinate with lightning protection:

#### Air Terminal Systems
- **Down conductors**: Minimum 2/0 AWG copper
- **Ground terminations**: Multiple electrodes
- **Bonding**: All grounds bonded together
- **Resistance**: &lt;10 ohms preferred

### Cathodic Protection Considerations

In areas with cathodic protection systems:
- **Isolation**: May require dielectric unions
- **Coordination**: Work with pipeline protection engineers
- **Testing**: Special procedures for ground resistance

## Practical Installation Procedures

### Ground Resistance Testing Methods

#### Fall-of-Potential Method (3-Point Test)
Most accurate method for measuring ground resistance:

**Equipment Required:**
- Ground resistance tester
- Test leads and electrodes
- Distance measuring device

**Procedure:**
1. **Current electrode (C2)**: Place at 2.5 × rod length from ground rod
2. **Potential electrode (P2)**: Place at 62% distance between ground rod and C2
3. **Measurement**: Connect tester and measure resistance
4. **Verification**: Move P2 ±10% and remeasure


Standard Test Distances:
- 8-foot rod: C2 at 200 feet, P2 at 124 feet
- Acceptable variation: P2 between 110-140 feet
- Results should vary &lt;5% for accurate reading


#### Clamp-on Method
For existing installations with multiple ground paths:
- **Advantage**: No disconnection required
- **Limitation**: Requires multiple ground paths
- **Accuracy**: ±10% typically
- **Applications**: Routine testing, troubleshooting

### Common Installation Mistakes and Solutions

#### Mistake 1: Improper Neutral-Ground Bonding
**Problem**: Bonding neutral and ground at sub-panels
**Code Violation**: NEC 250.142(B)
**Consequences**:
- Ground fault current through neutral
- Voltage on equipment frames
- Nuisance GFCI trips

**Solution**:
- Remove bond at sub-panels
- Install floating neutral bar
- Verify with voltage measurements

#### Mistake 2: Inadequate Ground Rod Installation
**Problem**: Rod not driven to required depth
**Common Issues**:
- Rod hitting rock or underground utilities
- Only 6 feet driven instead of 8 feet
- Improper connection methods

**Solutions**:
- Use alternative electrode types (plates, chemical rods)
- Install at angle (max 45°) if necessary
- Use listed connections (exothermic welds, compression clamps)

#### Mistake 3: Incorrect EGC Sizing
**Problem**: Using circuit conductor size instead of Table 250.122
**Example Error**:
- 60A circuit with 6 AWG conductors
- Installing 6 EGC instead of required 10 AWG

**Correction**: Always use Table 250.122 based on OCPD rating

### Ground Fault Protection Systems

#### Ground Fault Circuit Interrupters (GFCI)
**Operating Principle:**
- Monitors current imbalance between hot and neutral
- Trips when imbalance exceeds 4-6 milliamps
- Provides personnel protection

**Installation Requirements:**
- All bathrooms, kitchens, outdoor outlets
- Crawl spaces, unfinished basements
- Garages and accessory buildings

#### Ground Fault Protection of Equipment (GFPE)
**For larger systems** (>1000A services):
- **Trip setting**: 1200A maximum
- **Time delay**: Coordinated with downstream devices
- **Purpose**: Equipment protection, not personnel

## Troubleshooting Grounding Problems

### Diagnostic Procedures

#### High Ground Resistance Issues
**Symptoms:**
- Ground resistance testing &gt;25 ohms
- Equipment operating at elevated voltages
- Electrical noise in sensitive equipment

**Diagnostic Steps:**
1. **Visual inspection**: Check all connections
2. **Individual electrode testing**: Test each electrode separately
3. **Soil resistivity measurement**: Determine if additional electrodes needed
4. **Connection integrity**: Check for corrosion, loose connections

**Solutions:**
- Install additional ground rods
- Use chemical enhancement materials
- Consider ground plates or grids
- Improve connection methods

#### Ground Loop Problems
**Symptoms:**
- 60 Hz hum in audio/video equipment
- Erratic operation of electronic devices
- Multiple ground reference points

**Solutions:**
- Single-point grounding approach
- Isolated ground circuits for sensitive equipment
- Proper cable shielding and routing

### Testing and Verification

#### Required Tests
1. **Continuity testing**: Verify all ground connections
2. **Ground resistance measurement**: Confirm &lt;25 ohm requirement
3. **Voltage testing**: Check for improper neutral-ground bonds
4. **Insulation resistance**: Verify conductor integrity

#### Documentation Requirements
- **Test results**: Record all measurements
- **Installation photos**: Document electrode locations
- **As-built drawings**: Show actual installation details
- **Maintenance records**: Track periodic testing

## System Integration and Coordination

### Coordinating Multiple Ground Systems

Modern electrical installations often include multiple grounding systems that must work together:

#### Telecommunications Grounding
**Requirements** (per TIA-607):
- **Telecommunications Grounding Busbar (TGB)**: Minimum 1/4" × 4" copper
- **Bonding Conductor**: #6 AWG minimum to electrical ground
- **Resistance**: &lt;1 ohm between systems

#### Fire Alarm System Grounding
**Special Considerations:**
- Dedicated ground fault monitoring
- Isolation from other systems during fault conditions
- Coordination with sprinkler system grounding

### Power Quality Considerations

Proper grounding affects power quality significantly:

#### Harmonic Mitigation
- **Neutral conductor sizing**: Handle harmonic currents
- **Ground reference**: Stable for electronic loads
- **EMI reduction**: Proper grounding reduces electromagnetic interference

#### Transient Suppression
- **Surge protective devices**: Require effective grounding
- **Transient voltage surge suppressors**: Ground reference critical
- **Lightning protection coordination**: Integrated approach needed

## Economic and Safety Analysis

### Cost-Benefit Analysis of Proper Grounding

#### Initial Investment vs. Long-term Savings

**Quality Grounding System Costs:**
- Ground rods and materials: $200-500
- Professional installation: $500-1,200
- Testing and documentation: $200-400
- **Total**: $900-2,100

**Costs of Inadequate Grounding:**
- Equipment damage from faults: $5,000-50,000+
- Electrical fires and insurance claims: $100,000+
- Code violations and re-work: $2,000-10,000
- Personal injury liability: Unlimited

<Notice type="info">
Return on Investment: Proper grounding systems typically pay for themselves by preventing a single equipment failure or safety incident.
</Notice>

#### Insurance and Liability Considerations
- Many insurance policies require NEC compliance
- Inadequate grounding can void coverage
- Professional liability for electrical contractors
- OSHA requirements for workplace safety

## Future Technologies and Standards

### Smart Grid Integration
Modern grounding systems must accommodate:
- **Distributed generation**: Solar panel grounding requirements
- **Energy storage systems**: Battery grounding and bonding
- **Electric vehicle charging**: Specialized equipment grounding
- **Smart meters**: Communication system grounding

### Emerging Standards
- **IEEE 142**: Green Book updates for industrial grounding
- **NEC updates**: Continuous evolution of grounding requirements
- **IES standards**: International harmonization efforts
- **UL listing requirements**: Updated equipment standards

## Conclusion: Mastering Electrical Grounding Systems

Understanding the fundamental differences between grounding, earthing, and neutral conductors is essential for any electrical professional. These concepts form the foundation of electrical safety and proper system operation, from simple residential installations to complex industrial facilities.

**Key Takeaways:**
- **Earthing** provides safety through direct earth connection
- **Grounding** establishes system reference and equipment protection
- **Neutral** carries return current during normal operation
- **All three systems** work together but serve distinct purposes
- **Proper installation** requires attention to NEC requirements and testing
- **System integration** becomes increasingly important in modern installations

Whether you're working on electrical service installations, designing motor control circuits, or troubleshooting GFCI problems, mastering these grounding principles will improve both safety and system reliability.

The investment in proper grounding systems pays dividends in equipment protection, personnel safety, and code compliance. As electrical systems become more complex and sensitive, the importance of well-designed grounding systems only continues to grow.

Ready to deepen your electrical expertise? Explore our comprehensive guides on advanced electrical topics and stay current with evolving safety standards and installation practices.

---

## 🔗 Related Posts

- [Wire Size Calculator: Complete Guide with Single Phase, 3-Phase & DC Calculations](/posts/wire-size-calculator-complete-guide)
- [Circuit Breaker Sizing: Complete Guide with Wire Size Charts & NEC Code Requirements](/posts/circuit-breaker-sizing-complete-guide)
- [Complete Guide to Voltage Drop: Calculations, Tables & Calculators](/posts/voltage-drop-calculation-complete-guide)
- [MCB vs MCCB: Complete Comparison Guide with Selection Criteria, Ratings & Applications](/posts/mcb-vs-mccb-selection-criteria-complete-guide)
- [Kirchhoff's Laws: Complete Guide with Circuit Analysis Examples & Calculations](/posts/guide-to-kirchhoffs-law-applications-examples)

#### **Helpful Calculators**

- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)
- [Ohm's Law Calculator](/calculators/ohms-law-calculator)
- [Power Factor Calculator](/calculators/power-factor-correction-calculator)
- [Capacitor and Inductor Reactance Calculator](/calculators/capacitor-inductor-reactance-calculator)

#### **Standards and References**
- **NEC Article 250**: Grounding and Bonding
- **IEEE 142**: Green Book - Grounding of Industrial and Commercial Power Systems
- **IEEE 80**: Guide for Safety in AC Substation Grounding
- **NFPA 70**: National Electrical Code
- **UL 467**: Standard for Grounding and Bonding Equipment

---

#### **Credits**
- Photo by [Hobi industri](https://unsplash.com/fr/@hobiindustri?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/pince-amperemetrique-noire-et-jaune-NLBJ2I0lNr4?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

Master the critical differences between grounding, earthing, and neutral in electrical systems. Complete guide with NEC code requirements, wiring diagrams, installation examples, and safety calculations for electricians.

Grounding vs Earthing vs Neutral: Essential Guide for Electricians

Difference Between Grounding and Earthing: Complete Guide with Wiring Examples & NEC Code Requirements

Last month, a manufacturing facility lost $50,000 in production when three critical conveyor motors failed within hours of each other. The culprit wasn't mechanical wear or age – it was voltage drop. The motors, struggling with inadequate voltage, had been slowly destroying themselves for months before the catastrophic failure.

If you're experiencing premature motor failures, overheating, or poor performance, voltage drop could be silently sabotaging your electrical systems. This guide reveals exactly how voltage drop affects motor performance and provides practical solutions to protect your investment.

## The Hidden Cost of Motor Voltage Drop

Motor voltage drop issues cost U.S. industries over $2.8 billion annually in:
- Premature motor replacements
- Production downtime
- Energy waste from inefficient operation
- Increased maintenance costs

Unlike resistive loads that simply produce less heat or light with reduced voltage, motors respond dramatically to voltage variations, making them particularly vulnerable to voltage drop effects.

## How Voltage Drop Destroys Motor Performance

### The Torque-Voltage Relationship

The fundamental problem lies in the physics of motor operation. For induction motors, the relationship between torque and voltage follows this critical equation:

**Motor Torque ∝ (Applied Voltage)²**

This square relationship means small voltage reductions cause disproportionately large torque losses:

| **Voltage Drop %** | **Available Torque %** | **Torque Loss %** | **Performance Impact** |
|-------------------|----------------------|-------------------|----------------------|
| 5% | 90.3% | 9.7% | Noticeable sluggishness |
| 10% | 81.0% | 19.0% | Significant performance loss |
| 15% | 72.3% | 27.7% | Severe operational issues |
| 20% | 64.0% | 36.0% | Motor may not start |

### Real-World Calculation Example

Consider a 10 HP motor rated for 460V experiencing a 7% voltage drop:

**Normal Operation:**
- Applied voltage: 460V
- Available torque: 100%

**With 7% Voltage Drop:**
- Applied voltage: 460V - (460V × 0.07) = 427.8V
- Available torque: (427.8V ÷ 460V)² = 86.7%
- **Torque loss: 13.3%**

This 13.3% torque reduction can prevent proper startup, cause stalling under load, or force the motor to operate at dangerous current levels.

## Motor Types and Voltage Drop Sensitivity

### Single-Phase Motors

Single-phase motors are particularly sensitive to voltage drop due to their starting characteristics:

**Starting Torque Impact:**
- 10% voltage drop = 19% reduction in starting torque
- 15% voltage drop = 28% reduction in starting torque
- May fail to start high-inertia loads

**Common Applications Affected:**
- HVAC compressors
- Well pumps
- Shop equipment
- Residential appliances

### Three-Phase Induction Motors

Three-phase motors handle voltage drop better than single-phase but still suffer significant effects:

| **Motor Size (HP)** | **Critical Voltage Drop %** | **Typical Symptoms** |
|--------------------|---------------------------|---------------------|
| 1-5 HP | 8-10% | Hard starting, overheating |
| 5-25 HP | 10-12% | Reduced efficiency, current increase |
| 25-100 HP | 12-15% | Significant performance loss |
| 100+ HP | 15%+ | May trip protection devices |

### Variable Frequency Drive (VFD) Considerations

Motors controlled by VFDs have different voltage drop responses:

**Advantages:**
- VFDs can compensate for moderate voltage drop
- Better torque control at low speeds
- Built-in voltage monitoring

**Limitations:**
- Severe voltage drop can cause VFD faults
- Reduced efficiency at low input voltages
- May trigger undervoltage protection

## Comprehensive Motor Voltage Drop Troubleshooting Guide

### Step 1: Symptom Identification Checklist

**Performance Symptoms:**
- [ ] Motor fails to start reliably
- [ ] Slow or sluggish acceleration
- [ ] Reduced speed under load
- [ ] Excessive motor heating
- [ ] Tripping of overload protection
- [ ] Unusual noise or vibration
- [ ] Premature motor failures

**Electrical Symptoms:**
- [ ] Lights dimming when motor starts
- [ ] Other equipment affected during motor operation
- [ ] Higher than normal current draw
- [ ] Power factor degradation

### Step 2: Voltage Measurements

**Required Equipment:**
- Digital multimeter (true RMS for AC)
- Clamp meter for current measurement
- Non-contact voltage tester for safety

**Measurement Points:**
1. **Source voltage** (at electrical panel)
2. **Motor control panel** (before contactors/starters)
3. **Motor terminals** (at motor connection box)
4. **During starting** (capture voltage sag)
5. **Under full load** (running conditions)

**Critical Measurements:**

| **Measurement Point** | **Acceptable Range** | **Action Required** |
|----------------------|---------------------|-------------------|
| No-load voltage | Within 2% of nominal | Monitor if higher |
| Starting voltage | Within 15% of nominal | Investigate if lower |
| Running voltage | Within 5% of nominal | Correct if lower |

### Step 3: Current Analysis

High current with low voltage indicates voltage drop issues:

**Calculation:**

Expected Current = Rated HP × 746 ÷ (√3 × Voltage × Efficiency × PF)


**Red Flags:**
- Current >110% of rated current
- Current imbalance >10% between phases
- Increasing current trend over time

### Step 4: Power Quality Assessment

**Power Factor Impact:**
Low **[power factor](/posts/power-factor-correction-benefits-and-calculations)** increases current, worsening voltage drop:


Apparent Current = Real Power ÷ (Voltage × Power Factor)


**Harmonic Considerations:**
- Non-linear loads increase effective resistance
- Harmonics can cause additional heating
- May require harmonic analysis equipment

## Proven Solutions for Motor Voltage Drop Problems

### Solution 1: Conductor Sizing Optimization

**Immediate Action:**
Calculate required conductor size using our **[complete voltage drop calculation guide](/posts/voltage-drop-calculation-complete-guide)**.

**Quick Reference Table:**

| **Motor HP** | **Distance (ft)** | **Min. Copper AWG** | **Recommended AWG** |
|-------------|------------------|-------------------|-------------------|
| 5 HP | 100 | 8 | 6 |
| 10 HP | 100 | 6 | 4 |
| 25 HP | 100 | 2 | 1/0 |
| 50 HP | 100 | 1/0 | 3/0 |

*Based on 3% voltage drop limit, 460V, 3-phase*

### Solution 2: Voltage Regulation Equipment

**Buck-Boost Transformers:**
- Cost-effective for single motors
- Provides 5-20% voltage adjustment
- Easy retrofit installation

**Automatic Voltage Regulators (AVR):**
- Maintains constant voltage output
- Protects multiple motors
- Higher initial cost but comprehensive protection

**Motor Starting Equipment:**

| **Starting Method** | **Voltage Drop Reduction** | **Best For** |
|--------------------|---------------------------|-------------|
| Soft starters | 50-70% reduction | General applications |
| Star-delta starters | 67% reduction | High-inertia loads |
| Auto-transformers | 50-80% reduction | Large motors |

### Solution 3: Power Factor Correction

**Capacitor Banks:**
Installing power factor correction capacitors reduces current and voltage drop:

**Benefits:**
- Reduces apparent current by 10-30%
- Improves voltage regulation
- Reduces utility demand charges
- Extends equipment life

**Sizing Formula:**

Required KVAR = KW × (tan φ₁ - tan φ₂)


Where φ₁ = existing power factor angle, φ₂ = desired power factor angle

### Solution 4: System Redesign Strategies

**Load Distribution:**
- Balance loads across phases
- Relocate motors closer to source
- Install local step-down transformers

**Dedicated Circuits:**
- Separate large motors from lighting circuits
- Install dedicated feeders for critical equipment
- Consider on-site generation for large loads

## Advanced Motor Protection Strategies

### Smart Motor Protection Relays

Modern protection relays monitor multiple parameters:

**Key Features:**
- Undervoltage protection
- Phase loss detection
- Current imbalance monitoring
- Thermal protection
- Historical data logging

### Predictive Maintenance Integration

**Monitoring Parameters:**
- Voltage trends
- Current signature analysis
- Vibration patterns
- Temperature profiles

**Early Warning Signs:**
- Gradual increase in operating current
- Voltage variations during starting
- Increased operating temperature
- Changes in power factor

## Cost-Benefit Analysis of Voltage Drop Solutions

### Investment Comparison

| **Solution** | **Initial Cost** | **Installation** | **Annual Savings** | **Payback Period** |
|-------------|-----------------|-----------------|-------------------|-------------------|
| Conductor upgrade | $500-5,000 | Moderate | $200-2,000 | 2-4 years |
| Buck-boost transformer | $1,000-3,000 | Easy | $300-1,500 | 2-3 years |
| Power factor correction | $2,000-10,000 | Complex | $500-5,000 | 2-4 years |
| VFD installation | $3,000-15,000 | Moderate | $1,000-8,000 | 2-5 years |

*Costs vary by motor size and application*

### Energy Savings Calculation

**Annual Energy Waste from Voltage Drop:**

Energy Loss (kWh) = Motor HP × 0.746 × Hours × Efficiency Loss %
Annual Cost = Energy Loss × Electricity Rate ($/kWh)


## Prevention: Designing Motor Circuits for Optimal Performance

### Design Guidelines

**Voltage Drop Limits:**
- Motor starting: 15% maximum
- Motor running: 5% maximum (3% preferred)
- Critical applications: 2% maximum

**Conductor Selection:**
- Use copper for long runs
- Consider ambient temperature derating
- Include future load expansion in sizing

**Circuit Protection:**
- Size overloads for actual running current
- Use motor-rated circuit breakers
- Install monitoring equipment for critical motors

### Code Requirements

**National Electrical Code (NEC) Guidelines:**
- Article 430: Motors and motor circuits
- Article 240: Overcurrent protection
- Article 310: Conductor sizing and derating

**Key Requirements:**
- Motor circuits must be sized for 125% of motor full-load current
- Branch circuit protection must be sized per NEC tables
- Overload protection must be 115-125% of nameplate current

## Take Action: Protect Your Motors Today

Don't wait for costly motor failures to address voltage drop issues. Here's your immediate action plan:

### Immediate Steps (This Week):
1. **Audit critical motors** - Measure voltage drop on your most important equipment
2. **Document symptoms** - Create a baseline for performance comparison
3. **Calculate costs** - Determine potential savings from voltage drop correction

### Short-term Actions (This Month):
1. **Prioritize corrections** - Start with motors showing highest voltage drop
2. **Get quotes** - Compare solutions from qualified electrical contractors
3. **Plan implementation** - Schedule corrections during maintenance windows

### Long-term Strategy (Next Quarter):
1. **Implement monitoring** - Install permanent voltage monitoring equipment
2. **Develop procedures** - Create maintenance procedures for voltage drop testing
3. **Train staff** - Ensure maintenance personnel understand voltage drop effects

## Conclusion: Your Motors Deserve Better

Motor voltage drop isn't just a technical issue – it's a business problem that affects your bottom line every day. With the knowledge and tools provided in this guide, you can:

- Identify voltage drop problems before they cause failures
- Calculate the exact impact on your motor performance
- Implement cost-effective solutions that pay for themselves
- Protect your investment in motor-driven equipment

**Ready to Solve Your Voltage Drop Problems?**

Start with our **[comprehensive voltage drop calculation guide](/posts/voltage-drop-calculation-complete-guide)** to master the fundamentals, then use our **[voltage drop calculator](/calculators/voltage-drop-calculator)** to analyze your specific motor circuits.

**Need Expert Help?** Voltage drop problems can be complex, especially in industrial applications. When in doubt, consult with a licensed electrical engineer or qualified electrical contractor to ensure safe, code-compliant solutions.

---

**Resources for Further Learning:**
- **[Variable Frequency Drive Complete Guide](/posts/variable-frequency-drive-vfd-complete-guide)**
- **[Electrical Resistance Calculation Methods](/posts/electrical-resistance-and-how-to-calculate-it)**

*Remember: Electrical work should always be performed by qualified professionals. This guide is for educational purposes and should not replace proper engineering analysis or professional electrical consultation.*

---

#### **Credits**
- Photo by [Olga Serjantu](https://unsplash.com/fr/@olgaserjantu?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/cordes-brunes-Wfvwb4hogoo?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

---

Learn how voltage drop affects motor performance, causes premature failure, and discover proven solutions to protect your electrical motors from voltage-related damage.

Discover how voltage drop destroys motor performance. Learn the torque-voltage relationship, troubleshooting steps, and solutions to prevent motor failure.

Motor Voltage Drop: Effects, Performance Impact & Solutions Guide

Motor Voltage Drop Effects: Why Your Motors Fail and How to Fix It

Understanding voltage drop is crucial for anyone working with electrical power distribution systems, from DIY enthusiasts to professional electrical engineers. Improper voltage calculations can lead to inefficient power transmission, equipment damage, and safety hazards in distribution networks. This comprehensive guide will teach you everything you need to know about voltage drop in power systems, from basic concepts to advanced distribution calculations.

## What Is Voltage Drop?

Voltage drop is the reduction in electrical potential that occurs when current flows through a conductor's resistance. Think of it like water pressure decreasing as it flows through a long hose – the longer the hose (conductor) and the higher the flow rate (current), the greater the pressure drop (voltage drop).

When electricity travels from your electrical panel to an outlet, light, or appliance, some voltage is "lost" due to the natural resistance in the wiring. This lost voltage doesn't disappear – it's converted to heat in the conductors, which is why electrical wires can become warm under load.

### The Physics Behind Voltage Drop

Voltage drop follows **[Ohm's Law](/posts/electrical-resistance-and-how-to-calculate-it)**, one of the fundamental principles in electrical engineering:

**V = I × R**

Where:
- V = Voltage (volts)
- I = Current (amperes)
- R = Resistance (ohms)

Every conductor has inherent resistance that depends on:
- **Material**: Copper has lower resistance than aluminum
- **Length**: Longer conductors have higher resistance
- **Cross-sectional area**: Thicker conductors have lower resistance
- **Temperature**: Higher temperatures increase resistance

## Why Voltage Drop Matters in Power Systems

Voltage drop isn't just a theoretical concept – it has real-world implications that affect performance, safety, and costs:

### Equipment Performance Issues

| **Voltage Drop %** | **Impact on Equipment** | **Common Symptoms** |
|-------------------|------------------------|-------------------|
| 0-3% | Minimal impact | Normal operation |
| 3-5% | Noticeable effects | Dimming lights, slower motor startup |
| 5-10% | Significant problems | Motors run hot, reduced efficiency |
| 10%+ | Serious issues | Equipment damage, safety hazards |

### Motor Performance Degradation

Motors are particularly sensitive to voltage drop. Here's the mathematical relationship:

**Motor Torque ∝ (Voltage)²**

This means a 10% voltage drop results in approximately 19% reduction in torque:


Normal torque at 120V: T₁ = k × (120)² = k × 14,400
Torque with 10% drop at 108V: T₂ = k × (108)² = k × 11,664
Percentage reduction: (14,400 - 11,664) / 14,400 × 100% = 19%


### Energy Efficiency and Costs

Excessive voltage drop wastes energy and increases operating costs. The power lost in conductors is:

**P_loss = I² × R**

This power loss generates heat and increases your electricity bill while reducing the power available to your equipment.

## Step-by-Step Voltage Drop Calculation Examples

Let's work through practical examples using different scenarios you might encounter.

### Example 1: Basic DC Circuit Calculation

**Scenario**: You're installing a 12V LED strip 50 feet from your power supply, drawing 3 amperes through 14 AWG copper wire.

**Step 1**: Gather the data
- Voltage: 12V DC
- Current: 3A
- Distance: 50 feet (one way)
- Wire: 14 AWG copper
- Resistance: 2.525 ohms per 1000 feet (from table below)

**Step 2**: Calculate conductor resistance

Total distance = 50 feet × 2 (round trip) = 100 feet
Resistance = (100 feet ÷ 1000) × 2.525 ohms = 0.2525 ohms


**Step 3**: Apply Ohm's Law

Voltage Drop = Current × Resistance
Voltage Drop = 3A × 0.2525 ohms = 0.7575 volts


**Step 4**: Calculate percentage

Percentage = (0.7575V ÷ 12V) × 100% = 6.3%


**Result**: 6.3% voltage drop – this exceeds the recommended 3% for most applications and would require a larger conductor.

### Example 2: Single-Phase AC Circuit

**Scenario**: A 240V air conditioning unit drawing 20 amperes, located 80 feet from the panel, using 10 AWG copper wire.

**Given Data**:

- Voltage: 240V AC (single-phase)
- Current: 20A
- Distance: 80 feet
- Wire: 10 AWG copper
- Resistance: 1.018 ohms per 1000 feet

**Calculation**:

Total distance = 80 feet × 2 = 160 feet
Resistance = (160 ÷ 1000) × 1.018 = 0.163 ohms
Voltage Drop = 20A × 0.163 ohms = 3.26V
Percentage = (3.26V ÷ 240V) × 100% = 1.36%


**Result**: 1.36% voltage drop – within acceptable limits.

### Example 3: Three-Phase AC System

**Scenario**: A 480V three-phase motor drawing 30 amperes per phase, 120 feet from the panel, using 6 AWG copper conductors.

For three-phase systems, we use:
**VD = √3 × I × R × L ÷ 1000**

**Given Data**:
- Voltage: 480V (three-phase)
- Current per phase: 30A
- Distance: 120 feet
- Wire: 6 AWG copper
- Resistance: 0.410 ohms per 1000 feet

**Calculation**:

VD = √3 × 30A × 0.410 ohms × 120 feet ÷ 1000
VD = 1.732 × 30 × 0.410 × 120 ÷ 1000
VD = 2.56 volts
Percentage = (2.56V ÷ 480V) × 100% = 0.53%


**Result**: 0.53% voltage drop – excellent performance.

## Conductor Resistance Tables for Common Cable Sizes

Understanding conductor resistance is essential for accurate voltage drop calculations. Here are comprehensive tables for copper and aluminum conductors:

### Copper Conductor Resistance (Ohms per 1000 feet at 77°F)

| **AWG Size** | **Diameter (inches)** | **Resistance (Ω/1000 ft)** | **Ampacity (75°C)** | **Common Uses** |
|-------------|----------------------|---------------------------|-------------------|-----------------|
| 14 | 0.064 | 2.525 | 20A | Light fixtures, outlets |
| 12 | 0.081 | 1.588 | 25A | General outlets, small appliances |
| 10 | 0.102 | 0.999 | 35A | Electric water heaters, large appliances |
| 8 | 0.128 | 0.628 | 50A | Electric ranges, large motors |
| 6 | 0.162 | 0.410 | 65A | Central air conditioning, subpanels |
| 4 | 0.204 | 0.249 | 85A | Electric service entrances, large equipment |
| 2 | 0.258 | 0.156 | 115A | Main service panels, large motors |
| 1 | 0.289 | 0.123 | 130A | Service entrances, large industrial equipment |
| 1/0 | 0.325 | 0.098 | 150A | Main service conductors |
| 2/0 | 0.365 | 0.078 | 175A | Large service entrances |
| 3/0 | 0.410 | 0.062 | 200A | Commercial service entrances |
| 4/0 | 0.460 | 0.049 | 230A | Large commercial/industrial services |

### Aluminum Conductor Resistance (Ohms per 1000 feet at 77°F)

| **AWG Size** | **Resistance (Ω/1000 ft)** | **Ampacity (75°C)** | **Cost Comparison** |
|-------------|---------------------------|-------------------|-------------------|
| 12 | 2.609 | 20A | 60% of copper cost |
| 10 | 1.639 | 30A | 58% of copper cost |
| 8 | 1.030 | 40A | 55% of copper cost |
| 6 | 0.674 | 50A | 52% of copper cost |
| 4 | 0.408 | 65A | 50% of copper cost |
| 2 | 0.256 | 90A | 48% of copper cost |

### Temperature Correction Factors

Conductor resistance increases with temperature. Use these multipliers:

| **Temperature (°F)** | **Correction Factor** |
|---------------------|----------------------|
| 32 | 0.88 |
| 77 | 1.00 |
| 104 | 1.10 |
| 122 | 1.17 |
| 140 | 1.25 |

## Online Voltage Drop Calculator

Here's a structured voltage drop calculator to use:
**[Online voltage drop calculator](/calculators/voltage-drop-calculator)**

## Practical Tips for Cable Sizing and Installation

### Choosing the Right Conductor Size

When selecting conductors, consider these factors beyond just meeting ampacity requirements:

**1. Voltage Drop Limits**

- Residential: 3% maximum for branch circuits
- Commercial/Industrial: 2-3% for critical equipment
- Motor circuits: 5% maximum at startup

**2. Future Load Expansion**
Size conductors for potential future loads. A 25% safety margin is common practice.

**3. Economic Analysis**
Sometimes larger conductors save money over time through reduced energy losses:


Annual Savings = (Power Loss Reduction) × (Hours of Operation) × (Cost per kWh)
Payback Period = (Extra Conductor Cost) ÷ (Annual Savings)


### Installation Best Practices

**1. Conductor Bundling**
When multiple conductors are bundled together, apply derating factors:
- 4-6 conductors: 80% of ampacity
- 7-9 conductors: 70% of ampacity
- 10+ conductors: 50% of ampacity

**2. Ambient Temperature Considerations**
High-temperature environments require conductor derating or special insulation types.

**3. Conduit Fill**
Follow NEC guidelines for maximum conductor fill in conduits:
- 1 conductor: 53% fill
- 2 conductors: 31% fill
- 3+ conductors: 40% fill

## Advanced Voltage Drop Considerations

### AC Circuit Complexities

AC circuits involve additional factors that DC circuits don't:

**1. Reactive Components**
Inductive and capacitive loads create reactive currents that don't contribute to real power but still cause voltage drop.

**2. Power Factor Effects**
Low power factor increases current for the same real power, increasing voltage drop:

Apparent Current = Real Power ÷ (Voltage × Power Factor)


**3. Harmonics**
Non-linear loads (LED drivers, variable frequency drives) generate harmonics that can increase effective resistance.

### Specialized Applications

**1. Solar PV Systems**
DC voltage drop calculations are critical for photovoltaic installations:
- String wiring typically allows 1-2% drop
- DC combiners to inverters: 1-3% drop
- Consider temperature effects on panel voltage

**2. Electric Vehicle Charging**
EV charging stations require careful voltage drop analysis due to high current loads and safety requirements.

**3. Data Centers**
Critical systems may require voltage drop calculations down to 1% to ensure equipment reliability.

## Common Voltage Drop Mistakes and How to Avoid Them

### Mistake 1: Forgetting the Return Path
**Problem**: Calculating voltage drop for only one direction of current flow.
**Solution**: Always multiply distance by 2 for DC and single-phase AC circuits (except three-phase).

### Mistake 2: Using Wrong Resistance Values
**Problem**: Using resistance values for different temperatures or conductor types.
**Solution**: Always verify resistance values match your specific conductor and operating conditions.

### Mistake 3: Ignoring Future Loads
**Problem**: Sizing conductors for current loads only.
**Solution**: Consider potential load growth and size accordingly.

### Mistake 4: Mixing Up Circuit Types
**Problem**: Using DC formulas for AC circuits or vice versa.
**Solution**: Always identify circuit type before calculating.

### Mistake 5: Neglecting Ambient Temperature
**Problem**: Not accounting for high-temperature installations.
**Solution**: Apply appropriate temperature correction factors.

## Troubleshooting Voltage Drop Issues

### Symptoms of Excessive Voltage Drop

**Residential Applications**:
- Lights dimming when motors start
- Slow electric motor startup
- Flickering LED lights
- Appliances running below rated performance

**Commercial/Industrial Applications**:
- Motor overheating and premature failure
- **[Variable frequency drive](/posts/variable-frequency-drive-vfd-complete-guide)** faults
- Power quality issues
- Increased energy costs

### Diagnostic Procedures

**1. Voltage Measurements**
Use a digital multimeter to measure voltage at:
- Source (panel)
- Load (equipment)
- Calculate difference and percentage

**2. Current Measurements**
Use a clamp meter to verify actual current draw matches design calculations.

**3. Power Quality Analysis**
For complex systems, use a power quality analyzer to identify harmonics, power factor, and other issues affecting voltage drop.

## Future Trends in Electrical Distribution

### Smart Grid Technology
Advanced metering and monitoring systems are enabling real-time voltage drop monitoring and automatic compensation.

### Higher Efficiency Conductors
New conductor materials and designs are being developed to reduce resistance and improve efficiency.

### DC Distribution Systems
Growing interest in DC distribution for buildings with significant DC loads (LED lighting, computers, EV charging).

- [Download the Voltage Drop & Wire Size Excel Tool](/voltage-drop-and-wire-size-excel-tool)

## Conclusion and Next Steps

Mastering voltage drop calculations is essential for safe, efficient electrical installations. Key takeaways include:

- Understand the physics: voltage drop follows **[Ohm's Law](/posts/electrical-resistance-and-how-to-calculate-it)** and is affected by current, resistance, and distance
- Use appropriate calculation methods for your specific circuit type (DC, AC single-phase, or three-phase)
- Consider all factors: temperature, future loads, and installation conditions
- Always verify calculations with measurements when possible
- Stay within recommended voltage drop limits to ensure optimal equipment performance

### Ready to Apply Your Knowledge?

**Immediate Actions**:
1. Download our voltage drop calculator spreadsheet template
2. Practice calculations with real scenarios from your projects
3. Create a reference chart for commonly used conductor sizes in your work

**Professional Development**:
- Take an electrical code update course focusing on conductor sizing
- Invest in quality measurement equipment for field verification
- Join professional organizations for ongoing education

**Stay Connected**: Subscribe to our newsletter for the latest updates on power system calculations, electrical codes, and practical tips for electrical professionals and enthusiasts. **[Try our voltage drop calculator](/calculators/voltage-drop-calculator)** now and bookmark it for your future projects!

Remember: when in doubt about electrical calculations or installations, always consult with a licensed electrician or electrical engineer. Safety should never be compromised for convenience or cost savings.

---

**Action Steps**:
1. Practice with real scenarios
2. Create reference charts for common conductor sizes

---

## Tools and Resources

- [SKM PowerTools](https://www.skm.com/), [ETAP](https://etap.com/), [AutoCAD Electrical](https://www.autodesk.com/products/autocad/included-toolsets/autocad-electrical)

*Disclaimer: Educational purposes only. Consult licensed electricians or engineers for installations.*

### Helpful Calculators

- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)
- [Ohm's Law Calculator](/calculators/ohms-law-calculator)
- [Power Factor Calculator](/calculators/power-factor-correction-calculator)
- [Capacitor and Inductor Reactance Calculator](/calculators/capacitor-inductor-reactance-calculator)

---

#### **Credits**
- Photo by [Troy Bridges](https://unsplash.com/fr/@esptroy?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/signalisation-a-haute-tension-de-danger-SuzmwVqHJdo?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

Master voltage drop calculations with our comprehensive guide. Includes step-by-step examples, cable sizing tables, calculators, and practical tips for electrical systems.

Voltage Drop Guide & Calculator: Step-by-Step Electrical Calculations

Voltage Drop Calculation: Ultimate Guide with NEC Tables & Free Calculator.

Master AC capacitors with our comprehensive guide covering run vs start capacitors, motor applications, power factor correction calculations, sizing formulas, and troubleshooting tips for HVAC and industrial systems.

AC Capacitors: Working Principles, Selection Guide & Applications

AC Capacitors Explained: Types, Applications & Complete Sizing Guide with Calculations



Electric dirt bikes are the new craze among riders of all levels, from beginners who want to experience off-road riding without the complexity of traditional gas-powered models to seasoned pros. With technology improving daily, switching to an electric dirt bike has many benefits, including environmental friendliness and cost efficiency. This post will discuss why electric dirt bikes are perfect for beginners and some of the best models to get you started.

## Why Electric Dirt Bikes Are Great for Beginners

### 1. User-Friendly Operation

Electric dirt bikes are designed to be simple, even for those who have never been on a motorcycle. There are no gears to change or complicated starting procedures, so the novice can confidently enjoy their ride without trying to master some steep learning curve.

### 2. Less Maintenance

It often overwhelms many beginners, who find the routine maintenance of traditional gas bikes, heavy on oil changes and spark plug replacements, more overwhelming. In contrast, electric dirt bikes have fewer moving parts and fewer maintenance requirements, which allows beginners to spend more time riding and less time troubleshooting mechanical issues, making the experience stress-free.

### 3. Silent and Environmentally Friendly

Electric dirt bikes almost have no noise, making it easy for new riders to feel comfortable riding in various environments without disturbing others. Moreover, electric bikes do not emit any gases, which aligns with the growing sustainable movement, thus enabling new riders to enjoy nature while protecting it.

### 4. Instant Power Delivery

The immediate torque and acceleration from the bikes' electric [motors](/posts/induction-motor-why-we-need-them) help a beginner navigate varied terrain easily. This function does not allow stalling and provides a smoother learning experience, building confidence as riders gain skills and feel more in control.

## Top Electric Dirt Bikes for Beginners

When choosing an electric dirt bike for beginners, some of the most essential features to consider are weight, charging ease, and handling overall. Here is a selection that fits explicitly for newcomer riders:

### 1. Razor Dirt Rocket MX350
The Razor MX350 is an adorable entry-level electric dirt bike for young riders or beginners in dirt biking. Some of the features are as follows:

- **Speed**: Top speed of 14 mph - well within the manageable level for beginners.
- **Battery Life**: Operate continuously for up to 30 minutes on a single full charge.
- **Design**: Easy to handle and lightweight yet easy to handle off-road riding with a sturdy construction.

[Check it out here](https://www.razor.com)

### 2. Segway X160 Electric Dirt Bike
Ideal for those looking for a reliable bike that blends performance with ease of use, the Segway X160 offers:

- **Performance**: A powerful motor that reaches up to 31 mph speeds yet provides a smooth ride.
- **Battery**: A range of approximately 40 miles on a single charge, allowing longer rides without frequent stops.
- **Adjustable Suspension**: It is adaptable to different terrains, enhancing riding comfort.

[Check the Segway X160 out](https://www.segway.com)

### 3. Electric Motion EM 5.7 Trial Bike
Electric Motion EM 5.7-the perfect trail bike for novice riders, featuring:

- **Lightweight Frame**: Lightweight and built to handle easy, smooth maneuvers.
- **Quiet Operation**: It runs almost silently, an excellent feature for new riders who may be easily intimidated by noise.
- **Training Mode**: This special mode permits novices to train with reduced power for a friendlier learning curve.

[Learn more about EM 5.7](https://www.electricmotion.fr)

### 4. Sur-Ron Light Bee X
Sur Ron Light Bee X gained popularity both among learners and professionals. The following features make it so wanted:

- **Robust Design**: A weight that strikes the balance of stability-power, making the bike ideal even for novice riders.
- **Range**: Capable of going up to 40 miles on one charge, ideal for extended trails.
- **Easy-to-Operate Controls**: The intuitive throttle system helps beginners adjust quickly to riding.

[Explore the Sur-Ron Light Bee X Now](https://www.sur-ron.com)


## Beginner Tips for Electric Dirt Bikes

### - Take It Slow

Like any new skill, it is best to begin by getting accustomed to your electric dirt bike. First, start in an open area where you can practice balance and control more slowly.

### - Wear Protective Gear

While learning, wear gloves, a helmet, and protective pads. It will build your confidence and prevent injuries.

### - Know Your Local Trails

Research local trails or riding areas that are good places for beginners. Many towns or cities have designated bike trails where you can practice your biking skills safely.

### - Join a Riding Community

Consider joining local riding groups or online forums. Connecting with other beginners who can offer great tips, support, and motivation as you progress your riding journey.

## Conclusion

Electric dirt bikes are an excellent way for novices to enter off-road riding. Most of these bikes have user-friendly operation, low maintenance, and eco-friendliness, which offer an exciting entrance to this sport. Look at the Razor Dirt Rocket MX350, Segway X160, Electric Motion EM 5.7, and the Sur-Ron Light Bee; Each has different features targeted at beginners.

Now it's time to embark on an electrifying dirt biking adventure, hit the trails, and go on an off-road riding spree.

---

#### **Credits**
- Photo by [VANDER FILMS](https://unsplash.com/fr/@vanderfilms?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/un-homme-debout-a-cote-dun-velo-dans-un-champ-7pY0TOD1ldQ?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)


A guide for beginners looking to venture into electric dirt bikes. Discover essential features, top models, and tips for a safe and enjoyable ride.

Top Beginner Electric Dirt Bikes in 2025 – Features, Prices & Tips

The Best Electric Dirt Bikes for Beginners: A Guide to Getting Started

Kirchhoff's Laws are fundamental principles in electrical engineering that every student and professional must master for effective circuit analysis. These two simple yet powerful laws - Kirchhoff's Current Law (KCL) and Kirchhoff's Voltage Law (KVL) - provide the foundation for solving complex electrical networks and are essential for understanding how current flows and voltage distributes in electrical circuits.

Whether you're designing power distribution systems, analyzing electronic circuit designs, or working with AC circuit analysis, Kirchhoff's Laws are your go-to tools for accurate calculations and reliable results.

## Understanding Kirchhoff's Laws: The Foundation of Circuit Analysis

Kirchhoff's Laws consist of two fundamental principles that govern electrical circuits:

### 1. Kirchhoff's Current Law (KCL) - Node Analysis
**Statement**: The algebraic sum of all currents entering and leaving any node (junction) in a circuit equals zero.

**Mathematical Expression**:
$$\sum I_{\text{node}} = 0$$

Or alternatively:
$$\sum I_{\text{in}} = \sum I_{\text{out}}$$

**Physical Basis**: Based on the conservation of electric charge - charge cannot accumulate at any point in a circuit.

### 2. Kirchhoff's Voltage Law (KVL) - Loop Analysis
**Statement**: The algebraic sum of all voltage drops and rises around any closed loop in a circuit equals zero.

**Mathematical Expression**:
$$\sum V_{\text{loop}} = 0$$

**Physical Basis**: Based on the conservation of energy - the energy gained by a charge moving around a closed loop must equal the energy lost.

## Step-by-Step Circuit Analysis Using Kirchhoff's Laws

### Example 1: Simple Series-Parallel Circuit Analysis

Let's solve a practical circuit with the following components:
- Voltage source: V = 12V
- Resistor R₁ = 4Ω (series)
- Resistor R₂ = 6Ω (parallel branch)
- Resistor R₃ = 3Ω (parallel branch)

<img src="/images/post/kirchhoff-circuit-example.png" alt="Circuit Analysis Example with Kirchhoff Laws" width="500" height="auto" loading="lazy" />

#### Step 1: Identify Nodes and Loops
- **Node A**: Junction where R₁ connects to parallel branches
- **Node B**: Common ground point
- **Loop 1**: V - R₁ - R₂ (through R₂ branch)
- **Loop 2**: R₂ - R₃ (between parallel branches)

#### Step 2: Apply KCL at Node A
Let's define:
- I₁ = current through R₁
- I₂ = current through R₂
- I₃ = current through R₃

Applying KCL at Node A:
$$I_1 = I_2 + I_3$$

#### Step 3: Apply KVL in Loop 1
Going clockwise around Loop 1:

$$
12V - I_1(4Ω) - I_2(6Ω) = 0
$$

$$
12 - 4I_1 - 6I_2 = 0 \tag{1}
$$

#### Step 4: Apply KVL in Loop 2
Around the parallel branch loop:

$$
I_2(6Ω) - I_3(3Ω) = 0
$$

$$
6I_2 - 3I_3 = 0
$$

$$
I_3 = 2I_2 \tag{2}
$$


#### Step 5: Solve the System of Equations
Substituting Equation 2 into the KCL equation:
$$I_1 = I_2 + 2I_2 = 3I_2$$

Substituting into Equation 1:

$$
12 - 4(3I_2) - 6I_2 = 0
$$

$$
12 - 12I_2 - 6I_2 = 0
$$

$$
12 = 18I_2
$$

$$
I_2 = \tfrac{12}{18} = 0.667A
$$


Therefore:
- **I₂ = 0.667A**
- **I₃ = 2 × 0.667 = 1.333A**
- **I₁ = 3 × 0.667 = 2A**

#### Step 6: Verify Using Power Balance
Total power supplied: P = VI₁ = 12V × 2A = 24W

Power dissipated:
- P₁ = I₁²R₁ = (2)² × 4 = 16W
- P₂ = I₂²R₂ = (0.667)² × 6 = 2.67W
- P₃ = I₃²R₃ = (1.333)² × 3 = 5.33W
- Total = 16 + 2.67 + 5.33 = 24W ✓

### Example 2: Complex Multi-Loop Circuit

#### Mesh Analysis Using Kirchhoff's Voltage Law (KVL)

Mesh analysis is a systematic method for solving electrical circuits using Kirchhoff's Voltage Law (KVL). This technique is particularly useful for circuits with multiple loops and current sources.

#### Circuit Analysis Example

<img src="/images/post/mesh-analysis-kirchhoff-circuit-example.png" alt="Mesh circuit Analysis Example with Kirchhoff Laws" width="500" height="auto" loading="lazy" />

Let's analyze a two-mesh circuit with multiple voltage sources and resistors to demonstrate the complete mesh analysis process.

#### Given Circuit Parameters:
- **V₁** = 12V (voltage source)
- **V₂** = 8V (voltage source)
- **R₁** = 4Ω (resistor)
- **R₂** = 6Ω (resistor)
- **R₃** = 3Ω (resistor)

##### Step 1: Identify Meshes and Assign Mesh Currents

We have two meshes in this circuit:
- **Mesh 1 (i₁)**: Left loop containing V₁, R₁, and R₂
- **Mesh 2 (i₂)**: Right loop containing R₂, V₂, and R₃

Both mesh currents are assumed to flow **clockwise**.

<Notice type="info">
When assigning mesh currents, it's important to be consistent with the direction (all clockwise or all counterclockwise) to avoid sign errors in your equations.
</Notice>

##### Step 2: Apply KVL to Mesh 1

Starting from the top and going clockwise:
- **Voltage rises**: +V₁ = +12V
- **Voltage drops**: -i₁R₁ - (i₁ - i₂)R₂

Applying KVL:
$V_1 - i_1R_1 - (i_1 - i_2)R_2 = 0$

Substituting the given values:
$12 - 4i_1 - 6(i_1 - i_2) = 0$

Expanding:
$12 - 4i_1 - 6i_1 + 6i_2 = 0$

Simplifying:
$$
12 - 10i_1 + 6i_2 = 0 \tag{Equation 1}
$$

##### Step 3: Apply KVL to Mesh 2

Starting from the top and going clockwise:
- **Voltage rises**: +V₂ = +8V
- **Voltage drops**: -(i₂ - i₁)R₂ - i₂R₃

Applying KVL:
$(i_2 - i_1)R_2 + V_2 - i_2R_3 = 0$

Substituting the given values:
$6(i_2 - i_1) + 8 - 3i_2 = 0$

Expanding:
$6i_2 - 6i_1 + 8 - 3i_2 = 0$

Simplifying:
$$
-6i_1 + 3i_2 + 8 = 0 \tag{Equation 2}
$$

##### Step 4: Solve the System of Equations

We now have two equations with two unknowns:
$$
12 - 10i_1 + 6i_2 = 0 \tag{1}
$$
$$
-6i_1 + 3i_2 + 8 = 0 \tag{2}
$$

Rearranging:
- From equation (1): $10i_1 - 6i_2 = 12$
- From equation (2): $6i_1 - 3i_2 = 8$

Multiply equation (2) by 2:
$$
12i_1 - 6i_2 = 16 \tag{3}
$$

Subtract equation (1) from equation (3):
$$
(12i_1 - 6i_2) - (10i_1 - 6i_2) = 16 - 12
$$
$$
2i_1 = 4
$$
$$
i_1 = 2\text{ A}
$$

Substitute $i_1 = 2$ into equation (1):
$$
10(2) - 6i_2 = 12
$$
$$
20 - 6i_2 = 12
$$
$$
6i_2 = 8
$$
$$
i_2 = \frac{4}{3}\text{ A} ≈ 1.33\text{ A}
$$

##### Step 5: Calculate Individual Branch Currents

Now we can determine the current through each component:

| Component | Current | Voltage Drop |
|-----------|---------|--------------|
| **R₁** | $i_1 = 2$ A | $V_{R1} = 2 × 4 = 8$ V |
| **R₂** | $i_1 - i_2 = 2 - \frac{4}{3} = \frac{2}{3}$ A | $V_{R2} = \frac{2}{3} × 6 = 4$ V |
| **R₃** | $i_2 = \frac{4}{3}$ A | $V_{R3} = \frac{4}{3} × 3 = 4$ V |

##### Solution Verification

Let's verify our solution by checking both KVL equations:

**Mesh 1 verification:**
$12 - (2)(4) - (2 - \frac{4}{3})(6) = 12 - 8 - (\frac{2}{3})(6) = 12 - 8 - 4 = 0 \checkmark$

**Mesh 2 verification:**
$(\frac{4}{3} - 2)(6) + 8 - (\frac{4}{3})(3) = (-\frac{2}{3})(6) + 8 - 4 = -4 + 8 - 4 = 0 \checkmark$

Both equations are satisfied, confirming our solution is correct!

#### Final Results

- **Mesh Current 1 (i₁)**: 2 A (clockwise)
- **Mesh Current 2 (i₂)**: 4/3 A ≈ 1.33 A (clockwise)
- **Current through R₁**: 2 A (left to right)
- **Current through R₂**: 2/3 A ≈ 0.67 A (top to bottom)
- **Current through R₃**: 4/3 A ≈ 1.33 A (right to left)

#### Key Points to Remember

1. **Consistent Direction**: Always define mesh currents consistently (all clockwise or all counterclockwise)
2. **Shared Components**: For shared resistors, the current is the algebraic sum of mesh currents
3. **Voltage Sources**: Add positive voltage when traversed from + to - terminal
4. **Resistor Drops**: Always have voltage drops in the direction of current flow
5. **Verification**: Always verify your solution by substituting back into the original equations

#### Applications and Benefits

Mesh analysis is particularly effective for:
- Circuits with multiple voltage sources
- Planar circuits (can be drawn without crossing wires)
- When you need to find mesh currents directly
- Academic and theoretical circuit analysis

<Notice type="info">
While mesh analysis is powerful, for circuits with many current sources, nodal analysis might be more efficient. Choose the method that results in fewer equations to solve.
</Notice>

## Advanced Applications of Kirchhoff's Laws

### 1. AC Circuit Analysis
When working with alternating current circuits, Kirchhoff's Laws apply to:
- **Instantaneous values**: KCL and KVL hold at every instant
- **Phasor analysis**: Using complex numbers for sinusoidal steady-state
- **RMS values**: For power calculations in AC systems

### 2. Nodal Voltage Method
This systematic approach uses KCL primarily:


Steps for Nodal Analysis:
1. Select reference node (ground)
2. Identify node voltages
3. Apply KCL at each non-reference node
4. Express currents using Ohm's law
5. Solve resulting equations


### 3. Mesh Current Method
This approach uses KVL primarily:


Steps for Mesh Analysis:
1. Identify all meshes (loops)
2. Assign mesh currents
3. Apply KVL around each mesh
4. Express voltages using Ohm's law
5. Solve for mesh currents


## Practical Applications in Electrical Engineering

### Power Distribution Systems
In electrical power systems, Kirchhoff's Laws ensure:
- **Load balancing** across distribution networks
- **Fault analysis** in transmission lines
- **Power flow calculations** in electrical grids

### Electronic Circuit Design
For electronic components and circuit design:
- **Amplifier analysis** using operational amplifiers
- **Filter circuit design** for signal processing
- **Digital logic circuits** and microcontroller interfacing

### Circuit Simulation and Analysis
Modern circuit simulation software like SPICE uses Kirchhoff's Laws as the foundation for:
- **SPICE modeling** of electronic circuits
- **Transient analysis** for time-domain behavior
- **Frequency response** analysis

## Troubleshooting Common Circuit Problems

### Problem-Solving Strategy
1. **Identify the circuit topology** (series, parallel, or combination)
2. **Choose analysis method** (nodal or mesh analysis)
3. **Apply appropriate Kirchhoff's Law**
4. **Set up equations systematically**
5. **Solve and verify results**

### Circuit Analysis Comparison Table

| **Method** | **Primary Law Used** | **Best For** | **Variables Solved** |
|------------|---------------------|--------------|----------------------|
| **Nodal Analysis** | KCL (Current Law) | Circuits with fewer nodes | Node voltages |
| **Mesh Analysis** | KVL (Voltage Law) | Circuits with fewer loops | Loop currents |
| **Branch Analysis** | Both KCL & KVL | Simple circuits | Branch currents/voltages |
| **Superposition** | Both (applied separately) | Multi-source circuits | Individual source effects |

## Advanced Circuit Analysis Techniques

### Thévenin and Norton Equivalent Circuits
Using Kirchhoff's Laws with Thévenin's theorem:
- Simplify complex networks
- Analyze load variations
- Design matching networks

### Superposition Principle
When dealing with multi-source circuits:
- Apply Kirchhoff's Laws to each source individually
- Sum the individual responses
- Verify using complete circuit analysis

## Real-World Circuit Examples

### Example 3: LED Circuit Analysis
For LED circuit design:
- Forward voltage drop: V_LED = 2.2V
- Supply voltage: V_s = 9V
- Desired current: I_LED = 20mA
- Required resistance: R = (9V - 2.2V) / 0.02A = 340Ω

### Example 4: Battery Charging Circuit
In battery management systems:
- Apply KVL to determine charging current
- Use KCL for current distribution in parallel battery banks
- Calculate power dissipation in charging resistors

## Circuit Analysis Software and Tools

Modern electrical engineers use various tools that implement Kirchhoff's Laws:

1. **LTSpice** - Free SPICE simulator
2. **Multisim** - Educational circuit simulation
3. **PSpice** - Professional circuit analysis
4. **MATLAB Simulink** - System-level modeling
5. **KiCad** - Open-source PCB design with simulation

These tools automate the application of Kirchhoff's Laws for complex circuits with hundreds or thousands of components.

## Best Practices for Circuit Analysis

### 1. Systematic Approach
- Always define current directions and voltage polarities clearly
- Use consistent sign conventions throughout the analysis
- Label all nodes and components systematically

### 2. Verification Methods
- Check that KCL is satisfied at each node
- Verify that KVL equals zero around each loop
- Confirm power balance (power supplied = power consumed)

### 3. Common Pitfalls to Avoid
- Mixing up current directions in KCL equations
- Incorrect voltage polarity in KVL loops
- Forgetting to include all circuit elements
- Using dependent variables without establishing relationships

## Conclusion: Mastering Circuit Analysis with Kirchhoff's Laws

Kirchhoff's Current and Voltage Laws remain the cornerstone of electrical circuit analysis, providing the theoretical foundation for understanding everything from simple [resistor circuits](/posts/electrical-resistance-and-how-to-calculate-it) to complex power electronic systems. Whether you're working on Arduino projects, designing [PCB layouts](/posts/mastering-pcb-design-and-techniques), or analyzing industrial electrical systems, these fundamental laws will guide your analysis and ensure accurate results.

The key to mastering circuit analysis lies in consistent practice with increasingly complex circuits, understanding when to apply each law, and developing the ability to set up and solve systems of equations efficiently. With the step-by-step examples and practical applications covered in this guide, you now have the tools to tackle any circuit analysis challenge with confidence.

Ready to advance your electrical engineering skills? Explore our comprehensive guides on advanced circuit analysis and electrical engineering fundamentals to deepen your understanding of these essential concepts.

---

## 🔗 Related Posts

- [Electric Current: A Comprehensive Guide](/posts/electric-current-a-comprehensive-guide)
- [Electrical Resistance and How to Calculate It](/posts/electrical-resistance-and-how-to-calculate-it)
- [Mastering PCB Design and Techniques](/posts/mastering-pcb-design-and-techniques)
 [Wire size Calculator - complete guide](/posts/wire-size-calculator-complete-guide)

#### **Helpful Calculators**
- [Resistor Color Code Calculator](/calculators/resistor-color-code-calculator)
- [Series Parallel Resistance Calculator](/calculators/series-parallel-resistance-calculator)
- [Ohm's Law Calculator](/calculators/ohms-law-calculator)
- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)

#### **Credits**
&nbsp;&nbsp;- Photo by [Chris Ried](https://unsplash.com/fr/@cdr6934?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/photographie-dinclinaison-et-de-decalage-de-la-carte-mere-de-lordinateur-vert-bN5XdU-bap4?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

Master Kirchhoff's Current (KCL) and Voltage (KVL) Laws with step-by-step calculations, real circuit examples, and practical applications. Complete guide for electrical engineering students and professionals.

Kirchhoff’s Laws: Current & Voltage with Step-by-Step Examples

Kirchhoff's Laws: Complete Guide with Circuit Analysis Examples & Calculations

Induction motors, the practical cornerstone of modern industry, power everything from household appliances to large industrial machinery. Their robustness, simplicity, and efficiency make them a preferred choice for a wide range of applications.

This post explores how induction motors work, presents key equations, and includes practical examples with diagrams and tables for enhanced understanding.

---

## 1. Basics of Induction Motors

An **induction motor** (or asynchronous motor) operates on the principle of electromagnetic induction. It has two main parts:

- **Stator**: The stationary part, consisting of laminated steel cores and windings connected to the AC supply, which creates a rotating magnetic field.
- **Rotor**: Typically a squirrel-cage structure made of conductive bars short-circuited by end rings, it rotates due to the induced current.

---

## 2. How Induction Motors Work

### Step-by-step operation:
1. **AC Supply to Stator**: An [alternating current](/posts/electric-current-a-comprehensive-guide) applied to stator windings creates a rotating magnetic field.
2. **Induction in Rotor**: According to Faraday's Law, this magnetic field induces an EMF in the rotor conductors.
3. **Current Flow in Rotor**: The induced EMF drives current through the rotor.
4. **Torque Production**: The interaction between the stator's magnetic field and rotor current produces torque, causing the rotor to rotate.

---

## 3. Key Equations and Calculations

### a. Synchronous Speed ($N_s$)

$$
N_s = \frac{120 \times f}{P}
$$

Where:
- $N_s$: Synchronous speed (RPM)
- $f$: Supply frequency (Hz)
- $P$: Number of poles

**Example**: For a 4-pole motor on a 50 Hz supply:

$$
N_s = \frac{120 \times 50}{4} = 1500 \, \text{RPM}
$$

---

### b. Slip ($s$)

$$
s = \left( \frac{N_s - N_r}{N_s} \right) \times 100
$$

Where:
- $N_r$: Rotor speed (RPM)

**Example**: If rotor speed $N_r = 1450$ RPM:

$$
s = \left( \frac{1500 - 1450}{1500} \right) \times 100 = 3.33\%
$$

---

### c. Rotor Frequency ($f_r$)

$$
f_r = s \times f
$$

**Example**: With $s = 0.0333$, $f = 50$ Hz:

$$
f_r = 0.0333 \times 50 = 1.665 \, \text{Hz}
$$

---

### d. Power Output ($P_{out}$)

$$
P_{out} = \frac{2\pi N_r T}{60}
$$

Where:
- $T$: Torque (Nm)

**Example**: $N_r = 1440$ RPM, $T = 25$ Nm

$$
P_{out} = \frac{2\pi \times 1440 \times 25}{60} \approx 3770 \, \text{W}
$$

---

### e. Efficiency ($\eta$)

$$
\eta = \left( \frac{P_{out}}{P_{in}} \right) \times 100
$$

**Example**: $P_{out} = 3770$ W, $P_{in} = 4000$ W

$$
\eta = \left( \frac{3770}{4000} \right) \times 100 = 94.25\%
$$

> 💡 *Note: If efficiency is above 100%, it indicates incorrect assumptions or measurement error.*

---

## 4. Practical Applications

Induction motors are used in:

- 🏠 **Home appliances**: Washing machines, air conditioners, refrigerators
- 🏭 **Industrial machinery**: Pumps, conveyors, compressors
- 🚈 **Transportation**: Electric trains, trams
- 🌬️ **HVAC systems**: Blowers, fans

---

## 5. Example Problem

### **Problem:**

A 4-pole, 3-phase induction motor runs on 50 Hz supply. The rotor speed is 1440 RPM at full load. The motor delivers 25 Nm torque and takes 4 kW input power. Calculate:

- Synchronous speed
- Slip
- Rotor frequency
- Output power
- Efficiency

### **Solution:**

**a. Synchronous speed:**

$$
N_s = \frac{120 \times 50}{4} = 1500 \, \text{RPM}
$$

**b. Slip:**

$$
s = \left( \frac{1500 - 1440}{1500} \right) \times 100 = 4\%
$$

**c. Rotor frequency:**

$$
f_r = 0.04 \times 50 = 2 \, \text{Hz}
$$

**d. Output Power:**

$$
P_{out} = \frac{2\pi \times 1440 \times 25}{60} \approx 3770 \, \text{W}
$$

**e. Efficiency:**

$$
\eta = \left( \frac{3770}{4000} \right) \times 100 \approx 94.25\%
$$

---

## 6. Table: Performance Summary

| Parameter | Value |
|----------------------|--------|
| Synchronous Speed | 1500 RPM |
| Rotor Speed | 1440 RPM |
| Slip | 4% |
| Rotor Frequency | 2 Hz |
| Power Output | 3770 W |
| Power Input | 4000 W |
| Efficiency | 94.25% |

---

## Conclusion

Induction motors are vital to industrial and domestic applications. Understanding their physics, calculations, and performance factors allows engineers to better design, optimize, and troubleshoot real-world systems.

Want help choosing or calculating the right induction motor for your system?
📩 [Contact us](/contact) or explore our other detailed posts in electrical engineering.

---

<hr/>

#### **Credits**
- Photo by [Troy Winther](https://unsplash.com/fr/@troywinther?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/gros-plan-dun-objet-circulaire-sur-une-table-4qxoVuMP2kY?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

Explore induction motors: learn their principles, equations, and real-world uses with clear examples and calculations.

Induction Motors: Operation, Key Calculations & Practical Applications

Understanding Induction Motors: Working Principle, Calculations, and Applications

Printed Circuit Boards (PCBs) are the beating heart of modern electronic devices, serving as the foundation for connecting electronic components. Whether you are building a simple hobby project or a complex consumer product, understanding PCB design is crucial and places you at the forefront of the dynamic evolution of electronics. This guide will cover the principles of PCB design, techniques, tools, and best practices, ensuring your designs are efficient and effective and that you are part of this progressive field.

## What Is PCB Design?

PCB design refers to creating the layout and functionality of a printed circuit board, which involves arranging electronic components and routing electrical connections to optimize space, performance, and reliability. A well-designed PCB facilitates effective electrical connections and ensures manufacturability and ease of assembly.

### Key Components of PCB Design

Here are the fundamental components you will encounter in PCB design:

<img src="/images/post/pcb-board-layers.jpg" alt="PCB Board layers" width="400" height="auto" loading="lazy" />
- Photo from [IC components](https://www.ic-components.com/blog/a-step-by-step-guide-to-pcb-design-and-assembly.jsp)

1. **Substrate**: The base material, usually fiberglass or epoxy, supports the PCB.
2. **Copper Layer**: Thin layers of copper that create pathways for electrical connections.
3. **Solder Mask**: A protective layer to prevent solder from bridging between conductive paths.
4. **Silkscreen Layer**: Printed markings on the PCB used to identify components and provide references for assembly.

## Principles of Effective PCB Design

### 1. Define Your Requirements

Before starting the design process, define the following:

- **Functionality**: Determine what the PCB needs to accomplish.
- **Size**: Establish dimensions based on device constraints.
- **Environmental Conditions**: Consider factors like temperature, humidity, and exposure to elements.

### 2. Component Placement

Strategic placement of components enhances performance and simplifies assembly:

- **Group Related Components**: Place components with similar functions close together to minimize trace lengths.
- **Avoid Crossovers**: Ensure that sensitive traces are separated from power traces to reduce interference.
- **Consider Thermal Management**: Place heat-generating components in locations that allow efficient heat dissipation.

### Example Layout

Here is a simplified layout of a PCB for an LED circuit:

<img src="/images/post/SimpleCircuit-3Dview-transparent.png" alt="Simple PCB Board Example" width="400" height="auto" loading="lazy" />

## 3. Trace Routing

Routing involves designing the pathways that connect components:

- **Width Matters**: Use wider traces for high current paths to prevent overheating.
- **Minimize Lengths**: Keep traces short to reduce [resistance](/posts/electrical-resistance-and-how-to-calculate-it) and potential interference.
- **Via Usage**: Use plated-through holes (vias) sparingly; each via adds inductance and resistance.

### Trace Width Calculation

The width of traces, which are the conductive paths on the PCB, can be determined using online calculators or formulas. For example, for a 1A current with a temperature rise limit of 10°C, you can use the following formula to calculate the trace width:

$$
W = \left( \frac{I}{\Delta T} \right)^{\beta}
$$

Where:
- $ ${W}$ $ is the trace width in mils.
- $ ${I}$ $ is the current in amps.
- $ ${\Delta T}$ $ is the temperature rise.
- $ ${\beta}$ $ is a constant based on the PCB thickness.

Using a PCB with a copper thickness of 1 oz/ft². We will use the values provided:

Given:
- Current $ ${I}$ $ = 1 A
- Temperature rise limit $ ${\Delta T}$ $ = 10°C
- $ ${\beta}$ $ for 1 oz copper is typically around 0.44.

Now, substituting these values into the formula:

$$
W = \left( \frac{I}{\Delta T} \right)^{\beta}
$$

Substituting the values:

$$
W = \left( \frac{1}{10} \right)^{0.44}
$$

Calculating ${\left( \frac{1}{10} \right)}$:

1. $${0.1^{0.44} \approx 0.3981}$$

Now, since $ ${W}$ $ is in mils, we need to multiply this by 1000 to convert to mils:

$$
W \approx 0.3981 \times 1000 \approx 398.1 \text{ mils}
$$

Thus, for a 1A current with a temperature rise limit of 10°C on a 1 oz copper PCB, the trace width $ ${W}$ $ will be approximately **398.1 mils**.

This width ensures that the PCB can handle the specified current without exceeding the temperature rise limit, thereby maintaining safety and reliability in the circuit design. Adjustments to $ ${I}$ $ or $ ${\Delta T}$ $ will affect the trace width needed for different scenarios.

### 4. Design Rules and Clearances

Adhere to manufacturer-specifics regarding spacing and component placement to avoid issues during production. Design rules include:

- **Minimum Trace Width**: Typically 10 mils for general applications.
- **Clearances**: Maintain adequate spacing between traces and components to prevent shorts or crosstalk.

## Tools for PCB Design

Selecting the best tools is crucial for efficient PCB design. Here are a few popular software options with links to their respective websites:

1. **[EAGLE](https://www.autodesk.com/products/eagle/overview)**: A user-friendly software that is excellent for beginners and pros alike.
2. **[KiCad](https://www.kicad.org/)**: Open-source software with extensive features ideal for advanced users.
3. **[Altium Designer](https://www.altium.com/)**: This tool offers robust tools for complex designs and is frequently used in professional settings.
4. **[EasyEDA](https://easyeda.com/)**: A web-based design tool great for quick prototyping solutions.

## Best Practices for PCB Design

### 1. Prototype and Test

Always create prototypes and conduct tests to validate your designs before full-scale production. This step allows you to:

- Identify errors or design flaws early.
- Iterate quickly based on feedback.

### 2. Documentation

Documenting your design process, including schematics, layouts, and changes made over time, is not just a best practice but a necessity. Comprehensive documentation ensures you are organized and prepared, aiding in:

- Collaborating with team members.
- Ensuring maintainability and scalability of designs.

### 3. Stay Updated

The field of PCB design is continually evolving. Stay informed about:

- New materials and technologies.
- Industry standards and regulations.
- Emerging design practices.

## Conclusion

PCB design is a critical part of electronics engineering, requiring a blend of technical knowledge, creativity, and attention to detail. By following the principles outlined in this guide, utilizing the best tools, and adhering to best practices, you can develop high-quality PCBs that meet the demands of modern electronics. Whether you're a hobbyist or a professional, mastering these skills will enhance your ability to bring your electronic projects to life.

---

#### **Credits**
- Photo by [Random Thinking](https://unsplash.com/fr/@randomthinking?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/un-gros-plan-dune-carte-mere-dordinateur-avec-des-lumieres-roses-fX4lA-CIAwk?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

Dive into the world of PCB design. Learn the fundamental principles, techniques, and best practices with examples, tools, and tips for success.

PCB Design Essentials: Key Techniques, Tips & Industry Best Practices

Mastering PCB Design: Techniques, and Best Practices

Three-phase generators are indispensable for providing reliable and efficient power in electrical engineering. These generators ensure a steady electricity supply for industrial applications, power plants, or large commercial buildings. This article will explore what a three-phase generator is, how it works, its advantages, and various applications. We will also include detailed calculations, tables, and diagrams to illustrate these concepts comprehensively.

**Key Points Covered:**

1. Basics of 3-Phase Generators
2. How 3-Phase Generators Work
3. Advantages of 3-Phase Generators
4. Applications of 3-Phase Generators
5. Example Calculations
6. Tables and Diagrams

## Basics of 3-Phase Generators
A 3-phase generator produces three alternating [currents](/posts/electric-current-a-comprehensive-guide) (AC) that are phase-shifted by 120 degrees.
Commonly used in industrial and commercial settings.
More efficient and reliable than single-phase generators.

## How 3 Phase Generators Work
**Components:**
- Rotor: Creates a rotating magnetic field.
- Stator: Contains coils where EMF is induced.
- Prime Mover: Drives the rotor (e.g., internal combustion engine, turbine).

**Operation:**

When the rotor spins, it creates a rotating magnetic field.
This field cuts through the stator windings, inducing alternating currents.
The three windings are spaced 120 degrees apart, producing three phase-shifted AC outputs.

## Advantages of 3-Phase Generators
- Higher efficiency and power density.
- Smoother power delivery with less fluctuation.
- Smaller and lighter for the same power output.
- Cost-effective in the long run.

## Applications of 3-Phase Generators

- **Industrial Settings**: Powering heavy machinery and motors.
- **Power Plants**: Generating electricity for the grid.
- **Commercial Buildings**: HVAC systems, elevators, and other infrastructure.
- **Renewable Energy Systems**: Wind turbines and other renewable sources.

## Example Calculations
To calculate the power output of a 3-phase generator, we use the following formula:

$$
P_{\text{out}} = 3 \times V_{\text{L}} \times I_{\text{L}} \times \cos(\phi)
$$

$$
\begin{align*}
\text{Where:} \\
P_{\text{out}} & = \text{Output Power (Watts)} \\
V_L & = \text{Line Voltage (Volts)} \\
I_L & = \text{Line Current (Amperes)} \\
\cos(\phi) & = \text{Power Factor}
\end{align*}
$$

**Example:**

Assume a 3-phase generator with a line voltage of 400V, line current of 50A, and a power factor of 0.8:

$$
P_{\text{out}} = 3 \times 400 \times 50 \times 0.8
$$
$$
P_{\text{out}} \approx 27,712 \text{ Watts or } 27.7 \text{ kW}
$$

Power Loss Calculation:
Power loss in the system can be calculated as the difference between the input power and the output power:

$$
P_{\text{loss}} = P_{\text{in}} - P_{\text{out}}
$$

$$
\text{Assume the input mechanical power provided by the prime mover is 30 kW:}
$$

$$
P_{\text{loss}} = 30,000 \, \text{W} - 27,712 \, \text{W}
$$

$$
P_{\text{loss}} = 2,288 \, \text{W}
$$

Summary of Measurements:

| Parameter | Value |
|---------------|-------------|
| Input Power | 30,000 W |
| Output Power | 27,712 W |
| Power Loss | 2,288 W |

## Tables and Diagrams
Table 1: Comparison of Single-Phase and Three-Phase Generators
| Efficiency	| Lower |	Higher |
|-------------|-------|--------|
| Power Delivery	| Fluctuates	| Smooth and stable	|
| Size and Weight |	Larger for same power |	Smaller and lighter	|
| Cost	| Cheaper initially |	More cost-effective long-term	|

**Diagram 1**: Schematic of a 3-Phase Generator

## Conclusion

Phase generators are fundamental in electrical engineering. They provide efficient and stable power for various applications. Engineers can make informed decisions about their use and maintenance by understanding their operation, advantages, and applications.

---

If you're interested in learning more about electrical engineering topics or need guidance on selecting the right generator for your needs, explore our other articles or [contact us](/contact) for advice.


<hr/>

#### **Credits**
- Photo by [Han Dora](https://unsplash.com/fr/@handora?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/un-homme-travaillant-sur-une-machine-avec-une-cle-W_V16LUnHYo?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

Discover how 3 phase generators work and their key applications across industries, highlighting their efficiency and benefits over single-phase systems.

3-Phase Generators Explained: Working Principle, Uses & Benefits

3 Phase Generators: How They Work and Their Applications


Picture this: You're managing a manufacturing facility where energy costs have skyrocketed 40% over the past year. Your motors are running at full speed regardless of actual demand, burning through electricity like there's no tomorrow. Sound familiar?

If you're nodding your head, you're not alone. Industrial facilities worldwide waste billions of dollars annually on inefficient motor control systems. But here's the game-changer: **Variable Frequency Drives (VFDs) can reduce energy consumption by up to 50%** while dramatically improving process control.

In this comprehensive guide, you'll discover everything you need to know about VFDs – from basic working principles to advanced applications that could revolutionize your operations.

## Table of Contents
- [What is a Variable Frequency Drive?](#what-is-a-variable-frequency-drive)
- [How VFDs Work: The Science Made Simple](#how-vfds-work)
- [Types of Variable Frequency Drives](#types-of-vfds)
- [Key Benefits and Applications](#benefits-and-applications)
- [VFD Selection Guide](#selection-guide)
- [Installation and Maintenance](#installation-maintenance)
- [Troubleshooting Common Issues](#troubleshooting)
- [Future of VFD Technology](#future-trends)

---

## What is a Variable Frequency Drive?

A **Variable Frequency Drive (VFD)**, also known as an adjustable frequency drive (AFD) or variable speed drive (VSD), is an electronic device that controls the speed and torque of AC motors by varying the frequency and voltage of the power supplied to the motor.

Think of it as a sophisticated dimmer switch for your motors – but instead of just controlling brightness, it precisely manages speed, acceleration, and energy consumption.

### The Problem VFDs Solve

Traditional motor starters operate motors at fixed speeds, typically running at maximum capacity regardless of actual load requirements. This creates several critical issues:

- **Energy Waste**: Motors consume full power even during low-demand periods
- **Mechanical Stress**: Abrupt starts and stops damage equipment
- **Poor Process Control**: No ability to fine-tune operations
- **High Maintenance Costs**: Excessive wear and tear on components

VFDs eliminate these problems by providing smooth, variable speed control that matches motor output to actual demand.

---

## How VFDs Work: The Science Made Simple

Understanding VFD operation doesn't require an engineering degree. Here's the straightforward explanation:

### The Three-Stage Process

#### 1. **Rectification Stage**
The VFD first converts incoming AC power (typically 60Hz in North America) into DC power using a rectifier circuit. This process filters out the alternating current characteristics, creating a stable DC voltage.

#### 2. **DC Bus (Filtering Stage)**
The converted DC power passes through a filtering stage that smooths voltage ripples and stores energy in capacitors. This creates a clean, stable DC supply for the next stage.

#### 3. **Inversion Stage**
Here's where the magic happens. The inverter section uses **Pulse Width Modulation (PWM)** technology to convert the DC power back into AC power – but now with variable frequency and voltage that can be precisely controlled.

### PWM Technology: The Heart of VFD Control

PWM works by rapidly switching DC voltage on and off at high frequencies (typically 2-16 kHz). By varying the width of these pulses, the VFD creates an AC waveform that mimics sine wave characteristics while providing exact frequency control.

**Real-World Example**: If you need a motor to run at 30Hz instead of 60Hz, the VFD adjusts the PWM switching pattern to output 30Hz, automatically reducing the motor's speed by 50%.

### V/Hz Ratio: Maintaining Motor Performance

VFDs maintain optimal motor performance by keeping the voltage-to-frequency (V/Hz) ratio constant. As frequency decreases, voltage decreases proportionally, ensuring the motor maintains proper torque characteristics across the entire speed range.

---

## Types of Variable Frequency Drives

Not all VFDs are created equal. Understanding the different types helps you choose the right solution for your specific application.

### 1. **Voltage Source Inverters (VSI)**

**Most Common Type** - Represents 95% of modern VFD installations

**How They Work**: Use capacitors in the DC bus to provide a stiff voltage source to the inverter section.

**Advantages**:
- High efficiency (95-98%)
- Excellent speed regulation
- Low harmonic distortion
- Cost-effective for most applications

**Best For**: General-purpose applications including pumps, fans, conveyors, and compressors.

### 2. **Current Source Inverters (CSI)**

**Specialized Applications** - Used when voltage source inverters aren't suitable

**How They Work**: Utilize inductors in the DC bus to provide constant current to the motor.

**Advantages**:
- Inherent short-circuit protection
- Four-quadrant operation
- Regenerative capabilities
- Robust against motor faults

**Best For**: High-power applications, motors requiring frequent reversing, and systems with regenerative braking needs.

### 3. **Pulse Amplitude Modulated (PAM) Drives**

**Legacy Technology** - Rarely used in new installations

**How They Work**: Control motor speed by varying the amplitude of voltage pulses rather than frequency.

**Limitations**:
- Poor efficiency at low speeds
- High harmonic content
- Limited speed range

**Current Status**: Largely replaced by PWM-based VSI drives.

### 4. **Load Commutated Inverters (LCI)**

**Ultra-High Power Applications** - For systems above 1MW

**How They Work**: Use the motor's back-EMF for commutation, eliminating the need for forced commutation circuits.

**Advantages**:
- Handles extremely high power levels
- High reliability
- Four-quadrant operation

**Best For**: Large mills, mining equipment, ship propulsion systems.

---

## Key Benefits and Applications

### Energy Savings: The Primary Driver

The numbers don't lie – VFDs deliver substantial energy savings:

- **Centrifugal loads (pumps/fans)**: Up to 50% energy reduction
- **Constant torque loads**: 20-30% typical savings
- **Variable torque applications**: 30-50% savings possible

**Case Study**: A chemical processing plant replaced fixed-speed drives on their cooling water pumps with VFDs. Result: \$180,000 annual savings on a \$2.2M facility energy budget – a 22-month payback period.

### Process Control Benefits

#### **Precise Speed Control**
- Speed accuracy within ±0.1% of setpoint
- Smooth acceleration and deceleration curves
- Elimination of mechanical speed control systems

#### **Soft Starting Capabilities**
- Reduces inrush current by up to 80%
- Eliminates mechanical shock during startup
- Extends equipment life significantly

#### **Remote Monitoring and Control**
- Integration with SCADA systems
- Real-time performance monitoring
- Predictive maintenance capabilities

### Common Applications by Industry

#### **HVAC Systems**
- **Centrifugal chillers**: Variable speed control matches cooling demand
- **Supply/return fans**: Maintain building pressure while reducing energy
- **Cooling towers**: Speed varies with heat rejection requirements

#### **Water Treatment**
- **Booster pumps**: Maintain system pressure with varying demand
- **Filtration systems**: Optimize flow rates for different processes
- **Aeration equipment**: Match oxygen delivery to biological load

#### **Manufacturing**
- **Conveyor systems**: Variable speed for different product types
- **Mixers/agitators**: Process-specific speed requirements
- **Compressors**: Match air delivery to system demand

#### **Oil & Gas**
- **Pipeline pumps**: Maintain flow despite varying viscosity
- **Drilling equipment**: Precise torque and speed control
- **Compressor stations**: Optimize gas transmission efficiency

---

## VFD Selection Guide: Choosing the Right Drive

Selecting the optimal VFD requires careful consideration of multiple factors. Here's your step-by-step guide:

### **Step 1: Motor Requirements Analysis**

#### **Horsepower Rating**
Choose a VFD rated for 110-125% of the motor's full-load amperage to account for:
- Motor service factor
- Altitude derating
- Ambient temperature variations

#### **Voltage Compatibility**
Match VFD input voltage to your facility's supply:
- **208V/240V**: Small motors up to 50HP
- **480V**: Most industrial applications 1-500HP
- **690V**: European standards and high-efficiency motors

#### **Load Characteristics**
Different load types require specific VFD features:

**Constant Torque Loads** (conveyors, positive displacement pumps):
- Full torque at zero speed capability
- High starting torque requirements
- Linear V/Hz control adequate

**Variable Torque Loads** (centrifugal pumps, fans):
- Torque varies with speed squared
- Energy savings optimization features
- Quadratic V/Hz control preferred

**Constant Horsepower Loads** (machine tools, winders):
- Field weakening operation above base speed
- Precise speed regulation required
- Vector control recommended

### **Step 2: Environmental Considerations**

#### **Enclosure Rating (NEMA/IP)**
- **NEMA 1/IP20**: Clean, dry indoor environments
- **NEMA 12/IP54**: Dusty indoor applications
- **NEMA 4X/IP65**: Washdown or corrosive environments

#### **Ambient Temperature**
Standard VFDs operate up to 40°C (104°F). For higher temperatures:
- Derate drive capacity or specify higher temperature ratings
- Consider cabinet cooling or ventilation
- Factor in heat dissipation requirements

### **Step 3: Control Requirements**

#### **Basic Speed Control**
- Simple potentiometer or 4-20mA input
- Start/stop functionality
- Basic protection features

#### **Advanced Process Control**
- PID control capability
- Multiple speed presets
- Communication protocols (Modbus, Ethernet/IP, etc.)

#### **Safety and Protection**
- Safe Torque Off (STO) functionality
- Integrated safety relays
- Fault monitoring and diagnostics

### **Step 4: Communication and Integration**

Modern manufacturing requires connected systems:

#### **Fieldbus Communication**
- **Modbus RTU/TCP**: Widely supported, cost-effective
- **Ethernet/IP**: Allen-Bradley ecosystem integration
- **Profinet**: Siemens automation platform
- **DeviceNet**: Legacy industrial networks

#### **Industry 4.0 Considerations**
- Web-based monitoring interfaces
- Cloud connectivity options
- Predictive maintenance algorithms
- Energy monitoring and reporting

---

## Installation and Maintenance Best Practices

Proper installation and maintenance are crucial for VFD longevity and performance.

### **Installation Guidelines**

#### **Electrical Installation**
1. **Input Power Wiring**
   - Use properly sized conductors based on VFD input current rating
   - Install input line reactors for power quality improvement
   - Ensure proper grounding practices per NEC Article 250

2. **Motor Wiring**
   - Use VFD-rated cable with proper shielding
   - Maintain cable shield continuity from drive to motor
   - Consider sine wave filters for long cable runs (>100 feet)

3. **Control Wiring**
   - Separate control wires from power cables
   - Use shielded twisted pair for analog signals
   - Maintain proper wire bend radius and support

#### **Environmental Setup**
- Maintain minimum clearances per manufacturer specifications
- Ensure adequate ventilation for heat dissipation
- Install drives away from heat sources and direct sunlight
- Consider harmonic mitigation for multiple drive installations

### **Preventive Maintenance Program**

#### **Monthly Inspections**
- Visual inspection of connections and components
- Check cooling fan operation and cleanliness
- Monitor drive and motor temperatures
- Verify proper display readings and alarm status

#### **Quarterly Maintenance**
- Clean cooling air filters and heat sinks
- Check torque on electrical connections
- Inspect control wiring for damage or wear
- Review and download fault logs

#### **Annual Service**
- Capacitor testing and replacement (typically 5-7 year life)
- Cooling fan bearing inspection and replacement
- Comprehensive electrical testing
- Firmware updates and parameter backup

#### **Predictive Maintenance Technologies**
- **Thermal Imaging**: Identify connection issues before failure
- **Vibration Analysis**: Monitor cooling fan and internal component health
- **Power Quality Analysis**: Detect developing electrical problems
- **Remote Monitoring**: Continuous performance tracking and alerting

---

## Troubleshooting Common VFD Issues

Even well-maintained VFDs can experience problems. Here's your diagnostic guide for the most common issues:

### **Motor Won't Start**

**Possible Causes & Solutions**:

1. **Control Signal Issues**
   - Check run command presence at control terminals
   - Verify speed reference signal (0-10V, 4-20mA)
   - Inspect control wiring for open circuits

2. **Parameter Settings**
   - Confirm minimum frequency setting
   - Check acceleration time (too short may cause overcurrent)
   - Verify motor parameters match actual motor nameplate

3. **Protection Functions Active**
   - Review fault history in drive display
   - Check for overcurrent, overvoltage, or thermal protection
   - Inspect motor and wiring for faults

### **Motor Runs But Speed is Unstable**

**Diagnostic Steps**:

1. **Speed Feedback Issues**
   - Verify encoder connections and signals (if used)
   - Check for electromagnetic interference on control cables
   - Test speed reference signal stability

2. **Load Variations**
   - Monitor motor current during operation
   - Check for mechanical binding or obstruction
   - Verify proper load matching to motor capacity

3. **Drive Tuning**
   - Adjust PID parameters for better regulation
   - Optimize acceleration/deceleration rates
   - Consider autotuning functions if available

### **Excessive Motor Heating**

**Investigation Process**:

1. **Operating Conditions**
   - Verify motor not overloaded (check current vs. nameplate)
   - Confirm adequate motor ventilation
   - Check ambient temperature conditions

2. **VFD Settings**
   - Ensure proper V/Hz curve programming
   - Verify carrier frequency settings (higher frequency = more heating)
   - Check for proper motor parameter programming

3. **Installation Issues**
   - Measure motor cable length (>100 ft may require filters)
   - Check for proper cable shielding and grounding
   - Verify motor insulation integrity

### **High Harmonic Distortion**

**Mitigation Strategies**:

1. **Input Side Solutions**
   - Install line reactors (3-5% impedance)
   - Consider active harmonic filters for multiple drives
   - Use isolation transformers for sensitive loads

2. **Drive Configuration**
   - Adjust carrier frequency settings
   - Enable harmonic reduction features if available
   - Consider drives with active front-end rectifiers

---

## Future of VFD Technology

The VFD industry continues to evolve rapidly, driven by digitalization, energy efficiency demands, and Industry 4.0 initiatives.

### **Emerging Technologies**

#### **Silicon Carbide (SiC) Power Devices**
- Higher switching frequencies enable smaller, more efficient drives
- Operating temperatures up to 200°C vs. 150°C for silicon devices
- Efficiency improvements of 2-3% possible

#### **Artificial Intelligence Integration**
- **Predictive maintenance**: AI algorithms analyze performance patterns to predict failures
- **Energy optimization**: Machine learning optimizes drive parameters for minimum energy consumption
- **Process optimization**: AI adjusts drive performance based on production requirements

#### **Advanced Motor Control Algorithms**
- **Model Predictive Control**: Superior dynamic performance and efficiency
- **Direct Torque Control**: Faster torque response without speed feedback
- **Sensorless Vector Control**: High-performance control without encoders

### **Industry 4.0 Integration**

#### **Cloud Connectivity**
- Remote monitoring and diagnostics capabilities
- Software updates delivered over-the-air
- Integration with enterprise asset management systems

#### **Cybersecurity**
- Enhanced security protocols for networked drives
- Encrypted communication channels
- Regular security updates and patches

#### **Digital Twin Technology**
- Virtual drive and motor models for optimization
- Simulation-based testing and commissioning
- Predictive modeling for maintenance planning

### **Sustainability Focus**

#### **Circular Economy Principles**
- Design for disassembly and recycling
- Remanufacturing programs for components
- Extended producer responsibility initiatives

#### **Carbon Footprint Reduction**
- Energy monitoring and reporting capabilities
- Integration with renewable energy systems
- Demand response functionality for grid stabilization

---

## Conclusion: Transform Your Operations with VFD Technology

Variable Frequency Drives represent one of the most impactful investments you can make in your facility's efficiency and sustainability. With energy savings of 20-50% typical across applications, improved process control, and reduced maintenance costs, VFDs deliver measurable ROI while positioning your operations for the future.

**Key takeaways from this guide**:
- VFDs can reduce energy consumption by up to 50% in many applications
- Proper selection requires careful analysis of motor, load, and environmental requirements
- Installation and maintenance best practices are crucial for long-term success
- Emerging technologies like AI and SiC devices promise even greater benefits

**Ready to harness the power of VFD technology?** The next step is conducting a comprehensive energy audit of your motor-driven systems to identify the best opportunities for VFD implementation.


### Helpful Calculators

- [Voltage Drop Calculator](/calculators/voltage-drop-calculator)
- [Ohm's Law Calculator](/calculators/ohms-law-calculator)
- [Power Factor Calculator](/calculators/power-factor-correction-calculator)
- [Capacitor and Inductor Reactance Calculator](/calculators/capacitor-inductor-reactance-calculator)

---

#### **Credits**
- Photo by [Axel Richter](https://unsplash.com/fr/@trisolarian?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/un-gros-plan-dune-carte-mere-dordinateur-avec-des-fils-K-CIqM-wSqw?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)


Complete VFD guide covering working principles, types, and applications. Learn how Variable Frequency Drives can reduce energy costs by up to 50% while improving motor control.

Variable Frequency Drive (VFD) Guide: Working Principles & Applications

Variable Frequency Drive (VFD): The Complete Guide to Working Principles, Types, and Applications

The Internet of Things (IoT) is changing our interactions with technology by effortlessly linking physical devices to the Internet, facilitating real-time communication and automation. This blog will explore IoT devices, discussing their architecture, components, applications, and their user-friendly nature, making them an integral part of contemporary technology.

## What Are IoT Devices?

IoT devices, a marvel of modern technology, are physical objects embedded with sensors and software that enable them to collect and exchange data with other systems via the Internet. These devices, ranging from everyday life household items to advanced industrial equipment, showcase the versatility and potential of IoT in our lives.

### Common IoT Devices

| **Device Type** | **Description** | **Examples** |
|--------------------------|---------------------------------------------------------|------------------------------------|
| Wearables                 | Devices that gather personal data from the body.  | Smartwatches, fitness trackers     |
| Smart Home Devices        | Appliances that automate home functions.               | Smart thermostats, smart locks     |
| Industrial IoT Devices    | Tools for manufacturing and logistics.                 | Sensor-equipped machines, robots   |
| Healthcare IoT Devices    | Devices monitoring patient health.                     | Remote patient monitors, pill dispensers |

## IoT Device Architecture

IoT systems typically consist of four main layers:

1. **Perception Layer**: Devices like sensors and actuators gather information from their surroundings.
2. **Network Layer**: Transmits data to other systems or the cloud.
3. **Processing Layer**: Analyzes data and applies intelligence.
4. **Application Layer**: Provides the user interface for monitoring and management.

### Mathematical Model of IoT Data Flow

The data flow in IoT systems can be modeled as:

$$
D_{\text{sensor}} = R_{\text{data}} \times t
$$

Where:
- $( D_{\text{sensor}} )$ is the total data in bytes,
- $( R_{\text{data}} )$ is the data rate in bytes per second (bps),
- $( t )$ is the time in seconds.

This equation shows how data accumulation grows based on the sensor data rate.

## Key Components of IoT Devices

| **Component** | **Function** | **Example** |
|-----------------|-----------------------------------------------------|---------------------------------------|
| Sensors         | Collect data from the environment (e.g., temperature). | Temperature sensor in a smart thermostat |
| Actuators       | Execute actions based on processed data.             | Motor in smart locks                   |
| Microcontroller | Handles data and exchanges information with other devices.  | ESP8266 in smart lights                |
| Connectivity    | Enables communication via Wi-Fi, Bluetooth, etc.     | Zigbee or Wi-Fi module                 |

## Real-World Example: IoT in Smart Homes

Let us consider a smart thermostat:

1. **Sensors** detect the room temperature.
2. **Microcontroller** processes the temperature data and checks against the preset temperature.
3. If the temperature is too low, the **actuator** triggers the heating system.
4. Data is sent via **Wi-Fi** to a cloud service, allowing the homeowner to monitor the system remotely.

### Formula: Energy Efficiency in IoT Systems

For an IoT system to be efficient, energy consumption $( E_{\text{total}} )$ should be minimized. It can be represented as:

$$
E_{\text{total}} = \sum_{i=1}^{n} P_i \times t_i
$$

Where:
- $( P_i )$ is the power consumed by each device component $( i )$,
- $( t_i )$ is the operational time of component $( i )$,
- $( n )$ is the number of components.

This formula helps design energy-efficient IoT devices, which is particularly important in battery-powered systems.

## Popular IoT Applications

| **Application** | **Sector** | **Example** |
|-------------------------|-------------------|-------------------------------------------------|
| Smart Homes             | Consumer          | Smart lights, voice assistants (Amazon Echo)     |
| Healthcare              | Medical           | Remote monitoring, health trackers (Fitbit)      |
| Automation in Industry   | Production     | Predictive maintenance, robotics                 |
| Smart Cities            | Urban Development | Smart streetlights, traffic management systems   |

## Security Concerns in IoT Devices

With good connectivity comes great responsibility. IoT devices often face security risks such as data breaches, malware attacks, and unauthorized access. To secure IoT systems, it's crucial to:

1. **Encrypt data** transmitted between devices.
2. **Update firmware** regularly to patch vulnerabilities.
3. Use **strong authentication methods** like two-factor authentication (2FA).
4. **Monitor device activity** for unusual patterns.

## Conclusion

IoT devices have transformed industries by enabling automation, data collection, and enhanced control. As the IoT ecosystem grows, understanding the core components, architecture, and applications of IoT devices will help you harness the full potential of this technology in your personal or professional projects.

<hr/>

#### **Credits**
&nbsp;&nbsp;- Photo by [Robin Glauser](https://unsplash.com/fr/@nahakiole?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/photographie-a-plat-de-la-carte-de-circuit-imprime-zP7X_B86xOg?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

Discover IoT devices, their architecture, and transformative use cases across industries. Explore key components with examples to understand functionality.

What Are IoT Devices? Types, Examples & How They Work

A Comprehensive Guide to IoT Devices

Smart grids are revolutionizing energy distribution and management. Using advanced digital technologies, they enable more efficient, reliable, and sustainable power distribution. Unlike traditional power grids, smart grids can dynamically respond to energy demand, integrate renewable energy sources, and enable real-time monitoring, making them a key player in the future of energy distribution.

## What is the Definition of a Smart Grid?

A smart grid is more advanced than a regular electrical grid. It utilizes automation, communication technologies, and advanced sensors to optimize electricity generation, distribution, and consumption. It enables two-way communication between energy providers and consumers, offering flexibility and efficiency in managing power flows.

### Key Components of a Smart Grid

Here’s a breakdown of the main components of a smart grid:

| **Component** | **Description** |
| -------------------------- | ------------------------------------------------------------------------------- |
| **Smart Meters** | Real-time electricity monitoring for efficient consumption and billing.         |
| **Sensors and Automation** | Advanced sensors detect issues, and then automation fixes them in real time.          |
| **Energy Storage** | Stores excess energy from renewables, which can be used during peak demand.     |
| **Distributed Energy** | Integrates renewable energy sources such as solar and wind into the power grid. |

## How Do Smart Grids Work?

Traditional grids operate in a one-way flow, sending power from generation plants to consumers. Smart grids, on the other hand, use a two-way flow of electricity and information. It allows them to respond to real-time data, adjusting energy supply and demand as needed.

For example, smart grids can automatically shift to renewable energy sources during high energy demand, store surplus power for later use, or reduce consumption through demand-response programs. They can also reroute power in case of a grid failure, adjust energy prices based on demand, and even predict future energy needs based on historical data.

### Power Flow in Smart Grids

To understand the power flow in intelligent grids, let’s look at the following equation that models the electric power in terms of voltage and [current](/posts/electric-current-a-comprehensive-guide):

$$
P = VI \cos(\theta)
$$

Where:
- $( P )$ = Power (in Watts)
- $( V )$ = Voltage (in Volts)
- $( I )$ = Current (in Amperes)
- $( \theta )$ = Phase angle between the voltage and current

Smart grids continuously monitor and adjust these parameters to optimize efficiency.

## The Role and Impact of Smart Grids on Renewable Energy

Smart grids have many advantages, such as their ability to incorporate renewable energy sources. They are essential for managing intermittent resources like wind and solar power as the world transitions to cleaner energy. They enable efficient energy distribution from renewables and support storage when necessary, ensuring a stable power supply even during fluctuations in renewable generation.

### Solar Energy Integration Example

Solar energy generation is highly variable, depending on the time of day and weather conditions. This variability is managed in intelligent grids using predictive algorithms that estimate energy output. Here’s an example of a fundamental energy balance equation used to forecast solar power availability:

$$
E_{\text{available}} = E_{\text{solar}} - E_{\text{storage}} + E_{\text{demand\_response}}
$$

Where:
- $( E_{\text{available}} )$ = Available energy for consumption
- $( E_{\text{solar}} )$ = Energy generated by solar panels
- $( E_{\text{storage}} )$ = Energy stored in battery systems
- $( E_{\text{demand\_response}} )$ = Adjustments made by reducing or shifting demand

This balance is crucial in maintaining a reliable power grid while maximizing renewable energy use.

## 5 Key Benefits of Smart Grids

- **Enhanced Efficiency**
Smart grids minimize energy waste by aligning energy production more precisely with consumption. Automated systems can manage the grid dynamically, reducing the need for excess power generation.

- **Improved Reliability**
 Real-time monitoring and automation allow smart grids to detect and address problems quickly, minimizing outages and service disruptions.

- **Lower Costs for Consumers**
 Smart grids are not just about efficient energy distribution, but also about reducing costs for consumers. By optimizing energy distribution and promoting efficient energy use, smart grids can lead to lower consumer electricity bills. This potential for cost reduction can make consumers feel more financially secure and less burdened by their energy bills.

- **Environmental Sustainability**
 By integrating more renewable energy sources, smart grids help reduce carbon emissions and other impacts caused by fossil fuel-based power generation.

- **Empowerment of Consumers**
Smart meters and real-time data give users greater control over their energy consumption, enabling informed decisions that help reduce usage and costs.

## Challenges of Smart Grid Implementation

Despite their numerous benefits, implementing smart grids comes with challenges. Infrastructure upgrades require significant investment in digital technologies, smart devices, and cybersecurity. In addition, policies and regulations are necessary to facilitate the use of renewable energy and the modernization of current grid systems. Moreover, the transition from traditional grids to smart grids may face resistance from stakeholders, and the interoperability of different smart grid systems can be challenging.

## Conclusion

Smart grids are the future of electrical energy distribution, offering a cleaner, more reliable, and more efficient system. Integrating advanced technologies and renewable energy sources sets the foundation for a sustainable future. As intelligent grids evolve, They will be essential in reducing dependence on fossil fuels, improving energy security, and tackling global climate challenges.


<hr/>

#### **Credits**
- Photo by [Tyler Casey](https://unsplash.com/fr/@tylercaseyprod?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/white-windmill-during-daytime-ficbiwfOPSo?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

Smart grids revolutionize energy distribution with advanced technologies, improving efficiency and sustainability. Explore their benefits and future impact.

Smart Grids: Technology, Benefits & the Future of Energy Distribution

Understanding Smart Grids: Revolutionizing Energy Distribution

Electrical and Electronics Engineering (EEE) is a dynamic field that combines principles of electrical circuits, electronics, and electromagnetism to develop technologies that power modern infrastructure. EEE plays a crucial role today, from designing electrical power grids to optimizing communication networks.

## Key Areas of EEE

### 1. **Circuit Theory**
Circuit theory is the foundation of EEE, focusing on how electric [currents](/posts/electric-current-a-comprehensive-guide) flow through networks of electrical components such as inductors, capacitors, [resistors](/posts/electrical-resistance-and-how-to-calculate-it), and transistors. Engineers use **Kirchhoff's Laws**, **Ohm's Law**, and **Thevenin's Theorem** to analyze complex circuits, ensuring stability and efficiency in electrical systems.

Understanding circuit theory is vital for designing everything from household electronics to large-scale electrical grids. Circuit analysis techniques help identify power loss, optimize energy distribution, and improve the performance of electronic devices.

### 2. **Power Systems**
Power systems engineering deals with generating, transmitting, and distributing electrical energy. The development of renewable energy and the integration of smart grids have transformed our understanding of power systems.

Critical components of power systems include:
- **Transformers**: Devices that step up or down voltage levels for efficient energy transmission.
- **Power Generators**: Sources of electrical power, including fossil fuel, hydroelectric, wind, and solar energy systems.
- **Load Flow Analysis**: A technique used to determine the optimal operating conditions of electrical grids, ensuring stable power distribution across cities and industries.

The movement to **renewable energy** sources, such as solar and wind, highlights the growing importance of sustainable power systems in combating climate change.

### 3. **Control Systems**
Control systems manage the behavior of machines, processes, and systems. Engineers ensure that systems operate within desired parameters by applying feedback control loops.

There are two primary types of control systems:
- **Open-loop systems**: Operate without feedback, like a simple electric heater.
- **Closed-loop systems**: Use real-time feedback to adjust system performance, such as a thermostat-controlled air conditioning unit.

Control systems are crucial in industrial automation, robotics, and even the development of autonomous vehicles.

### 4. **Signal Processing**
Signal processing involves analyzing and manipulating electrical signals for communication and data transmission. Techniques like Fourier transform and filtering help remove noise and improve signal clarity in audio, video, and telecommunications applications.

Digital signal processing (DSP) is critical in modern devices, from smartphones to medical imaging equipment. Engineers design systems that convert analog signals into digital forms for efficient storage, transmission, and analysis.

### 5. **Electromagnetism and Electromagnetic Compatibility (EMC)**
Electromagnetism studies electric and magnetic fields, fundamental to understanding [motors](/posts/induction-motor-why-we-need-them), [generators](/posts/three-phase-generator-and-applications), and transformers. Engineers must also consider electromagnetic compatibility (EMC) to ensure that electrical devices function correctly without interfering with each other. This is critical in environments where many electronic devices operate close to hospitals and aircraft.

### 6. **Renewable Energy Systems**
With growing environmental concerns, renewable energy systems have become a core focus of EEE. Technologies like photovoltaic (PV) cells, wind turbines, and battery storage systems harness natural energy sources and convert them into electricity. EEE has a vital role in designing, developing, and optimizing these systems, ensuring efficient energy conversion and management.

**Inverters** and **DC-AC converters** are essential in renewable systems to ensure that power generated from these sources can be used in conventional AC electrical grids. Engineers also optimize **power electronics** to manage the variable nature of renewable energy, ensuring a steady electricity supply even when the sun isn't shining or the wind isn't blowing.

## Applications of EEE in Modern Industries

The concepts of EEE are applied across various industries:
- **Telecommunications**: Signal processing transmission lines enable global communication and antennas.
- **Aerospace**: Control systems ensure the safe operation of aircraft and spacecraft.
- **Automotive**: Electric vehicles rely on batteries, control systems, and power electronics.
- **Healthcare**: Biomedical devices use electrical circuits and signal processing for diagnostics and treatment.

### The Role of EEE in Sustainable Development
EEE engineers are at the forefront of developing energy-efficient technologies as the world shifts towards a more sustainable future. Innovations such as smart grids, electric vehicles (EVs), and energy storage solutions are not just reducing carbon emissions, but also creating a cleaner and more efficient energy landscape, inspiring hope for a better tomorrow.

Integrating renewable energy into existing power grids presents challenges and opportunities. EEE engineers are tasked with designing solutions that accommodate renewables' intermittent nature while ensuring grid stability.

## Conclusion

Electrical and Electronics Engineering is a field that continuously evolves with technological advancements. EEE, from the basics of circuit theory to the complexities of renewable energy systems, is a field that promises exciting future possibilities. As the demand grows for sustainable solutions, so does the need for skilled EEE engineers capable of designing systems that power a cleaner, more efficient world.

<hr/>

#### **Credits**
&nbsp;&nbsp;- Photo by [Laurens van der Drift](https://unsplash.com/fr/@laurensvddrift?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/gros-plan-dune-carte-mere-dordinateur-avec-de-nombreux-fils-iv2-3AeAO-A?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

This article explores Electrical and Electronics Engineering, such as circuit theory, power systems, control systems, and renewable energy. And applications.

Electrical vs Electronics Engineering: Key Concepts, Differences & Applications

Exploring Electrical and Electronics Engineering Concepts

Electricity is a fundamental part of modern life, powering homes, businesses, and technology. One of the core concepts in understanding electricity is the idea of "current." In this blog, we will explore what electric current is, the different types of current, and how it is measured, and provide examples to help you better grasp this essential concept.

## What is an Electric Current?
The electric current is defined as the movement of electric charge in a conductor. This flow occurs when electrons move from one point to another, driven by a difference in voltage. In simpler terms, the movement of electrons powers your devices, appliances, and lighting.
The formula for electric current is:

$$
\text{Current (I)} = \frac{\text{Voltage (V)}}{\text{Resistance (R)}}
$$

Where:
- **I** the current in amperes (A)
- **V** the voltage in volts (V)
- **R** the resistance in ohms (Ω)

## Types of Electric Current
There are two primary types of electric current: Direct Current (DC) and Alternating Current (AC). Each has unique characteristics and applications.

| **Type of Current** | **Description** | **Example Applications** |
|--------------------------|-----------------------------------------------------------------|----------------------------------------------------------------------------------------|
| **Direct Current (DC)** | The flow of electrons and electric charge in one direction only.              | They are used in batteries, solar panels, and laptops.                                  |
| **Alternating Current (AC)** | Electrons and electric charge flow periodically in reverse direction. | Powers most household appliances and buildings, including TVs, washing machines, and lights. |


#### Example: Understanding DC and AC in Real Life
**DC Example:** When you use a battery-powered flashlight, the current flows in one direction from the battery, through the bulb, and back to the battery. It's called direct current.

**AC Example:** In your home, the power you get from the electrical outlet is alternating current. The direction of the current reverses many times per second, making it ideal for large-scale power transmission.

## How is Electric Current Measured?
We measure electric current in the ampere (A) unit, often called an "amp." The more amps a circuit has, the more electricity flows through it. Electric current is measured using an ammeter, a device designed to measure the current flow in a circuit.

| **Current Strength** | **Description** | **Example** |
|-----------------------|---------------------------------------------------|----------------------------------------------------------------|
| **1-5 Amps** | Small current, commonly found in devices like mobile chargers. | A phone charger might draw about two amps.                       |
| **10-20 Amps** | Medium current, typical in household appliances.  | A microwave oven can use 10-15 amps.                           |
| **Over 50 Amps** | Large current, often used in industrial applications. | An industrial motor might require over 50 amps to operate.      |

#### Example: Measuring current in a Circuit
Imagine you are building a circuit with a light bulb. The battery's voltage is 9V, and the bulb's [resistance](/posts/electrical-resistance-and-how-to-calculate-it) is 3Ω. To find the current flowing through the circuit, you use Ohm's law:
$$
I = \frac{V}{R} = \frac{9V}{3Ω} ​= 3A
$$
So, the current is three amps.

## Applications of Electric Current
Electric current powers virtually everything we use daily, from small gadgets to industrial machines. Here are some practical applications where electric current plays a crucial role:
- **Lighting**: Light bulbs convert electrical energy into light by allowing current to flow through a filament or semiconductor, producing illumination.
- **Electronics**: Smartphones, computers, and tablets rely on precise electric current control.
- **Heating**: Electric stoves, water heaters, and space heaters use electric current to generate heat.
- **Motors**: Electric motors in appliances like refrigerators, air conditioners, and power tools depend on electric current to generate motion.

| **Application** | **Type of Current Used** | **Example** |
|--------------------------|---------------------------|------------------------------------------------------------------------|
| **Lighting** | Both AC and DC            | LED lights use DC, while standard bulbs often use AC.                   |
| **Consumer Electronics** | DC                        | Phones, laptops, and other devices use DC.                             |
| **Household Appliances** | AC                        | Washing machines, dishwashers, and ovens use AC.                       |

## Electric Current Safety Tips
Handling electric current can be dangerous if you're not careful. Here are some essential safety tips when working with electric currents:
- **Always switch off the power** before working on electrical circuits.
- **Use insulated tools** when working with electricity.
- **Do not overload circuits**, as this can lead to overheating and potentially cause a fire.
- **Keep water away from electrical devices** to avoid short circuits and shocks.

## Conclusion
Electric current is the backbone of modern electrical systems, powering everything from simple light bulbs to complex industrial machines. By understanding the basics of electric current, you can better appreciate how electricity powers the world around you and apply this knowledge to everyday situations, empowering you with a deeper understanding of the technology we rely on.
Whether learning about electrical circuits for the first time or looking to deepen your understanding, the flow of current through a conductor is a critical concept that can lead to countless technological advancements.

<hr/>

#### **Credits**
&nbsp;&nbsp;- Photo by [Veroniki Thetis Chelioti](https://unsplash.com/fr/@veroniki?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/fr/photos/ampoule-a-incandescence-eteinte-9ZnZAn3v9wk?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

This guide explains electric current, covering flow in circuits, conductors, insulators, practical uses, and tips for optimizing systems for efficiency.

Electric Current Explained: Key Concepts, Types & Practical Uses

Understanding Electric Current: A Comprehensive Guide

A solar panel is a versatile component that utilizes photovoltaic cells to transform solar rays into electricity. PV cells use materials that produce electricity when exposed to light. This versatility allows them to be used for various purposes, from powering homes to supporting businesses. This guide explores how these energy panels work and why you should use them for your house or business, showcasing their adaptability and flexibility.

## How a Solar Panel Works ?!

Solar panels convert sunlight Energy into usable power. It's a fascinating process: The panels absorb sunlight and convert it into electricity or heat. There are two energy sources from the sun for our use: electricity and heat. This simple yet intriguing process makes solar panels such a powerful tool.

These solar panels, which come in various sizes, can generate electricity and heat. They can be found on residential rooftops, providing energy for individual homes, or on 'solar farms' spanning rural land, contributing to large-scale energy production.

## How is Electricity Produced from Solar Energy?

Solar panels, designed with simplicity in mind, are made using silicon or any other semiconductor material. They are then installed in a metal frame with a glass casing. When the panel is exposed to sunlight, it emits electrons and generates an electrical charge, a straightforward process that ensures its functionality.

This charge creates an [electric current](/posts/electric-current-a-comprehensive-guide), flowing in one direction (DC or direct current), in the wires of solar panels. The DC electricity from the solar panels should be then converted into AC electricity.

## Can Solar Panels Be Considered a Clean Source of Energy?

Solar energy is a renewable source of electric power that creates no harmful greenhouse gas emissions. It only depends on the sun; as long as there is sunlight, solar power is free, clean energy.

Solar panels have a small carbon footprint because they last longer. In addition, the materials used in them are recyclable.

## The 3 Main Types of Solar Panels

Four major solar panel types are available today: monocrystalline, polycrystalline, PERC, and thin-film panels.

&nbsp;&nbsp;&nbsp;&nbsp;- **Monocrystalline solar panels**
These panels, often called single-crystal panels, are formed from a one wafer of pure silicon divided into many pieces. Their intense black appearance easily identifies them as composed entirely of silicon. Pure silicon also makes this type of solar panel durable and space-efficient.

Less silicon material is wasted to produce only a single monocrystalline cell, resulting in a considerable price tag.

&nbsp;&nbsp;&nbsp;&nbsp;- **Polycrystalline solar panels**
Polycrystalline solar panels are made from various types of silicon crystals. The silicon chunks are dissolved and poured into a square mold. Due to last wastage, this makes polycrystalline cells affordable and gives them a square shape.

However, because they have a lower silicon structure and purity than monocrystalline panels, they are also less efficient regarding energy conversion and space.

&nbsp;&nbsp;&nbsp;&nbsp;- **Passivated Emitter and Rear Cell Panels (PERC)**
PERC solar panels are a modification of the classic monocrystalline cell.
This new technology aims to add a layer called passivation layer to the rear surface of the cell. Some of the benefits include:

It inhibits the movement of electrons within the system and lessens their innate desire to recombine.
An increased amount of absorbed solar radiation in the cells.
Only greater wavelengths of light get reflected. Silicon wafers cannot absorb wavelengths greater than 1800 nm, and they pass through, which ends up heating the back sheet of the cell, resulting in reduced efficiency.



## The 5 Reasons Why Solar Panels Are Beneficial

The field of solar technology is in a constant state of evolution, enhancing our ability to rely on solar energy. The rapid growth in solar energy usage and its development outpacing all other fuels is a testament to its promising future.

Now, let's dive into the five key reasons solar panels benefit individuals and industries alike.

&nbsp;&nbsp;- Solar Energy is clean
&nbsp;&nbsp;- Not dependent on other sources of Energy
&nbsp;&nbsp;- Less maintenance
&nbsp;&nbsp;- Electricity Bill Reduction
&nbsp;&nbsp;- Renewable Energy


## Conclusion

In conclusion, clean energy solutions, particularly solar panels, are crucial in the fight against climate change and environmental degradation. Solar panels offer numerous benefits, including reduced greenhouse gas emissions, increase energy security, and job creation in the renewable energy sector. The increasing adoption of solar panels is a key step towards mitigating the impacts of climate change and ensuring a cleaner, brighter future for generations to come.


<hr/>

#### **Credits**
&nbsp;&nbsp;- Photo by [Manny Becerra](https://unsplash.com/@mannyb?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash) on [Unsplash](https://unsplash.com/photos/solar-panels-on-brown-field-under-white-clouds-during-daytime-NgdhrwAx0J8?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash)

Discover how solar panels convert sunlight into electricity using photovoltaic cells—their benefits and why it's a smart choice for your home or business.

UPS Sizing Guide: Complete Calculation with Battery Runtime & Load Analysis

Featured

Air Conditioner Sizing: BTU Load Calculations, Tonnage Selection & Cooling Load Analysis (ft² & m²)

Modbus Protocol: Complete Guide to RTU, TCP & ASCII with Wiring Examples

Star Delta Starter: Complete Wiring Guide with Timer Calculations & Troubleshooting

Solar Charge Controller Sizing: Complete Calculator Guide with MPPT Selection

Motor Overload Protection: Complete Sizing Guide with Charts & Selection Criteria

Latest Articles

UPS Sizing Guide: Complete Calculation with Battery Runtime & Load Analysis

Air Conditioner Sizing: BTU Load Calculations, Tonnage Selection & Cooling Load Analysis (ft² & m²)

Modbus Protocol: Complete Guide to RTU, TCP & ASCII with Wiring Examples

PVC Conduit Fill Chart for 10 AWG Wire: Complete NEC Guide with Capacity Tables

Star Delta Starter: Complete Wiring Guide with Timer Calculations & Troubleshooting

Solar Charge Controller Sizing: Complete Calculator Guide with MPPT Selection
