When installing 30-amp circuits for electric dryers, water heaters, or small air conditioning units, proper PVC conduit sizing for 10 AWG wire is critical for code compliance and safe operation. Understanding conduit fill requirements ensures your electrical installation meets National Electrical Code (NEC) standards while preventing wire damage and overheating issues.

This focused guide provides complete PVC conduit fill charts specifically for 10 AWG wire, including both Schedule 40 and Schedule 80 conduit, with practical examples for common residential and commercial applications.

## Understanding 10 AWG Wire Specifications

### 10 AWG Wire Characteristics

**Physical Properties:**
- **Diameter**: 0.1019 inches (2.588 mm)
- **Cross-sectional area (THHN)**: 0.00815 square inches
- **Cross-sectional area (THWN-2)**: 0.00815 square inches

**Electrical Ratings (Copper):**
- **75°C rating**: 30 amperes
- **90°C rating**: 35 amperes
- **Typical applications**: 30A circuits

**Common Uses:**
- Electric clothes dryers (30A, 240V)
- Electric water heaters (30A, 240V)
- Small central air conditioners
- RV electrical connections
- Sub-panel feeders (short runs)

## PVC Conduit Fill Chart for 10 AWG Wire

### Schedule 40 PVC Conduit Capacity

Based on NEC Chapter 9, Table 4 (40% fill for 3+ conductors):

| **Conduit Size** | **Max 10 AWG THHN Conductors** | **Max 10 AWG THWN-2 Conductors** | **40% Fill Area (sq in)** |
|------------------|-------------------------------|----------------------------------|---------------------------|
| **1/2 inch** | 6 | 6 | 0.114 |
| **3/4 inch** | 10 | 10 | 0.203 |
| **1 inch** | 16 | 16 | 0.333 |
| **1-1/4 inch** | 29 | 29 | 0.581 |
| **1-1/2 inch** | 40 | 40 | 0.794 |
| **2 inch** | 65 | 65 | 1.316 |

### Schedule 80 PVC Conduit Capacity

Schedule 80 has thicker walls, reducing interior capacity:

| **Conduit Size** | **Max 10 AWG THHN Conductors** | **Max 10 AWG THWN-2 Conductors** | **40% Fill Area (sq in)** |
|------------------|-------------------------------|----------------------------------|---------------------------|
| **1/2 inch** | 4 | 4 | 0.087 |
| **3/4 inch** | 8 | 8 | 0.164 |
| **1 inch** | 13 | 13 | 0.275 |
| **1-1/4 inch** | 24 | 24 | 0.495 |
| **1-1/2 inch** | 33 | 33 | 0.677 |
| **2 inch** | 56 | 56 | 1.127 |

<Notice type="info">
💡 Key Insight: Schedule 80 PVC is typically used only where physical protection is required (exposed locations, direct burial without additional protection). For most residential installations, Schedule 40 is sufficient and provides greater wire capacity.
</Notice>

## Common 10 AWG Circuit Configurations

### Residential Applications

#### Electric Dryer Circuit (10/3 with Ground)
- **Conductors needed**: 4 (2 hots, 1 neutral, 1 ground)
- **Minimum conduit**: 3/4 inch Schedule 40 PVC
- **Circuit rating**: 30 amperes at 240V
- **NEC reference**: 210.23(C)

#### Electric Water Heater Circuit (10/2 with Ground)
- **Conductors needed**: 3 (2 hots, 1 ground)
- **Minimum conduit**: 1/2 inch Schedule 40 PVC
- **Circuit rating**: 30 amperes at 240V
- **Note**: No neutral required for straight 240V heating elements

#### Window AC Unit Circuit (10/2 with Ground)
- **Conductors needed**: 3 (1 hot, 1 neutral, 1 ground)
- **Minimum conduit**: 1/2 inch Schedule 40 PVC
- **Circuit rating**: 30 amperes at 120V or 240V

## Step-by-Step Conduit Sizing Example

### Example: Home Electric Dryer Installation

**Circuit Requirements:**
- 30A, 240V electric dryer
- Using 10 AWG THHN copper wire
- Run: 40 feet from panel to laundry room
- Configuration: 10/3 with ground (4 conductors)

**Step 1: Identify Wire Count**
Total conductors = 4 (2 hots + 1 neutral + 1 ground)

**Step 2: Determine 10 AWG Area**
Each 10 AWG THHN = 0.00815 sq in
Total area = 4 × 0.00815 = 0.0326 sq in

**Step 3: Calculate Required Conduit Size**
Need conduit with 40% fill ≥ 0.0326 sq in

From chart:
- 1/2 inch PVC (0.114 sq in) ✓ Adequate
- Can accommodate up to 6 conductors

**Step 4: Apply Derating (if applicable)**
With 4 conductors, ampacity adjustment = 80%
30A × 0.80 = 24A (still adequate for 30A breaker protection)

**Selection: 3/4 inch Schedule 40 PVC** (provides margin for easier pulling)

<Notice type="warning">
⚠️ Wire Pulling Tip: While 1/2 inch conduit is technically sufficient for 4 conductors of 10 AWG, using 3/4 inch conduit makes wire pulling significantly easier and reduces damage risk during installation. The minimal cost difference is worthwhile.
</Notice>

## NEC Requirements for 10 AWG Conduit Fill

### Key Code References

**NEC Chapter 9, Table 4:**
- Establishes maximum fill percentages
- 53% for one conductor
- 31% for two conductors
- 40% for three or more conductors

**NEC 300.17:**
- Requires conduit fill calculations
- Prohibits damaged conductor insulation
- Mandates smooth wire pulling

**NEC 310.15(C)(1):**
- Ampacity adjustment for bundled conductors
- Temperature correction factors
- Applies when more than 3 current-carrying conductors

### Ampacity Derating Factors

When multiple conductors share a conduit:

| **Number of Current-Carrying Conductors** | **Adjustment Factor** |
|------------------------------------------|---------------------|
| **4-6** | 80% |
| **7-9** | 70% |
| **10-20** | 50% |
| **21-30** | 45% |

**Example Calculation:**
- Base ampacity (10 AWG copper, 75°C): 30A
- With 6 conductors: 30A × 0.80 = 24A
- With 9 conductors: 30A × 0.70 = 21A

## Quick Reference Guide

### Most Common Installations

| **Application** | **Wire Configuration** | **Conductor Count** | **Minimum PVC Size** |
|-----------------|------------------------|---------------------|---------------------|
| **Electric Dryer** | 10/3 w/ ground | 4 | 3/4 inch |
| **Water Heater** | 10/2 w/ ground | 3 | 1/2 inch |
| **30A Sub-panel Feed** | 10/3 w/ ground | 4 | 3/4 inch |
| **AC Disconnect** | 10/2 w/ ground | 3 | 1/2 inch |
| **Multiple Circuits** | (2) 10/2 w/ ground | 6 | 3/4 inch |

### Best Practices for Installation

1. **Size up when uncertain** - Larger conduit simplifies wire pulling
2. **Consider future needs** - Extra capacity allows circuit additions
3. **Use pulling lubricant** - Reduces friction and insulation damage
4. **Avoid sharp bends** - Maintain minimum bend radius requirements
5. **Verify local amendments** - Some jurisdictions have stricter requirements

## Conclusion

Proper PVC conduit sizing for 10 AWG wire ensures NEC compliance, safe installation, and easy maintenance. For typical residential 30-amp circuits using 10/3 or 10/2 cable configurations, 3/4 inch Schedule 40 PVC conduit provides adequate capacity with comfortable pulling clearance.

Remember these key points:
- **3/4 inch conduit** accommodates most 10 AWG residential applications
- **Apply 40% fill rule** for three or more conductors
- **Consider ampacity derating** when bundling multiple circuits
- **Schedule 40 vs 80** affects conductor capacity significantly
- **Always verify** with current NEC and local code requirements

For comprehensive conduit fill information including other wire sizes and detailed calculations, see our [Complete Conduit Fill Chart and Calculator Guide](/posts/conduit-fill-chart-and-calculator-complete-nec-guide).

---

## 🔗 Related Posts

- [Conduit Fill Chart & Calculator: Complete NEC Guide with Wire Capacity Tables](/posts/conduit-fill-chart-and-calculator-complete-nec-guide)

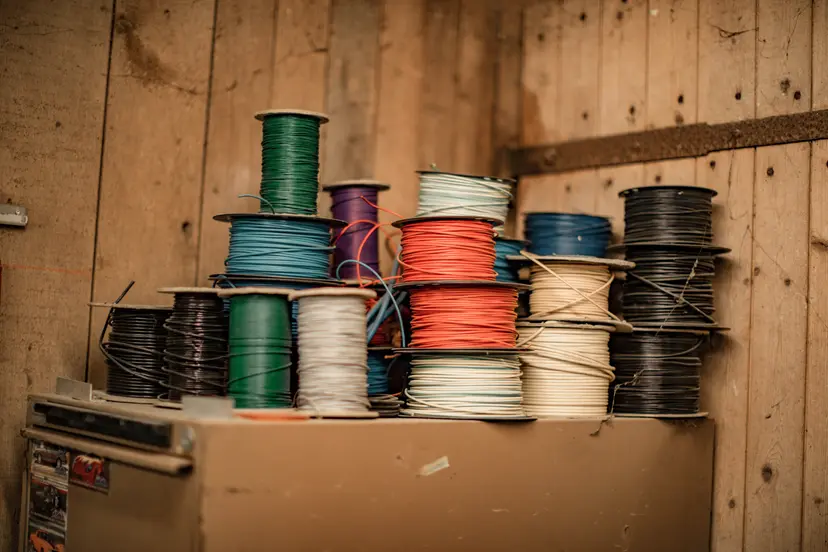

- [Wire Size Calculator: Complete Guide with Single Phase, 3-Phase & DC Calculations](/posts/wire-size-calculator-complete-guide)
