Solar Panel Wire Sizing: Complete Guide with Calculator, Charts & NEC Requirements

Proper solar panel wire sizing is critical for system safety, efficiency, and compliance with electrical codes. Using undersized wire in your solar installation can result in dangerous overheating, significant energy losses from voltage drop, and costly equipment failures. Whether you're installing a small off-grid system or a large grid-tied array, understanding solar cable sizing calculations ensures your system operates safely and delivers maximum power output.

This comprehensive guide provides everything you need to correctly size solar wires: calculation formulas, wire size charts for common configurations, voltage drop tables, and NEC code requirements specific to photovoltaic systems.

Table of Contents

1. Understanding Solar Wire Sizing Basics
2. Factors Affecting Solar Cable Size
3. Solar Wire Size Calculation Formula
4. Solar Wire Size Charts
5. Step-by-Step Sizing Process
6. NEC Requirements for Solar Installations
7. Common Sizing Mistakes

Understanding Solar Wire Sizing Basics

Why Solar Wire Sizing Matters

Proper solar cable sizing directly impacts three critical areas:

Safety: Undersized wire overheats, potentially causing insulation failure and fires. Solar systems operate in harsh outdoor environments where proper wire ratings are essential.

Efficiency: Excessive voltage drop in undersized wire reduces power delivery. A 5% voltage drop means 5% less solar energy reaching your batteries or inverter - wasted sunlight and lost savings.

Code Compliance: National Electrical Code (NEC) Article 690 sets specific requirements for photovoltaic wire sizing. Non-compliant installations can fail inspections and void insurance.

DC vs. AC Solar Cables

Solar systems use two distinct cable types:

Cable Type	Application	Wire Type	Key Requirements
DC Cables	Panels to charge controller/inverter	PV wire, USE-2, RHW-2	UV-resistant, outdoor-rated, 90°C minimum
AC Cables	Inverter to grid/loads	THWN, THWN-2	Standard electrical wire, indoor/outdoor rated

Solar Wire Types

PV Wire (Photovoltaic Wire):

• Rated for 90°C (194°F) or 105°C (221°F)
• UV-resistant insulation (typically XLPE)
• Wet/dry rated for outdoor use
• Most common for solar arrays

USE-2 (Underground Service Entrance Cable):

• Rated for 90°C
• Direct burial capable
• Excellent UV resistance
• Alternative to PV wire

Factors Affecting Solar Cable Size

1. System Current

Calculate maximum current your wire must carry:

$$I_{\text{max}} = \frac{\text{Panel Watts}}{\text{System Voltage}} \times 1.25$$

The 1.25 safety factor accounts for NEC 690.8(B)(1) requirement to size conductors for 125% of short-circuit current.

Example:

• 4 × 300W panels = 1200W
• 24V system voltage
• $I_{\text{max}} = \frac{1200W}{24V} \times 1.25 = 62.5A$

2. Wire Run Distance

Longer distances require larger wire to maintain acceptable voltage drop. Solar systems typically use 2-3% maximum voltage drop for DC circuits.

3. Ambient Temperature

High rooftop temperatures reduce wire ampacity. NEC 310.15(B)(3)(c) requires temperature correction:

Ambient Temperature	Correction Factor (90°C wire)
86-104°F (30-40°C)	0.91
105-113°F (41-45°C)	0.82
114-122°F (46-50°C)	0.71

Adjusted ampacity = Base ampacity × Temperature factor

4. Conduit Fill

When multiple conductors run in conduit, apply NEC 310.15(B)(3)(a) derating:

Conductors in Conduit	Derating Factor
1-3	1.0 (no derating)
4-6	0.8
7-9	0.7

Solar Wire Size Calculation Formula

Voltage Drop Method

The most practical method for solar installations:

$$\text{Wire CM} = \frac{2 \times K \times I \times L}{\text{VD}}$$

Where:

• CM = Circular mils (wire cross-section)
• K = Resistance constant (12.9 for copper)
• I = Current in amperes
• L = One-way distance in feet
• VD = Acceptable voltage drop in volts

Voltage Drop Percentage

Calculate acceptable voltage drop in volts:

$$\text{VD (volts)} = \text{System Voltage} \times \text{VD\%}$$

Recommended voltage drop limits:

• DC circuits (panels to controller): 3% maximum
• AC circuits (inverter to grid): 3% maximum
• Combined DC + AC: 5% maximum total

Complete Sizing Example

System Specifications:

• 6 × 400W panels = 2400W
• 48V DC system
• 80-foot wire run (panels to charge controller)
• Ambient temperature: 95°F

Step 1: Calculate Current

$$I = \frac{2400W}{48V} \times 1.25 = 62.5A$$

Step 2: Calculate Acceptable Voltage Drop

$$\text{VD} = 48V \times 0.03 = 1.44 \text{ volts}$$

Step 3: Calculate Required Wire Size

$$\text{CM} = \frac{2 \times 12.9 \times 62.5 \times 80}{1.44} = 89,583 \text{ CM}$$

Step 4: Select Wire Size

• 4 AWG copper = 41,740 CM (too small)
• 3 AWG copper = 52,620 CM (too small)
• 2 AWG copper = 66,360 CM (too small)
• 1 AWG copper = 83,690 CM (closest acceptable)
• 1/0 AWG copper = 105,600 CM (safer choice)

Step 5: Apply Temperature Derating At 95°F (35°C), use 0.91 correction factor:

• 1 AWG ampacity: 130A × 0.91 = 118A ✓ (exceeds 62.5A)

Final Selection: 1 AWG copper PV wire

Solar Wire Size Charts

Quick Reference: 12V Systems

Wire Size	Max Distance (ft)	Max Current	Typical Application
10 AWG	15	30A	Small panels, short runs
8 AWG	25	40A	Single panel to controller
6 AWG	35	55A	Multiple panels, medium runs
4 AWG	55	70A	Large arrays, longer runs
2 AWG	90	95A	Heavy loads, extended runs

Based on 3% voltage drop at 12V DC

Quick Reference: 24V Systems

Wire Size	Max Distance (ft)	Max Current	Typical Application
10 AWG	30	30A	2-3 panels, moderate runs
8 AWG	50	40A	4-5 panels, standard arrays
6 AWG	70	55A	Medium to large arrays
4 AWG	110	70A	Large arrays, long runs
2 AWG	180	95A	Very large systems

Based on 3% voltage drop at 24V DC

Quick Reference: 48V Systems

Wire Size	Max Distance (ft)	Max Current	Typical Application
10 AWG	60	30A	Standard residential arrays
8 AWG	100	40A	Medium commercial arrays
6 AWG	140	55A	Large residential/commercial
4 AWG	220	70A	Large commercial arrays
2 AWG	360	95A	Very large installations

Based on 3% voltage drop at 48V DC

Step-by-Step Sizing Process

Step 1: Gather System Information

Document these specifications:

• Total panel wattage
• System voltage (12V, 24V, 48V, etc.)
• Wire run distance (one-way, in feet)
• Ambient temperature where wire runs
• Installation method (in conduit, free air, etc.)

Step 2: Calculate System Current

Use the 1.25 NEC safety factor:

$$I = \frac{\text{Total Watts}}{\text{System Voltage}} \times 1.25$$

Step 3: Determine Voltage Drop Limit

Choose appropriate limit:

• Standard: 3% for DC circuits
• Critical systems: 2% for minimal losses
• Budget constrained: Up to 5% (not recommended)

Step 4: Calculate Wire Size

Use the voltage drop formula or reference charts above based on your system voltage and current.

Step 5: Apply Derating Factors

Adjust for:

• Temperature: Use NEC Table 310.15(B)(3)(c)
• Conduit fill: Use NEC Table 310.15(B)(3)(a)
• Multiple circuits: Additional derating may apply

Step 6: Verify and Select

Confirm selected wire size meets:

• Ampacity requirements after derating
• Voltage drop limits
• NEC Article 690 requirements
• Available wire types and costs

NEC Requirements for Solar Installations

Article 690: Solar Photovoltaic Systems

690.8 - Circuit Sizing and Current:

• Size conductors for 125% of maximum circuit current
• Account for continuous loads (operate 3+ hours)

690.31 - Wiring Methods:

• DC circuits must use approved wiring methods
• Exposed wiring requires UV-resistant cable (PV wire, USE-2)
• Minimum 90°C temperature rating required

690.45 - Size and Ampacity:

• DC circuits: 125% of maximum current rating
• Account for temperature correction factors
• Include safety margin for environmental conditions

Wire Temperature Ratings

Solar installations require high-temperature wire ratings:

Wire Rating	Application	Color Code
90°C (194°F)	Standard solar installations	Varies by manufacturer
105°C (221°F)	High-temperature environments	Varies by manufacturer

Common Sizing Mistakes

Mistake 1: Using Voltage Drop Tables for Wrong Voltage

Problem: Applying 120V AC voltage drop tables to 24V DC solar systems.

Impact: Severe undersizing leading to 10-15% voltage drop and power loss.

Solution: Always use solar-specific calculations or charts for your system voltage.

Mistake 2: Ignoring Temperature Effects

Problem: Not applying temperature correction for hot rooftop installations.

Impact: Wire operates above rated capacity, risking insulation failure.

Solution: Use NEC temperature correction factors for ambient conditions.

Mistake 3: Measuring Round-Trip Distance

Problem: Using total wire length (to and from) instead of one-way distance in calculations.

Impact: Selecting wire one size too small (voltage drop formula already accounts for both conductors).

Solution: Always use one-way distance in calculations - the formula factor of "2" accounts for the return path.

Mistake 4: Using Non-Solar-Rated Wire

Problem: Installing standard THWN wire for DC solar circuits.

Impact: Rapid UV degradation, insulation failure, code violations, failed inspections.

Solution: Use only PV wire, USE-2, or other solar-rated cable types for exposed DC circuits.

Mistake 5: Skipping Safety Factors

Problem: Sizing wire for nameplate current without NEC 125% multiplier.

Impact: Wire operates at or above rated capacity, overheating risk.

Solution: Always apply 1.25 safety factor to calculated current.

Practical Application Examples

Example 1: Small Off-Grid Cabin

System:

• 4 × 300W panels (1200W total)
• 24V battery bank
• 40-foot wire run

Calculation:

$$I = \frac{1200W}{24V} \times 1.25 = 62.5A$$

Chart Reference: At 24V for 40ft run carrying 62.5A, requires between 6 AWG (55A at 70ft) and 4 AWG (70A at 110ft).

Selection: 4 AWG PV wire (provides safety margin)

Example 2: Grid-Tied Residential

System:

• 20 × 400W panels (8000W total)
• 48V string inverter
• 100-foot wire run
• Southern exposure, hot climate

Calculation:

$$I = \frac{8000W}{48V} \times 1.25 = 208A$$

Temperature correction (110°F): 0.71 factor

Chart Reference: 48V, 100ft run at 208A far exceeds standard charts.

Required: 4/0 AWG or larger, consider multiple parallel runs of smaller wire with proper overcurrent protection.

Wire Selection Best Practices

Choosing Wire Type

1. Exposed DC Circuits: PV wire or USE-2 only
2. In Conduit: PV wire, USE-2, or RHW-2
3. AC Circuits: Standard THWN-2 acceptable
4. Wet Locations: Ensure "W" rating (wet-rated)

Installation Tips

• Label all conductors: Positive, negative, and grounding
• Use proper connectors: MC4 for PV wire connections
• Protect from physical damage: Use conduit where required
• Maintain proper bend radius: Typically 8× wire diameter minimum
• Secure properly: Support every 4.5 feet per NEC 690.31(E)

Conclusion

Proper solar panel wire sizing is essential for safe, efficient, and code-compliant photovoltaic installations. By understanding the key factors - system current, voltage, distance, and environmental conditions - and applying the correct calculation methods, you can select wire sizes that protect your investment and maximize energy harvest.

Key Takeaways:

• Always use the 125% NEC safety factor for solar circuits
• Limit voltage drop to 3% for DC circuits
• Use only solar-rated wire (PV wire, USE-2) for exposed DC circuits
• Apply temperature correction factors for hot environments
• When in doubt, size up - the modest additional wire cost is insurance against problems

For more detailed electrical calculations and system design guidance, explore our related resources on voltage drop calculations and wire sizing for other applications.

---

🔗 Related Posts

• How Solar Panels Work: A Comprehensive Guide
• Wire Size Calculator: Complete Guide with Single Phase, 3-Phase & DC Calculations
• Complete Guide to Voltage Drop: Calculations, Tables & Calculators
• Circuit Breaker Sizing: Complete Guide with Wire Size Charts & NEC Code Requirements

Helpful Calculators

• Voltage Drop Calculator
• Ohm's Law Calculator
• Power Factor Calculator
• Capacitor and Inductor Reactance Calculator

---

Credits

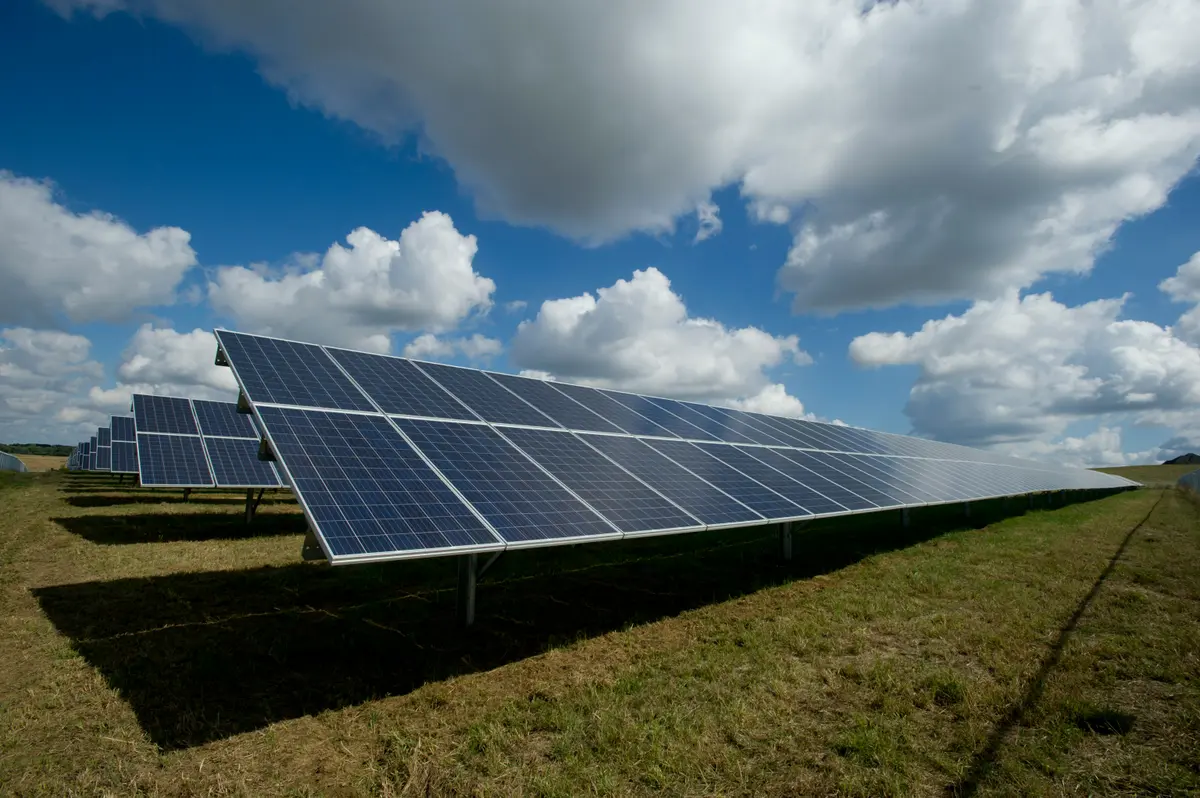

• Photo by American Public Power Association on Unsplash

---
