Short Circuit Current Calculation: Complete Guide with X/R Ratio, Fault Analysis & Equipment Rating

Short circuit current calculations are among the most critical analyses in power system design, directly impacting equipment safety, protection coordination, and personnel protection. When a fault occurs in an electrical system, massive currents can flow—often 10 to 50 times normal operating current—within milliseconds. Understanding how to calculate these fault currents accurately determines whether your circuit breakers, fuses, and protective devices can safely interrupt these deadly currents before equipment damage or injury occurs.

Every electrical installation, from residential panels to industrial substations, requires proper fault current analysis to ensure safe operation. Undersized protective equipment can explode catastrophically under fault conditions, while oversized equipment wastes capital and complicates coordination. This comprehensive guide provides the essential calculations, standards compliance (IEC 60909 and ANSI), and practical examples you need for accurate fault analysis and equipment selection.

Understanding Short Circuit Fundamentals

What Causes Short Circuit Currents?

A short circuit occurs when an unintended low-impedance path forms between:

• Phase-to-ground (most common in grounded systems)
• Phase-to-phase (line-to-line faults)
• Three-phase (bolted faults, highest magnitude)
• Double line-to-ground (two phases to ground)

Physical Causes:

• Insulation failure from aging or damage
• Accidental contact during maintenance
• Lightning strikes and switching surges
• Animal or environmental contamination
• Equipment manufacturing defects

Why Fault Current Calculations Matter

Critical Applications:

• Equipment rating selection: Breakers, fuses, switches must withstand fault duty
• Protection coordination: Ensuring proper device operation sequence
• Arc flash hazard analysis: Determining PPE requirements and incident energy
• Conductor sizing: Short-circuit withstand capability
• System design: Bus bar and switchgear ratings

Symmetrical Fault Current Calculation

Basic Three-Phase Fault Formula

The fundamental equation for symmetrical (AC component only) short circuit current:

$$I_f = \frac{V}{\sqrt{3} \times Z_{\text{total}}}$$

Where:

• $I_{f}$ = Three-phase fault current (amperes)
• $V$ = Line-to-line voltage (volts)
• $Z_{total}$ = Total impedance from source to fault (ohms)

In Per Unit System:

$$I_{f(\text{pu})} = \frac{1.0}{Z_{\text{total(pu)}}}$$

Convert to actual amperes:

$$I_f = I_{f(\text{pu})} \times I_{\text{base}}$$

Where:

$$I_{\text{base}} = \frac{S_{\text{base}}}{\sqrt{3} \times V_{\text{base}}}$$

Step-by-Step Calculation Method

Step 1: Gather System Data

• Utility short circuit MVA or impedance
• Transformer impedances and ratings
• Cable/conductor impedances and lengths
• Generator subtransient reactances
• Motor contributions (if significant)

Step 2: Select Base Values Choose system-wide base values using per unit system:

• $S_{base}$ (typically 100 MVA or 10 MVA)
• $V_{base}$ at each voltage level

Step 3: Convert All Impedances to Per Unit

$$Z_{\text{pu}} = Z_{\text{actual}} \times \frac{S_{\text{base}}}{V_{\text{base}}^2}$$

Step 4: Calculate Total Impedance Sum all impedances in series:

$$Z_{\text{total}} = Z_{\text{utility}} + Z_{\text{trans}} + Z_{\text{cable}} + Z_{\text{others}}$$

Step 5: Calculate Fault Current Apply the symmetrical fault current formula.

Example 1: Industrial Plant Fault Calculation

Given System:

• Utility: 500 MVA short circuit capacity at 13.8 kV
• Transformer: 5 MVA, 13.8/0.48 kV, 5.5% impedance
• Cable: 100 feet of 500 kcmil copper, Z = 0.027 + j0.036 Ω/1000 ft
• Fault location: 480V bus

Choose Base Values:

• $S_{base}$ = 10 MVA
• $V_{base}$ = 13.8 kV (primary), 0.48 kV (secondary)

Calculate Base Impedance at 480V:

$$Z_{\text{base}} = \frac{(0.48)^2}{10} = 0.02304 \text{ Ω}$$

Convert Utility Impedance:

$$Z_{\text{utility(pu)}} = \frac{S_{\text{base}}}{S_{\text{SC}}} = \frac{10}{500} = 0.02 \text{ pu}$$

Convert Transformer Impedance:

$$Z_{\text{trans(pu)}} = 0.055 \times \frac{10}{5} = 0.11 \text{ pu}$$

Convert Cable Impedance: Cable impedance = (0.027 + j0.036) × 0.1 = 0.0027 + j0.0036 Ω

$$Z_{\text{cable(pu)}} = \frac{0.0045}{0.02304} = 0.195 \text{ pu (magnitude)}$$

Total Impedance:

$$Z_{\text{total}} = 0.02 + 0.11 + 0.195 = 0.325 \text{ pu}$$

Calculate Base Current at 480V:

$$I_{\text{base}} = \frac{10,000,000}{\sqrt{3} \times 480} = 12,028 \text{ A}$$

Symmetrical Fault Current:

$$I_f = \frac{1.0}{0.325} \times 12,028 = 37,009 \text{ A} \approx 37 \text{ kA}$$

Result: Available fault current = 37 kA symmetrical Required minimum breaker interrupting rating = 37 kA × 1.25 = 46.25 kA (select 50 kA breaker)

X/R Ratio and Its Critical Impact

Understanding X/R Ratio

The X/R ratio determines the DC offset component of fault current:

$$\frac{X}{R} = \frac{\text{Reactance}}{\text{Resistance}}$$

Typical X/R Ratios:

System Component	Typical X/R Ratio	Impact
Utility source	15-30	High DC offset
Transformers	5-15	Moderate DC offset
Cables (short)	1-3	Low DC offset
Cables (long)	0.5-2	Minimal DC offset
Generators	20-120	Very high DC offset
Motors	10-20	High DC offset

Calculating System X/R Ratio

For series impedances:

$$\left(\frac{X}{R}\right)_{\text{total}} = \frac{\sum X_i}{\sum R_i}$$

Example 2: X/R Ratio Calculation

Given:

• Utility: X = 0.5 Ω, R = 0.03 Ω (X/R = 16.7)
• Transformer: X = 0.11 Ω, R = 0.015 Ω (X/R = 7.3)
• Cable: X = 0.036 Ω, R = 0.027 Ω (X/R = 1.33)

Calculate Total X/R:

$$X_{\text{total}} = 0.5 + 0.11 + 0.036 = 0.646 \text{ Ω}$$ $$R_{\text{total}} = 0.03 + 0.015 + 0.027 = 0.072 \text{ Ω}$$ $$\frac{X}{R} = \frac{0.646}{0.072} = 8.97 \approx 9$$

Impact on Circuit Breaker Selection

X/R ratio affects breaker performance:

For X/R > 15:

• Higher asymmetrical current
• Longer contact parting time required
• May require breakers with higher ratings
• More severe mechanical stress on contacts

X/R Multiplier Table (ANSI):

X/R Ratio	Multiplier for Asymmetrical Current
0-5	1.0-1.1
5-10	1.1-1.2
10-15	1.2-1.3
15-20	1.3-1.4
20-30	1.4-1.5
30-45	1.5-1.6

Asymmetrical Fault Current Components

DC Offset Component

When a fault occurs, the DC component creates asymmetry in the current waveform:

$$i_{\text{DC}}(t) = \sqrt{2} \times I_f \times \sin(\theta) \times e^{-t/\tau}$$

Where:

• $θ$ = Angle of voltage wave at fault inception
• $τ$ = Time constant = L/R = X/(ωR)

Time Constant Relationship:

$$\tau = \frac{X}{2\pi f R} = \frac{1}{2\pi f} \times \frac{X}{R}$$

At 60 Hz:

$$\tau = \frac{X/R}{377}$$

Peak Asymmetrical Current Formula

The complete asymmetrical current equation:

$$i_{\text{asym}}(t) = \sqrt{2} \times I_f \times \left[\sin(\omega t + \theta) + \sin(\theta) \times e^{-t/\tau}\right]$$

First Peak (Maximum) Asymmetrical Current:

$$I_{\text{peak}} = I_f \times \sqrt{2} \times \sqrt{1 + 2e^{-4\pi t/(X/R)}}$$

For first half-cycle (t = 0.00833 sec at 60 Hz):

$$I_{\text{peak}} = I_f \times \sqrt{2} \times \sqrt{1 + 2e^{-0.209/(X/R)}}$$

Simplified for Circuit Breaker Selection:

$$I_{\text{peak}} = I_f \times K_{\text{peak}}$$

Where $K_{peak}$ depends on X/R ratio:

X/R Ratio	$K_{peak}$ Factor	Peak Current Multiplier
2	2.00	1.41 × symmetrical
5	2.30	1.63 × symmetrical
10	2.54	1.80 × symmetrical
15	2.67	1.89 × symmetrical
20	2.74	1.94 × symmetrical

Example 3: Asymmetrical Current Calculation

Using the 37 kA symmetrical current from Example 1 with X/R = 9:

Peak Asymmetrical Current: For X/R = 9, $K_{peak}$ ≈ 2.50

$$I_{\text{peak}} = 37 \text{ kA} \times 2.50 = 92.5 \text{ kA peak}$$

RMS Asymmetrical Current (first cycle):

$$I_{\text{asym,rms}} = 37 \times 1.2 = 44.4 \text{ kA}$$

Breaker Requirements:

• Interrupting rating: ≥ 37 kA symmetrical
• Momentary rating: ≥ 92.5 kA peak (or 44.4 kA RMS asymmetrical)
• Selected breaker: 50 kA interrupting, 130 kA momentary (at X/R ≤ 17)

Fault Current Decay: Subtransient, Transient, and Steady-State

Three Stages of Fault Current

1. Subtransient Period (0-2 cycles)

• Highest magnitude: Includes full DC offset
• Duration: 0.017-0.033 seconds at 60 Hz
• Characteristics: Generator subtransient reactance (X"d)
• Breaker duty: Must interrupt during this period

$$I''_f = \frac{V}{X''_d}$$

2. Transient Period (2-30 cycles)

• Medium magnitude: DC offset decaying
• Duration: 0.033-0.5 seconds
• Characteristics: Generator transient reactance (X'd)

$$I'_f = \frac{V}{X'_d}$$

3. Steady-State Period (>30 cycles)

• Lowest magnitude: DC offset gone
• Duration: After 0.5 seconds
• Characteristics: Generator synchronous reactance (Xd)

$$I_f = \frac{V}{X_d}$$

Typical Generator Reactances

Generator Rating	X"d (pu)	X'd (pu)	Xd (pu)
Small (< 10 MVA)	0.12-0.20	0.20-0.30	1.0-1.5
Medium (10-100 MVA)	0.15-0.25	0.25-0.40	1.5-2.5
Large (> 100 MVA)	0.18-0.30	0.30-0.50	2.0-3.0

Circuit Breaker Ratings and Selection

Understanding Breaker Ratings

Critical Ratings:

1. Continuous Current Rating

   • Normal operating current
   • Typically 80% loading maximum

2. Interrupting Rating (ANSI) / Short-Circuit Breaking Capacity (IEC)

   • Maximum fault current breaker can safely interrupt
   • Symmetrical basis for ANSI
   • Must exceed available fault current

3. Momentary Rating / Short-Time Withstand (IEC)

   • Maximum peak current breaker can withstand
   • Includes asymmetrical component
   • Typically 2.6-2.7 × interrupting rating

4. Voltage Rating

   • Maximum system voltage
   • Must equal or exceed system voltage

Standard Breaker Ratings (Low Voltage)

Frame Size	Continuous (A)	Interrupting (kA at 480V)	Applications
100 AF	15-100	10-25	Lighting, small loads
225 AF	125-225	25-42	Branch circuits
400 AF	250-400	42-65	Feeders, sub-panels
600 AF	400-600	65-100	Large feeders
800 AF	600-800	65-100	Main distribution
1200 AF	800-1200	85-200	Service entrance

Selection Criteria Checklist

Step-by-Step Selection:

1. ✓ Calculate available fault current (symmetrical)
2. ✓ Determine X/R ratio
3. ✓ Calculate asymmetrical current if X/R > 15
4. ✓ Select breaker with interrupting rating ≥ fault current × 1.25
5. ✓ Verify momentary rating ≥ peak asymmetrical current
6. ✓ Check voltage rating matches system
7. ✓ Confirm continuous rating ≥ maximum load current
8. ✓ Verify short-circuit current rating (SCCR) of equipment

Example 4: Complete Breaker Selection

System Parameters:

• Available fault current: 42 kA symmetrical
• X/R ratio: 12
• System voltage: 480V, 3-phase
• Load current: 600 A continuous

Selection Process:

Step 1: Apply Safety Factor Required interrupting rating = 42 kA × 1.25 = 52.5 kA

Step 2: Calculate Asymmetrical Multiplier

• For X/R = 12, multiplier ≈ 1.25
• Peak current = 42 × 2.6 = 109.2 kA peak

Step 3: Select Breaker Choose 800 AF frame:

• Continuous rating: 800 A (> 600 A) ✓
• Interrupting rating: 65 kA (> 52.5 kA) ✓
• Momentary rating: 130 kA (> 109.2 kA) ✓
• Voltage rating: 600V (> 480V) ✓

IEC 60909 vs. ANSI Calculation Methods

Key Differences

Aspect	IEC 60909	ANSI/IEEE
Voltage Factor	Uses c factor (1.05-1.10)	Uses actual voltage
Generator Model	Detailed impedance variation	Simplified constant impedance
Motor Contribution	Considers decay explicitly	Uses multipliers
Results	Generally more conservative	Typically lower values
Application	Europe, international	North America

IEC 60909 Voltage Factor (c Factor)

$$I_f = \frac{c \times U_n}{\sqrt{3} \times Z}$$

Voltage Factor Selection:

System Condition	c Factor	Application
Maximum fault current	1.05-1.10	Equipment rating
Minimum fault current	0.95-1.00	Protection setting
Low voltage (< 1 kV)	1.05	Typical
Medium voltage (1-35 kV)	1.10	Maximum

When to Use Each Method

Use IEC 60909:

• International projects
• European equipment specifications
• Conservative design approach
• Compliance with IEC standards

Use ANSI/IEEE:

• North American installations
• NEC compliance required
• Utility interconnection
• ANSI device selection

Practical Applications and Safety

Arc Flash Considerations

Short circuit current directly impacts arc flash hazard analysis:

Arc Flash Incident Energy:

$$E = 4.184 \times C_f \times E_n \times \frac{t}{0.2} \times \left(\frac{610^x}{D^x}\right)$$

Where:

• $C_f$ = Calculation factor (1.0 for IEC, varies for IEEE)
• $E_n$ = Incident energy
• $t$ = Arc duration (seconds)
• $D$ = Working distance (mm)
• $x$ = Distance exponent

Higher fault currents = Higher incident energy = Greater hazard

Protection Coordination

Proper fault current analysis enables protection coordination:

1. Upstream devices (higher current rating)
2. Downstream devices (lower current rating)
3. Coordination time interval (0.2-0.4 seconds)
4. Selective tripping to isolate faults

Documentation Requirements

Essential Documentation:

• Single-line diagrams with fault current values
• Impedance data tables
• Calculation worksheets
• Breaker rating schedules
• Arc flash labels
• As-built modifications

Common Calculation Mistakes

Mistake 1: Ignoring Motor Contribution

• Problem: Neglecting induction motor contribution to fault current
• Impact: Underestimated fault levels
• Solution: Include motors > 50 HP, use 4-6× FLA during subtransient period

Mistake 2: Wrong X/R Ratio

• Problem: Using average X/R instead of calculating actual system value
• Impact: Incorrect asymmetrical current, wrong breaker selection
• Solution: Calculate X/R from actual R and X components

Mistake 3: Forgetting Voltage Correction

• Problem: Using nominal voltage instead of maximum operating voltage
• Impact: Unconservative fault current calculation
• Solution: Use 1.05× nominal voltage for maximum fault current

Mistake 4: Improper Per Unit Base

• Problem: Mixing different base values or forgetting conversions
• Impact: Grossly incorrect results
• Solution: Use consistent base throughout, verify with per unit system guide

Mistake 5: Neglecting Cable Impedance

• Problem: Assuming zero cable impedance for short runs

• Impact: Overestimated fault current

• Solution: Always include cable impedance, especially for low voltage systems

• Download the Voltage Drop & Wire Size Excel Tool

Conclusion: Ensuring Safe Fault Protection

Short circuit current calculations form the foundation of electrical system safety, directly determining whether protective equipment can safely interrupt dangerous fault currents before catastrophic equipment failure or personnel injury occurs. By accurately calculating symmetrical fault currents, accounting for X/R ratio effects on asymmetrical components, and properly selecting circuit breakers and protective devices, you ensure safe, code-compliant electrical installations.

Critical Takeaways:

• Calculate conservatively: Use maximum system voltages and minimum impedances
• Account for X/R ratio: Higher ratios require breakers with higher momentary ratings
• Include all sources: Utility, generators, and large motors contribute to fault current
• Apply safety margins: Minimum 25% margin on interrupting rating selection
• Verify asymmetrical capacity: Check breaker momentary rating against peak current
• Document thoroughly: Maintain calculation records for inspections and future modifications

Whether designing a simple branch circuit or a complex industrial distribution system, accurate fault current analysis is non-negotiable. The consequences of undersized protective equipment—explosive failures, arc flash injuries, and system-wide damage—far outweigh the time invested in proper calculations.

Ready to implement safe protection schemes? Combine these fault calculations with voltage drop analysis, transformer sizing, and proper grounding for complete electrical system design.

---

🔗 Related Posts

• Circuit Breaker Sizing: Complete Guide with NEC Requirements
• Per Unit System: Complete Calculation Guide
• Transformer Sizing with Impedance Calculations
• Grounding and Earthing: Complete Protection Guide
• Voltage Drop: Calculations and Tables
• Three Phase Power Systems

Helpful Calculators

• Voltage Drop Calculator
• Ohm's Law Calculator
• Power Factor Calculator
• Capacitor and Inductor Reactance Calculator

Professional Standards

• IEC 60909: Short-circuit current calculations
• ANSI/IEEE C37 series: Circuit breakers and switchgear
• IEEE 1584: Arc flash hazard calculation
• NFPA 70E: Electrical safety in the workplace

---

Credits

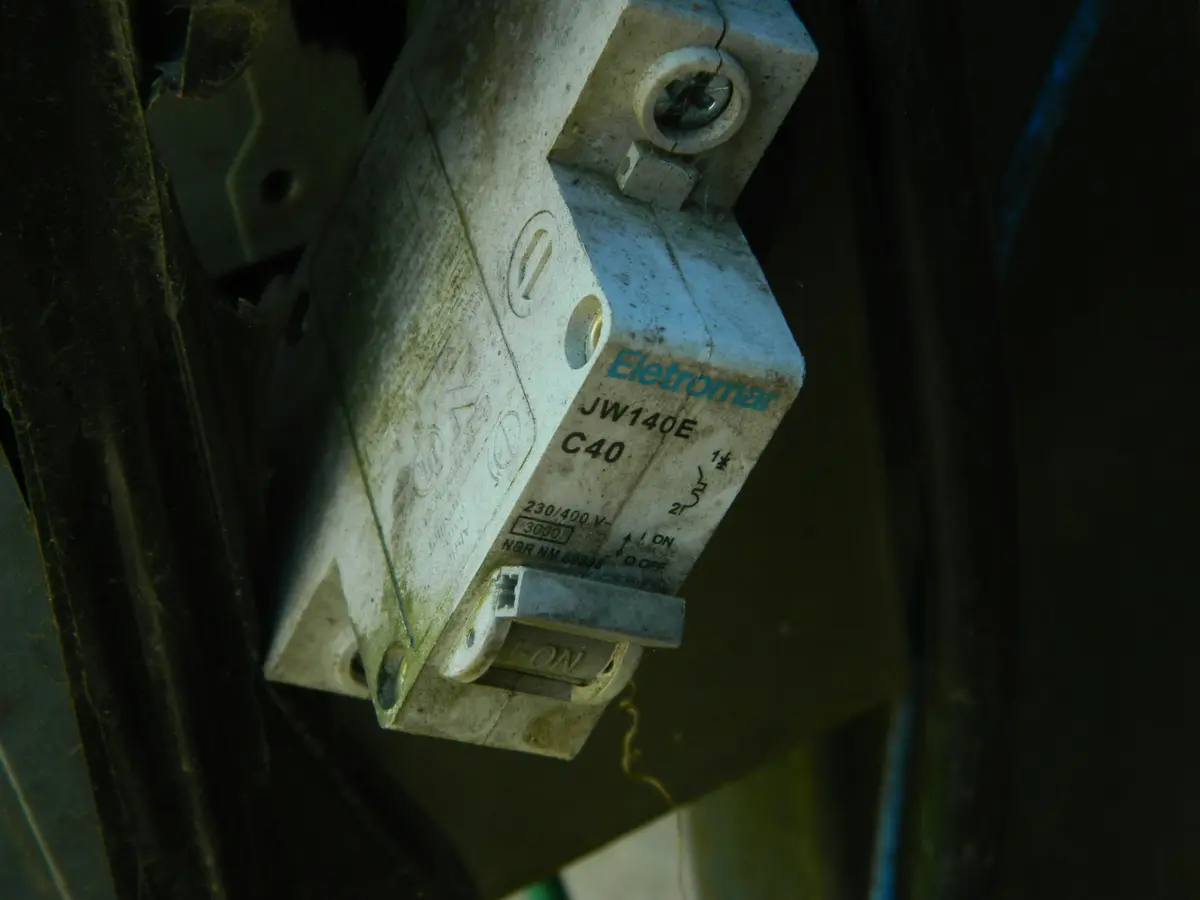

• Photo by ashinJPG on Unsplash

---
